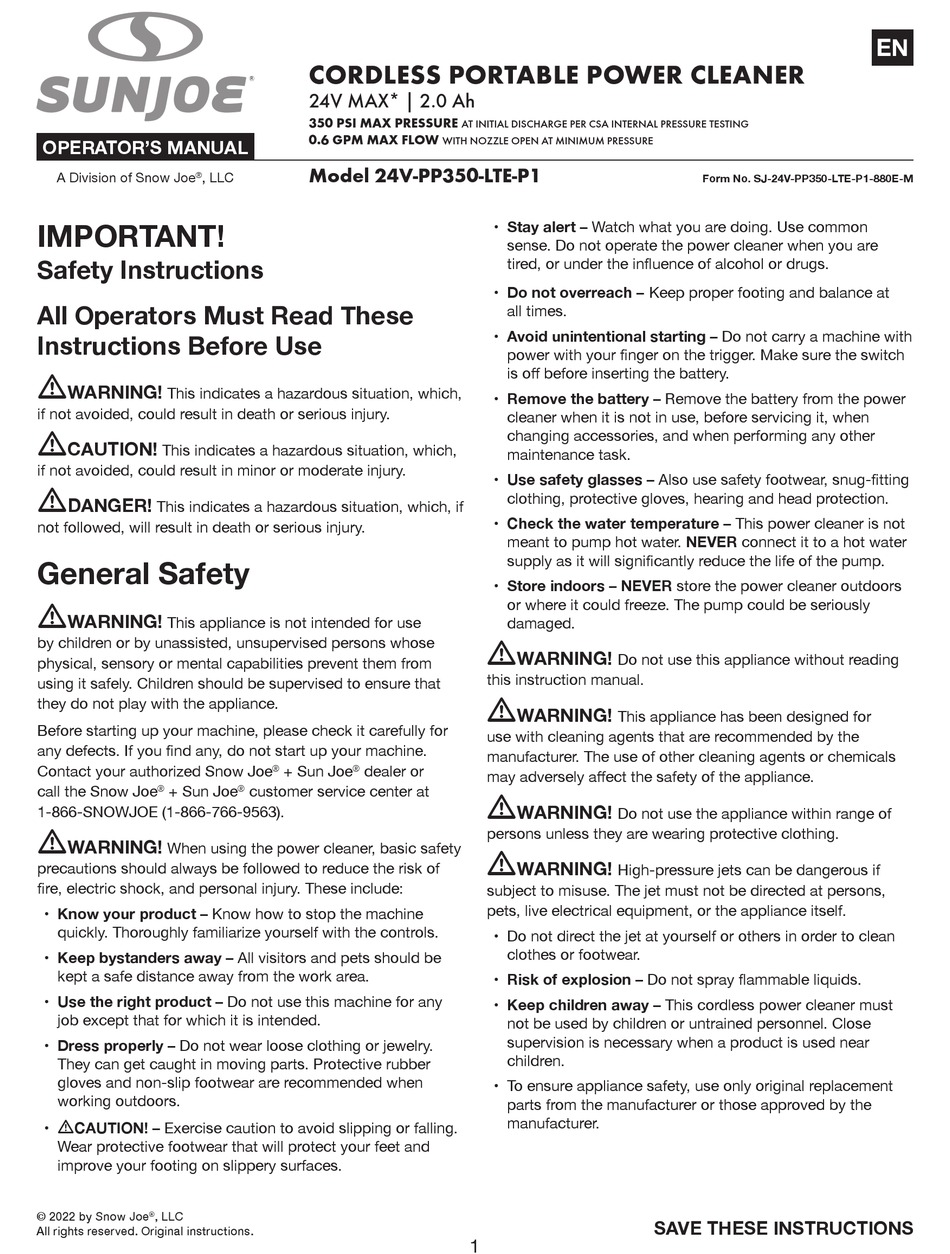

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
m
WARNING!
This indicates a hazardous situation, which,
if not avoided, could result in death or serious injury.
m
CAUTION!
This indicates a hazardous situation, which,
if not avoided, could result in minor or moderate injury.
m
DANGER!
This indicates a hazardous situation, which, if
not followed, will result in death or serious injury.
General Safety
m
WARNING!
This appliance is not intended for use
by children or by unassisted, unsupervised persons whose
physical, sensory or mental capabilities prevent them from
using it safely. Children should be supervised to ensure that
they do not play with the appliance.
Before starting up your machine, please check it carefully for
any defects. If you find any, do not start up your machine.
Contact your authorized Snow Joe
call the Snow Joe
+ Sun Joe
®
1-866-SNOWJOE (1-866-766-9563).
m
WARNING!
When using the power cleaner, basic safety
precautions should always be followed to reduce the risk of
fire, electric shock, and personal injury. These include:
• Know your product – Know how to stop the machine
quickly. Thoroughly familiarize yourself with the controls.
• Keep bystanders away – All visitors and pets should be
kept a safe distance away from the work area.
• Use the right product – Do not use this machine for any
job except that for which it is intended.
• Dress properly – Do not wear loose clothing or jewelry.
They can get caught in moving parts. Protective rubber
gloves and non-slip footwear are recommended when
working outdoors.
CAUTION! – Exercise caution to avoid slipping or falling.
m
Wear protective footwear that will protect your feet and
improve your footing on slippery surfaces.
© 2022 by Snow Joe
, LLC
®
All rights reserved. Original instructions.

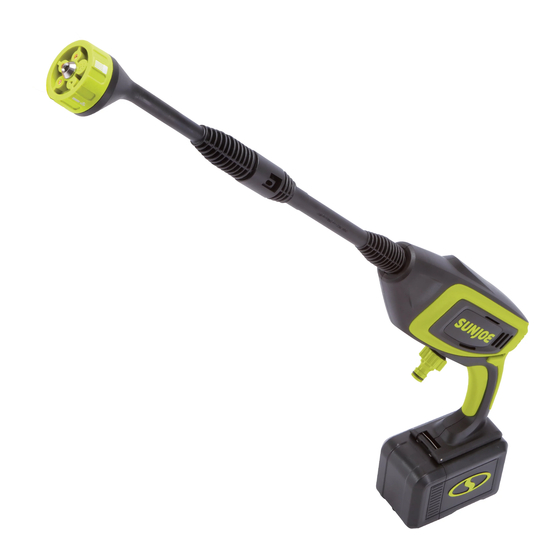

CORDLESS PORTABLE POWER CLEANER
R
24V MAX* | 2.0 Ah
350 PSI MAX PRESSURE
0.6 GPM MAX FLOW
Model 24V-PP350-LTE-P1
+ Sun Joe
dealer or
®
®
customer service center at
®
AT INITIAL DISCHARGE PER CSA INTERNAL PRESSURE TESTING
WITH NOZZLE OPEN AT MINIMUM PRESSURE
• Stay alert – Watch what you are doing. Use common
sense. Do not operate the power cleaner when you are
tired, or under the influence of alcohol or drugs.
• Do not overreach – Keep proper footing and balance at
all times.
• Avoid unintentional starting – Do not carry a machine with
power with your finger on the trigger. Make sure the switch
is off before inserting the battery.
• Remove the battery – Remove the battery from the power
cleaner when it is not in use, before servicing it, when
changing accessories, and when performing any other
maintenance task.
• Use safety glasses – Also use safety footwear, snug-fitting
clothing, protective gloves, hearing and head protection.
• Check the water temperature – This power cleaner is not
meant to pump hot water. NEVER connect it to a hot water
supply as it will significantly reduce the life of the pump.
• Store indoors – NEVER store the power cleaner outdoors
or where it could freeze. The pump could be seriously
damaged.
m
WARNING!
Do not use this appliance without reading
this instruction manual.
m
WARNING!
This appliance has been designed for
use with cleaning agents that are recommended by the
manufacturer. The use of other cleaning agents or chemicals
may adversely affect the safety of the appliance.
m
WARNING!
Do not use the appliance within range of
persons unless they are wearing protective clothing.
m
WARNING!
High-pressure jets can be dangerous if
subject to misuse. The jet must not be directed at persons,
pets, live electrical equipment, or the appliance itself.
• Do not direct the jet at yourself or others in order to clean
clothes or footwear.
• Risk of explosion – Do not spray flammable liquids.
• Keep children away – This cordless power cleaner must
not be used by children or untrained personnel. Close
supervision is necessary when a product is used near
children.
• To ensure appliance safety, use only original replacement
parts from the manufacturer or those approved by the
manufacturer.
1
Form No. SJ-24V-PP350-LTE-P1-880E-M
SAVE THESE INSTRUCTIONS
EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the SUNJOE 24V-PP350-LTE-P1 and is the answer not in the manual?

Questions and answers

Summary of Contents for SNOWJOE SUNJOE 24V-PP350-LTE-P1

  • Page 1 Snow Joe + Sun Joe customer service center at ® ® WARNING! 1-866-SNOWJOE (1-866-766-9563). Do not use the appliance within range of persons unless they are wearing protective clothing. WARNING! When using the power cleaner, basic safety WARNING!
  • Page 2 medical help. Liquid ejected from the battery may cause WARNING! During cleaning, maintenance or when irritation or burns. replacing parts, the machine must be disconnected from its 7. Do not use a battery pack or appliance that is damaged power source by removing the battery. or modified.
  • Page 3 ® ® explosive atmospheres (gaseous fumes, dust or flammable 1-866-SNOWJOE (1-866-766-9563) for assistance. materials) because sparks may be generated when • Battery chemicals cause serious burns – Never let a connecting or disconnecting the battery pack, which could damaged battery pack contact the skin, eyes or mouth.
  • Page 4 ® ® ® with batteries that have been overheated – replace them customer service center at 1-866-SNOWJOE immediately, if possible. (1-866-766-9563). 7. Store the charger and your cordless tool only in dry 3. Electrical plugs must match the outlet. Never modify locations with an ambient temperature of 41ºF –...
  • Page 5 Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand, SAFETY ALERT –...
  • Page 6 Know Your Cordless Portable Power Cleaner Read the owner’s manual and safety instructions carefully before operating the cordless portable power cleaner. Compare the illustration below to the cordless portable power cleaner in order to familiarize yourself with the location of the various controls and adjustments.
  • Page 7 + Sun Joe customer service center at ® ® 50/60 Hz, 0.4 A 1-866-SNOWJOE (1-866-766-9563). Charger Output ........26 V DC 450 mA NOTE: Do not discard the shipping carton and packaging Charge Time Max ....... 5 hours material until you are ready to use your new cordless Motor ..........
  • Page 8 NOTE: If the charge level button does not appear to be Fig. 2 working, connect to the charger and charge as needed. NOTE: Immediately after using the battery pack, the charge level button may display a lower charge than it will if checked a few minutes later.
  • Page 9 Wands Assembly Connect to Water Source NOTE: The portable power cleaner is equipped with two The power cleaner can be connected with spigot by a regular wands: the spray wand and the extension wand. To connect garden hose with the included garden hose adapter, and the wands, follow the instruction below.
  • Page 10 Fig. 6 Fig. 8 Siphon hose adapter Garden hose adapter Battery compartment Garden hose cover Battery 2. If connected with a spigot, turn the water supply tap on 2. Attach the other end of the garden hose to water supply completely.
  • Page 11 2. Select the right spray pattern for the job (Fig. 10). 3. Twist the nozzle collar to align the symbol of the desired spray pattern with the mark on the nozzle (Fig. 11). Fig. 10 Fig. 11 Align with the mark Multi-spray nozzle 4.
  • Page 12 Maintenance Fig. 13 CAUTION! Before working on the power cleaner, remove the battery from the compartment. Feather bristle utility brush attachment 1. To ensure good performance, check and clean the water inlet filter on the end of the siphon hose. Remove and disassemble the filter and rinse all components with warm water to prevent any foreign matter from clogging the pump (Figs.
  • Page 13 ® ® waste. Use separate collection facilities. 1-866-SNOWJOE (1-866-766-9563). • Contact your local government agency for information Model + Serial Numbers regarding the collection systems available. • If appliances are disposed of in landfills or dumps,...
  • Page 14 24V iON+ Lithium-Ion Charger (XZ2600-0450) Federal Communications Commission (FCC) WARNING! Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Class B device: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 15 Optional Accessories WARNING! ALWAYS use only authorized Snow Joe + Sun Joe replacement parts and accessories. NEVER use ® ® replacement parts or accessories that are not intended for use with this cordless power cleaner. Contact Snow Joe ® Sun Joe if you are unsure whether it is safe to use a particular replacement part or accessory with your power cleaner.
  • Page 16 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ® service center at 1-866-SNOWJOE (1-866-766-9563).
  • Page 17 This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State. PRODUCT REGISTRATION: Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at help@snowjoe.com.
  • Page 19 Snow Joe + Sun Joe llamando este manual de instrucciones. ® ® al 1-866-SNOWJOE (1-866-766-9563). ¡ADVERTENCIA! Este artefacto ha sido diseñado ¡ADVERTENCIA! Al usar este limpiador motorizado para su uso con agentes de limpieza recomendados por el inalámbrico, se deberán tomar siempre precauciones básicas...
  • Page 20 • Riesgo de explosión: no rocíe líquidos inflamables. 4. Use artefactos a batería solo con baterías específicamente diseñadas para éstos. El uso de cualquier otra batería • Mantenga alejados a los niños: este limpiador motorizado puede causar un incendio o lesiones personales. no debe ser usado por niños ni personas no capacitadas.
  • Page 21 + Sun Joe ® ® es de 41°F (5°C) a 105ºF (40.5°C). No cargue la batería llamando al 1-866-SNOWJOE (1-866-766-9563) para en exteriores a temperaturas congelantes. Cárguela a obtener ayuda. temperatura ambiente en interiores. • Los químicos de la batería causan quemaduras severas: •...
  • Page 22 80% de comuníquese con la central de servicio al cliente su capacidad inicial, cuando estaba nueva. Las celdas Snow Joe + Sun Joe llamando al 1-866-SNOWJOE ® ® debilitadas en una batería gastada no cumplirán con los (1-866-766-9563).
  • Page 23 12. Nunca descargue por completo la batería (se recomienda una profundidad de descarga de un 80%). Una descarga completa de la batería causará un envejecimiento prematuro de las celdas de la batería. Protección contra influencias del entorno 1. Use ropa de trabajo adecuada. Use gafas protectoras. 2.
  • Page 24 Símbolos de seguridad La siguiente tabla muestra y describe los símbolos de seguridad que pueden aparecer en este producto. Lea, comprenda y siga todas las instrucciones relacionadas con esta máquina antes de intentar ensamblarla y operarla. Símbolo Descripción Símbolo Descripción LEA EL(LOS) MANUAL(ES) DEL OPERADOR: lea, comprenda y ALERTA DE SEGURIDAD: indica...
  • Page 25 Conozca su limpiador motorizado portátil inalámbrico. Lea detenidamente el manual del operador y las instrucciones de seguridad antes de operar este limpiador motorizado portátil inalámbrico. Compare la ilustración debajo con el limpiador motorizado portátil inalámbrico para familiarizarse con las ubicaciones de los diversos controles y ajustes. Conserve este manual para futuras referencias. 9 10 1.
  • Page 26 Snow Joe + Sun Joe Salida del cargador ........ 26 V DC ® ® llamando al 1-866-SNOWJOE (1-866-766-9563). 450 mA Tiempo máximo ........5 hr NOTA: no se deshaga de la caja de transporte ni de de carga de batería los materiales de embalaje hasta que usted esté...
  • Page 27 NOTA: si el botón de nivel de carga no parece funcionar, 2. Compruebe que el voltaje de la red eléctrica sea el mismo que el indicado en la placa de especificaciones conecte la batería al cargador y cargue según se requiera. del cargador de la batería.
  • Page 28 Ensamblado Fig. 4 ¡ADVERTENCIA! Para evitar lesiones personales severas, lea y entienda todas las instrucciones de seguridad proporcionadas. ¡ADVERTENCIA! No inserte la batería hasta que el ensamblado haya sido completado. El incumplimiento de esta advertencia puede resultar en un encendido accidental que Vara de extensión cause lesiones personales severas.
  • Page 29 Operación NOTA: asegúrese de que la manguera esté conectada de forma segura. Jale delicadamente la conexión de la manguera para confirmar que no se saldrá. Encendido del limpiador motorizado 2. Meta el otro extremo con el filtro en una cubeta de agua 1.
  • Page 30 V) Use el patrón de rociado de regadera para limpiezas ¡PRECAUCIÓN! NUNCA cambie el patrón de rociado ligeras y regado de plantas. sin antes detener el limpiador motorizado portátil y retirarle la 3. Gire el collar de la boquilla para alinear el símbolo del batería.
  • Page 31 Mantenimiento Fig. 13 ¡PRECAUCIÓN! Antes de trabajar en el limpiador motorizado portátil, retire la batería de su compartimiento. Cepillo multiuso de 1. Para garantizar un buen rendimiento, inspeccione y limpie cerdas suaves el filtro de entrada de agua en el extremo de la manguera de sifón.
  • Page 32 ® ® el agua subterránea y entrar en la cadena alimentaria, al 1-866-SNOWJOE (1-866-766-9563). dañando su salud y bienestar. Modelo y número de serie • Al reemplazar artefactos viejos con nuevos, el vendedor está obligado legalmente a aceptar su artefacto antiguo Al comunicarse con la empresa, ordenar partes de repuesto para su eliminación, sin costo alguno por parte de usted.
  • Page 33 Cargador de batería de iones de litio iON+ de 24 V (XZ2600-0450) Federal Communications Commission (Comisión Federal de Comunicaciones o FCC): ¡ADVERTENCIA! Cualquier cambio o modificación a esta unidad no aprobados expresamente por la parte responsable del cumplimiento pueden hacer que el usuario pierda el derecho de utilizar el equipo.
  • Page 34 Accesorios opcionales ¡ADVERTENCIA! USE SIEMPRE solo partes de repuesto y accesorios Snow Joe + Sun Joe . Nunca use partes de ® ® repuesto o accesorios que no estén destinados para su uso con este limpiador motorizado portátil. Comuníquese con la central de servicio al cliente de Snow Joe + Sun Joe si tiene dudas sobre si es seguro usar una parte de repuesto o accesorio en...
  • Page 35 + Sun Joe de notificar sobre ® ® dichos cambios. Los accesorios pueden ser pedidos en línea en sunjoe.com o vía telefónica llamando a la central de servicio al cliente Snow Joe + Sun Joe al 1-866-SNOWJOE (1-866-766-9563). ® ®...
  • Page 36 Web, llamando a nuestra central de servicio al cliente al 1-866-SNOWJOE (1-866-766-9563), o enviándonos un e-mail a help@snowjoe.com. Si usted no registra su Producto sus derechos de garantía no disminuirán; sin embargo, registrar su Producto permitirá que Snow Joe le pueda atender mejor si usted tiene alguna necesidad como cliente.
