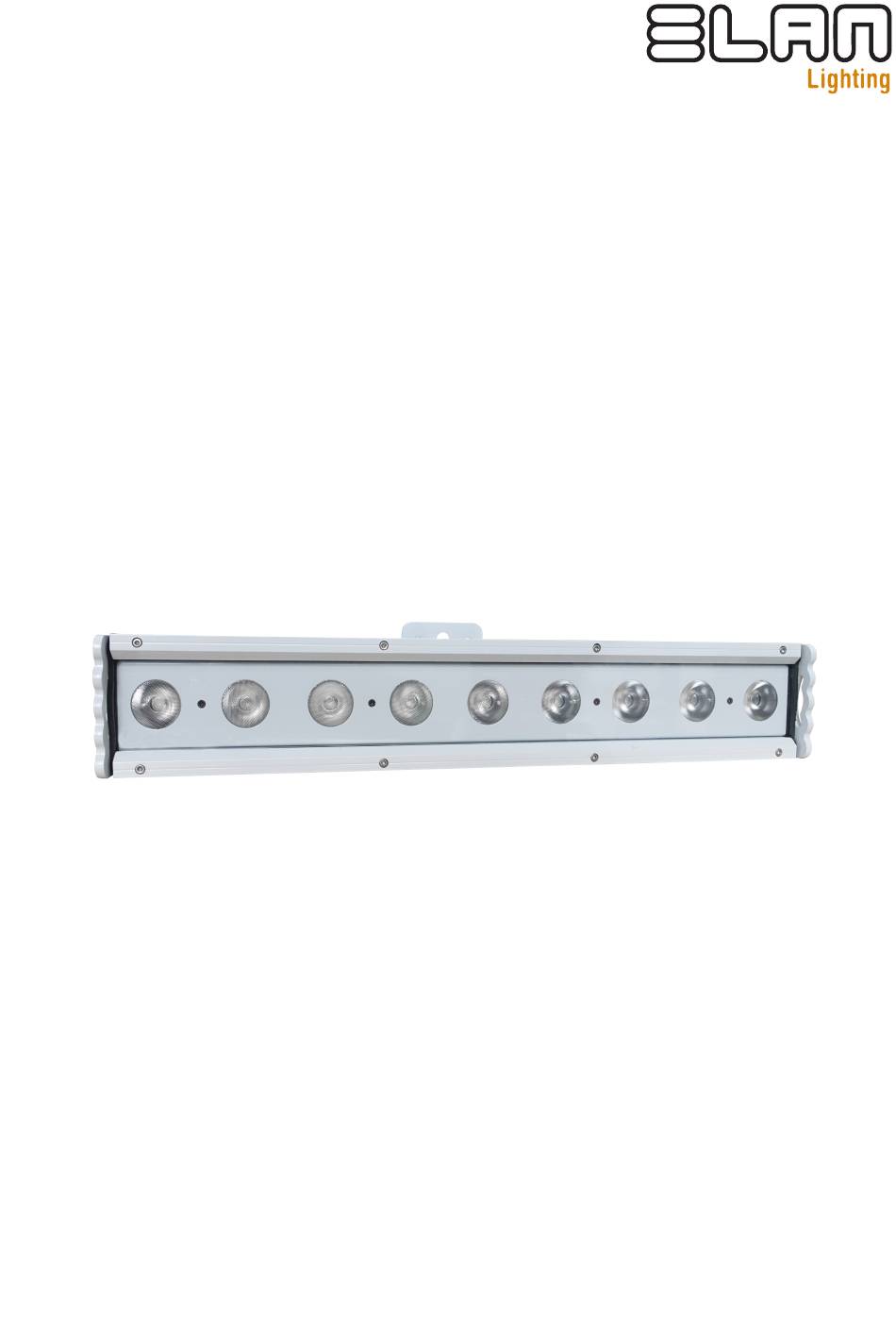

CLASSICBAR 951
USER'S MANUAL
Thank you for purchasing the CLASSICBAR 951. Every suit has been thoroughly
tested and shipped in perfect condition. Carefully check the shipping carton for damage
that may have occurred during shipping. If the carton appears to be damaged, carefully
inspect your unit for any damage and be sure all accessories necessary to operate
the unit has arrived intactly. In the case damage has been found or parts are missing,
please contact Acson Comercial or your local supplier for further instructions. Do not
return this unit without any warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLASSICBAR 951 and is the answer not in the manual?

Questions and answers

Summary of Contents for ELAN Lighting CLASSICBAR 951

  • Page 1 CLASSICBAR 951 USER’S MANUAL Thank you for purchasing the CLASSICBAR 951. Every suit has been thoroughly tested and shipped in perfect condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for any damage and be sure all accessories necessary to operate the unit has arrived intactly.

  • Page 2: Table Of Contents

    Contents 1. Introduction ....................... 3 2. General Instructions ..................3 3. Safety Precautions .................... 3 4. Set Up ......................... 4 5. Operating Instructions ..................4 DMX Mode ....................5 Touch Buttons ....................5 LED Operation Menu ..................5 LED Display ....................5 6.

  • Page 3: Introduction

    1. Introduction Warning! To prevent or reduce the risk of electrical shock or fire, Do not expose this to rain or moisture. Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself; doing so will void your manufacturer warranty. In the unli- kely event your unit may require service please contact the manufacturer or your dealer.

  • Page 4: Set Up

    Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6” (15cm) be- tween this device and a wall. Do not attempt to operate this unit, if it becomes damaged. This unit is intended for indoor use only; use of this product outdoors voids all warranties. During long periods of non-use, disconnect the units main power.

  • Page 5: Dmx Mode

    DMX Mode Operating through a DMX controller gives the user the freedom to create their own programs tailored to their own individual needs. This function also allows you to use your units as spot lights. 1. This function will allow you to control each individual unit’s traits with a standard DMX 512 controller. 2.

  • Page 6: Dmx Setup

    6. DMX Setup Operation Mode dOO1 5 Channels R, G, B, W, A, Dimmer, Strobe, R, G, B, W, A, Marco, Fade A001 9 Channels Scroll 5 Channel Mode Channel Function Value 0-255 0-255 0-255 0-255 0-255 9 Channel Mode Channel Function Value...

  • Page 7: Cleaning

    Channel Function Value Blue 158-160 B+R, Red fade in 161-190 R+B+G. Green fade 191-225 Marco R+G+B +A+W, white and Amber 226-255 fade in Fade in and out 0-239 Fade scroll Sound Control 240-255 7. Cleaning Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried out periodically to optimize light output.
  • Page 8 IMPORTANT INFORMATION! In order to optimize the recovery and recycling of the materials that old appliances contain and reduce the impact on human health and the environment, please make sure that this product is recycled at the end of its life. Note: All information is subject to change without prior notice.
