Head Unit Owner's Manual
Model: 2415723

Table of Contents

Wiring the stereo.......................................................................................................pg. 2
Mounting the stereo.................................................................................................pg. 2
General button operation........................................................................................pg. 3
System setup..............................................................................................................pg. 4
Adjusting the brightness...........................................................................................pg. 6
Selecting sources.......................................................................................................pg. 6
AM/FM tuner/Weather Band operation................................................................pg. 7
Bluetooth operation.................................................................................................pg. 9
USB operation...........................................................................................................pg. 10
Selecting the camera view.......................................................................................pg. 12
Specifications.............................................................................................................pg. 12
Warnings.....................................................................................................................pg. XX

Advertisement

Table of Contents
loading

Related Manuals for JBL 2415723

Summary of Contents for JBL 2415723

  • Page 1: Table Of Contents

    Head Unit Owner’s Manual Model: 2415723 Table of Contents Wiring the stereo………………………………………………………………………………………….pg. 2 Mounting the stereo………………………………………………………………………………….…pg. 2 General button operation………………………………………………………………………….…pg. 3 System setup………………………………………………………………………………………………..pg. 4 Adjusting the brightness……………………………………………………………………………….pg. 6 Selecting sources………………………………………………………………………………………….pg. 6 AM/FM tuner/Weather Band operation……………………………………………………….pg. 7 Bluetooth operation………………………………………………………………………………….…pg. 9 USB operation…………………………………………………………………………………………..…pg. 10 Selecting the camera view……………………………………………………………………………pg.

  • Page 2: Wiring The Stereo

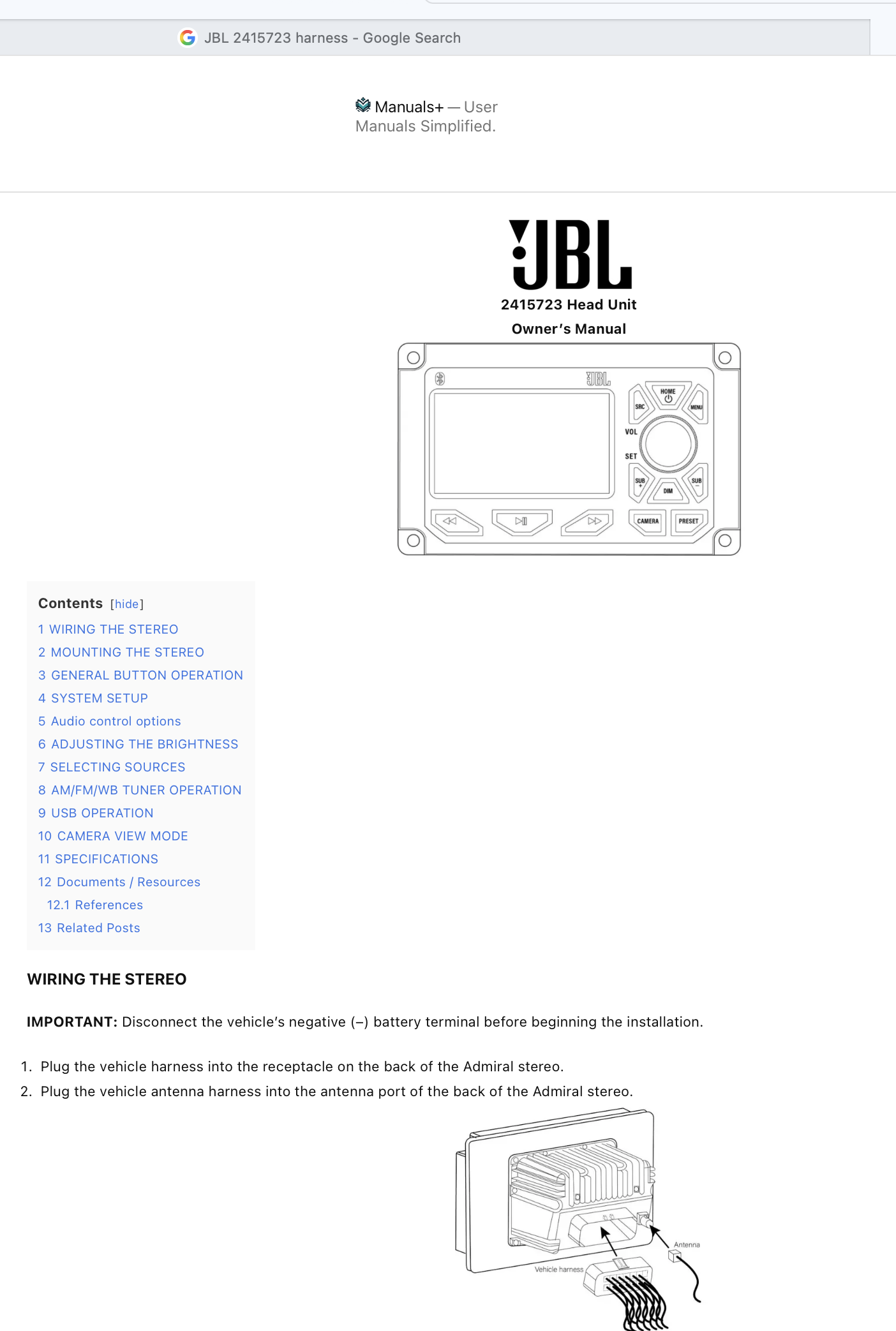

    WIRING THE STEREO IMPORTANT: Disconnect the vehicle’s negative (–) battery terminal before beginning the installation. 1. Plug the vehicle harness into the receptacle on the back of the Admiral stereo. 2. Plug the vehicle antenna harness into the antenna port of the back of the Admiral stereo. MOUNTING THE STEREO Place the stereo against the mounting surface and secure with four sheet metal screws.

  • Page 3: General Button Operation

    GENERAL BUTTON OPERATION 1. Home/Power: turns the stereo on and off, and lets you access the home screen to choose sources. 2. Source: Cycle through sources one at a time. 3. Menu: Lets you return to the previous screen or enter the control menu of the source you’re currently listening to.
  • Page 4 5. DIM: Lets you choose between Day and Night modes and access the brightness settings for the screen and buttons. 6. SUB+: Increases the subwoofer output level. 7. SUB-: Decreases the subwoofer output level. 8. Camera: Lets you display the rear camera view on the screen. 9.

  • Page 5: System Setup

    SYSTEM SETUP Press and hold the VOLUME/ENTER button to enter the settings menu. 1. Press the HOME button to enter the source selection menu. 2. Turn the volume knob until SETUP is highlighted. 3. Then press ENTER. Audio control options 1.
  • Page 6 Fader: Front 10 – Rear 10 (default: 0) Preset EQ: Off, Flat, Jazz, Pop, Classic, Rock, Vocal Loudness: On/Off System options 1. Turn the VOLUME knob to highlight SYSTEM. 2. Press ENTER. 3. Turn the VOLUME knob to highlight the desired system control setting and 4.

  • Page 7: Adjusting The Brightness

    ADJUSTING THE BRIGHTNESS Day/Night modes Press the DIM button to toggle between Day and Night modes (Night mode is 30% darker). Screen and button brightness settings 1. Press and hold DIM to enter the brightness control menu. 2. Turn the VOLUME knob to highlight desired brightness control (LCD or button). 3.
  • Page 8 Press the SRC button to select sources one at a time. AM/FM/WB TUNER OPERATION Tuning stations 1. Press the PREVIOUS and NEXT buttons to seek radio stations in auto tuning mode. 2. Or, press and hold the PREVIOUS or NEXT button to enter manual tuning mode. Selecting preset stations 1.
  • Page 9 Muting the audio Press the PLAY/PAUSE button to mute the audio output. Setting preset stations When listening to a station you would like to save as a preset: 1. Press the MENU button for 3 seconds to pull up the settings menu. 2.

  • Page 10: Bluetooth Operation

    Engaging RDS 1. In the radio settings menu, turn the VOLUME knob to highlight RBDS (Radio Data Service) or TA (Traffic Announcements). 2. Press ENTER to toggle between ON/OFF for RBDS and TA. NOTE: TA can only be turned on if RBDS is on. BLUETOOTH OPERATION Pairing a Bluetooth device 1.

  • Page 11: Usb Operation

    Pausing playback Press the PLAY/PAUSE button to pause or resume playing a track. Connecting or disconnecting a device To connect or disconnect a Bluetooth device: 1. Press the MENU button for 3 seconds to pull up the Bluetooth settings menu. 2.
  • Page 12 Navigating tracks 1. Press the PREVIOUS and NEXT buttons to restart the current track, select a previous track, or jump to the next track. 2. Press and hold the PREVIOUS and NEXT buttons to rewind or fast-forward a track. Pausing playback Press the PLAY/PAUSE button to pause or resume playing a track.

  • Page 13: Specifications

    CAMERA VIEW MODE Camera view will engage automatically when the vehicle is in reverse. To engage camera view when not in reverse, press the CAMERA button, and the image will appear on screen. SPECIFICATIONS Tuner bands AM/FM AM Band for USA 530 - 1710kHz (10kHz STEP) AM Band for Europe 531 - 1602kHz (9kHz STEP)
  • Page 14 Notes: 1. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2.This equipment has been tested and found to comply with the limits for a Class B digital device, pursua nt to part 15 of the FCC Rules.
