Joto KPK-N140U Instruction Manual

TIPS

The Airtight Joto-Vent can be rotated as shown
below to avoid the cross-beam colliding with an
anchor bolt. Make sure that the "Joto" logo is
always facing up.
Anchor Hole Anchor Hole
An anchor bolt hits to a cross member An anchor bolt hits to a cross member
Concrete Foundation Concrete Foundation
Section drawing
Sill Plate Sill Plate
Chalk line Chalk line Chalk line Chalk line
Concrete Foundation Concrete Foundation
Centerline of the still plate Centerline of the still plate
Joto-Vent System USA, Inc.
17530 NE Union Hill Rd Suite 240, Redmond, WA 98052
Tel: (425)-256-2210 Fax: (425)-522-4804
URL: https://joto-vent.com
Joto-Vent System USA, Inc.
4
Concrete Foundation Concrete Foundation
Floor Joist Floor Joist
OSB OSB
Airtight Joto-Vent Airtight Joto-Vent
Sill Plate Sill Plate
Concrete Foundation Concrete Foundation
Manufactured by Manufactured by
Installation Manual

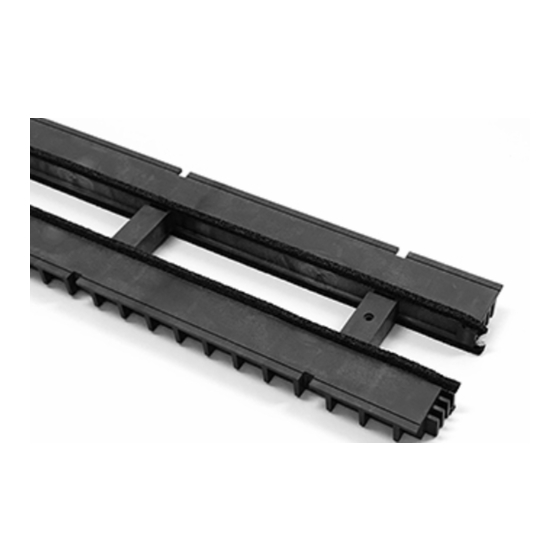

Airtight Joto-Vent
for
Continuous Perimeter Foundation Vent
*
Before installing the products, read this Installation Manual carefully in order to install them properly.
Table of Joto-Vent Air-blocking members
5/16˝(8) 7/8˝(22) 7-7/16˝(189) 7/8˝(22)
5/16˝(8)
5/16˝(8)
Ver1.0 MA21SK
Packing contents
Product No. Remarks
KPK-N140U EPDM Foam Pad : 2sheets
36-3/8˝(924)
35-3/4˝(908)
7-7/16˝(189) 7/8˝(22) 7-7/16˝(189) 7/8˝(22) 6-13/16˝(174)
EPDM Foam ANCHOR HOLE
Package
16pieces/box
7/8˝(22) 2-1/4˝(57) 5/16˝(8)
1-7/8˝(47)
1-3/4˝(45)
1-7/8˝(47)
13/16˝(20)
