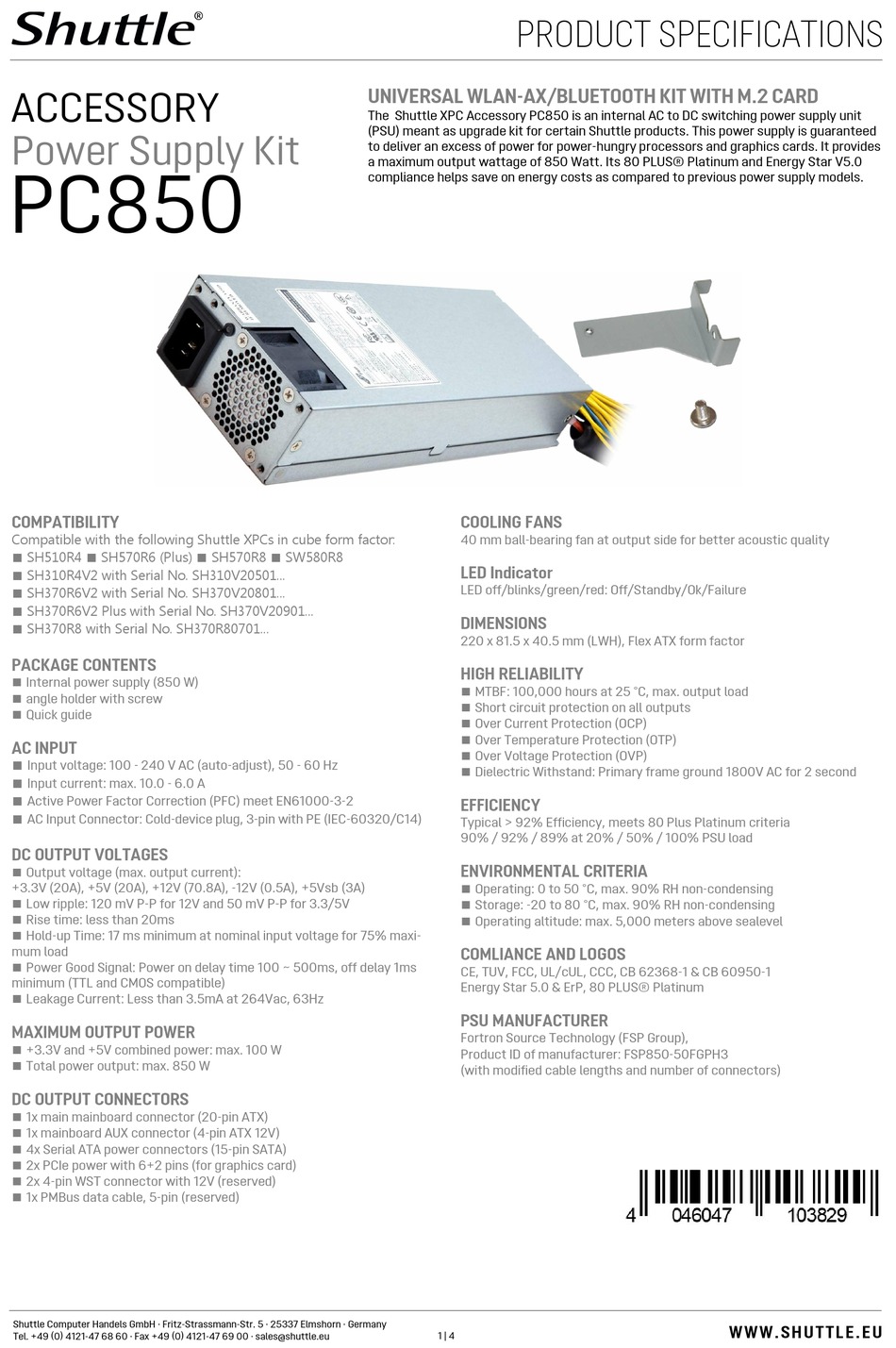

Shuttle PC850 Product Specifications

ACCESSORY
Power Supply Kit
PC850
COMPATIBILITY
Compatible with the following Shuttle XPCs in cube form factor:
◼ SH510R4 ◼ SH570R6 (Plus) ◼ SH570R8 ◼ SW580R8
◼ SH310R4V2 with Serial No. SH310V20501...
◼ SH370R6V2 with Serial No. SH370V20801...
◼ SH370R6V2 Plus with Serial No. SH370V20901...
◼ SH370R8 with Serial No. SH370R80701...
PACKAGE CONTENTS
◼ Internal power supply (850 W)
◼ angle holder with screw
◼ Quick guide
AC INPUT
◼ Input voltage: 100 - 240 V AC (auto-adjust), 50 - 60 Hz
◼ Input current: max. 10.0 - 6.0 A
◼ Active Power Factor Correction (PFC) meet EN61000-3-2
◼ AC Input Connector: Cold-device plug, 3-pin with PE (IEC-60320/C14)
DC OUTPUT VOLTAGES
◼ Output voltage (max. output current):
+3.3V (20A), +5V (20A), +12V (70.8A), -12V (0.5A), +5Vsb (3A)
◼ Low ripple: 120 mV P-P for 12V and 50 mV P-P for 3.3/5V
◼ Rise time: less than 20ms
◼ Hold-up Time: 17 ms minimum at nominal input voltage for 75% maxi-
mum load
◼ Power Good Signal: Power on delay time 100 ~ 500ms, off delay 1ms
minimum (TTL and CMOS compatible)
◼ Leakage Current: Less than 3.5mA at 264Vac, 63Hz
MAXIMUM OUTPUT POWER
◼ +3.3V and +5V combined power: max. 100 W
◼ Total power output: max. 850 W
DC OUTPUT CONNECTORS
◼ 1x main mainboard connector (20-pin ATX)
◼ 1x mainboard AUX connector (4-pin ATX 12V)
◼ 4x Serial ATA power connectors (15-pin SATA)
◼ 2x PCIe power with 6+2 pins (for graphics card)
◼ 2x 4-pin WST connector with 12V (reserved)
◼ 1x PMBus data cable, 5-pin (reserved)
Shuttle Computer Handels GmbH · Fritz-Strassmann-Str. 5 · 25337 Elmshorn · Germany
Tel. +49 ( 0 ) 4121-47 68 60 · Fax +49 ( 0 ) 4121-47 69 00 · sales@shuttle.eu
PRODUCT SPECIFICATIONS
UNIVERSAL WLAN-AX/BLUETOOTH KIT WITH M.2 CARD
The Shuttle XPC Accessory PC850 is an internal AC to DC switching power supply unit
(PSU) meant as upgrade kit for certain Shuttle products. This power supply is guaranteed
to deliver an excess of power for power-hungry processors and graphics cards. It provides
a maximum output wattage of 850 Watt. Its 80 PLUS® Platinum and Energy Star V5.0
compliance helps save on energy costs as compared to previous power supply models.
COOLING FANS
40 mm ball-bearing fan at output side for better acoustic quality
LED Indicator
LED off/blinks/green/red: Off/Standby/Ok/Failure
DIMENSIONS
220 x 81.5 x 40.5 mm (LWH), Flex ATX form factor
HIGH RELIABILITY
◼ MTBF: 100,000 hours at 25 °C, max. output load
◼ Short circuit protection on all outputs
◼ Over Current Protection (OCP)
◼ Over Temperature Protection (OTP)
◼ Over Voltage Protection (OVP)
◼ Dielectric Withstand: Primary frame ground 1800V AC for 2 second
EFFICIENCY
Typical > 92% Efficiency, meets 80 Plus Platinum criteria
90% / 92% / 89% at 20% / 50% / 100% PSU load
ENVIRONMENTAL CRITERIA
◼ Operating: 0 to 50 °C, max. 90% RH non-condensing
◼ Storage: -20 to 80 °C, max. 90% RH non-condensing
◼ Operating altitude: max. 5,000 meters above sealevel
COMLIANCE AND LOGOS
CE, TUV, FCC, UL/cUL, CCC, CB 62368-1 & CB 60950-1
Energy Star 5.0 & ErP, 80 PLUS® Platinum
PSU MANUFACTURER
Fortron Source Technology (FSP Group),
Product ID of manufacturer: FSP850-50FGPH3
(with modified cable lengths and number of connectors)
