Summary of Contents for Telethings LoRaWAN

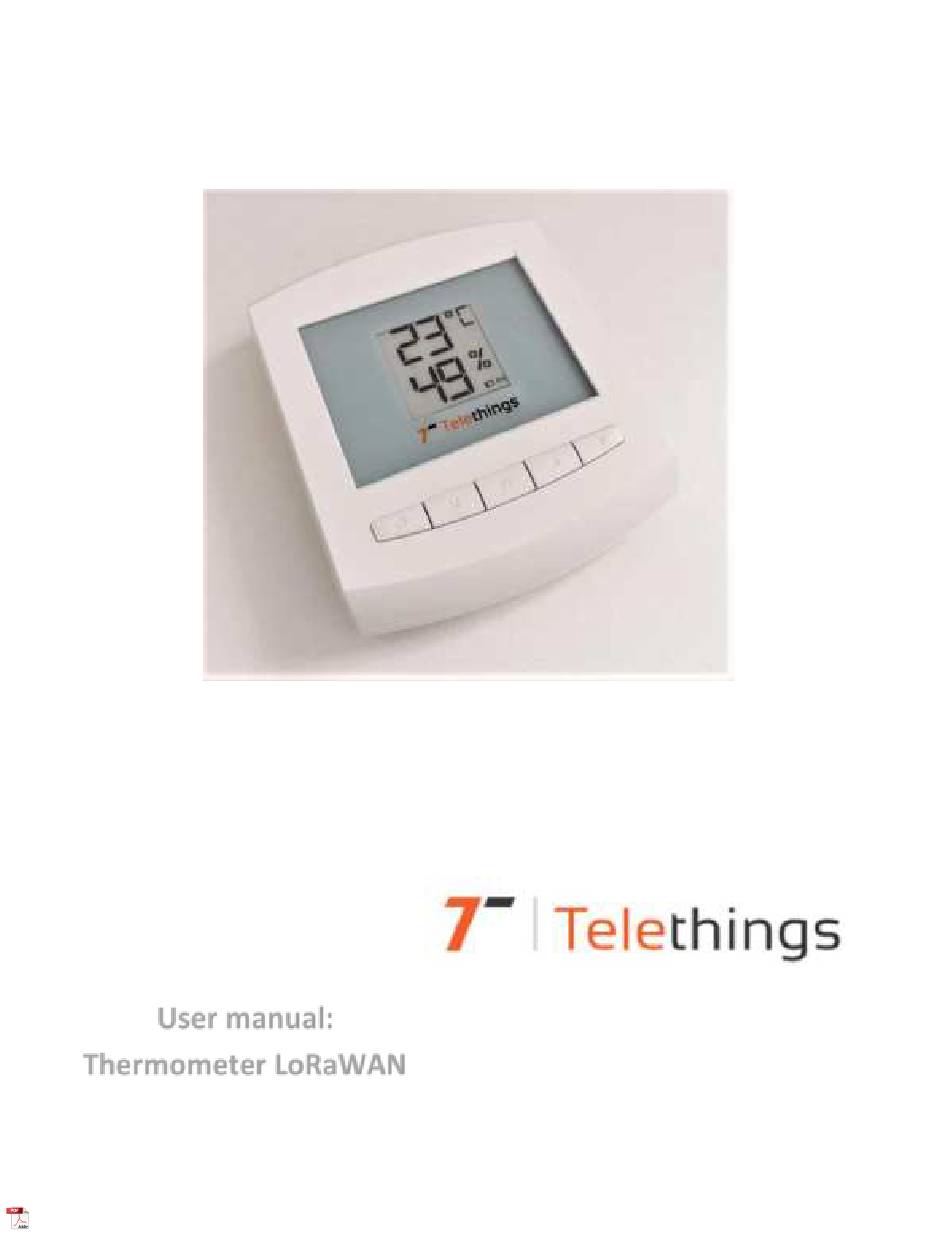

- Page 1 Lejlekuša bb User manual: 75320 Gračanica, Bosna i Hercegovina Thermometer LoRaWAN Tel: +387 35 700 209 Fax: +387 35 700 201 Mail: info@TeleThings.com Web: www.telethings.com...
-
Page 2: Table Of Contents
Thermometar LoRaWAN user manual ....................2 1.1. Basic information / product description ................... 2 1.2. Content of the box ......................... 2 Thermometer user manual ........................3 2.1. Menus for configuring the Thermometer ..................4 2.2. Menu for setting the temperature ....................4 2.3. -
Page 3: Thermometar Lorawan User Manual
1. THERMOMETAR LORAWAN USER MANUAL 1.1. BASIC INFORMATION / PRODUCT DESCRIPTION Thermometer LoRaWAN is a device intented to control heating and/or cooling system, or to control both systems at the same time, as well as displaying humidity percentage on the display. -
Page 4: Thermometer User Manual
2. THERMOMETER USER MANUAL 1 – Current room temperature (°C or °F) 2 – Current room humidity (%) 3 – Low battery indicator 4 – Radio connection indicator 5 – Button „Mode“ for changing menu for Thermometer's 6 – Button ON/OFF settings 7 –... -
Page 5: Menus For Configuring The Thermometer
2.1. MENUS FOR CONFIGURING THE THERMOMETER Besides main view, which shows current temperature and current room humidity, 1. Menu for setting temperature – Pressing the button Mode or pressing button UP/Down Thermometer has got 4 menus for configuring the device: device enters the menu for setting the temperature. -
Page 6: Menu For Changing Measuring Unit
2.3. MENU FOR CHANGING MEASURING UNIT For device to enter menu for changing measuring unit, button Mode must be pressed tree times. To save selected measuring unit, measuring unit must be selected with buttons UP/Down and wait for 3 seconds. Then the device will go back to main view and temperature will be shown in selected measuring unit. -
Page 7: Menu For Showing Current State Of Battery
2.5. MENU FOR SHOWING CURRENT STATE OF BATTERY For device to enter menu for showing current state of battery, button Mode must be pressed five times. This menu shows battery energy in percentages (%) and it's only for information purposes. On picture(Picture 9.), process for displaying battery percentage is shown. Picture 9. -
Page 8: Specification
2.7. SPECIFICATION 2.7.1. THERMOMETER Model name TeleThings Termometar Description Device for measuring and setting the temperature and 0°C - 60°C, with step of 1°C measuring the humidity 5°C – 35°C, with step of 1°C Temperature measuring Setting the temperature Humidity measuring... - Page 9 Scheme of connecting Thermometer with heating and/or cooling system is shown on picture (Picture 10.). Marks A and A are input, or output from Relay intended for heating system. Marks B are input, or output from Relay intended for cooling system.
- Page 10 Except from checking states of humidity and temperatures, over the application on the server user can set desired room temperature. Thermometer communicates with Gateway using LoRaWAN network, while Gateway communicates with application on the server using 3G/Ethernet.
