Summary of Contents for SmartLine Medical SmartPack AIM-1003

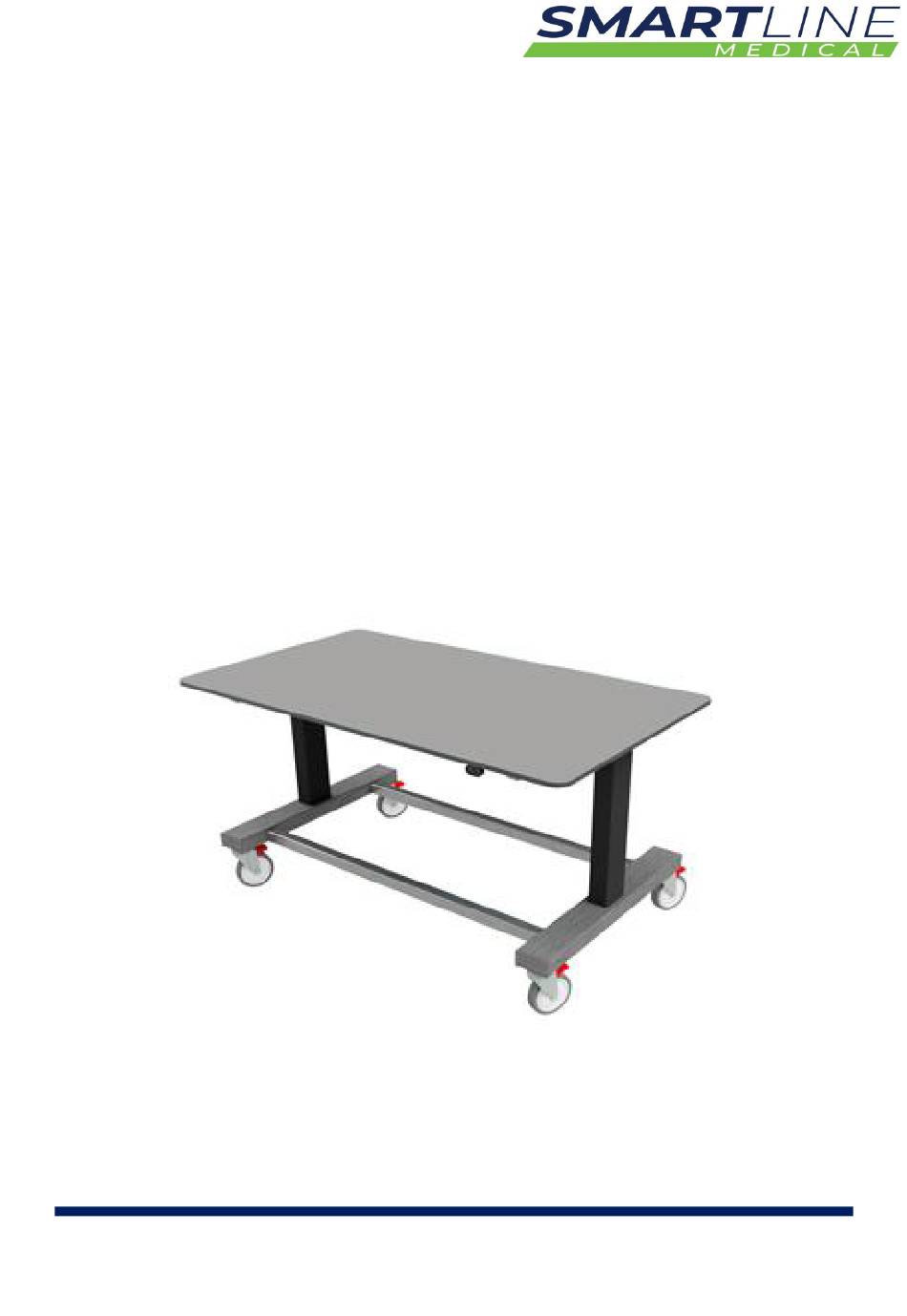

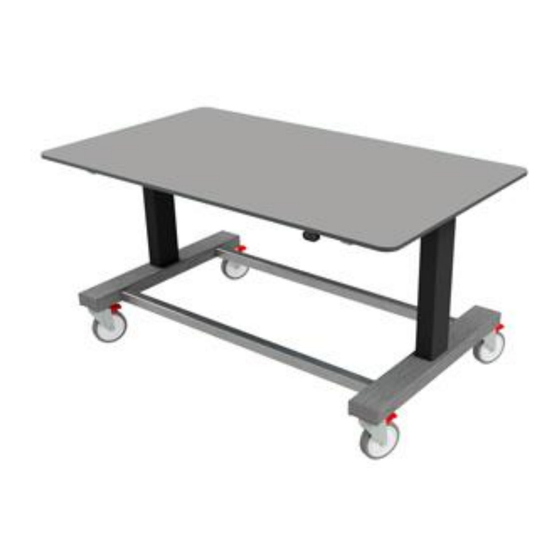

- Page 1 SmartPack HEIGHT ADJUSTABLE TABLE BASE TABLE ASSEMBLY INSTRUCTIONS IMPORTANT: READ WARNING AND INSTRUCTION MANUAL BEFORE ATTEMPTING ASSEMBLY AIM-1003 TABLE ASSEMBLY MANUAL RELEASE DATE: 08/07/2022 VERSION: 3...
-
Page 2: Warning And Disclaimer
WARNING AND DISCLAIMER IMPORTANT: READ THIS WARNING BEFORE ATTEMPTING ASSEMBLY WARNING: This product contains laser-cut metal components that may have sharp edges. Please take care when assembling these parts and wear light leather gloves, long sleeved shirt, long trousers and closed footwear to protect your body against possible cuts. DISCLAIMER: To the full extent permitted by law, Smartline Machinery Pty Ltd, its Related Bodies Corporate, their officers and employees are not liable for any injuries sustained while assembling or using this SmartPack Table. -
Page 3: Packaging Contents
PACKAGING CONTENTS • One table package consisting of: 1 x Table Top and Under Top Frame 2 x Base Shelf Bar 2 x Leg Attaching Plate Fixings Tools Assembly Instructions • One leg package consisting of: 2 x Castor Bars (with castors) 2 x Lifting legs Table Top and Under Top Frame Fixings... -
Page 4: Assembly Instruction
ASSEMBLY INSTRUCTION Follow each step listed below. STEP 1 Remove protective film from leg attachment plates and fix to both lifting legs with M6 x 20 SS CSK Cap screws. AIM-1003 TABLE ASSEMBLY MANUAL RELEASE DATE: 08/07/2022 VERSION: 3... - Page 5 STEP 2 Open packaging containing table top, leaving table top in pacakaging facing down (as shown in picture below) will help to protect agaisnt and scraching of the table top surface during assembly. Attach legs to table with M6 Nyloc Nuts and Washers, ensuring leg cable is orientated towards inside of table and connect to cables coming from control box in the centre of the table.
- Page 6 STEP 3 Attach both base shelf bar in correct orientation to suit undershelf unit or not to caster bar #1, loosely fix in position. Attach other caster bar to base shelf bars and loosely fix in position. AIM-1003 TABLE ASSEMBLY MANUAL RELEASE DATE: 08/07/2022 VERSION: 3...
- Page 7 STEP 4 Lower the base frame assembly onto the lifting legs – Recommend 2 people for this task. CAUTION – Keep hands & fingers clear of the lifting leg openings in the caster bars while fitting base frame - Pinch Point. Fit washers and screws through caster bar into lift legs and tighten.
- Page 8 STEP 5 Turn table over onto castors to stand upright. Recommend 2 people for this task. Lock castors, plug in 240V electrical plug, hold down button on control panel for 3 seconds then press up button to lift table top to ensure table is functioning. Your Smartpack table is ready for use or the fitment of any other Smartline accessories you have purchased.
-
Page 9: Contact Details
ASSEMBLY COMPLETED CONTACT DETAILS If you require any further information, please contact: Smartline Medical +61 7 5478 9977 sales@smartlinemedical.com www.smartlinemedical.com AIM-1003 TABLE ASSEMBLY MANUAL RELEASE DATE: 08/07/2022 VERSION: 3...
