ARANI WALL PACK 7 V2 Installation

PAGE 1: INSTALLATION - PAGE 1: INSTALLATION -
PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
— To prevent personal injury or product damage only licensed electricians should install.
— To avoid electric shock or component damage disconnect power before attempting installation or servicing.
— Do not install any luminaire near the heat source.
— Do not exceed the nominal supply voltage or amperage ratings.
— To avoid injury or damage to the tting, please ensure that power leads and screws are secure before
connecting the power.
Mounting location: Wall mounted or Eave mounted

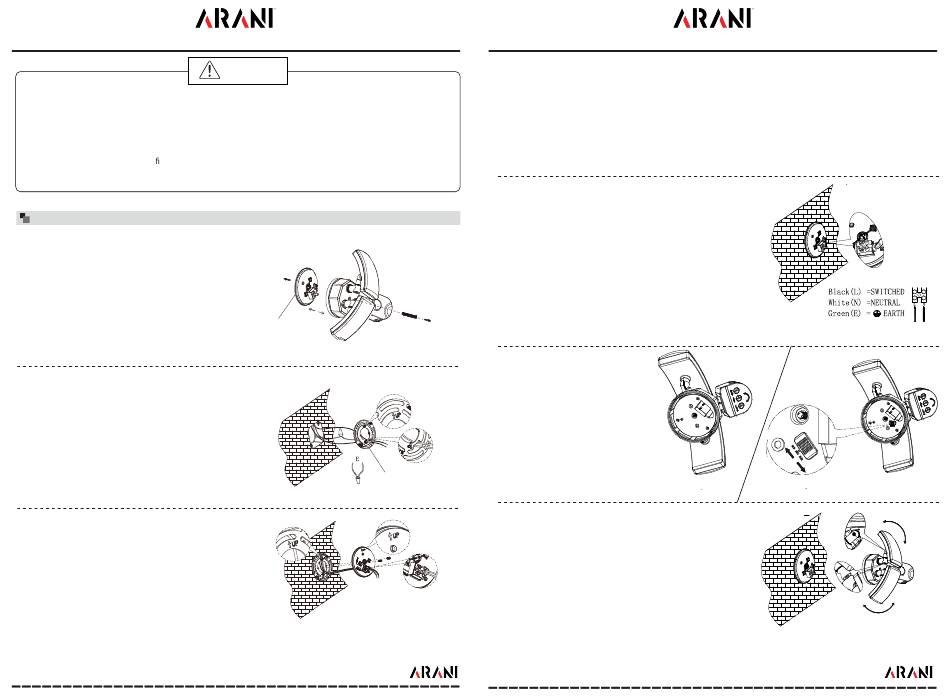

Step 1
Take out the light fixture, loosen the
screw in the middle of lamp base, and
take out the plastic cover.
Step 2
Connect the ground wire by using wire nuts and pass
the other wires through the round universal plate. Connect
the round universal plate to the junction box using screws.
Step 3
Pass wires through the hole of the plastic cover
through the hole of plastic cover.
Install the plastic cover to circle crossbar with
screws.
WP7-26W-2H-VAR-BK-V2
WARNING
plastic cover
.
circle crossbar
Be careful that both "UP" and arrow should be in
the same direction. The plastic cover cannot be
rotated to avoid wires damage.
PAGE 2: INSTALLATION -
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND
THE HAZARDS INVOLVED
Step 4
Insert the AC wires into the side of the
terminal block and tighten terminal
block screws.
Step 5
Set up well the three buttons on the
back of the sensor .
Choose a preferred color temp. by slide
switch if with CCT selected function.
Step 6
Loosen the screws on the swings, adjust the required
light direction, and then lock the screws on the swing
arm.
WP7-26W-2H-VAR-BK-V2
3CCT
