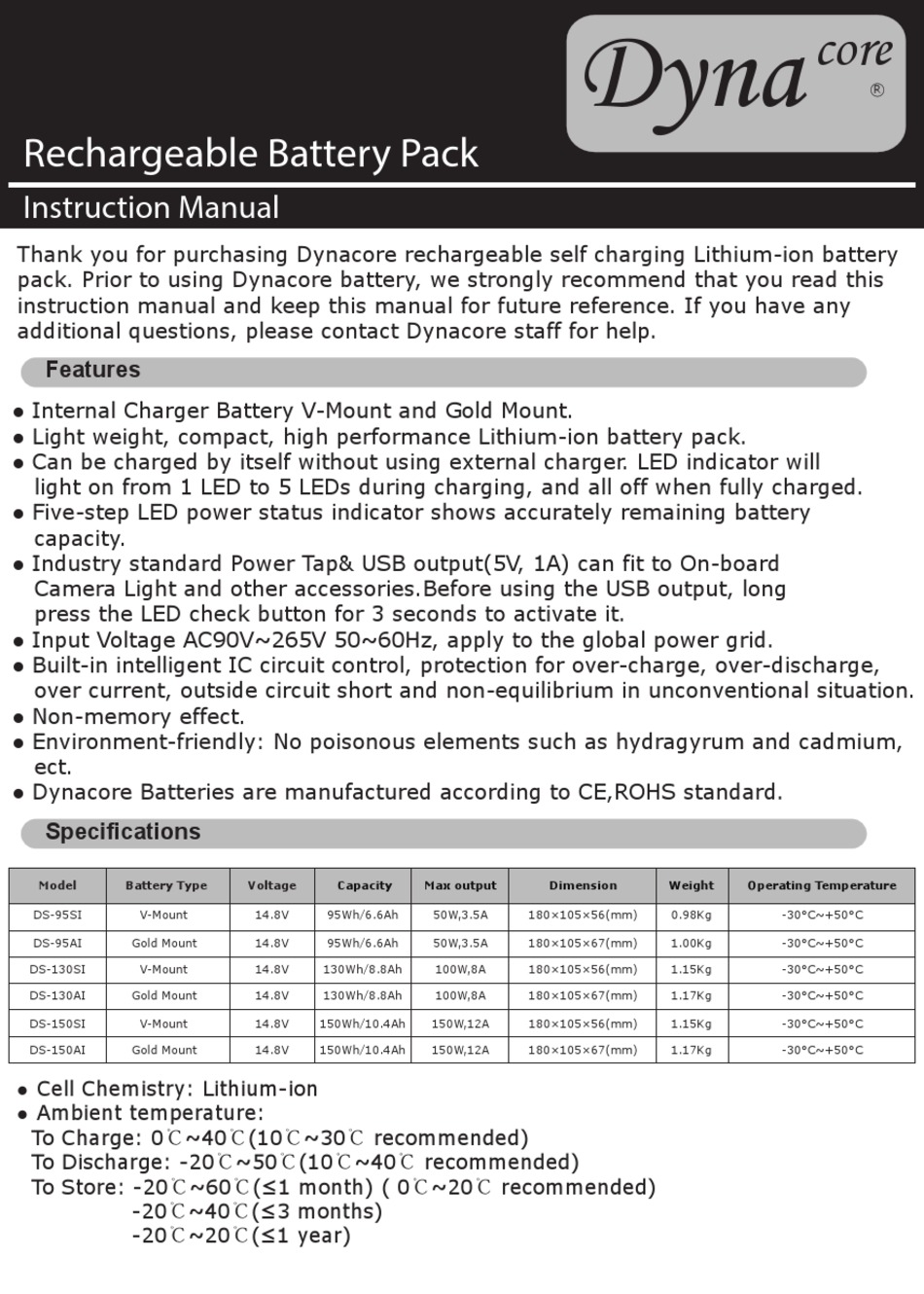

Dynacore DS-95SI Instruction Manual

Rechargeable Battery Pack
Instruction Manual
Thank you for purchasing Dynacore rechargeable self charging Lithium-ion battery
pack. Prior to using Dynacore battery, we strongly recommend that you read this
instruction manual and keep this manual for future reference. If you have any
additional questions, please contact Dynacore staff for help.

Features

● Internal Charger Battery V-Mount and Gold Mount.
● Light weight, compact, high performance Lithium-ion battery pack.
● Can be charged by itself without using external charger. LED indicator will
light on from 1 LED to 5 LEDs during charging, and all off when fully charged.
● Five-step LED power status indicator shows accurately remaining battery
capacity.
● Industry standard Power Tap& USB output(5V, 1A) can fit to On-board
Camera Light and other accessories.Before using the USB output, long
press the LED check button for 3 seconds to activate it.
● Input Voltage AC90V~265V 50~60Hz, apply to the global power grid.
● Built-in intelligent IC circuit control, protection for over-charge, over-discharge,
over current, outside circuit short and non-equilibrium in unconventional situation.
● Non-memory effect.
● Environment-friendly: No poisonous elements such as hydragyrum and cadmium,
ect.
● Dynacore Batteries are manufactured according to CE,ROHS standard.

Specifications

Model Battery Type
V-Mount
DS-95SI
DS-95AI Gold Mount
DS-130SI V-Mount
DS-130AI Gold Mount
DS-150SI V-Mount
DS-150AI Gold Mount
● Cell Chemistry: Lithium-ion
● Ambient temperature:
To Charge: 0℃~40℃(10℃~30℃ recommended)
To Discharge: -20℃~50℃(10℃~40℃ recommended)
To Store: -20℃~60℃(≤1 month) ( 0℃~20℃ recommended)
-20℃~40℃(≤3 months)
-20℃~20℃(≤1 year)
Voltage Capacity
95Wh/6.6Ah
14.8V
14.8V 95Wh/6.6Ah
14.8V 130Wh/8.8Ah
14.8V 130Wh/8.8Ah
14.8V 150Wh/10.4Ah
14.8V 150Wh/10.4Ah
Dyna
Max output Dimension
50W,3.5A
180×105×56(mm)
50W,3.5A 180×105×67(mm)
100W,8A 180×105×56(mm)
100W,8A 180×105×67(mm)
150W,12A 180×105×56(mm)
150W,12A 180×105×67(mm)
core
Weight Operating Temperature
0.98Kg -30°C~+50°C
1.00Kg -30°C~+50°C
1.15Kg -30°C~+50°C
1.17Kg -30°C~+50°C
1.15Kg -30°C~+50°C
1.17Kg -30°C~+50°C
