iQtronic IQTD-GS440 User Manual

Gsm gateway controlled by sms, making a call, ivr self service and bluetooth terminal, with universal inputs, m2m and plc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

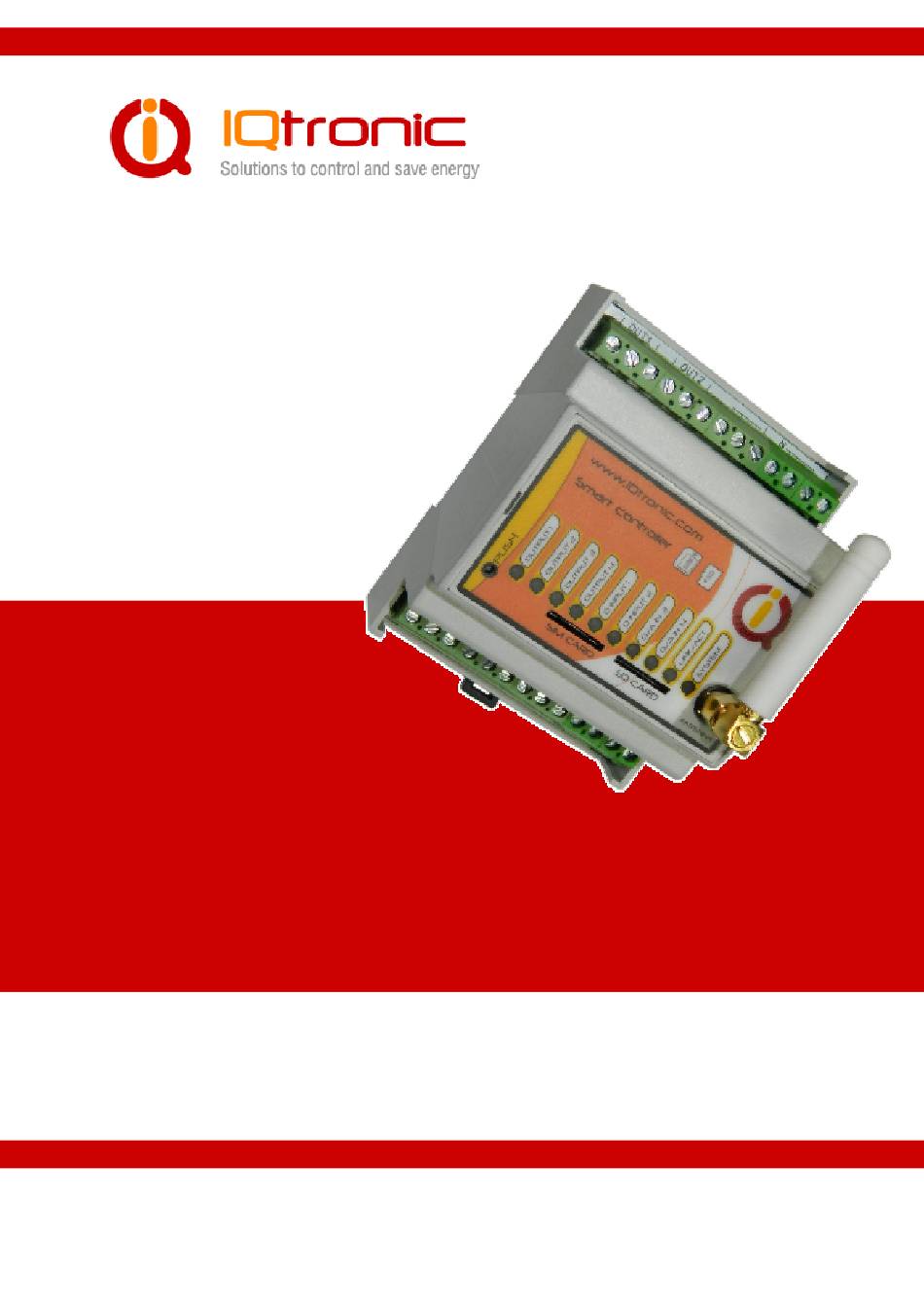

IQTD-GS440
User Guide
GSM gateway controlled by SMS,
making a call, IVR self service and
Bluetooth terminal, with universal
inputs, M2M and PLC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IQTD-GS440 and is the answer not in the manual?

Questions and answers

Summary of Contents for iQtronic IQTD-GS440

  • Page 1 IQTD-GS440 User Guide GSM gateway controlled by SMS, making a call, IVR self service and Bluetooth terminal, with universal inputs, M2M and PLC.

  • Page 2: Table Of Contents

    Product features ................3 2. Wiring IQTD-GS440 ................. 5 3. Power supply wiring ................ 6 3.1 AC power wiring ................6 3.2 DC power wiring................6 4. Instalation..................6 4.1 Inserting SIM Card .................7 4.2 Powering IQTD-GS440 On ...............8 5. Explanatory Notes to Commands ............. 9 6.

  • Page 3: Product Features

    2021 IQtronic technologies Europe s.r.o. Acknowledgements Thank you that you have purchased this IQTD-GS440 produced by IQtronic technologies Europe Ltd, the real manufacturer providing the unique and unrivalled products. Our company has produced IQ socket products for already 10 years and has delivered them throughout the world. Our products always offer you a lot more.
  • Page 4 2021 IQtronic technologies Europe s.r.o. • Up to 12 alarm numbers, each of the numbers can be set for a different event. • Time scheduler function, up to 50 events with interval settings. • Automatical logging of all events into the internal memory.

  • Page 5: Wiring Iqtd-Gs440

    2021 IQtronic technologies Europe s.r.o. 2. Wiring IQTD-GS440 OUT1 – switched output 1, 16A OUT2 – switched output 2, 16A L – phase (live) of mains connection N – neutral wire of mains connection Lower Terminal Block 1 – OUT3 switched output 3, DC voltage max.

  • Page 6: Power Supply Wiring

    Installation shall be performed by certrified installer qualified for local electric code Your IQTD-GS440 is normally powered from 230V AC mains, but it is possible to power it also from external 12VDC power supply, e.g. a battery. 3.1 AC power wiring 3.2 DC power wiring...

  • Page 7: Instalation

    • Push the card into the bay until you feel a click so card is locked inside. • To remove the card from your IQTD-GS440, gently push the card further into the bay until a click is felt, then card is unlocked and can be pulled out.

  • Page 8: Powering Iqtd-Gs440 On

    4.2 Powering IQTD-GS440 On Once the SIM card has been inserted, you can switch on 230VAC mains (or external 12VDC power supply) to power your IQTD-GS440 on. Verify device is operating by observing status of the LEDs. • Once AC power is connected, all eights LED indicators will blink shortly and if everything is ok, the SYSTEM LED will turn to solid Red.

  • Page 9: Explanatory Notes To Commands

    2015 IQtronic technologies Europe s.r.o. 5. Explanatory Notes to Commands To control IQTD-GS440 in your language, please select the language version, as 8.1 IQControl subprogram shown in chapter . The device has been factory pre- configured for the English language.
  • Page 10 2021 IQtronic technologies Europe s.r.o. Describtion of control and configuration of IQTD-GS440 is divided into three parts, each suitable for a specific user group. 1. Basic part is suitable especially for those users who wish to use the basic functions as quickly as possible.

  • Page 11: Basic Control

    2021 IQtronic technologies Europe s.r.o. 6.Basic Control If you send a message containing text "HELP" to the telephone number of SIM in your device, the following control commands will be displayed: These commands are displayed automatically in the welcome note after you have logged in by the IQcontrol software terminal via Bluetooth.
  • Page 12 2021 IQtronic technologies Europe s.r.o. Command Nr. Text TurnOn3 Function It turns on the output OUT3. Response TurnedOn Access Rights User/Admin License Base Command Nr. Text TurnOnTime 3 Function It turns on the output OUT4 only for a specified time in range of 1to 2880 minutes.
  • Page 13 2021 IQtronic technologies Europe s.r.o. Command Nr. Text TurnOff1 Function It permanently turns off the output OUT1. Response TurnedOff Access Rights User/Admin License Base Command Nr. Text TurnOff2 Function It permanently turns off the output OUT2. Response TurnedOff Access Rights...
  • Page 14 2021 IQtronic technologies Europe s.r.o. Command Nr. Text Restart2 Function It changes the status of the output OUT2 for a user specified time RestartTime2. Response Restarted Access Rights User/Admin License Base Command Nr. Text Restart3 Function It changes the status of the output OUT3 for a user specified time RestartTime3.
  • Page 15 2021 IQtronic technologies Europe s.r.o. Command Nr. Text OUTLock3 Function It locks any changes (manual, scheduler, PLC) at output OUT3. Response OUTPUT locked! Access Rights Admin License Base Command Nr. Text OUTUnLock3 Function It unlocks (manual, scheduler, PLC) output OUT3 for any changes.
  • Page 16 2021 IQtronic technologies Europe s.r.o. Output4: PWM, BCap: 100% OnPower, DIN1: 0 DIN2: 0 DIN3: 0 DIN4: 0 ADL: 0 ADH: 0 Pulses: 0 SDcard:No Signal:61% S1: N/A S2: N/A S3: N/A S4: N/A S5: N/A S6: N/A S7: N/A S8: N/A N/A...
  • Page 17 2021 IQtronic technologies Europe s.r.o. Command Nr. Text AdminList Function It displays the Administrator number. Response AdminList=42012345678 Access Rights User/Admin License Base Command Nr. Text AdminList2 Function It displays the second Administrator number. Response AdminList2=42012345678 Access Rights User/Admin License Base Command Nr.

  • Page 18: Advanced Settings

    2015 IQtronic technologies Europe s.r.o. 7.Advanced Settings If you send a message containing text "CONFIG" to the telephone number of your device, the configuration commands will be displayed. These commands can be used only by the specified ADMIN, if it is defined. In factory default settings any user is considered to be ADMIN.
  • Page 19 2021 IQtronic technologies Europe s.r.o. Command Nr. Text RestartTime3 Function It sets the restart time for output OUT3 in seconds, allowed range is 1 up to 3600. Settings with '?' RestartTime3=30 Settings Change RestartTime3=10 Access Rights Admin License Base Command Nr.
  • Page 20 2021 IQtronic technologies Europe s.r.o. RingActionAdmin=Re The device hangs up the incoming call* and performs the start RESTART of both outputs. Restart1 – OUT1 only. Restart2 - OUT2 only. A record with time of the call and the calling number, including the number of rings and the performed action, will be saved in the internal LOG.
  • Page 21 2021 IQtronic technologies Europe s.r.o. RingActionAdmin=IV The device answers the incoming call* and activates the voice selfservice. A record with time of the call and the calling number, including the number of rings and the performed action, will be saved in the internal LOG. It is required that a voice file is recorded and the MEDIUM license is activated.
  • Page 22 2021 IQtronic technologies Europe s.r.o. Command Nr. Text NCActionUser Function Action for an incoming call to a User number if the number is set. The action will be made unless the number of rings exceeds a user- specified limit. And thus the User can perform two actions by making calls.
  • Page 23 2021 IQtronic technologies Europe s.r.o. Command Nr. Text AddAdmin2 Function It adds second Administrator number; this number is allowed to edit all parameters of the device. Settings with '?' N/A, use AdminList2 AddAdmin This command will save the number from which a SMS message was sent.
  • Page 24 2021 IQtronic technologies Europe s.r.o. Command Nr. Text DelUser Function It deletes a User number for which the device can only be used in a limited way – only control commands. There may be up to one thousand User numbers.
  • Page 25 2021 IQtronic technologies Europe s.r.o. Command Nr.\ Text UserAList Function It displays numbers of all added users. It displays a list of numbers with its aliases. Settings with '?' UserAList=1 It displays a list from the first number. You can display the whole list by changing the number.
  • Page 26 2021 IQtronic technologies Europe s.r.o. Command Nr. Text SMSPerDay Function Number of sent SMS messages from the device per day. Range of 0 to 250. 0 is unlimited number of SMS. The clear of this limit block is possible by push button.
  • Page 27 2021 IQtronic technologies Europe s.r.o. Command Nr. Text UserPINSet Function PIN Activation/PIN deactivation for user numbers if specified. Settings with '?' (No),Yes UserPINSet=No PIN is not activated in an incoming SMS. UserPINSet=Yes PIN is activated in an incoming SMS. Access Rights...
  • Page 28 2021 IQtronic technologies Europe s.r.o. Command Nr. Text ScheduleAdd Function It adds an event for the Scheduler. Syntax is ScheduleAdd=hh:mm,*,Action. Where hh means hours, mm means minutes, * means every day; numbers 1 to 7, Monday to Sunday can be used instead.
  • Page 29 2021 IQtronic technologies Europe s.r.o. Command Nr. Text ScheduleDelAll Function It deletes all events for the Scheduler. Settings with '?' ScheduleDelAll It deletes all Scheduler records. Access Rights Admin License Medium Command Nr. Text SchedulerList Function It displays all added Scheduler records.
  • Page 30 2021 IQtronic technologies Europe s.r.o. Command Nr. Text TempUnit Function It configures temperature units for temperature sensors, based upon option they will be displayed according to selected conversion. Settings with '?' TempUnit=(DegC),DegF TempUnit=F It configures Fahrenheit temperature units. Access Rights...
  • Page 31 2021 IQtronic technologies Europe s.r.o. Command Nr. Text Counter Function It displays the numbers of changes of inputs and outputs. Settings with '?' Counter=1 It displays the number of changes of the output1 – OUT1 Counter=2 It displays the number of changes of the output2 – OUT2 Counter=3 It displays the number of changes of the output3 –...
  • Page 32 2021 IQtronic technologies Europe s.r.o. Command Nr. Text PwrFailTime Function It configures the time in miliseconds that is the minimum for evaluating the power failure if configured. It is not recommended to be lower than 100ms because of interference from the GSM network. Range of 10 to 30000 ms.
  • Page 33 2021 IQtronic technologies Europe s.r.o. Command Nr. Text TriggerTime4 Function It configures the time in miliseconds that is the minimum for evaluating the digital input level DIN4 if configured. It is not recommended to be lower than 100ms because of interference from the GSM network.
  • Page 34 2021 IQtronic technologies Europe s.r.o. Command Nr. Text VLevelMaxHI Function It configures the maximum voltage level in tenths of volts.The configured level of 20 actually corresponds to 2 volts. The maximum value is 500 decivolts. Settings with '?' VLevelMaxHI =20...
  • Page 35 2021 IQtronic technologies Europe s.r.o. Command Nr. Text VLevelMinLO Function It configures the minimum voltage level in tenths of volts. The maximum value is 50 decivolts. The configured level of 10 actually corresponds to 1 volt. Settings with '?' VLevelMinLO =10...
  • Page 36 2021 IQtronic technologies Europe s.r.o. Command Nr. Text DAlarm2 Function It configures the digital input change monitor alarm. The universal input must be set as digital. Settings with '?' DAlarm2=(No),Low,High,Both,Limit Dalarm2=Low It activates the alarm at the low level at the digital input GND, 0 volts.
  • Page 37 2021 IQtronic technologies Europe s.r.o. Command Nr. Text DAlarm4 Function It configures the digital input change monitor alarm. The universal input must be set as digital. Settings with '?' DAlarm4=(No),Low,High,Both,Limit Dalarm4=Low It activates the alarm at the low level at the digital input GND, 0 volts.
  • Page 38 2021 IQtronic technologies Europe s.r.o. Command Nr. Text CounterLimitDIn3 Function Configuration of the maximum limit for the number of changes on digital input DIN3, range of 0 to 300 If this limit is met, then it generate alarm event. Settings with '?'...
  • Page 39 2021 IQtronic technologies Europe s.r.o. Command Nr. Text TempAlarm Function It configures the temperature/humidity monitor alarm for up to 8 sensors connected to the universal input. An alarm alert is always sent when temperature exceeds the upper limit or falls below the lower limit specified by the user.
  • Page 40 2021 IQtronic technologies Europe s.r.o. Command Nr. Text DelAlarmNumber Function It deletes the alarm number. Settings with '?' DelAlarmNumber= It deletes the number 420123456789 from the list. 421023456789,C,1 Access Rights Admin License Base Meaning of alarms. * - Each alarm event causes notifications to be sent via SMS or calling.
  • Page 41 2021 IQtronic technologies Europe s.r.o. Command Nr. Text DelAllAlarmNum Function It deletes all alarm numbers from the list. Settings with '?' DelAllAlarmNum It deletes all numbers from the list. Access Rights Admin License Base Command Nr. Text ListAlarmNum Function It displays all added numbers for alarms, or: no record.
  • Page 42 2021 IQtronic technologies Europe s.r.o. Command Nr. Text StopAllAlarms Function If the command is sent once, it will temporarily stop all alarms, after reboot/restart of the device the alarms selected by the user will be activated and the user will be notified of this by SMS.
  • Page 43 2021 IQtronic technologies Europe s.r.o. Command Nr. Text Tp1Min Function It configurates the minimum level for temperature/humidity 1300 sensor 1. Range of -200 up to + °. Settings with '?' Tp1Min=20 Change of settings Tp1Min=-30 Access Rights Admin License Medium Note…...
  • Page 44 2021 IQtronic technologies Europe s.r.o. Command Nr. Text Output1Control Function Activation of the thermostat1 - automatic control of the output1 based on temperature/humidity sensor. Thermostat can be assigned only to one temperature/humidity sensor. The number is assigned to the sensor during activation, please refer to chapter on sensor activation.
  • Page 45 2021 IQtronic technologies Europe s.r.o. Command Nr. Text Output2Control Function Activation of the thermostat2 - automatic control of the output2 based on temperature/humidity sensor. Thermostat can be assigned only to one temperature/humidity sensor. The number is assigned to the sensor during activation, please refer to chapter on sensor activation.
  • Page 46 2021 IQtronic technologies Europe s.r.o. Command Nr. Text Output3Control Function Activation of the thermostat3 - automatic control of the output2 based on temperature/humidity sensor. Thermostat can be assigned only to one temperature/humidity sensor. The number is assigned to the sensor during activation, please refer to chapter on sensor activation.
  • Page 47 2021 IQtronic technologies Europe s.r.o. Command Nr. Text Output4Control Function Activation of the thermostat4 - automatic control of the output2 based on temperature/humidity sensor. Thermostat can be assigned only to one temperature/humidity sensor. The number is assigned to the sensor during activation, please refer to chapter on sensor activation.
  • Page 48 2021 IQtronic technologies Europe s.r.o. Command Nr. Text PINLimitsBT Function A number of wrong pins entered for the IQcontrol terminal via Bluetooth. If this number has been set and exceeded, the user will be notified by voice that the limit has been exceeded.
  • Page 49 2021 IQtronic technologies Europe s.r.o. Command Nr. Text SystemLog Function It displays the last 250(max) records of system events log. Settings with '?' SystemLog=1 It provides a list of system events starting from the first record. Access Rights Admin License...
  • Page 50 2021 IQtronic technologies Europe s.r.o. Control events can be the following: Call from (ANSWERED): 420123456789, Restart Call from (NO CARRIER) : ? , NoAction , ? means an unlisted number Call denied: 420123456789 SMS Denied: 420123456789 Furthermore all incoming SMS notifications of control commands for the SMS scheduler.
  • Page 51 2021 IQtronic technologies Europe s.r.o. Command Nr. Text EraseSensors Function It deletes all universal input sensors that have been added. Settings with '?' EraseSensors It deletes all added temperature/humidity sensors. Access Rights Admin License Base Command Nr. Text Default Function Factory default settings.
  • Page 52 2021 IQtronic technologies Europe s.r.o. Command Nr. Text GPRSSERVER Function A destination IP address or a domain name to which data will be sent. Settings with '?' GPRSSERVER=www.domain.com GPRSSERVER=111.22. Adding of the destination IP address. Max 30 characters. 33.44 Access Rights...
  • Page 53 2021 IQtronic technologies Europe s.r.o. The structure is optimized for Thingspeak, which is free of charge for up to 8 sensors . GET request can be also processed by any other suitable means. Example of graphical result of processing by Thingspeak, it is a test of sending two values of Temperature1 withing 10 days interval: Example of settins to receive XML file with desired values of device’s...
  • Page 54 2021 IQtronic technologies Europe s.r.o. O1 tp O4 – outputs OUT1 to OUT4, 0 – turned off, 1 – turned on C1 to C4 – values of the counters of OUT1 – OUT4 outputs GPRSTYPE=BOTH, data will be sent on the URL and if the...
  • Page 55 2021 IQtronic technologies Europe s.r.o. Command Nr. Text CntDiv2 Function A divisive constant (conversion factor) for impulse counting of DIN2 input. After the number of this constant has been reached, the final impulse counter will be increased by 1. Allowed range is 1 to 30000.
  • Page 56 2021 IQtronic technologies Europe s.r.o. Command Nr. Text NextTime2 Function Time of the next test at the digital input2 DIN2, if the alarm has been activated, range 0 to 3600 seconds. Settings with '?' NextTime2=0 NextTime2=60 A digital input test will be postponed by 60 seconds.
  • Page 57 2021 IQtronic technologies Europe s.r.o. Command Nr. Text Separators Function Configuration of starting and ending separators. A text in an incoming SMS message will be separated from the message, and for subsequent processing only the text between these separators will be used.

  • Page 58: Control Of Pwm Of Outputs 3 And 4 Based On Temperature

    2021 IQtronic technologies Europe s.r.o. Command Nr. Text IVRSoundDelay Function Delay in playing the individual menus in the voice selfservice centre, interval of 0 to 10 seconds. Settings with '?' IVRSoundDelay=2 IVRSoundDelay=0 Sounds are played immediately. Access Rights Admin License Medium Command Nr.
  • Page 59 2021 IQtronic technologies Europe s.r.o. Command Nr. Text PWMControl3 Function Enabling/disabling of PWM control of the otput OUT3 Settings with '?' PWMControl3 =(Off),S1,S2,S3,S4,S5,S6,S7,S8 PWMControl3 =S1 PWM control of the output OUT3 is enabled per sensor S1 PWMControl3 =Off PWM control of the output OUT3 is disabled...

  • Page 60: Plc Control Of Outputs Out1 - 4 Based On Intputs Din 1-4

    2021 IQtronic technologies Europe s.r.o. Command Nr. Text PWMTp4Max Function The maximum threshold value of OUT4 PWM control for temperature/humidity sensor 1. Range Settings with '?' PWMTp4Max =30 PWMTp4Max =-30 Sets max temperature threshold to value -30 Access Rights Admin...
  • Page 61 2021 IQtronic technologies Europe s.r.o. PLCOUT1 Control of the output OUT1 by activation of voltage alarm =AVMAX by maximal value threshold for input ADIN1/ADH PLCOUT1 Control of the output OUT1 by activation of counter alarm =COUNT1 by exceeding counter of the DIN1 input...
  • Page 62 2021 IQtronic technologies Europe s.r.o. *Note… If PLCtimeout is set to 0, evaluation is performed immediately. If a non-zero delay is set, device waits for a next change, which allows to create for example time relay function . *Note… Analogical commands apply for outputs OUT2, OUT3 and OUT4.

  • Page 63: Control By Iqcontrol Suite For Windows

    For a maximum comfort and easy operation, a program package IQcontrol Suite for WINDOWS has been developed. You can start to use IQcontrol Suite after its downloading from the source www.iqtronic.com/download and its installation. A Bluetooth adapter is necessary only for communication with the device. It is not...

  • Page 64: Iqcontrol Subprogram

    2021 IQtronic technologies Europe s.r.o. IQcontrol – required BT interface, serves as a terminal for configuration and control of the device in a wireless way, free of charge – without SMS. Commands Editor - program to edit and write your own commands/responses and auxiliary texts in the device.
  • Page 65 2021 IQtronic technologies Europe s.r.o. When clicking the button a window appears in which there are displayed all searched devices with pre-defined device names (devicename). Since all devices have been configured by factory default to have the identical name IQSocket, for a better orientation the last 4 digits from the device's IMEI are attached to this name.
  • Page 66 2021 IQtronic technologies Europe s.r.o. After the PIN has been accepted, connection with your chosen device will be activated. If you have been successfully logged in, the device will automatically display the welcome text and provide a list of control commands.
  • Page 67 2021 IQtronic technologies Europe s.r.o. We have made a further strong simplification, namely sending a full range of commands in one SMS message up to the size of SMS, i.e. 160 characters. Commands must be separated by the symbol "#"; here, as an example, we send the...
  • Page 68 2021 IQtronic technologies Europe s.r.o. Quick Control Buttons The program includes the quick control features in order to control commands in a simple and fast way. After clicking "Quick control", there will appear four buttons with the most used commands: TurnOni, TurnOff, Status, Restart; after just clicking one of the above- mentioned, the particular command will be sent to the device.
  • Page 69 2021 IQtronic technologies Europe s.r.o. Upgrading the internal firmware. Uploading a new voice selfservice file into the device. Uploading a set of user numbers into the device. It is necessary to have Medium license! Uploading the device configuration file. Downloading the configuration from the device into the file.

  • Page 70: Commands Editor Subprogram

    2015 IQtronic technologies Europe s.r.o. In case of uploading the security list into the device, you can upload a text file generated by using either the Numbers Editor, a part of IQcontrol Suite software, or generated by the user himself/herself.
  • Page 71 2021 IQtronic technologies Europe s.r.o. If you wish to read the file, use the Open File button and upload the file test1.cmd. If the file is correct, it will be displayed, in other cases an eror message will appear. The software is made again very intuitive, the Commands tab consists of two...
  • Page 72 2021 IQtronic technologies Europe s.r.o. The symbol "U" means users, if these are set as authorised user numbers. It is possible to edit them and specify which commands will be made available to users. The Answers tab is similar, texts of responses can be modified in the left window List of asnwers, and parameters, if existing, will be displayed in the right window.
  • Page 73 2021 IQtronic technologies Europe s.r.o. "$R" is fixed parameter of the device response, instead of which internal device parser will add a numerical value. However, if a text equivalent for the given number has been defined in the left window, then the selected text will appear instead.

  • Page 74: Numbers Editor Subprogram

    2021 IQtronic technologies Europe s.r.o. Example In order to make a simple response to the STATUS command with only one parameter about the output socket status, we can edit a text on the position ID54 in the List of answers window to "Output socket status: $1".

  • Page 75: Ivr Completor Subprogram

    2021 IQtronic technologies Europe s.r.o. Delete button will delete the given number from the list. New file – it will save it as a new file with a new name. Open file – it will open the existing file. Save file – it will save the opened file with the identical name.
  • Page 76 2021 IQtronic technologies Europe s.r.o. MENU START In case of UserTypeIVR=SHORT the device will be restarted and will end the call – suitable to be used as a door opener. In case of UserTypeIVR=LONG we continue to Playing the audio recording 05.raw MENU START To controll this device, press one ->...
  • Page 77 2021 IQtronic technologies Europe s.r.o. To return to main menu, press hash # -> MENU START MENU STATUS IVRSoundDelay Playing the audio recording 11.raw Device output is Playing the audio recording 12.raw Playing the audio recording 13.raw Turned on Turned off...
  • Page 78 2021 IQtronic technologies Europe s.r.o. MENU PASSWORD IVRSoundDelay Playing the audio recording 20.raw Your password is: *Your PIN will be played back, file names for digits are provided at the end of IVRmenu. IVRSoundDelay Playing the audio recording 21.raw Enter your new password and press hash...
  • Page 79 2021 IQtronic technologies Europe s.r.o. MENU NUMBER To delete from list, press three IVRSoundDelay Playing the audio recording 29.raw To get type of rights, press four IVRSoundDelay Playing the audio recording 30.raw To delete all users, press eight IVRSoundDelay Playing the audio recording 31.raw To enter new value, press star * ->...
  • Page 80 2021 IQtronic technologies Europe s.r.o. * File names for digits: 39.raw - 0 , zero 40.raw - 1 , one 41.raw - 2 , two 42.raw - 3 , three 43.raw - 4 , four 44.raw - 5 , five 45.raw - 6 , six...

  • Page 81: Control By Iqcontrol Smart Application For Os Android

    Control by IQcontrol Smart Application for OS Android download application from site: www.iqtronic.com/download, on the Google Play store, our company IQtronic technologies Europe s.r.o. offers application FOR FREE. Or, you can use the QR code to download means your mobile phone; this QR code is also included in the label with the IMEI number on each device.

  • Page 82: Control By Sms

    2021 IQtronic technologies Europe s.r.o. Note… IQControl for OS Android software is identical to IQControl for OS Windows, except for missing control by SMS. 9.1 Control by SMS Click this button: You enter the text of any command, e.g. RESTART, in the Text to send window. A SMS message will be sent and after receiving a response from the device it will be displayed in the Communication log window.

  • Page 83: Control By Terminal Via Wireless Bluetooth Connection

    2021 IQtronic technologies Europe s.r.o. 9.2 Control by terminal via wireless Bluetooth connection Click the buton After a communications The following window Click the selected device terminal appears, click displays the IQSocket and press the Connect to Connect. device that has been device buton.
  • Page 84 2021 IQtronic technologies Europe s.r.o. Enter the PIN code "0000" The following window will If the correct PIN has been which is a factory default display a Bluetooth pairing entered, a communication value request. window containing the welcome text will appear.

  • Page 85: Meaning Of Integrated Button

    In this way you can save up to 8 sensors or adapters. 11. Inserting SD card Your IQTD-GS440 offers an option to save all log events at the given time in detail into the SD card inserted into SD card bay. The SD card must be formatted on FAT32 before using.

  • Page 86: Factory Default Settings

    2021 IQtronic technologies Europe s.r.o. Note… If you have the Base license, you can find out only 250 last events in the internal LOG and you do not need to have an SD card. Status of the active SD by command LONGStatus with parameter SDCARD:YES card can be displayed For each day a file with the device name –...

  • Page 87: Factory Default Settings

    2021 IQtronic technologies Europe s.r.o. 12.2. Factory default settings SMS command Value License LEDOption Base RestartTime Base RingActionAdmin NoAction Base RingActionUser NoAction Base NCActionAdmin NoAction Base NCActionUser NoAction Base RingTimes Base RingOnTime Base RingActionBlock Base SMSPerDay Base Output Remember Base...

  • Page 88: Led Indicators

    2021 IQtronic technologies Europe s.r.o. Tp7Max Medium Tp8Min Medium Tp8Max Medium TControlMin Medium TControlMax Medium OutputControl Medium PINLimitsIVR Base PINLimitsBT Base UserTypeIVR Long Medium GRPS Full GPRSHOST www.domain.com Full GPRSPORT Full CntDiv1 Full CntDiv2 Full CntDiv3 Full NextTime1 Full NextTime2...

  • Page 89: Error Conditions

    2021 IQtronic technologies Europe s.r.o. connected to a network. Fast and short blinking indicates GSM activity, outgoing SMS, incoming or outgoing calls and GPRS data. Steady light – a terminal is connected via Bluetooth. Dimming when there is a Bluetooth activity – data to terminal transmitted.

  • Page 90: Technical Specification

    2021 IQtronic technologies Europe s.r.o. 15. Technical Specification Model IQTD-GS440 Mains power, 230Vst 30mA max (range of 90V – 240VAC), consumption quiescent, maximum 12-25VDC/VAC 50mA quiescent without charging the battery, switched relays and transmission, 160mA max at transmission + 200mA max charging of battery + 40mA Output1 - ON + 40mA Output2 –...

  • Page 91: Features And Connection Of Switching Elements

    2021 IQtronic technologies Europe s.r.o. • Your antenna cannot be directed towards the internal device electronics. Otherwise, we cannot guarantee that your device will work properly. • In case of low signal level <70%, use an external antenna with a higher gain and VSWR <2...

  • Page 92: Load Connection To The Device Output

    2021 IQtronic technologies Europe s.r.o. The output stage is using a mosfet driver with a zener diode so that a relay anchor could drop out in a fast way, in order to reduce contact burning in case of inductive load.

  • Page 93: Input Specification

    18.1 Analog input 1 and 2 - ADH and ADL Input impedance and internal connection is displayed on the block scheme. IQTD-GS440 is equipped with two analog inputs for voltage measurement. 1 – ADIN1 ADH pin3 ranging from 0 to 50VDC, or 0 to 30 VAC, resolution of 0.1V and impedance...

  • Page 94: Digital Inputs Din1, Din2 And Din3

    2021 IQtronic technologies Europe s.r.o. As illustrated in the picture, only impulse with voltage between 2 and 4 Volts will be detected. 18.2 Digital inputs DIN1, DIN2, DIN3 and DIN4 Internal connection of the digital inputs is shown in the block scheme.

  • Page 95: Accessories

    2021 IQtronic technologies Europe s.r.o. Then instert the battery into the battery bay using the proper polarity, + pole is on the left side farther from the SMA antenna connector, marked on the battery bay. Replace the cover onto the...

  • Page 96: Configuration Of Original English Set Of Commands

    2021 IQtronic technologies Europe s.r.o. 21. Configuration of original English set of commands If you change and upload an incorrect set of commands in another language into your device, you are allowed to get back to the original set of commands in English.

  • Page 97: Warranty

    2021 IQtronic technologies Europe s.r.o. 23. Warranty The supplier provides warranty for IQTD-GS440 for up to 24 months starting from the purchase date. This warranty does not apply to damage resulting from abnormal use, and from breaking the operation recommendations as listed above in the user guide.
