Equator AF 500 Owner's Manual

Convection oven pizza oven grill dehydrator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Please read the instructions carefully and keep for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AF 500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Equator AF 500

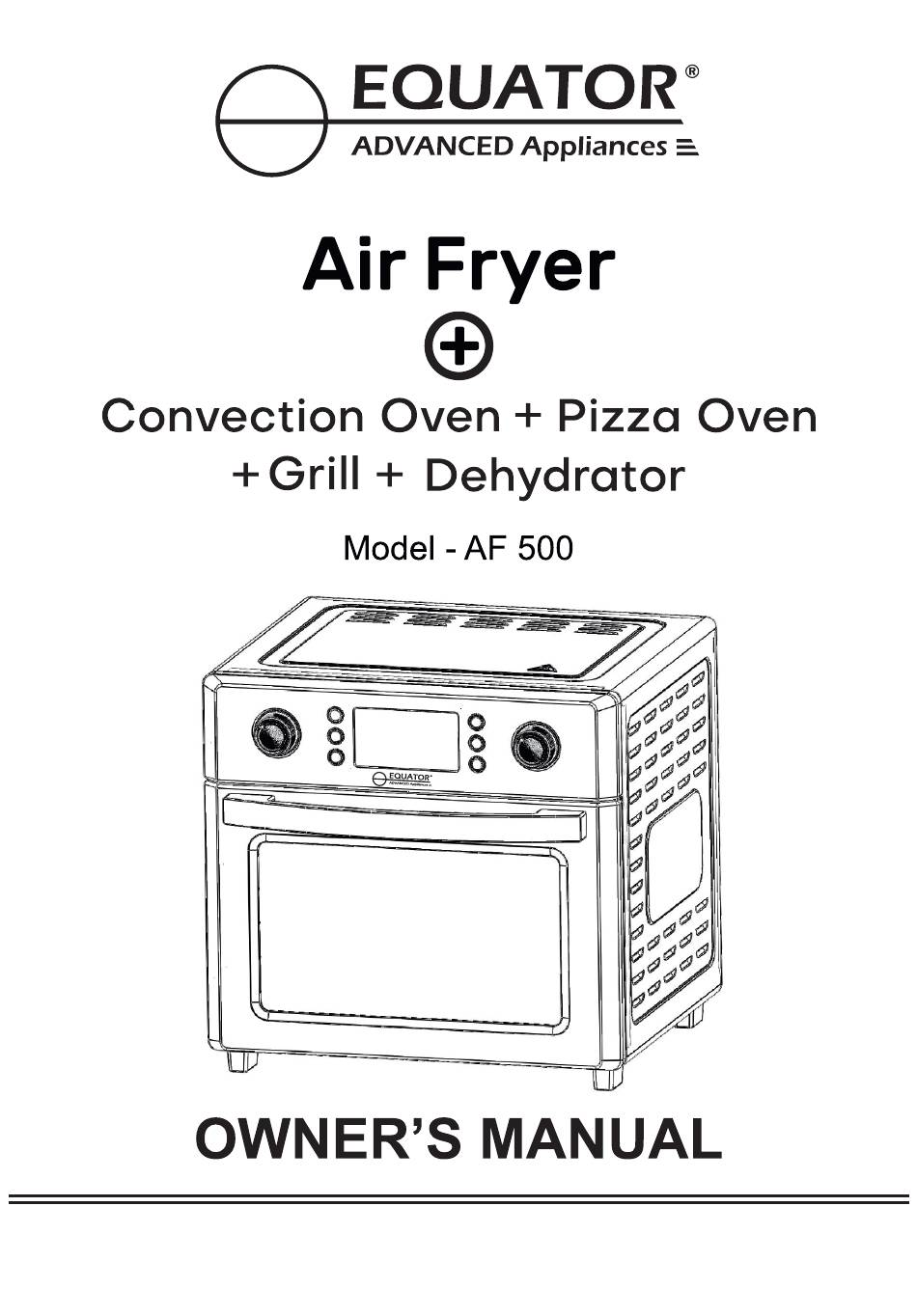

  • Page 1 Please read the instructions carefully and keep for future reference...
  • Page 2 Equator Appliances undertakes to the consumer/owner to repair or, at our option, to replace any part of this product which proves to be defective in workmanship or material under normal personal, family or household use in USA and Canada, for a period of one year from the date of original purchase.
  • Page 3 either QR Code 1. Open Smart Phone 2. Open Photo 3. Scan QR Code...
  • Page 4 To prevent electric shock, unplug from the outlet when not in use and before cleaning. Allow cooling before cleaning or handling. Do not touch hot surfaces. To protect against electric shock, do not place any part of the appliance in water or other liquids. Do not use if cord, plug or appliance is damaged.

  • Page 5: Parts And Accessories

    Parts and Accessories LED Control Panel Door Handle Viewable Glass Window Baking Tray Drip/Crumb Tray Air Fry Basket Wire Rack Rotisserie Cage Rotisserie Fork Handle Suggested Uses Air Fry Basket: Use for french fries, chicken wings, onion rings. Wire Rack: Use for barbecue, bread slices, pizza. Baking Tray: Use for baking cookies, roasting vegetables.

  • Page 6: Installation

    Installation Place the appliance on a smooth flat surface, and ensure the top, back and sides of the appliance are at least 4 inches (10 cm) away from the walls and cabinets. 4 " ( 1 0 c m ) Peel off...

  • Page 7: Control Panel

    ControlPanel Left Knob: Turn the left knob to adjust the temperature or time. Right Knob: Turn the right knob to select the food to be cooked. Press the knob to start cooking. To pause cooking, press again and press one more time to resume cooking. Temperature Button: Press the TEMP button to set the temperature.

  • Page 8: Setting The Time/Clock

    Setting the Time/Clock Press the TIME button to set the time. The display will flash A for am and P for pm. Turn the Left Knob to select either A or P, then press the TIME button again. The display will then flash the hour. Turn the Left Knob to select the desired hour, then press the TIME button again.

  • Page 9: Cooking Guide

    Cooking Guide The time and temperature guide are only for reference and can be adjusted according to different ingredients, recipes and taste requirements. Model AF 500 0.93 cu.ft (26L) 120V - 60Hz Power Rating 1700W 68 F - 428 F 19 lbs 15"...
  • Page 10 Cleaning and Maintenance Before cleaning, ensure the oven is turned off by removing the power plug from the power outlet. Allow the oven and all accessories to cool completely before disassembling and cleaning. The outer surface of the appliance, the door, interior, drip tray and other accessories should all be cleaned after each use.
  • Page 11 Replacement of light bulb Note: Before changing the light, make sure the appliance has been unplugged and fully cooled before it can be replaced. Use a 25-watt bulb. Step 1: Rotate the light cover counter clockwise and remove Step 2: Twist and pull out the old light bulb Step 3: Insert the new 25-watt light bulb Step 4: Replace the light cover by turning it clockwise until tightened...

  • Page 12: Troubleshooting

    Troubleshooting...
