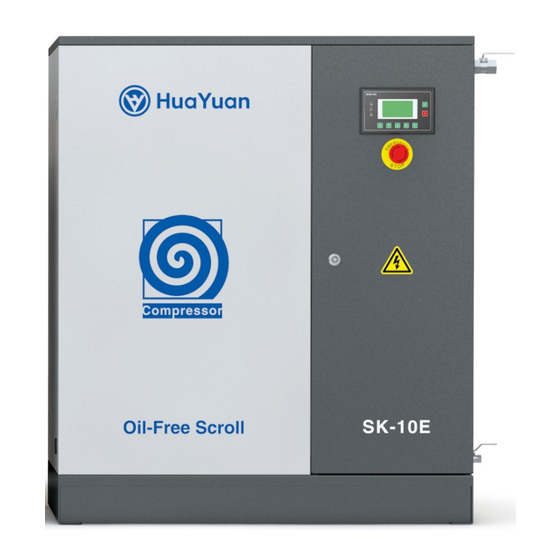

- Page 1 SK Series Oil-Free Scroll Air Compressor User Manual...
- Page 2 Preface Thank you for purchasing SK series oil-free scroll air compressors developed and produced by Huayuan Precision Machine (Shenzhen) Co., Ltd. SK series oil-free scroll air compressors are characterized by advanced performance indicators, excellent manufacturing technology and low operating noise, and they can be arranged and used nearby on site.
-
Page 3: Table Of Contents
Contents 1. Safety Precautions ............................1.1 Important Notice ..........................1.2 Signs and their Meanings ........................2. Product Information ............................2.1 Model Implication ..........................2.2 Description of Nameplate ........................2.3 Description of Components ........................ 2.4 Technical Specifications ........................2.5 Dimensions ............................3. -
Page 4: Safety Precautions
1. Safety Precautions 1. Safety Precautions 1.1 Important Notice This user manual clearly describes the correct use of SK series oil-free scroll air ● compressors. Please read the manual carefully before installing, operating and maintaining the products. Strictly comply with all safety precautions to ensure personal and equipment safety. -
Page 5: Product Information
2.Product Information 2. Product Information 2.1 Model Implication Product Series Control Type SK-Fixed (asynchronous motor) SP-Fixed (permanent magnet synchronous Default - Controller motor) A - Pressure switch MK- Movable (asynchronous motor) MP- Movable (permanent magnet synchronous motor) Drive Mode Default - Pulley drive T –... -
Page 6: Description Of Components
2.Product Information 2.3 Description of Components Air/water Exhaust fan Controller Air storage tank Filter Host Belt Motor Distribution box Through-hole power cord Figure 2-1 Perspective schematic of SK-5E compressor Air/water discharge valve Filter Controller Buffer tank Host Motor Belt Distribution box Radiator Through-hole power cord... -
Page 7: Technical Specifications
2.Product Information 2.4 Technical Specifications Model SK-5E/T-A SK-5E/T SK-10E/T SK-15E/T SK-20E/T Rated discharge pressure 0.8/1.0 (MPa) Free air delivery (m /min) 0.4/0.36 0.4/0.36 0.8/0.72 1.2/1.08 1.6/1.44 Power supply Three-phase 380V 50HZ Total motor power (kW) Drive mode Belt drive Controller type Pressure switch Multi-line text controller Touch screen controller... -
Page 8: Dimensions
2. Product Information 2.5 Dimensions Unit (mm) Model SK-5E/T-A 1005 SK-5E/T SK-10E/T 1000 1086 1067 1029 SK-15E/T 1150 1120 1200 1217 1150 1145 SK-20E/T 1150 1120 1200 1217 1150 1145 SK-25E/T 1400 1000 1440 1450 1035 1300 SK-30E/T 1400 1000 1440 1450 1035... -
Page 9: Installation
3. Installation 3. Installation 3.1 Operating Environment Ensure that the operating environment of the air compressors meets the following requirements: (1) Ambient temperature: 2℃～-40℃； (2) Relative humidity: ≤80%； (3) Avoid direct exposure in the sun; (4) No flammable and explosive gases or organic solvents are allowed nearby; (5) Avoid exposure to rain, various dusts and flying flocs;... -
Page 10: Installation Requirements
3. Installation 3.3 Installation Requirements This product is precision equipment and should be handled by forklift from the bottom of the box or product during loading, unloading, movement and installation. Do not handle the air compressor by pressing exhaust port and drain valve. Remove the fixed base support for transportation at installation. -
Page 11: Piping And Air Storage
3. Installation 3.4 Piping and Air Storage Connect a rubber pipe to the air outlet of the air compressor. When connecting a pipe to the air outlet, slightly tilt the external pipe downward for easy discharge of condensed water in the pipe to the outside of the machine. When connecting an exhaust pipe, ensure that the pressure drop in the pipeline is not more than 5% of the set pressure of the air compressor, and the compressed air flow rate in the pipeline is not more than 15m/s. -
Page 12: Main Circuit And Terminal Definition
3. Installation 3.5 Main Circuit and Terminal Definition The air compressors are applicable to power grid system with three-phase 380V 50Hz and reliably grounded neutral point. Whenever possible, use a set of independent power distribution lines to supply power to the air compressors, and to prevent them from being used in parallel with other systems with different power consumption. -
Page 13: Wiring And Connection
3. Installation 3.6 Wiring and Connection Users should select main power cables with correct wire diameter and reliable quality according to the model of purchased products. Cables with small wire diameter may burn due to high temperature and other hazards may be caused. Connect the main power cable reliably according to the identification of the main power terminals of the air compressor. -
Page 14: Debugging And Use
4. Debugging and Use 4. Debugging and Use 4.1 Description of Operation Panel (1) SK-5E/T-A (Pressure switch) Control panel (2) SK-5E/T---SK-10E/T (Multi-line text controller) Control panel (3) SK-15E/T and above (Touch screen smart controller) Control panel... -
Page 15: Power-On And Trial Operation
4. Debugging and Use 4.2 Power-on and Trial Operation Start Check whether the main power cable and grounding wire of the air Confirm the connection and power supply compressor are reliably connected. Confirm whether the power indicator on the operation panel or the Power on controller screen is normally lit. -
Page 16: Instructions On Use
4. Debugging and Use 4.3 Instructions on Use Different models of air compressors have been debugged according to the parameters on the nameplate prior to delivery. Users can normally start or stop the air compressors by pressing the start/stop button on the control panel or icons on the screen as required after performing trial operation on them. -
Page 17: Maintenance And Check
5. Maintenance and Check 5. Maintenance and Check Check Items It is important to carry out routine maintenance of oil-free scroll air compressors. Proper use and maintenance can enable air compressors to meet the operating requirements and extend their service life. Carry out routine maintenance according to the items listed in the table below. -
Page 18: Routine Maintenance
5. Maintenance and Check 5.2 Routine Maintenance Keep the air inlet and outlet grilles of the machine case clean and unobstructed. If dust accumulations or other blockages are found, remove them immediately. Regularly open the air filter housing. Take out the filter element and blow off dust from it with an air gun. - Page 19 5. Maintenance and Check Press down by 10mm with a force of 50-60N Loosen Tighten Select the corresponding mounting hole to adjust the belt tightness. Be sure to carefully read this user manual and all safety precautions before ① maintenance. Non-professionals are not allowed to maintain and repair the air compressors.
-
Page 20: Troubleshooting
6. Troubleshooting 6. Troubleshooting When the air compressor is abnormal, the fault indicator will light up. For those equipped with a controller, the fault information may be displayed. Users should conduct comprehensive analysis, judgment and troubleshooting of faults based on the following table. If cause cannot be determined and fault cannot be handled, promptly contact our after-sales service department or local authorized dealers. -
Page 21: After-Sales Service And Warranty
7. After-sales Service and Warranty 7. After-sales Service and Warranty 7.1 Installation and Training The supplier shall provide installation guidance and operation training on users by telephone or sending professionals to the scene. The training content includes routine operation, routine maintenance and troubleshooting, etc. - Page 22 24-Hour Hotline 400-0808-650 Paste dealer information here HUAYUAN PRECISION MACHINE (SHENZHEN)CO.,LTD Address: No. 5, Hongkan Road, Yanchuan Community, Yanluo Street, Baoan District, Shenzhen Zip code: 51800 Copyright© Huayuan Precision Machine Email:marketing@huayuan-mach.com WeChat Official Official (Shenzhen) Co., Ltd. Subject to Change...
