MEGACODE Linear MTS1 Operating Instructions

MTS1 and MTS3
1 and 3 Button Remote Control
Programming/Operating
Instructions
Manufactured by:
Nortek Security and Control
760-438-7000
www.nortekcontrol.com
The visor clip can be installed for horizontal or vertical mounting. Slide the visor clip into one of the slots shown.
When the indicator light on the remote glows dimly, or fails to light at all when
the remote control is activated, the battery needs replacing.
Follow the steps in the diagram and use caution to keep batteries away from
children.
Replace old battery with a new CR2032 Lithium battery.
Properly dispose of old batteries. Many electronic stores and supermarkets
have battery recycling bins.
Never dispose of batteries in fire because they could explode.
WARNING
KEEP BATTERIES OUT REACH OF CHILDREN. Swallowing batteries can lead to serious injury or death.
If you suspect someone has swallowed a battery, go to the hospital immediately. Do not induce
vomiting or eat or drink anything.
For more information, call the National Battery Ingestion Hotline: 202-625-3333.
The battery identification number for this product is CR2032.

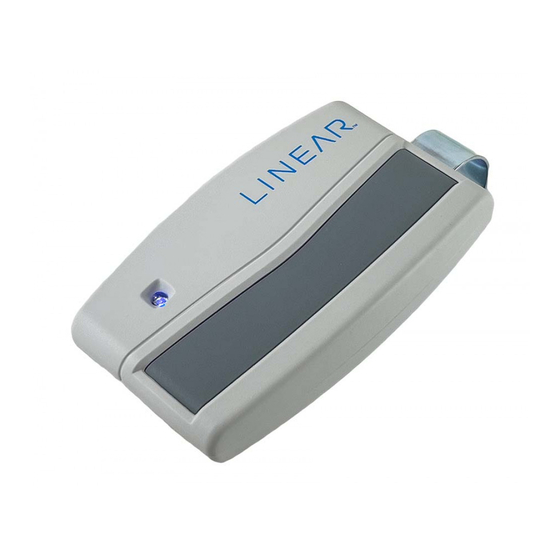

The 1 and 3 button remote controls are wireless. The MTS1 and MTS3 are
1 and 3 button MegaCode remote controls designed to be used with Linear
garage door and gate operators and MegaCode remote receivers.
Each of the remote control buttons will send a unique code when pressed. One
button can be used to activate the individual's garage door opener, a second
button can operate an access gate, a third button can activate an additional
garage door operator.
MegaCode Remote controls and receivers do not contain a typical "coding
switch". Each remote control is permanently coded at the factory. The receiver
is programmed by "learning" a remote control's unique digital code. The
receiver will activate only from the "memorized" transmitters.
The remote control is powered by a Type CR2032 "coin-cell" battery. The
battery should last at least 1 year with normal use. The indicator light on the
remote control will glow when the unit is activated. If the indicator lights dimly,
or not at all when transmitting, the battery needs to be replaced. To conserve
battery life, an internal timer limits the transmission duration to 20 seconds if
a remote control button is held down.
VISOR CLIP INSTALLATION
REPLACING THE BATTERY
REPLACING THE REMOTE CONTROL BATTERY
USE VISOR CLIP IN
1
SLOT TO OPEN CASE
REMOVE OLD
4
BATTERY AND
DISPOSE OF
PROPERLY
DESCRIPTION
This product is warranted to the consumer against defects in material and workmanship for one year from the date of purchase.
This warranty applies to first retail buyers of new devices. Manufacturer will repair, or at its option, replace, any device it finds
that requires service under this warranty, and will return the repaired or replaced device to the consumer at the manufacturer's
cost. For warranty service and shipping instructions contact manufacturer at the address shown below. Devices must be sent
to manufacturer for service at owner's expense. The remedies provided by this warranty are exclusive. Implied warranties under
state law are to the one year period of this written warranty. Some states do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you. In order to be protected by this warranty, save your proof of purchase and
send copy with equipment should repair be required. This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
All products returned for warranty service require a Return Product Authorization Number (RPA#). Contact Technical Service at
760-438-7000 for an RPA# and other important details.
Entrematic radio controls provide a reliable communications link and fill an important need in portable wireless signaling.
LIFT OFF TOP CARFULLY REMOVE
2 3
OF CASE THE BOARD
However, there are some limitations which must be observed.
• For U.S. installations only: The radios are required to comply with FCC Rules and Regulations as Part 15 devices. As such, they
have limited transmitter power and therefore limited range.
• A receiver cannot respond to more than one transmitted signal at a time and may be blocked by radio signals that occur on or
near their operating frequencies, regardless of code settings.
• Changes or modifications to the device may void FCC compliance.
• Infrequently used radio links should be tested regularly to protect against undetected interference or fault.
NOTE: The circuit board only
• A general knowledge of radio and its vagaries should be gained prior to acting as a wholesale distributor or dealer, and these
ts one way into the case.
Align the plastic post in the facts should be communicated to the ultimate users.
case with the hole in the
circuit board.
WARNING: Changes, modifications or adjustments not expressly approved by manufacturer could void the user's authority to
INSERT NEW RE-ASSEMBLE
5 6
operate this equipment. There Are No User Serviceable Parts.
CR2032 REMOTE CONTROL
BATTERY
NOTICE: This device complies with part 15 of the FCC rules and with Industry Canada license-exempt RSS standard(s).
PLUS SIDE UP
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept
any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Copyright © 2020 Nortek Security & Control LLC
Refer to the instructions provided with the garage door opener to
1
set it into "learn" mode.
• Press the opener's LEARN BUTTON for 1 second and release.
• The opener will FLASH (and may beep) once.
• The RED LED will remain lit in Learn Mode for 15 seconds.
While the RED LED is lit, PRESS and HOLD the desired remote button
2
until the RED LED and lamp FLASHES once (operator may also beep).
PREPARING TO ADD OR REMOVE A REMOTE
1 PRESS THE
LEARN BUTTON
THE RED LED
WILL GLOW FOR
15 SECONDS
After programming, test the remote
BE SURE THE DOOR OR
control from various locations. Be GATE AREA IS CLEAR!
sure the door or gate areas are
clear. Activate the remote control
and verify that the remote control
triggers the operator(s).
LIMITED WARRANTY
IMPORTANT !!!
2
PRESS THE DESIRED
REMOTE BUTTON
WHILE RED LED IS ON
10029900 Rev-A
