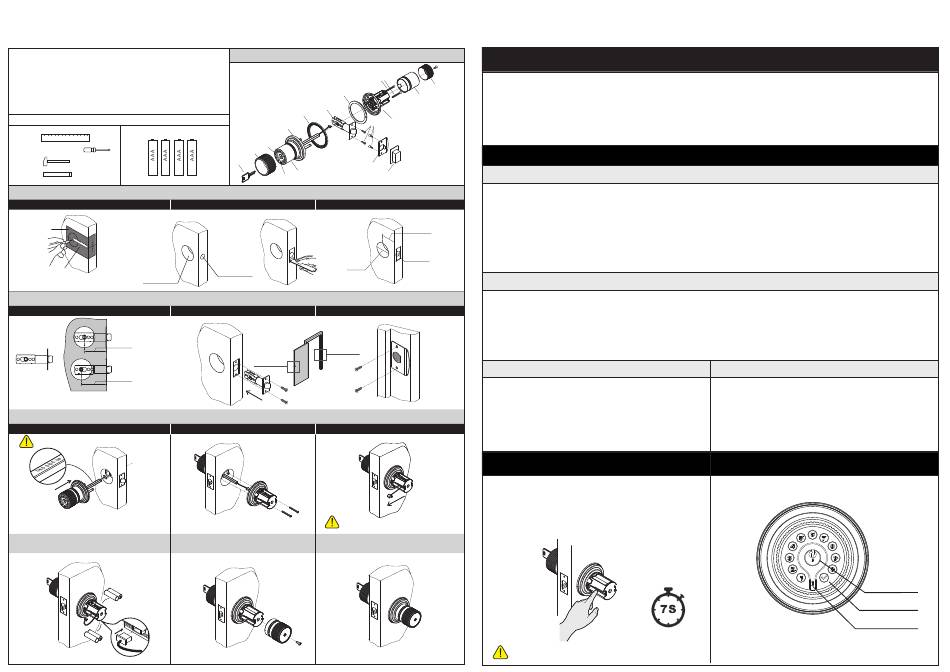

IULOCK IU-30 Installation And User Manual

IULOCK
IU-30 SMART DOOR KNOB
Installation and User Guide
Required tools （not included）
Ruler
+ + + +
Philips head screwdriver
Hammer
- - - -
Chisel
1. Prepare the door and check dimensions
Use template to mark holes
Template
Backset
''
'' '' Bore 2-1/8
must match lock (2-3/8 or 2-3/4 )
diameter hole
2.Install the latch and strike
Setting latch（2-3/8" or 2-3/4"）
60mm/2-3/8"
70mm/2-3/4"
Adjust the latch to the distance you are going to install, 60 or 70mm
(Backset 2-3/8" or 2-3/4")
3.Install the exterior keypad and the interior assembly
Install the exterior keypad
Pay attention to "THIS SIDE UP" on the spindle
Align the exterior keypad with the bore hole. Feed the power cable through latch.
The spindle on the exterior keypad should be aligned with the hole in the center
of the latch. Insert the spindle through this hole as you press the exterior keypad feed power cable through hole in knob and guide spindle into handle.
against the door.
4
.Install the batteries and perform
5
.Install the interior cover
the door handing process
Lock Components
Mounting Screws (M4*40mm)
Rosette rubber
Latch
Rosette rubber
Screw
Exterior Assembly
Keypad
Rubber grip
Key
Strike plate
Emergency Power Jack
Plastic box
LED indicator
Drill two holes Check dimenslons
54mm
''
Bore 1 diameter
hole for latch 2-1/8''
Install latch Install strike plate
Install the interior assembly Push out the power cable with a screwdriver
Do not pull the power cable too hard
Features
M4*10mm
. two ways to access: code and key
Rubber grip
. -30 to 80 °C temperature range
. Low power consumption, 4 AAA for 1.5 Years Battery Life or 15,000 times unlock
Interior Cover
. Backlit keypad for use in low light environments
. 1 master code and 50 user codes
. Passage mode for hassle-free entry
. Color LED indicator lights up to show when codes and commands have been successfully entered
Interior Assembly
. Built-in disguise feature to protect your codes from prying eyes
. Low battery warning indication
Programming guide
Indicator light signals and beep
The color of the light indicates & beep ,the status of the lock.
Green
. a correct master passcode or user passcode was entered ,one long beep
. the programming process is complete ,one long beep
60mm or 70mm
Red
. an incorrect master passcode or user passcode was entered,three short beep
. there was an error in programming, three short beep
24mm
. red blinking and beep after keypad backlit off indicates critically low battery
Passcode and Passcode Disguise
Control of the lock is simply 4-16 digit master passcode or 4-16 digit User passcode.
Passcode Disguise
This function is an added security feature which is aimed at preventing passcode theft. With Passcode Disguise, you may enter 40 digits into the keypad.
As long as the correct passcode sequence is entered, regardless of how many digits were entered before or afterwards, the lock will unlock.
For example, if your user passcode is "112256", you can successfully unlock the lock by entering "xx...xx112256xx...x"(limit 40 digit).
Master passcode
.The master code MUST EXIST and can be modified, but cannot be deleted.
. The lock comes preset with default master passcode 123456
. Used to put the lock in programming mode.
. Can unlock the lock
. Must be different from all of the User Codes currently in the lock.
If you forget the master passcode, you can reset the lock to factory
settings,which restores the default master passcode. See Restore Factory
Settings
Restore Factor y Settings
To delete all user codes, including the master code, follow the instructions
below:
1. Use a screwdriver to remove the screws from the interior cover.
2. Remove the cover and find the reset button located on the battery pack.
3. Press and hold the reset button for 7 seconds until long beep are heard. The
master passcode will return to the manufacturer default code '
After restore factory ,
possible! because of the master passcode can unlock the door.
User passcode
.User codes can be added, modified, deleted.
. The lock comes not preset any User Code
. Used to unlock the lock
. Must be different from the master passcode and other user passcodes
. Up to 50 possible User Codes can be stored in the lock at one time.
123456
'.
Change the master passcode as soon as
Keypad
Key
Check botton
LED indicator
