Summary of Contents for SmartOne BANK PRO

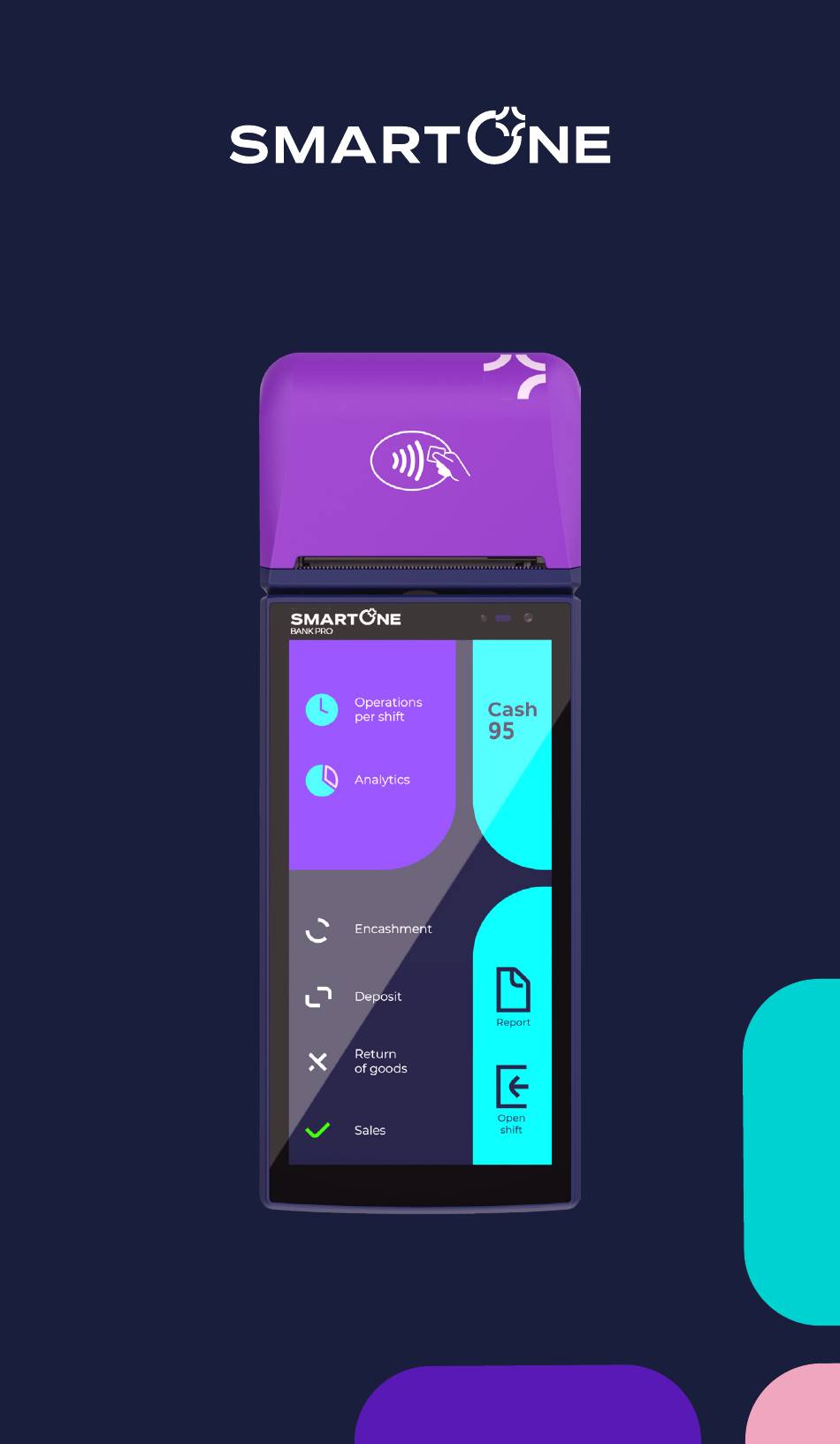

- Page 1 Mobile POS terminal BANK PRO USER MANUAL...
- Page 2 Trademark: Smart One Purpose: This mobile cash terminal is designed to connect to mobile network operators, register sales in offline and online modes, accept payments, issue fiscal cash receipts Manufacturer, Address: SHENZHEN KEXIN SMART DEVELOPMENT CO., LTD, 608, BLOCK B, JINGU VENTURE PARK, LONGZHU 4ROAD, NANSHAN DISTRICT, SHENZHEN, CHINA.
-
Page 3: Technical Information
MIR; PureEMV Certification RoHS, CE, FCC Dimensions 225x85x53/21mm (printer/case) Weight 480g Operating conditions Operating conditions 0°C ~ 50°C Storage conditions -20°C~70°C at 0%~90% RH Package contents · Smart One Bank Pro Mobile Cash Register · Type-C Cable · Battery Charger... -
Page 4: Device Structure
DEVICE STRUCTURE Right side view: 1 – screen; 2 – magnetic stripe reader; 3 – comb for tearing off the re- ceipt tape; 4 – chip card slot; 5 – light/overlap sensors; 6 – front camera; 7 – receipt tape compartment cover/contactless card reading area Left side view: 1 –... -
Page 5: Bottom View
Bottom view: 1 – speaker; 2 – dock station interface; 3 – expansion slot compartment cover; 4 – notch for removing the cover; 5 – main camera; 6 – flash; 7 – barcode scanner Back view (expansion slots): 1 – PSAM card slot; 2 – microSD card slot; 3 – SIM1 slot; 4 –... -
Page 6: Getting Started
GETTING STARTED Installing Expansion Cards · Turn off the device power with the on/off button · Remove the cover of the expansion slot compartment using the special notch for removing the cover. · Insert SIM cards 1 and 2 and PSAM all the way into the designated slots as shown in the figure. - Page 7 Replacing the receipt tape · Open the cover of the receipt tape compartment as shown in the figure · Insert a roll of 58x40mm receipt tape in the compartment according to the illustration...
-
Page 8: Charging The Battery
Turning on the mobile cash register Press and hold the on/off button on the device until the SmartOne logo appears on the SmartOne screen. Turning off the mobile cash register Press and hold the on/off button on the device until the device shutdown indication appears on the screen. - Page 9 PRECAUTIONS Please read this information before using the mobile cash register, otherwise it may cause injury or the device may not comply with local regulations. Battery Do not close the battery contacts, this may cause the battery to ignite or explode. Keep the device away from water Store the mobile cash register in a dry place.
- Page 10 Accessories and battery Use accessories, batteries and chargers approved by the manufacturer. The use of batteries not authorized by the manufacturer may cause injury. In case of loss of the mobile cash register To avoid financial damage, contact your telecom operator or an agency to block your SIM card.
-
Page 11: Warranty Information
Warranty Information The warranty starts on the date of purchase of the mobile cash register. If the specified components are replaced, a new warranty period is not established for them. Warranty periods: · The main product – 12 (twelve) months. ·... - Page 12 reference only. The appearance of the device and buttons, as well as the content displayed in this manual, may differ slightly from those on your device. You can clarify them directly on your device. Some of the features discussed in this guide depend on the network or subscription. Please contact your service provider.
- Page 13 Rules and conditions of installation The equipment is installed in accordance with this user manual. Terms and conditions of storage The equipment should be stored indoors, in its original packaging, at an ambient temperature of -20 to +70°C, and relative humidity not more than 90%.
- Page 14 www.smartoneglobal.com...
