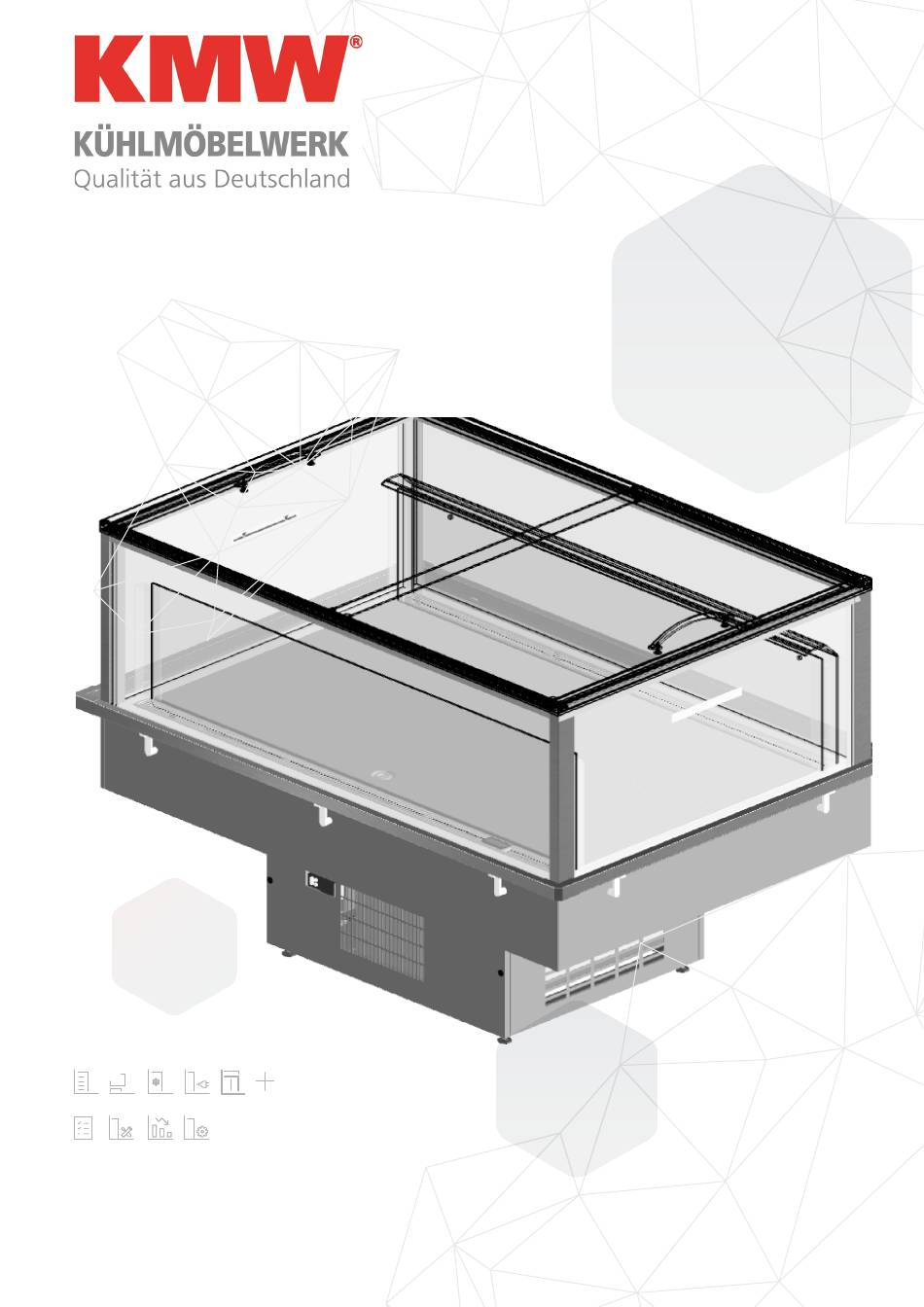

- Page 1 Operating Manual Refrigerated display cabinet Borkum Commercial refrigerated cabinet...
- Page 2 defrost running cooling is running fans are running...
- Page 3 glass panes outside sliding glass lid floor display baffle plate inside load limit line decorative panel impact protection air intake grille light switch LED (optional) thermostat controller program keys button forward back display icons temperature display adjustable feet with thread M10 substructure temperature display, weighted air inlet and air outlet temperature...
-
Page 4: Table Of Contents
Contents General Read and keep the operating instructions Explanation of symbols Intended Use Safety Danger of explosion Risk of ignition and explosion Electric shock hazard Safety instruction for the authorized spezialist Risk of health consequences Risk of injury Malfunctions caused by electromagnetic interference Lineup Installation Electric shock warning... -
Page 5: General
General Explanation of symbols The following symbols and signal words Read and keep the operating instruc- are used in this manual, on the refrigera- tions ted island or on the packaging: This operating instructions belong to the Borkum model series (hereinafter referred to as “refrigerated island”). -
Page 6: Intended Use
Intended use This symbol gives you useful additional information on installation or operation. Products marked with this symbol comply with all The refrigerated island is a commercial applicable Community refrigeration furniture. It is designed as regulations of the Euro- sales furniture for packaged food in the pean economic area (see chapter temperature class M1 and MS in the „Declaration of Conformity“). -
Page 7: Safety
KMW customer service. Only use the cooling island as described in this user manual. Any other use is con- sidered improper and can lead to pro- perty damage or even personal injury. -
Page 8: Danger Of Explosion
• Do not open the housing, leave re- Never close the ventilation openings. pairs to authorized specialists. To do this, contact KMW customer service. Liability and guarantee claims are ex- cluded in case of repairs carried out independently, improper connection or incorrect operation. -
Page 9: Safety Instruction For The Authorized Spezialist
To do this, contact KMW • Make sure that the entire system is customer service. switched off when the temperature controller is mounted, wired or dis- mantled. -
Page 10: Risk Of Health Consequences
(e.g. dents in the housing cau- sed by shopping trolleys). If there is damage to the refrigeration system or the electrics, the KMW custo- mer service must be informed immedia- tely. Otherwise there is a considerable risk of injury. -
Page 11: Lineup
• The refrigerated island is equipped case, do not use the refrigera- with two sliding glass lids. Make sure ted island. Contact KMW customer ser- that the glass lids are kept closed vice immediately. while the refrigerated island is in ope- •... -
Page 12: Installation
• KMW recommends tripping charac- teristic „C“; however, „B“ can also be Only allow work at the electrical system to be carried out by KMW-authorised used. specialists. Also only have a damaged power cord replaced by KMW-authori- Connect and disconnect the refrigerated zed specialists. -
Page 13: Cleaning
Cleaning Defrost The refrigerated island is equipped with • Before cleaning, pull the mains plug an automatic defrosting system that out of the socket. works on the principle of so-called „hot • Wipe the device surfaces with a gas defrosting“. It is therefore usually not slightly damp cloth. -
Page 14: Maintenance
Maintenance Always use suitable protective gloves The refrigerated island is maintenance- when cleaning the cooling island to avo- free. For reasons of hygiene, the ma- id injury. nufacturer recommends completely defrosting and cleaning the refrigerated island once or twice a year. The condenser and the condensate Danger of short circuit drain should also be cleaned once or... -
Page 15: Decommissioning, Transport And Storage
Decommissioning, transport and storage Productdetails and funcionality If you plan to take the refrigerated island This chapter provides information on the pro- out of service for an extended period of duct details and functionality of the refrigera- time, follow these steps: ted island and the individual components that are important for the proper handling of the •... -
Page 16: Temperature Controller / Refrigeration Controller
Temperature controller / Refrigeration panes and the inner baffle pane. controller • A defrosting channel is located below the floor display in the cold room. The With the help of the temperature cont- defrost channel is used to drain con- roller, the temperature in the goods area densed water. -
Page 17: Troubleshooting And Service
• Did you have a longer power outage 2,1kWh previously? KIM2GXT100H100AL140 1,6 kWh Contact KMW customer service if the fault KIM1GXT100H100AL200 is not due to any of the causes listed here. 2,55 kWh When contacting KMW Customer Service, always give the serial number of the... -
Page 18: Disposal
Energy lable climate class III (25°C;60%r.F.) Dimensions L/W/H KIM1GXT100H100AL108 KIM2GXT100H100AL108 KIM..108 1080x980x1005mm External dimensions 950x700x412mm Internal dimensions Display area 0,67 m² Weight 140 kg Dimensions L/W/H KIM..140 External dimensions 1395x980x1005mm Internal dimensions 1265x700x412mm Display area 0,89 m² Weight 188 kg Dimensions L/W/H KIM..200... -
Page 19: Declaration Of Conformity
DIN EN IEC 60079-0:2019-09 for R-290 devices, R-600a devices In case of a technical change to the product described above that has not been agreed with us, this declaration loses its validity. KMW Kühlmöbelwerk Limburg GmbH _________________________________________ Head of Construction Managing Director... -
Page 20: Imprint
D-65555 Limburg This publication, including all of its parts, is protected by copyright. Any use outside the narrow limits of copyright without the consent of KMW Kühlmöbelwerk Limburg GmbH is inadmissible and punishable. This applies in particular to reproductions, translations, microfilms and the feeding and processing in electronic systems.
