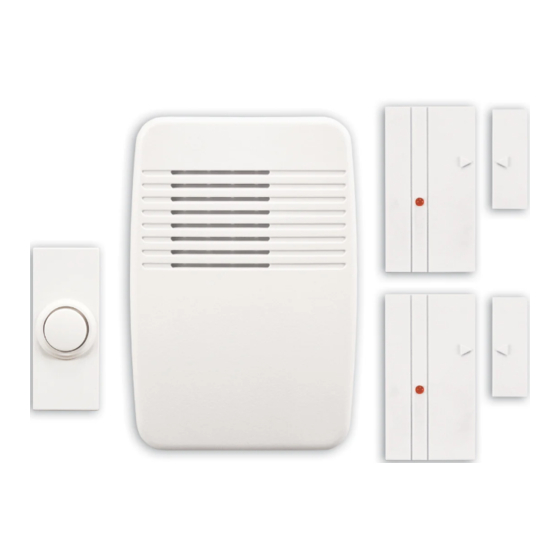

This package includes (Style of door sensor, push button, and chime may vary
from illustration):
Model 7352
Wireless
plug-in
chime
✔
Important considerations: The sensor must be mounted to the door jamb. The
magnet should be attached to the door. Sensor is for indoor use only.

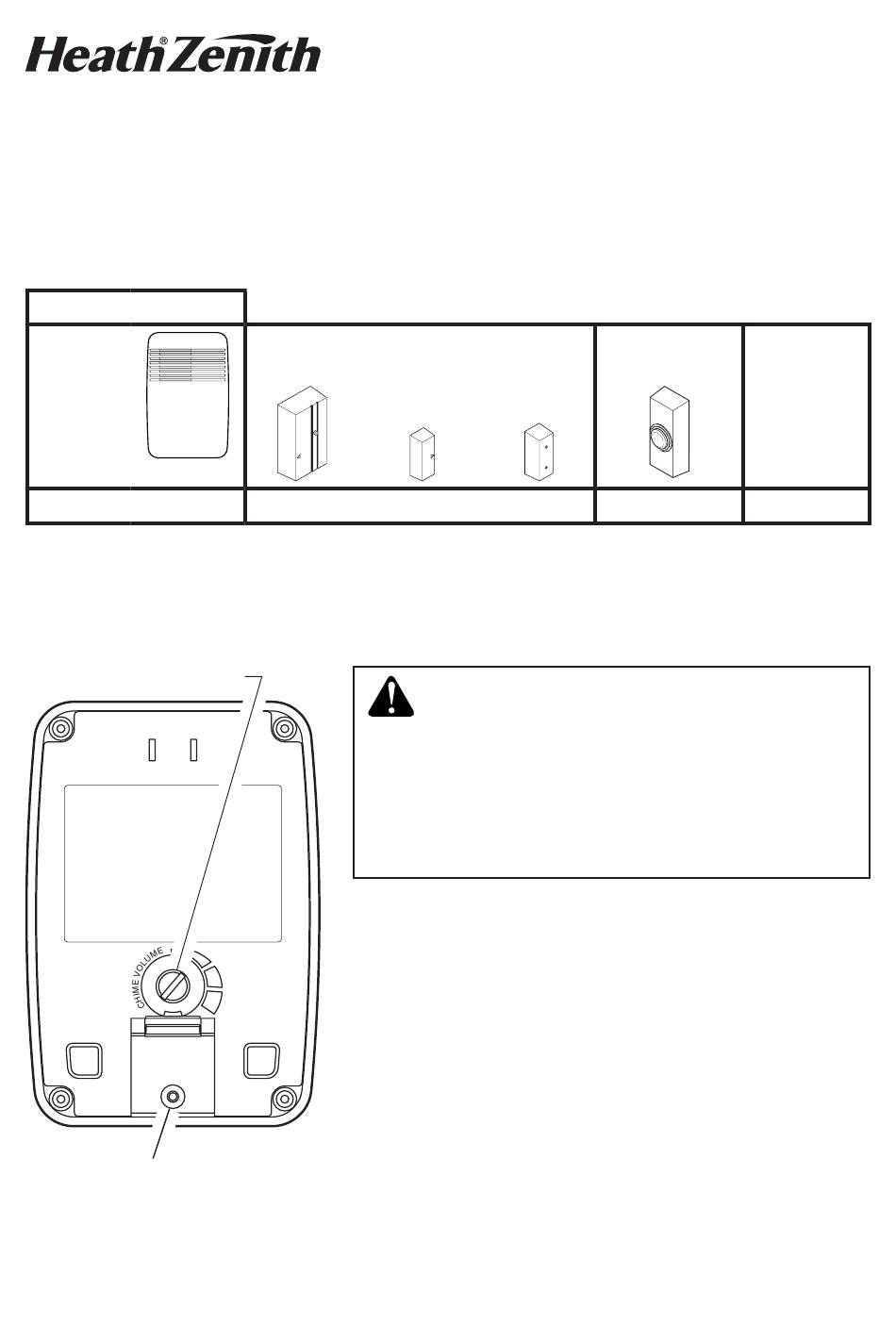

Chime Volume Control
Access Door (See Tune
Settings or Troubleshooting)
Figure 1
© 2014 HeathCo LLC
Door sensor with battery,
Door magnet, Magnet spacer
✔ (x2)
WARNING: To prevent possible
SERIOUS INJURY or DEATH:
• NEVER allow small children near
batteries.
• If battery is swallowed, immediately
notify doctor.
Plug in wireless chime. IMPORTANT: To
avoid resetting chime memory, wait 30
seconds before pressing the push button
or the "TEST" button inside the sensor. See
Troubleshooting, Problem 3 if chime memory
was accidentally reset.
Home Alert Kit
Wireless
push button
Install Wireless Chime
Wireless
Hardware
pack
✔
✔
Advertisement
Table of Contents
Related Manuals for Heath Zenith 7352
Summary of Contents for Heath Zenith 7352
- Page 1 Wireless Home Alert Kit This package includes (Style of door sensor, push button, and chime may vary from illustration): Model 7352 Wireless Door sensor with battery, Wireless Hardware plug-in Door magnet, Magnet spacer push button pack chime ✔ (x2) ✔...
- Page 2 Install Door Sensor 1. Remove orange battery tab from sensor. Remove back of case by pushing in tab on bottom with a small screwdriver (see Figure 1). Remove orange battery tab. 2. Test range. Before mounting, hold sensor and magnet in selected location and verify Figure 2 operation.
- Page 3 4. Mount magnet. Repeat step 3 to attach Use Optional Spacer if Needed magnet (and spacer if needed) to door using two screws (provided). Note: If using spacer, use the two long screws (provided). Install Push Button 1. Remove orange battery tab from push button.
- Page 4 Tune Settings WARNING: Disconnect chime unit from power source before opening chime access door. Close door and replace screw before reconnecting to power. The chime has different selectable tunes: Ding (one note tune), Ding-Dong (two note tune), or Westminster (eight note tune). The factory setting is for the Westminster tune.
- Page 5 Troubleshooting WARNING: Disconnect chime unit from power source before opening chime access door. Close door and replace screw before reconnecting to power. 1. PROBLEM: Chime does not sound or rang one time and quit. A. POSSIBLE CAUSE: Push button/sensor battery is not installed correctly. A.
- Page 6 C. POSSIBLE CAUSE: Chime and push button/sensor are installed too far apart. C. CORRECTIVE ACTION: Locate chime closer to push button/sensor. 3. PROBLEM: Chime sounds when not intended (false triggers). POSSIBLE CAUSE: Chime is receiving interference from another wire- less device. CORRECTIVE ACTION: Reset chime.
