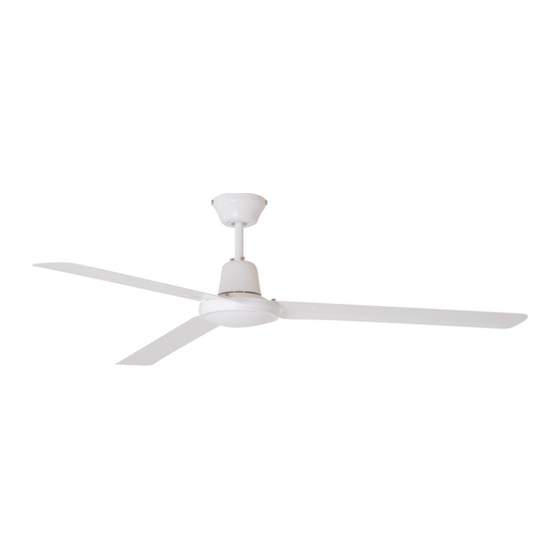

- Page 1 Operating Instructions 120cm Ceiling Fan 140cm Ceiling Fan Item: GCCF120 and GCCF125...
- Page 3 General Care and Safety Guide Thank you for choosing this Goldair product. This Goldair appliance has been designed and manufactured to high standards of engineering and with proper use and care, as described in this leaflet, will give you years of useful service. Please read these instructions carefully and keep them for future reference.
- Page 4 General Care and Safety Guide 24. Never insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock, fire or damage to the appliance. 25. Never use abrasive cleaning products on this appliance. Clean with a damp cloth (not wet) rinsed in hot soapy water only.
- Page 5 Components...
-
Page 6: Installing Your Fan
Installing your Fan NOTE: Improperly installed ceiling fans can be dangerous and expensive to repair and will void the warranty. This fan is designed for indoor use only. Do not mount in positions where fan is subject to water or moisture. The fan must be installed so that the blades are more than 2.3 metres above the floor. - Page 7 Installing your Fan This fan is to be installed by authorised electrician. Wiring diagram below for reference. The fan must be earthed. Wiring Diagram:...
- Page 8 Installing your Fan Attach the blades to the motor housing using 2 blade screws per blade.
- Page 9 Installing your Fan Carefully lift the fan assembly onto the hanging bracket. Rotate fan until the notch on down rod ball (1) engages the ridge in the hanging bracket (2). This will allow for hands free wiring. With the hanging bracket holding the fan assembly, make sure the connector is properly in place. Wires connections on the terminal Brown wire --- L;...
-
Page 10: Cleaning And Maintenance
Operating Instructions The fan is operated from the wall mounted control switch. It has 3 speed positions and an off position. Turn the knob to the desired speed position to activate the fan and to off to stop it. Summer/Winter Operation This fan incorporates a reversing switch. -
Page 11: Proof Of Purchase
Trouble Shooting PROOF OF PURCHASE To receive warranty retain receipt as proof of purchase. (Refer to back of booklet). SUPPORT AND TECHNICAL ADVICE Goldair – New Zealand Goldair – Australia Monday – Friday 8am-5pm Monday – Friday 8am-5pm Phone +64 (0)9 917 4000... -
Page 12: One Year Warranty
In non-domestic use Goldair limits the voluntary warranty to three months. Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the warranty period.
