Summary of Contents for KTMAII CY-329
- Page 1 FOOD PROCESSOR CY-329 Instruction Manual...
-
Page 2: Technical Data
TECHNICAL DATA Model: CY-329 Rated voltage: 120V, 60Hz Power consumption: MAX 650W GENERAL SAFETY INSTRUCTIONS Read the operating instructions carefully before putting the appliance into operation and keep the instructions for future reference. Read all instructions The maximum rating is based on the attachment that draws the greatest load (power or current) and ... - Page 3 way. Never dip machine into any liquid and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. This appliance can be used by children aged from 8 years and above and persons with reduced ...

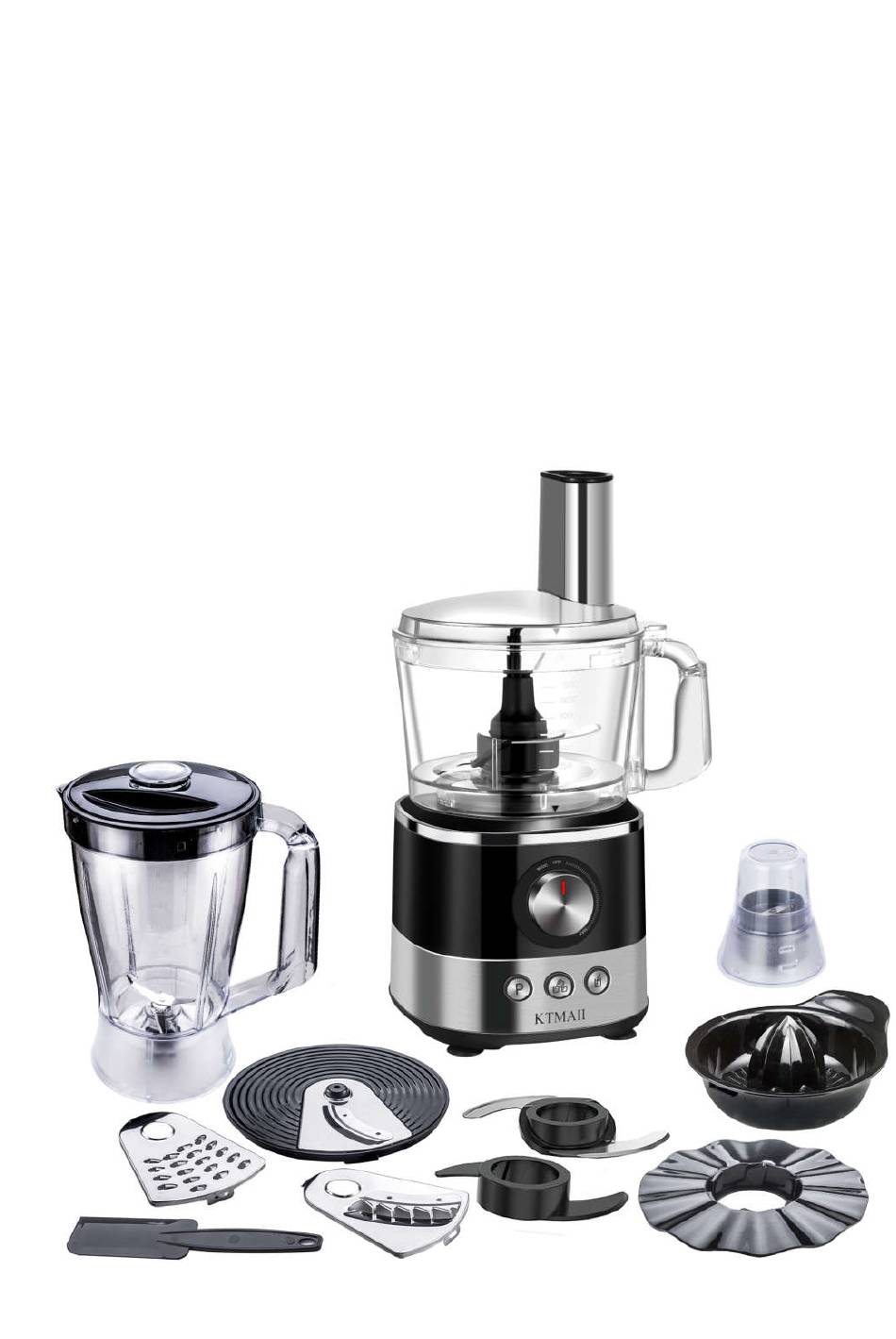

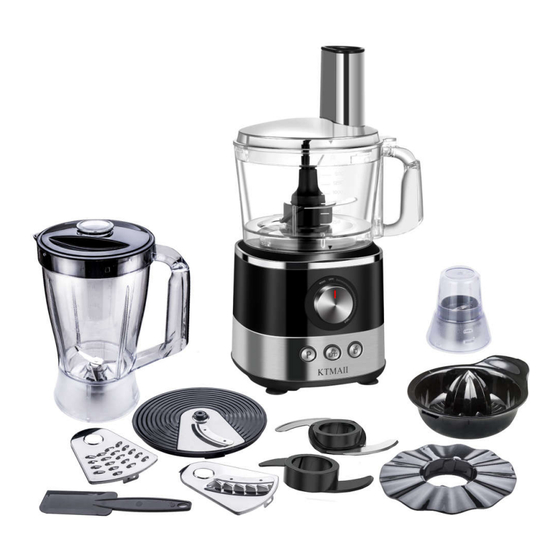

- Page 4 KNOW YOUR KITCHEN MACHINE Push Rod Processing Cup Lid Processing Cup Host Scraper Milkshake Plate Stainless Steel Knife Blade Plastic Knife Blade Tool Holder Squeezed Orange Head Orange Squeeze Plate Slicing Knife Julienne Knife Shredding Knife Cutter Head Measuring Cup Cup Cover Mixing Cup Dry Grinding Cup...
- Page 5 Product function introduction 1. Plug in and turn on the power, the red indicator light flashes on the button, and the three function buttons cannot be operated. 2. Rotate the knob to the corresponding "OFF" position, as shown in Figure 1, the product does not work, the red indicator light flashes on the jog button, and the three function keys cannot be operated.
- Page 6 flashes synchronously at a frequency of 1 second. Standby function: When there is no operation for 30 seconds, the product automatically stops the mode function and the indicator light stops flashing. The mode function can be restored only when the knob is turned to the "OFF" position. ▲Jog function :Long press the jog key to enter the jog mode, the corresponding blue jog indicator light is on, the other two function key indicators are off, stop flashing, and the motor works in jog mode.
- Page 7 Remarks:In the custom mode, the other three function keys are invalid, and the red indicator light corresponding to the click key flashes. ▲ Other functions: 1.Need wide voltage stabilization function. 2. The three function keys must have interlocking function. 3. When the knob is plugged into the plug at the non-zero position and the voltage is turned on, the motor cannot work.
-
Page 8: Using The Blender
assembly way. ·Always take care of Stainless Steel Knife Blade,it is very sharp. ·Only open the lid to take out the food when the blades in bowl are already stopped. USING THE BLENDER * Do not operate the machine more than twice until it is cool down before next processing. * Never open the lid when the blade rotates. - Page 9 food come to max line of container, need to stop operation and pour out the food from container. ▲Switch on and push down evenly with the Pushers - never put your fingers in the feed tube. Operation for Full Stainless Steel Blade disc: ·Blades disc details: Slicing Knife Julienne Knife...
- Page 10 Use for milling herbs, nuts and coffee beans and so on…. 1. Put your ingredients into the Grinder cup. Fill it no more than half full. 2. Set the sealing ring onto the mouth of Grinder cup. 3. Set the Grinder blade onto the sealing ring, blade is upside down. 4 .Screw the Grinder base onto the cup until it is finger tight.
- Page 11 NOISE The operating noise level of the product is greater than 80dB(A) but less than 85dB(A). WEEE This product contains recyclable materials. Do not dispose this product as unsorted municipal waste. - 10 -...
