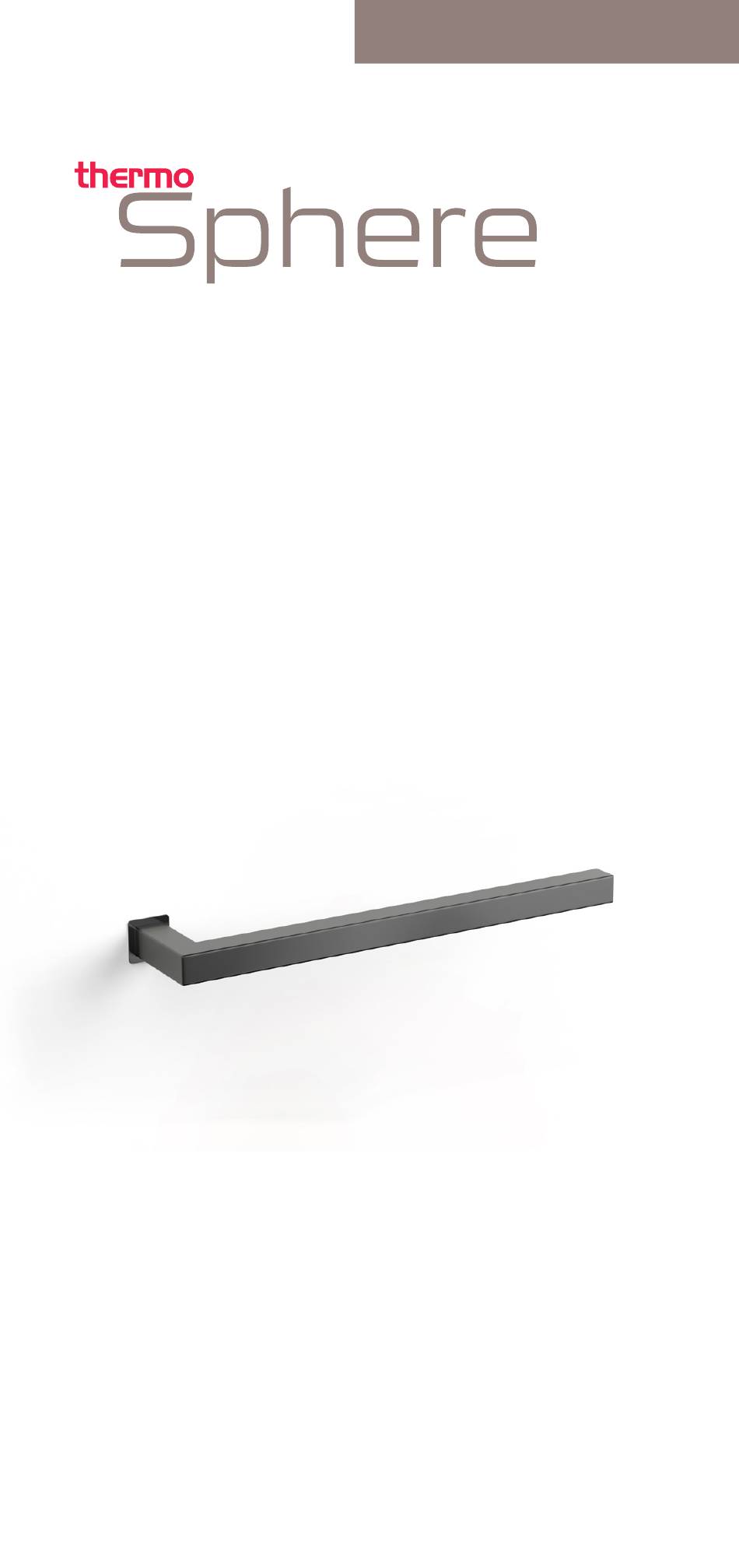

- Page 1 INSTRUCTION GUIDE HEATING | WALL TOWEL BARS ThermoSphere 12V SE Towel Bar Installation Guide Live well..
- Page 2 ThermoSphere at its discretion will recognise whether it‘s a faulty Ensure any controls used are installed in product or not. If it is impossible or not...
-
Page 3: Table Of Contents
Key considerations ......... Single bar installation ........Multiple bar installation ........Example wall build up ........Wiring schematics .......... Available models ..........Watch the installation videos! Single SE Bar installation Multiple SE Bar installation without mounting system with mounting system hello@thermosphere.com... -
Page 4: What's In The Box
What’s in the box? 1. Towel bar body 2. Grub screws 3. Mounting spigot 4. Dress ring 5. Hex key 6. Mounting screws 7. Power lead 2m You will also need • Fixings that are suitable for your wall substrate •... -
Page 5: Key Considerations
Limiting the tiling depth ensures that there is enough spigot protruding from the wall to achieve a good, strong fixing to the towel bar. Spigot shaft inside MAX 35MM bar chassis Fixing spigot plate Tiling layers Grub screws Towel bar chassis hello@thermosphere.com... -
Page 6: Single Bar Installation
Installing single bars (No mounting system) Loosen the grub screws with Remove the spigot and dress a hex key. ring and keep safe to one side. Level check! Ensure the spigot is level and Drill a hole in the noggin mark fixing holes. - Page 7 Max tiling Level check! depth 35mm Only when you‘re happy with Cut a 22mm hole in the wall the level, fit the remaining board that is going over the fixing screws. spigot. Secure with screws and washers. hello@thermosphere.com...
- Page 8 Max tiling depth 35mm Cut a 30mm hole in the Once tile adhesive has dried, tile that is situated over the place the dress ring over the mounting spigot and tile the spigot and fit the towel bar. wall as normal. Plug in the red and blue bullet Fit the towel bar, locate the connectors (12V no polarity)
-
Page 9: Multiple Bar Installation
Fix a screw into the top right Plug in the red and blue corner and pull cables up to bullet connectors and feed the 12V transformer before any excess cable behind the fixing the mounting system in mounting system. position. hello@thermosphere.com... - Page 10 Level check! Position the towel bar over the Make sure the towel bars are spigot taking care not to pinch level before proceeding. Only the cables. Tighten the grub when you are happy with the screws with a hex key. level, secure the bottom left fixing screw Now remove the towel bar,...
- Page 11 You can install up to 7 SE the spigot taking care not to Towel Bars on one mounting pinch the cables, locate the system. The mounting system dress ring and tighten the makes aligning and levelling grub screws. multiple bars quick and easy. hello@thermosphere.com...
-
Page 12: Example Wall Build Up
Example wall build up The image below shows how a full wall build up looks with a mounting system, tile baker boards, tiling and dress rings. IMPORTANT! The thickness of all layers that are installed over the fixing spigot mounting plate must not exceed 35mm. In this example the wall build up is 20mm and includes the mounting system (2mm), adhesive (6mm) and tile (12mm). - Page 13 If you‘re installing on a solid brick/block wall you will need to chase a channel for the cables. Alternatively, you can use the multiple mounting systems to run the cables behind and cover the wall with a backer board before installing tiles. This avoids the need to chase cable channels. hello@thermosphere.com...
-
Page 14: Wiring Schematics
Switch 12V towel bars connected to 12V transofmer in parallel ThermoSphere SE Towel Bars are 12V SELV and can be installed safely anywhere in a bathroom. All electrical circuits in bathrooms must be protected by a suitably rated RCD. +44 (0) 800 019 5899... -
Page 15: Available Models
HTB-SSS-500-BSS 500 x 30 x 30 steel HTB-SSS-500-PLB Polished brass 500 x 30 x 30 HTB-SSS-500-BRB Brushed brass 500 x 30 x 30 HTB-SSS-500-MBK Matt black 500 x 30 x 30 HTB-SSS-500-MWT Matt white 500 x 30 x 30 hello@thermosphere.com... - Page 16 ThermoSphere SE Towel Bar Installation Guide Issue 1.0 April 2021 Thermogroup Ltd T/A ThermoSphere Bridge House Pattenden Lane Marden Kent TN12 9QJ UNITED KINGDOM www.thermosphere.com hello@thermosphere.com +44 (0) 800 019 5899...
