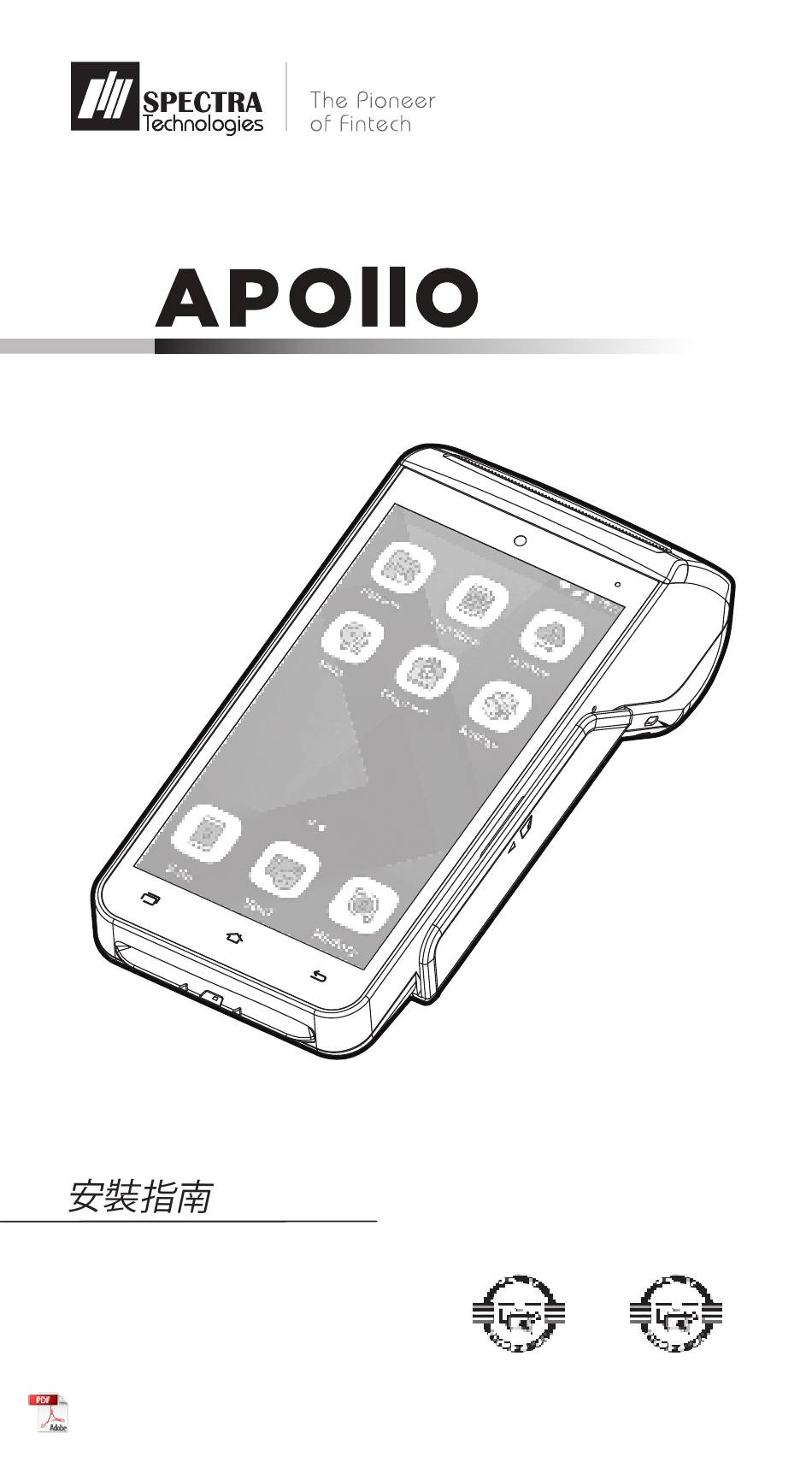

- Page 1 智 慧 終 端 機 Android POS Installation Guide Version 1.0 SPECTRA Technologies SPECTRA Technologies ISO9001 : 2015 ISO14001 : 2015 20002812 QM15 20002812 UM15...
-
Page 2: Table Of Contents
目錄 Table of Content 1. APOLLO Android POS 設計及功能介 .............. Layout & Function Descriptions of APOLLO Android POS 1.1 主機及配件 Main Unit & Accessories............... 1.2 組件特徵 Features at a Glance................1.3 安裝SIM、SAM及Micro‐SD卡 Installation of SIM, SAM & Micro‐SD Card....1.4 安裝電池 Installation of Battery Pack............... 1.5 送紙程序... -
Page 3: Apollo Android Pos 設計及功能介
APOLLO Android POS 設計及功能介紹 Layout & Function Descriptions of APOLLO Android POS 1.1 主機及配件 Main Unit & Accessories APOLLO 智慧終端機‐ 處理交易流程、密碼輸入 、打印、處理通訊 及其他用戶介面，如電子收銀機連線等。 APOLLO Android POS Terminal ‐ for transaction processing, PIN entry, printing, communication and other peripheral interfaces such as ECR integration 電源適配器... -
Page 4: 組件特徵 Features At A Glance
1.2 組件特徵 前置相機 Features at a Glance Front Camera 狀況顯示燈 液晶顯示屏 LCD Display 終端機 Terminal 手帶 Hand Strip 磁卡閱讀槽 Magnetic Card Reader Slot IC卡閱讀槽 IC Card Slot 功能鍵 電源開關 Function Key 音量調節 Power On/Off Volume USB C 線接口 USB C Port 耳機插孔... -
Page 5: 安裝Sim、Sam及Micro-Sd卡 Installation Of Sim, Sam & Micro-Sd Card
相機 手帶 Camera Hand Strip 電池蓋 Battery Door 電池蓋釋放按鈕 Door Release Knob 重置按鈕 Reset Button 1.3 安裝 SIM、SAM 及 Micro‐SD 卡 Installation of SIM, SAM & Micro-SD Card SIM 卡 (可選配) SIM Card (Optional) 按電池蓋釋放按鈕及 打開電池蓋 Press Door Release Knob & Open Battery Door SAM 卡... - Page 6 1.4 安裝電池 Battery Installation Installation Guide...
-
Page 7: 送紙程序 Paper Feeding Procedure
1.5 送紙程序 Paper Feeding Procedure 升高紙盤開啟桿 Lift up the Paper Tray Lever 把紙盤開啟桿往後拉 Pull the Paper Tray Lever backward 將紙卷如圖放入紙盤 Place the paper roll into the tray as shown 關上紙盤蓋 Close the Paper Tray Cover 紙卷大小 Paper Roll Size 57mm (2 ") 40mm Max. -
Page 8: 如何操作
如何操作 How to Operate 2.1 開關程序 Turn On/ Off Procedure 終端機如裝備有充電電池及首次使用，請 If the terminal is equipped with charging battery during first time use, please connect 先將電源接上，充電三小時。 the power adaptor and charge the battery for 3 hours. 開機 - 將電源接上，終端機會自行啟動。 On - Power is on whenever plugged. If the 如沒接上電源，請按... -
Page 9: 充電電池安全使用指引
充電電池安全使用指引 Rechargeable Battery Safety Guideline 3.1 禁止:為防止電池受損而引致危險後果，必須遵守下列嚴禁守則: Prohibition: Improper handling of the Li-Polymer battery is hazardous, the following forbidden activities must be avoided: 禁 止 於 瑞 柏 產 品內 使 用 非 瑞 柏 提 供 的 DO NOT use NON-SPECTRA provided battery in SPECTRA POS Terminal 專用電... -
Page 10: 終端機及電池儲存指引 Terminal And Battery Storage Guideline
3.3 終端機及電池儲存指引 Terminal and Battery Storage Guideline 若 終 端 機 長 期 閒 置，請 將 電 池 充 至 僅 If the terminal will not be used for a long period, please charge it to only 50% of the 50%滿後拆離終端機(即電池顯示一半... -
Page 11: 安全及維修
安全及維修 Safety & Maintenance 4.1 基本安全規範 Basic Safety Practice 使 用 終 端 機 及相 關 設 備 時，必 須 遵 循 While using terminal and its accessories, please follow the safety instruction to avoid 如 下 基 本 安 全 規 範 以 防 範 火 災、電 擊 fire, electric shock and personal injury. -
Page 12: 安裝位置 Location For Installation
4.3 安裝位置 Location for Installation 使店員和持卡人能安全方便進行操作 Should be safe and convenient for operators and users 當 坐 台 使 用 時，把 設 備 放 置 在 穩 定 的 Should be placed on stable working platform 平台上，以便 於連接電源線和其他外置 during desktop operation for ease of power 設備... -
Page 13: 故障排除 Trouble Shooting
清潔印表機 Printer Cleaning Disconnect power cable from the terminal 分開終端機與電源線的連接 Open printer cover, take out paper and roller 開啟紙斗蓋，取出軸心及紙卷清除紙斗 Remove dust and paper scrap inside paper 中的 紙屑及灰 塵，如果可能 的 話，可使 tray . Use low pressure blower to clean the 用低壓吹風器... - Page 14 打印機工作不正常： Malfunction on printer If the terminal is powered by battery, check 如終端機只從電池供電，請給電池充電或 the battery level and charge the battery, 更換電池，如問題仍未解決，嘗試從電源 replace new battery or else power the 適配器供電 terminal by adaptor. 如從電源適配器取電，檢查電源線接口、 If it is powered by power adaptor, check 電源適配器接口是否穩固地插牢...
-
Page 15: 其他資訊
其他資訊 Other Information 尺寸及重量 Dimensions & Weight Size: 180 (L) x 84 (W) x 61 (H) mm 尺寸: 180 (長) x 84 (闊) x 61 (高) mm Weight: 450g (Terminal with battery) 重量: 450克 (終端機連電池) Operating environment 工作環境 Temperature: 0 C - 45 溫度: 0 C - 45... - Page 16 FCC Information NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 17 瑞柏科技控股有限公司 香港九龍太子道西193號新世紀廣場第二期1301-09, 19-20室 電話 : (852) 2319 2918 傳真 : (852) 2319 2631 SPECTRA TECHNOLOGIES HOLDINGS CO.LTD. Unit 1301-09,19-20, Tower II, Grand Century Place, 193 Prince Edward Road West, Kowloon, Hong Kong Tel : (852) 2319 2918 Fax: (852) 2319 2631...
