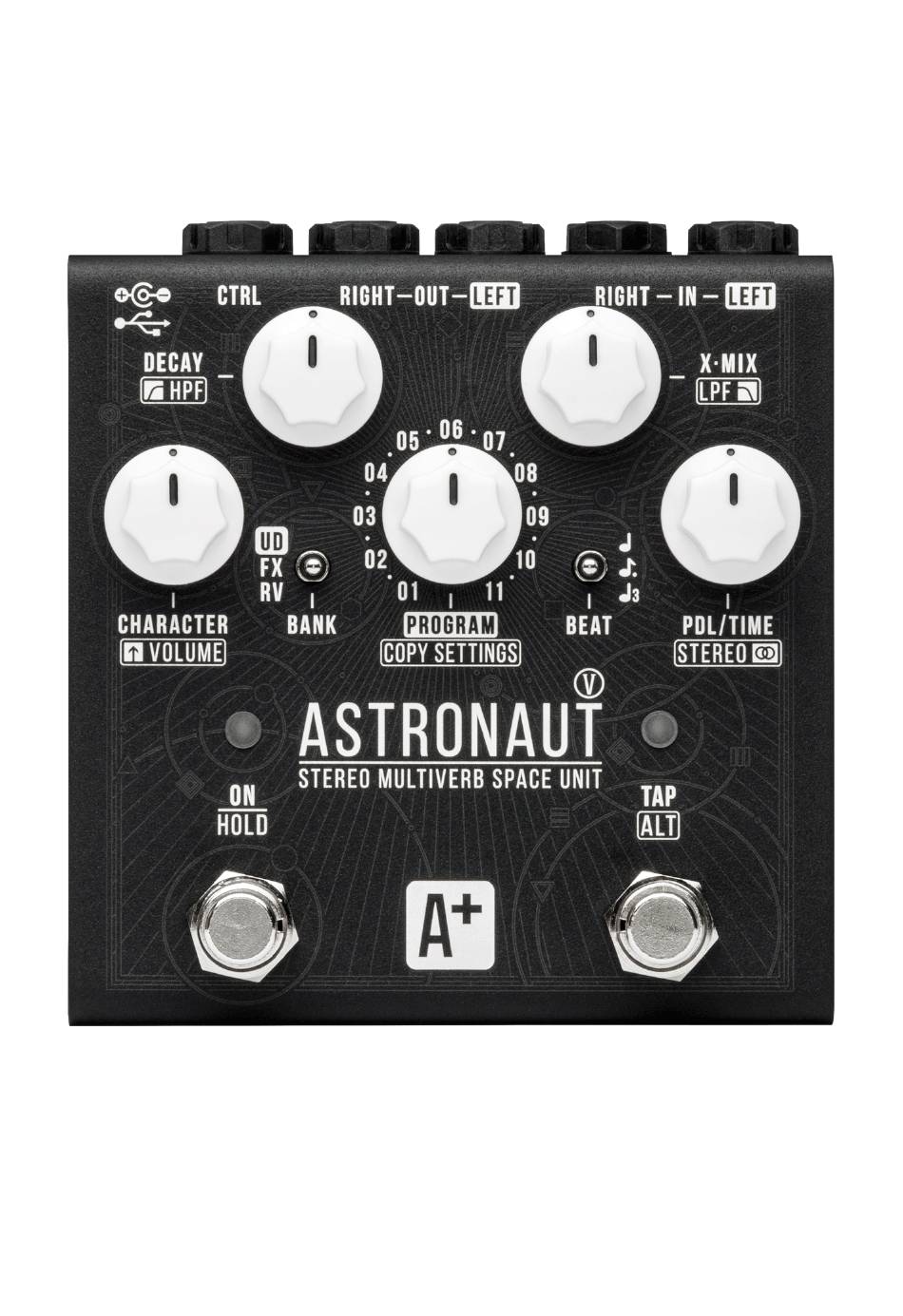

  • Page 1 Astronaut V Stereo Multiverb Space Unit User Guide...

  • Page 2: Table Of Contents

    Table Of Contents Connections Connection Modes MONO Mode MONO TO STEREO Mode STEREO / DUAL MONO Mode DOUBLE PROCESSING Mode Controls The STEREO Knob The PDL/TIME Knob, TAP Footswitch and BEAT Switch The HPF and LPF Knobs Bypass & Indication The ON/HOLD LED The TAP/ALT LED Program Management...

  • Page 3: Connections

    ● RIGHT IN is an input for the second signal source. A stereo setup can be achieved by simultaneously connecting two mono signal sources to the LEFT IN and RIGHT IN inputs. The Astronaut V doesn’t support TRS connections. ● LEFT OUT is the left channel output. Connect it to the signal receiver. In a mono signal chain, use this output exclusively.

  • Page 4: Controls

    Controls The device makes use of dual-function controls: each knob and switch can have different functions depending on the situation. Primary functions with direct access are printed in bold font on the pedal. Secondary functions which can be accessed by holding down the TAP / ALT footswitch are printed in a box on the pedal and are underlined in this document.

  • Page 5: The Stereo Knob

    The TAP footswitch and the TIME knob have the same effect on the tempo parameter. The pedal uses the value of the control used last. The Astronaut V allows for external tempo control (e.g. via MIDI or analog triggers). Read more in the External Parameter Control section.

  • Page 6: The Hpf And Lpf Knobs

    ON / HOLD footswitch, the effect tails will stop immediately. The Kill Dry mode is implemented via the X-MIX knob. If you’re using the Astronaut V in setups with external mix control, it’s recommended to set the X-MIX knob fully CW.

  • Page 7: Program Management

    The pedal boots up in Standard Mode, which scans the device’s memory for control values for each program. All saved values are applied. This way, the Astronaut V can be viewed as a collection of saved presets which are available via the PROGRAM knob. Physical controls don’t reflect the values stored in the program; however, as soon as you turn a control knob, the UI will save its new value to the program.

  • Page 8: Rv Bank (Reverbs)

    RV Bank (Reverbs) In this bank, the PDL/Time knob and the TAP footswitch always set the pre-delay for reverb reflections at a ratio of 1:16 relative to the set tempo (taking the BEAT switch position into account). The LPF and HPF knobs affect the output in each algorithm featured in the RV bank. All the algorithms in this bank can be split into several subgroups: Classic Reverbs 1.

  • Page 9: Futuristic Space Reverbs

    Futuristic Space Reverbs 5. Skynet. A bright, futuristic space reverb which can create huge soundscapes. It’s a great tool for ambient music and other atmospheric genres. The CHARACTER knob controls the smoothness of reverb reflections. 6. Skynet-2. A darker version of Skynet which works very well for ambient music, too. The CHARACTER knob controls the smoothness of reverb reflections: from granular-like quality to long, smooth attacks.

  • Page 10: Complex Effects

    11. Force OctDn. An octave-down microsampler for hefty sound textures. Banks & Programs The Astronaut V has 33 program slots, which are split into 3 banks of 11 programs. To select a bank, move the BANK switch to the desired position: ●...

  • Page 11: Effects (Fx)

    Effects (FX) This bank contains various effects: delays, arpeggiators, complex effects and microsamplers. Algorithm positions are fixed but you can freely edit the programs. The LED above the ON footswitch glows red. To select a program, set the PROGRAM knob to the desired position. Programs in this bank correspond to MIDI PC messages 11-21.

  • Page 12: Quick Access

    Quick Access The Quick Access function allows you to quickly switch from the currently selected program to the first program in the UD bank. We recommend that you save your most frequently used program to the first slot in the UD bank. To recall or exit the Quick Access program, double-tap the ON footswitch.

  • Page 13: Setup Mode: Available Settings

    Setup Mode: Available Settings Upon entering Setup Mode, you need to choose which settings you wish to edit. All settings are divided into 3 pages accessible via the BANK switch. Move the BANK switch to the desired position, as listed below. UP: Global Setup.

  • Page 14: Midi Setup

    MIDI Setup While in Setup Mode, set the BANK switch to the CENTER position. Parameter settings use dual-function indication: the ON LED displays the CHARACTER and DECAY knob parameters. If the parameters are disengaged, the LED doesn’t flash. The MIDI Setup page provides access to the following settings: MIDI channel is selected via the PROGRAM knob.

  • Page 15: Setup Over Usb

    Connecting the Pedal over USB The Astronaut V has a USB Type C port (above the power input) for connecting the pedal to your computer. To establish the connection, you need a USB cable (not included). You need to use a USB 2.0 (or better) port on your computer.

  • Page 16: Expression Pedal Settings

    We recommend leaving any one of those values at 1.0 and altering the other two as needed. For instance, try setting the value to 0.5 (8th note), 0.25 (16th note) or 0.125 (32nd note). You can also experiment with more exotic subdivisions such as 5/8 (0.625), 7/8 (0.875), 5/6 (0.833333334), and so on.

  • Page 17: Midi Settings

    USER.SET (UI settings) and A5.SET (algorithm settings). Any programs saved in the pedal’s memory will remain there. Service Commands The Astronaut V supports service commands. To issue a command, create a folder or file with a specific name in the root folder of the ASTRONAUT drive, then reboot the pedal. Available commands: ●...

  • Page 18: Midi Control Config

    We recommend setting the CC message interval to 17ms. The Astronaut V is connected to the MIDI source via a MIDI Type A 6.3mm TRS jack. The wiring scheme is as follows: MIDI 4 (Source) > TRS RING, MIDI 2 (Shield) >...

  • Page 19: Firmware Updates

    NB! An incomplete firmware update can make the pedal unusable. If something goes wrong during the update, the pedal will most likely need to be serviced by Shift Line’s qualified specialists. Please use the feedback form if you experience any issues with the firmware update.

  • Page 20: Specifications

    Specifications ● LEFT IN / RIGHT IN: 6.3mm, mono, unbalanced, 1MOhm input impedance. LEFT IN is the main mono input. ● LEFT OUT / RIGHT OUT: 6.3mm, mono, unbalanced, 100Ohm output impedance. LEFT OUT is the main mono output. ● CTRL: 6.3mm, stereo, normally open momentary button, MIDI Type A, 5V analog trigger (S-trig/V-trig), or passive expression pedal (TS or TRS, 10-25kOhm).
