Summary of Contents for SIEB & MEYER 0480123B

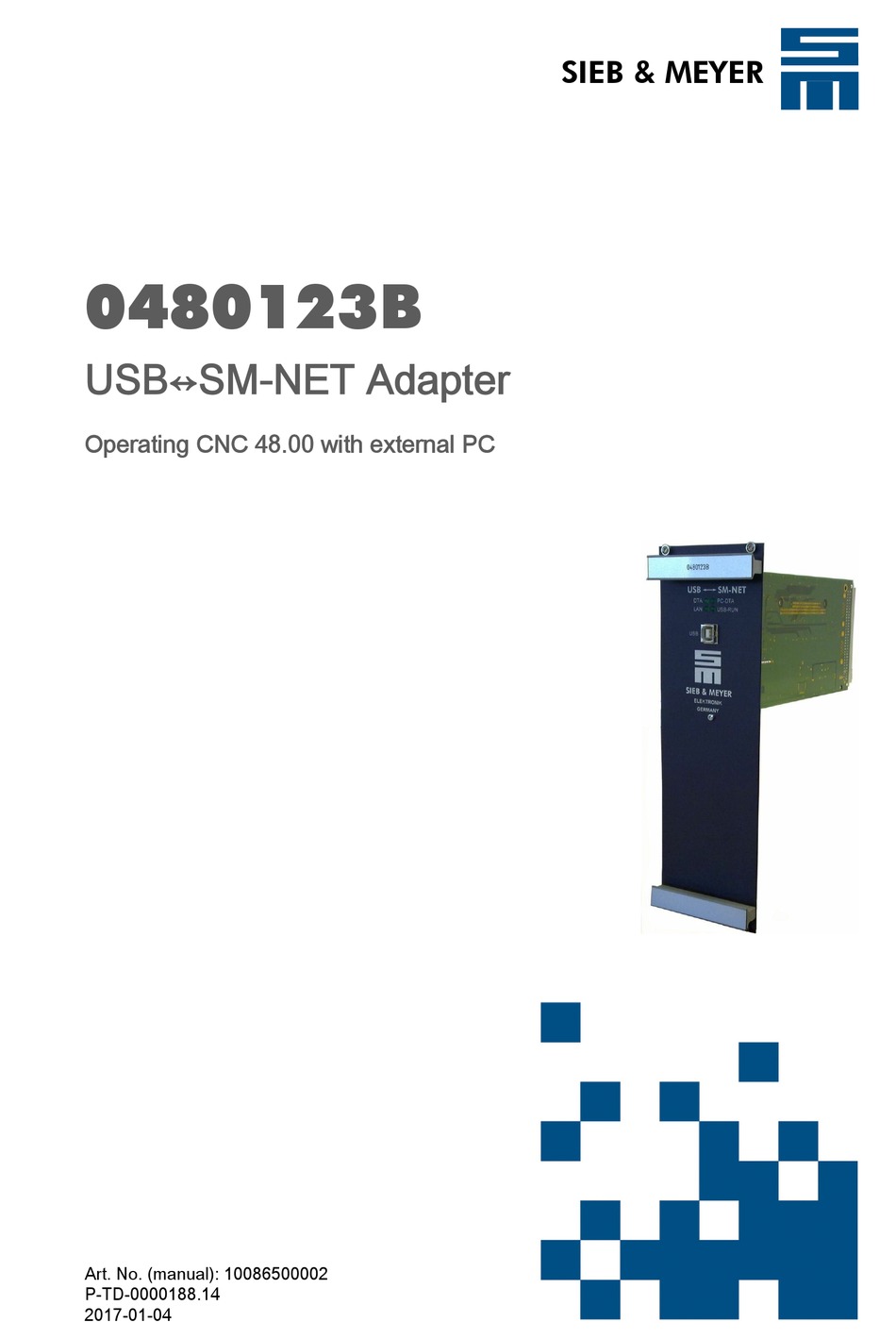

- Page 1 SIEB & MEYER 0480123B USB↔SM-NET Adapter Operating CNC 48.00 with external PC Art. No. (manual): 10086500002 P-TD-0000188.14 2017-01-04...
- Page 2 Min-Sheng N. Road Fairfield, OH 45014 Kwei-Shan Hsiang 333 Tao-Yuan Hsien Phone: +1 513 563 0860 Taiwan Fax: +1 513 563 7576 Phone: +886 3 311 5560 info@sieb-meyerusa.com Fax: +886 3 322 1224 http://www.sieb-meyer.com smasia@ms42.hinet.net http://www.sieb-meyer.com 0480123B - USB↔SM-NET Adapter...
- Page 3 Chapter Overview About this Manual Safety Instructions The USB↔SM-NET Adapter Software and Driver Installation 0480123B - USB↔SM-NET Adapter...
- Page 4 Chapter Overview 0480123B - USB↔SM-NET Adapter...
-
Page 5: Table Of Contents
3.6.1 Description of the LEDs ..................Software and Driver Installation ........Supported Operating Systems ..................... Installation of the PC Software and Machine Software ............CPU Cards and Available Z-axes ..................Installation of the USB Driver ....................0480123B - USB↔SM-NET Adapter... - Page 6 Content 0480123B - USB↔SM-NET Adapter...
-
Page 7: About This Manual
Indicates a hazardous situation which, if not avoided, may result in property damage. Risk symbols Risk symbol Description General hazardous situation Risk of injury due to electric shock Risk of injury due to hot surfaces 0480123B - USB↔SM-NET Adapter... -
Page 8: Technical Symbols
Terms that are specifically explained in the manual are highlighted as underlined and green words. All term definitions are to find in the glossary of the manual. In the PDF file a mouse click on a highlighted term jumps directly to the according definition. 0480123B - USB↔SM-NET Adapter... -
Page 9: Safety Instructions
All Information and advice attached to the device, such as safety instructions or danger warnings and technical data (type plate) are: ▶ not to be removed ▶ not to be damaged ▶ to be kept readably (no covers, no paint over or the like) 0480123B - USB↔SM-NET Adapter... -
Page 10: Appropriate Use
Product Standard DIN EN 61800-3 for PDS". Refer to the product documentation of your device to find out whether or not your device is equipped with a line filter. For detailed information on line filters refer to the manual "EMC Guidelines". 0480123B - USB↔SM-NET Adapter... -
Page 11: Transport And Storage
Tab. 1: Vibration limits of the system The above data are related to horizontal movements by the servo amplifiers of the series mounted in a 72 WU chassis. Depending on the device type and size of the chassis smaller values are possible. 0480123B - USB↔SM-NET Adapter... -
Page 12: Electrical Connection
Connection to earth must be realized according to the instructions in the product documentation of your device. The electrical installation must be carried out according to the relevant electrical codes (e.g. appropriate wire gauges, fuse protection and connections of ground conductors must be considered). 0480123B - USB↔SM-NET Adapter... -
Page 13: Operation
Risk of serious injuries due to moving machine parts During the operation of an installation with open doors or removed covers, persons may seriously be injured by moving machine parts. Keep the doors closed during the operation and do not remove covers. 0480123B - USB↔SM-NET Adapter... -
Page 14: Maintenance
▶ when the device has been employed although the protection equipment was defective ▶ when the maximum permissible input voltage has been exceeded ▶ through improper operation 0480123B - USB↔SM-NET Adapter... -
Page 15: Standards And Regulations
Low-Voltage Directive 2014/35/EU ▶ Machinery Directive 2006/42/EC ▶ EMC Directive 2014/30/EU ▶ DIN EN 61800 If the mechanics or the electronics of the device are modified, the conformity with the EC/EEC directives and thus the label will expire. 0480123B - USB↔SM-NET Adapter... - Page 16 Safety Instructions 0480123B - USB↔SM-NET Adapter...
-
Page 17: The Usb↔Sm-Net Adapter
The USB↔SM-NET Adapter The USB↔SM-NET Adapter This manual describes the USB↔SM-NET adapter 0480123B which allows connection of a standard PC to a CNC 48.00. Variants The following table lists all available variants of the card 048010023. Contact SIEB & MEYER for detailed information on the variants not described in this manual. -
Page 18: Dongle
USB interfaces of the PC. You can order this dongle at SIEB & MEYER. Connection Principle The following figure shows the connection principle of the USB↔SM-NET adapter. 0480123B - USB↔SM-NET Adapter... -
Page 19: Function
Another problem is that only small amounts of PC mainboards are still available for exchange of defect mainboards. With the USB↔SM-NET adapter 0480123B SIEB & MEYER offers the possibility to connect the SIEB & MEYER CNC 48.00 to a standard PC. This requires that the PC is equipped with a USB interface. -
Page 20: View Of The Front Panel
IPC 50.01 and pull the module out of the CNC chassis. Step 3: Inserting USB↔SM-NET adapter module into CNC chassis ➮ Shift the USB↔SM-NET adapter 0480123B into the free space of the CNC chassis onto the VGA bar of the PC back plane. View of the Front Panel This chaper describes the view and LEDs of the USB↔SM-NET adapter 0480123B. -
Page 21: Description Of The Leds
Data transmission when LAN connection to the CNC is available PC-DTA Green Data transmission to external PC Green LAN connection to the CNC available Data transmission via USB (480 Mbit/s) USB-RUN Green Data transmission via USB (12 Mbit/s) 0480123B - USB↔SM-NET Adapter... - Page 22 The USB↔SM-NET Adapter 0480123B - USB↔SM-NET Adapter...
-
Page 23: Software And Driver Installation
▶ machine software The USB drivers are automatically installed with the PC software, when prop‐ erly installed. Supported Operating Systems The USB↔SM-NET adapter 0480123B can be operated with PCs with the following operating systems: ▶ ® Windows 7 (only 32 bit version) ▶... -
Page 24: Installation Of The Pc Software And Machine Software
Var. A = 2 MB Var. C = 1 MB Number of Z-axes Var. B = 4 MB Var. D = 2 MB Var. C = 2 MB Var. E = 4 MB Var. D = 4 MB 0480123B - USB↔SM-NET Adapter... - Page 25 The following window appears after the installation has been completed: Activate the option "No, I will restart my computer later". The current version of the PC software for the operation of the USB↔SM-NET adapter 0480123C will be installed on the PC. 0480123B - USB↔SM-NET Adapter...
-
Page 26: Installation Of The Usb Driver
Windows opens a wizard for the installation of the USB driver. To install the driver, proceed as shown in the following figures. Fig. 4: Step 1: Installation of the USB Driver Activate the option “No, not this time” and click on “Next”. 0480123B - USB↔SM-NET Adapter... - Page 27 Start the installation of the USB driver again, all necessary modifications in the “siebmeye.ini” file will be done by the software. ▶ To recover the original system, you can overwrite the other directories and files with the backup files created before. The device is ready for operation. 0480123B - USB↔SM-NET Adapter...
- Page 28 Software and Driver Installation 0480123B - USB↔SM-NET Adapter...
