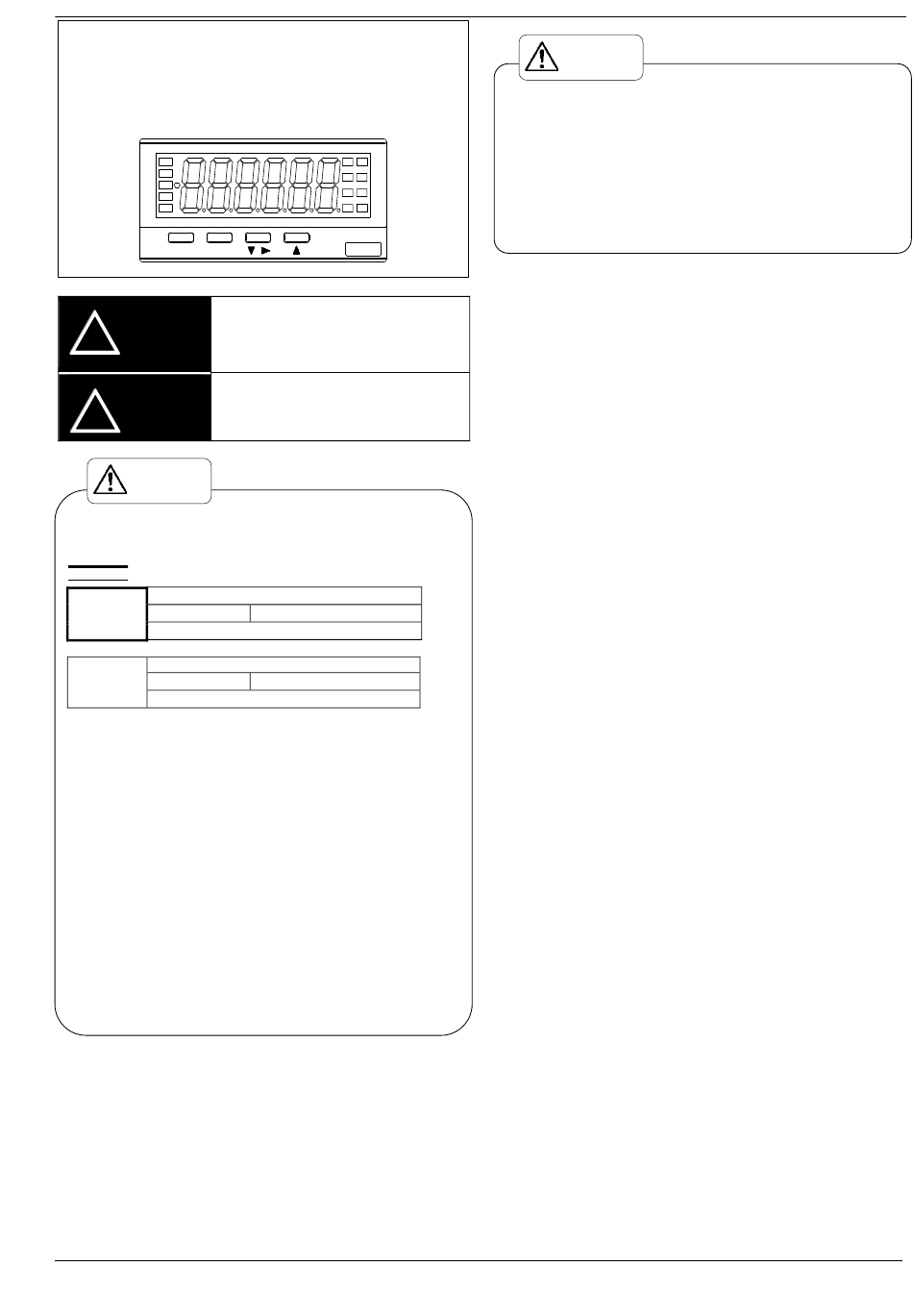

WATANABE ELECTRIC INDUSTRY AM-756 Instruction Manual

5 1/2 digit digital meter relay

Advertisement

Quick Links

Instruction Manual MODEL AM-756
5 1/ 2 Digit Digital Meter Relay
AM-756
Instruction Manual
Enter
Mode
This
incorrect use may result in death or serious
!
WARNING
injury, or cause serious damage to property.
This symbol indicates instances where
improper use may result in injury to the
!
CAUTION
operator or serious damage to property.
WARNING
(1) The insulation class of this device is outlined below. Please ensure the
insulation class of this device satisfies your usage requirements before
setting up the device.
Basic insulation
Functional insulation
Comparative Output
AC Power
Input
Source
External Control, BCD Output, Analog Output
Comparative Output
DC Power
Input
Source
External Control, BCD Output, Analog Output
(2) Please do not disassemble this device or make improvements or repairs.
Doing so may cause sudden fire, electrocution or injury.
(3) In order to ensure power to equipment, including this device, is cut in
the event of failure, please ensure an external breaker is installed and
appropriately labeled so that it may be used to cut power to this device
when a malfunction occurs.
(4) In order to prevent device damage and failure, please ensure the voltage
used matches the device's power rating.
(5) In order to prevent electrocution and device failure, please do not turn
the power on until all wiring has been completed.
(6) Before supplying power to this device, please ensure you check that the
device has been correctly wired. Incorrect wiring may cause device
failure, fire, electrocution or malfunction.
(7) In order to prevent electrocution or fire in the equipment, please check
that there is clearance around the device before activating power.
(8) Please do not touch the terminals while power is being supplied to the
device. Doing so may result in electrocution or malfunction.
/
symbol
indicates
instances
Sensor Power Source
Sensor Power Source
Watanabe Electric Industry Co., Ltd.
CAUTION
(1) Application of voltage or current exceeding the maximum input
tolerance may damage the device.
(2) Please ensure the voltage used is within the specified voltage range.
Failure to do so may cause fire, electrocution or malfunction.
(3) Please note that the contents of this manual are subject to change
without notice as the product is upgraded.
(4) The information contained herein is considered accurate to the best of
our knowledge. However, should there be any errors or omissions,
please contact the distributor or our company.
(5) After reading this manual, please keep it readily available for future
reference.
・Usage Conditions
where
Place of Installation: Indoors only
Rated Altitude: 2000m or less
Overvoltage Category: II
Pollution Level: 2
Operating Ambient Temperature and Humidity: 0~50°C 35~85%RH
Vibration (durability): 10 to 55 Hz (Half amplitude 0.15mm)
Impact (durability): 100m/s
(up and down, forward and back, left to right)
Protective Structure: Equivalent to IP40 (front section)
Connecting Wire Length: Input and output signal lines and control line - less
・Safety Precautions
(1) Watanabe Electric Industry Co., Ltd assumes no responsibility for any
special damage, indirect loss or passive loss caused by this device.
(2) This device has been developed, designed and manufactured on the
premise that it is to be used as general machinery. Please ensure
attention is paid to safety by adopting such means as a fail-safe design
and a redundancy design, and by conducting regular checks on the
device, particularly when it is being used for purposes such as the
following, where safety is of utmost importance.
• Safety devices used for personal protection
• Rail, aviation and vehicular equipment
• Medical equipment
• Incineration systems, nuclear systems
• Other purposes conforming to the conditions above which require high
levels of safety
(3) Please do not use this device for applications which directly affect
human lives.
(4) When this device is to be used in conjunction with other products,
please check for conformance with specifications, provisions of law and
regulations before use to ensure compatibility.
(5) As the operating life of the comparative output relays varies greatly
depending on switching capacity and conditions, please ensure the
relays are used within their rated load and electrical life.
deteriorated relays could result in insulation failure between circuits or
burnout of the relays themselves.
(6) This device requires more than 40 minutes warm up time from when
power is activated in order to operate within its degree of accuracy.
(7) Please do not wipe this device with alcohol, paint thinner, benzene,
acetone or other organic solvents. When wiping the device, please use
a neutral detergent.

・Table of Contents

1 BEFORE USE .............................................................................................. 2
2 INSTALLATION .......................................................................................... 2
4 SETTING OF PARAMETERS ..................................................................... 5
5 EXAMPLE DEFAULT SETTING ................................................................ 8
6 PARAMETER LIST ................................................................................... 10
7 FUNCTION LIST ....................................................................................... 14
8 SPECIFICATIONS ..................................................................................... 18
9 TROUBLE SHOOTING ............................................................................. 19
10 TIMING CHART ...................................................................................... 19
11 WARRANTY AND AFTER-SALES SERVICE ....................................... 20
(Non Condensing)
X, Y, Z directions 30 min.
2
6 directions, 3 times each
than 30m in length
2022.07 ED-34880e
1/20
Using

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AM-756 and is the answer not in the manual?

Questions and answers

Summary of Contents for WATANABE ELECTRIC INDUSTRY AM-756

  • Page 1: Table Of Contents

    ・Safety Precautions insulation class of this device satisfies your usage requirements before setting up the device. (1) Watanabe Electric Industry Co., Ltd assumes no responsibility for any Basic insulation special damage, indirect loss or passive loss caused by this device.
  • Page 2: Before Use

    Watanabe Electric Industry Co., Ltd if anything comes to your attention. 1-1 Model Configuration The model configuration of the AM-756 is shown below. Please check that the product received matches the product ordered. AM-756-□□-□ □-□...
  • Page 3: Terminal Description And Connection Method

    Instruction Manual MODEL AM-756 3/20 3-3-2 23, 24 Range (Direct current input) Terminal Description and Connection Method 3-1 Rear View Recommended torque : 0.5Nm Applicable crimp terminal Max. 5.8 Max. 5.8 Bottom Terminal Name Details Comparative Input unit Optional unit...
  • Page 4 Instruction Manual MODEL AM-756 4/20 (2) Switch the sensor power switch socket as shown in the diagram below. Terminal Name Details HH C HH Output photocoupler Collector terminal HH E HH Output photocoupler Emitter terminal HI C HI Output photocoupler Collector terminal...
  • Page 5: Setting Of Parameters

    Instruction Manual MODEL AM-756 5/20 Terminal Terminal Main Functions Name Details Name Details Name During Measurement During Settings Mode Mode External control common terminal Comparative Displays comparative Extinguished PSEL2 Pattern select control Output Display judgment results (Comparative output OFF) Displays measurement...
  • Page 6 The basic operating system for checking parameter setting values is shown in the diagram below. * The diagram below uses the AM-756-DV- 41 operating system (voltage input, analog output + external control, relay output) as a typical example. Some of the parameters and values displayed below may not be displayed for other ranges.
  • Page 7 Instruction Manual MODEL AM-756 7/20 Previous Page AO 100% AO 0% AO type Mode display value display value Enter Mode Mode Mode Mode Mode Mode Enter Enter Enter Linearize LINE input value 1 LINE output value 1 LINE output value 16...
  • Page 8: Example Default Setting

    The display will return to the parameter name display. 5 Example Default Setting As a typical example, the default position setting for the AM-756-DV- 0-1 (voltage input, no option, relay output) is shown. ・ ±19.99999V range (13 ranges), 1 to 5V input is displayed as 0.00 to 100.00.
  • Page 9 Instruction Manual MODEL AM-756 9/20 5-3 Displaying Scaling Settings (1) Set the full scale display value to "10000". 3 times Mode Mode Mode Mode Change the set value using the above keys (2) Set the full scale input value to "5.000".
  • Page 10: Parameter List

    Instruction Manual MODEL AM-756 10/20 6 Parameter List Group Menu Default Display Parameter Name Setting Range Description Display Value Conditions 11: ±199.999mV Input: DV Input range 12: ±1999.99mV Sets the input range. (Voltage (DV range) 13: ±19.9999V * Input terminals differ according to the range.
  • Page 11 Instruction Manual MODEL AM-756 11/20 Group Default Display Menu Display Parameter Name Setting Range Description Value Conditions SSLO: 1 time/sec Display Update SLO: 2 times/sec Sets the main display update cycle. Cycle MID: 10 times/sec FAST: 20 times/sec HIGH: Bright...
  • Page 12 Instruction Manual MODEL AM-756 12/20 Group Default Display Menu Display Parameter Name Setting Range Description Value Conditions Comparative NRML: Normal output Selects comparative output type. NRML Output Type ZONE: Zone output * Condition data group Holds status (latches) when comparative output judgment is a judgment other than GO.
  • Page 13 Instruction Manual MODEL AM-756 13/20 Customer Default Display Menu Display Parameter Name Setting Range Setting Description Value Conditions Value Linearize Input -199999 to 199999 [digit] Input Value 1: Linearize pre-correction Value 1 Setting Condition: N02i > N01i display Linearize Output...
  • Page 14: Function List

    Instruction Manual MODEL AM-756 14/20 Group Default Display Menu Display Parameter Name Setting Range Description Value Conditions OFF: Display all Hides parameters of set group. PATN: No pattern display Settings Protect * For parameter groupings, please refer to "Parameter COND: No condition display Settings Group".
  • Page 15 Instruction Manual MODEL AM-756 15/20 ・Example setting (2) Digital Zero Control Method This enables selection of whether digital zero is controlled by using the Display LINE set value: 4 external control terminal or the front panel keys. 110.01 Parameter Used:...
  • Page 16 Instruction Manual MODEL AM-756 16/20 Time (2) Operation Type Comparative set value There are two Start/Hold operation types; Type A (free run) and Type B (one HH or HI Hysteresis shot). Measurement Parameter Used: value ・Type A: This operation type enters hold status when Start/Hold is ON, halting...
  • Page 17 Instruction Manual MODEL AM-756 17/20 7-6-3 Display Color (6) BCD Output Logic This function enables the display color of the main display and comparative The function is used to select BCD Output logic. output display (only when comparative output is activated) to be set.
  • Page 18: Specifications

    Instruction Manual MODEL AM-756 18/20 Insulation Resistance: Min. 100MΩ between the abovementioned terminals 8 Specifications when DC 500V is applied ・Input Specifications Memory Backup: E PROM, Writing frequency: 10,000 times Measurement function: Direct voltage / Direct current Operating system: Δ∑ Conversion system...
  • Page 19: Trouble Shooting

    PROM has been exceeded and settings may no longer be able to be saved. In this case, please consult your dealer or Watanabe Electric Industry directly. The input unit has not been properly inserted in the Please firmly connect the input unit connector (male) to the main unit connector main unit.
  • Page 20: Warranty And After-Sales Service

    This product was manufactured, tested, inspected and shipped under strict quality control measures. Should the product break down, please return the product to the dealer or directly to Watanabe Electric Industry Co., Ltd. It would be appreciated if you would give a detailed account of the defect and enclose it with the product.
