Lynx Evo

User Manual

Version 1.1 (Nov 2020)

Table of Contents

Need help?

Do you have a question about the Evo and is the answer not in the manual?

Questions and answers

Summary of Contents for Lynx Evo

Page 1 Lynx Evo User Manual Version 1.1 (Nov 2020)
Page 3: Table Of Contents
Product Introduction .......................... 3 Features ............................3 Kit Contents ............................4 Diagnostic Tool Overview ......................... 4 Lynx Evo App: iOS versus Android ....................5 Getting Started....................6 Installing the Diagnostic Tool ......................6 Lynx Evo App Setup for iOS ......................7 Lynx Evo App Setup for Android ....................
Page 4: Introduction
 Please read this manual carefully before operating your device.  Please keep this manual safe for future use.  App updates may change the look or text of the Lynx Evo app. The illustrations and instructions within this manual are for reference purposes only.
Page 5: Product Introduction
Lynx Evo supports all Land Rover models from 1990 onwards; refer to the vehicle coverage matrix for more detail. Lynx Evo is compatible with iOS and Android mobile devices via the free Lynx Evo app, available for download from the Apple App Store and Google Play Store.
Page 6: Kit Contents

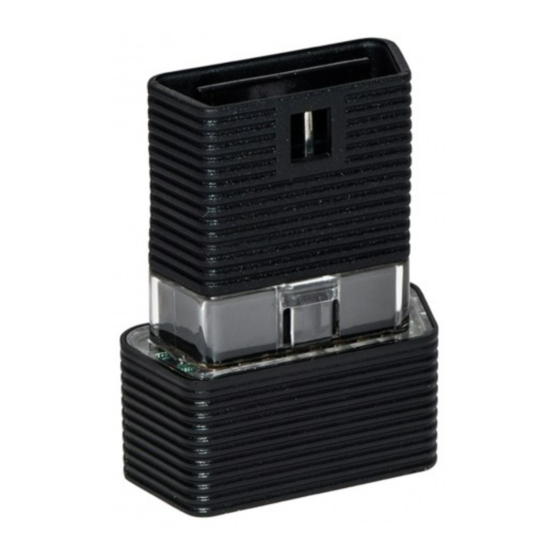

 Quick Start Guide  Activation Card  Case Diagnostic Tool Overview 1. Red LED: Indicates communication between the Lynx Evo app and the Diagnostic Tool 2. Blue LED: Indicates power to the Diagnostic Tool 3. Product serial number 4. OBD diagnostic connector...
Page 7: Lynx Evo App: Ios Versus Android
Android operating systems:  Due to the way iOS is structured, the iOS version of the Lynx Evo app requires a separate, free app (Auto Diag) to be installed. However, after initial setup, you should ONLY use the Lynx Evo app.
Page 8: Getting Started
Getting Started Installing the Diagnostic Tool Getting Started Getting Started CAUTION: Always turn the ignition switch OFF before connecting or disconnecting the Diagnostic Tool. Locate your vehicle’s diagnostic port. Depending upon the model of the vehicle, this port is normally located under the dashboard or near the center console. The above illustration notes the five possible locations of the diagnostic port.
Page 9: Lynx Evo App Setup For Ios
NOTE: If using an iPad, search using Phone Apps Only. Search for and download Lynx Evo Diagnostics from the Apple App Store. 2. User Registration If you do not have a Lynx Evo app account, you will need to create one. See “User Registration”, page If you have an existing Lynx Evo app account, sign in with your email address and password.
Page 10 Getting Started 3. Model Selection NOTE: If you have not purchased Lynx Evo Pro, you will only be able to activate one model for free. The free selection cannot be changed once it is made. After your user account is registered, the Lynx Evo app will open to the Home Page. Select...
Page 11 Getting Started 4. Activate the Diagnostic Tool You will receive a prompt to activate the Diagnostic Tool. If you have not yet activated the Diagnostic Tool, press Activate. See “Activating the Diagnostic Tool”, page 22 for instructions. If you wish to activate at a later time, press Cancel and continue to the next step.
Page 12 Getting Started 5. Install Vehicle Software NOTE: If you have purchased Lynx Evo Pro, you will be able to download vehicle software for all models after initial setup of the app. NOTE: If you have purchased Lynx Evo Pro, you will be able to download vehicle software for all models after initial setup of the app.
Page 13 Getting Started 6. Install the Diagnostic Tool Plug the Diagnostic Tool into the diagnostic port. See “Installing the Diagnostic Tool”, page 7. Pair the Diagnostic Tool Open the Settings app on your device and select Bluetooth. When the Diagnostic Tool is plugged into a vehicle and receiving power, the serial number of the tool will be displayed under OTHER DEVICES.
Page 14 Getting Started 8. Install the Auto Diag App Open the Lynx Evo app again. When selecting a model for the first time, you will be prompted to read some workshop warnings. Press Confirm after reading. When prompted to download models, press OK.
Page 15 Getting Started 10. Ready to Use Once both apps are installed and set up is completed, you will ONLY need to open the Lynx Evo app going forward. Leave the Auto Diag app installed on your device, but do not open it.
Page 16: Lynx Evo App Setup For Android
1. Install the Lynx Evo App Search for and download Lynx Evo Diagnostics from the Google Play Store. 2. User Registration If you do not have an Lynx Evo app account, you will need to create one. See “User Registration”, page If you have an existing Lynx Evo app account, sign in with your email address and password.
Page 17 Getting Started 3. Activate the Diagnostic Tool You will receive a prompt to activate the Diagnostic Tool. If you have not yet activated the Diagnostic Tool, press Activate. See “Activating the Diagnostic Tool”, page 22 for instructions. If you wish to activate at a later time, press Cancel and continue to the next step.
Page 18 Getting Started 4. Model Selection NOTE: If you have not purchased Lynx Evo Pro, you will only be able to activate one model. This selection cannot be changed once it is made. NOTE: If you have purchased Lynx Evo Pro, you will be able to download vehicle software for all models after initial setup of the app.
Page 19 Getting Started 5. Install the Diagnostic Tool Plug the Diagnostic Tool into the diagnostic port. See “Installing the Diagnostic Tool”, page 6. Search for the Diagnostic Tool Select Search Bluetooth from the menu options at the bottom of the screen. The app will begin scanning for Diagnostic Tools in range.
Page 20 Getting Started 7. Pair the Diagnostic Tool NOTE: In the prompt, it is not necessary to enter a pairing code or check the Allow box in order to pair your devices. When prompted, confirm that the serial number listed in the prompt matches the one on the Diagnostic Tool you wish to pair, then press PAIR.
Page 21 Getting Started 8. Ready to Use Models which have been purchased and downloaded will be highlighted. Lynx Evo Pro users can download additional model coverage by selecting additional models. It is possible to add additional model coverage to the app by purchasing and activating software vouchers.
Page 22: User Registration
Getting Started User Registration To create a user account for the Lynx Evo app, perform the following steps: 1. Open the Lynx Evo App Open the Lynx Evo Diagnostics app and select Create an Account. 2. Set Your User Details...
Page 23  Press the CAPTCHA button and enter the revealed code into the noted field.  After all fields have been filled out, press the Register button to continue. Return to “Lynx Evo App Setup for iOS”, page Return to “Lynx Evo App Setup for Android”, page...
Page 24: Activating The Diagnostic Tool
Carefully scratch away the silver coating with a coin to reveal the code printed underneath.  Press Next to continue. Return to “Lynx Evo App Setup for iOS”, page Return to “Lynx Evo App Setup for Android”, page...
Page 25: Using The Lynx Evo App
If your device is restarted, the app will require you to log in again, which must be done while online. To log in to the Lynx Evo app with your account, perform the following steps: 1. Open the Lynx Evo app.
Page 26: Navigating The App
Using the Lynx Evo App Navigating the App Home screen The Home Page is the first screen that opens after you have logged into the app. Press an option to select it.  Land Rover Diagnostics: See “Starting Diagnostics”, page ...
Page 27 Using the Lynx Evo App Navigating menus To return to the previous menu, press the arrow in the banner at the top of the screen. In the example shown, you would press < to return to the Show Menu screen.
Page 28: Reports And Settings
Using the Lynx Evo App Reports and Settings The Reports and Settings menu has several options:  My Report: See page  Diagnostic Feedback: See page  Change Password: See page  Update Entitlement: See page  My Device: See page ...
Page 29 To aid in reporting any potential issues with app performance or results (e.g. actuation tests, data streams), use Diagnostic Feedback to send details to Lynx Evo support. Press Confirm on the prompt, then select the vehicle log related to your issue.
Page 30 Using the Lynx Evo App Change Password To change the password to your account, press Change Password. Enter your old password in the designated field, then enter your new password in the designated fields and press OK to submit. You will receive a prompt if the password change is successful.
Page 31  Date of activation Settings In Settings:  The current version of the Lynx Evo app will be displayed.  Units of measurement can be toggled between Metric and Imperial.  Press Log Out to log out of the Lynx Evo app.
Page 32: Support And Coverage
Support and Coverage In Support and Coverage:  Press Email to email Lynx Evo support, then select your email client from the prompt. NOTE: The email client options displayed depend upon what is currently installed and set up on your device.
Page 33: Closing The App
Using the Lynx Evo App Closing the App When you exit an app on your mobile device, it usually continues to run on standby in the background. To completely close the app on your device, perform the following steps: Closing on iOS devices: 1.
Page 34: Diagnostic Tool Firmware Updates
Connect the Diagnostic Tool to the vehicle's diagnostic port (see “Installing the Diagnostic Tool”, page 6). Open the Lynx Evo app and select your vehicle model, then follow the steps below for your device type. Firmware updates on iOS If the app detects that a firmware update is available for the Diagnostic Tool, the Diagnosis Precheck screen will open.
Page 35 Using the Lynx Evo App Keep your device near the Diagnostic Tool and stay plugged into the vehicle until the update completes. When the update is completed, a check icon will be shown before the Diagnostic Tool serial number, and its current firmware version will be listed after it.
Page 36 Using the Lynx Evo App Firmware updates on Android If the app detects that a firmware update is available for the Diagnostic Tool, the update will begin automatically. Keep your device near the Diagnostic Tool and stay plugged into the...
Page 37: App Software Updates
Using the Lynx Evo App App Software Updates When your device is online, the Lynx Evo app will automatically check for software updates when you select a vehicle model. If you receive a prompt that updates are available, press the box next to the update to select it, then press the Update button.
Page 38: Software Vouchers
If you choose not to purchase a subscription renewal, you can continue to use the Lynx Evo app with your existing software by pressing Continue on any subscription prompts. However,...
Page 39 Using the Lynx Evo App Activating a new voucher code To activate a new voucher code, go to Settings > Subscription Information. Press Activate Model Voucher next to the model you wish to activate. In the prompt, enter the 12-digit card number and 24-digit password provided to you with your purchase.
Page 40 Using the Lynx Evo App On the next screen, select the code you wish to view. Once selected, you can view:  Voucher Code type  Activation time (date the code was activated)  Renewal term (length of subscription)  S/N (serial number of the Diagnostic Tool to which the code is linked) ...
Page 41: Starting Diagnostics
Using the Lynx Evo App Starting Diagnostics Once the Lynx Evo app and Diagnostic Tool are activated, you may begin diagnosing vehicles under you current model activation(s). 1. Connect the Diagnostic Tool to the vehicle's diagnostic port (see “Installing the Diagnostic Tool”, page...
Page 42 Using the Lynx Evo App 5. Select the model year of your vehicle. 6. Select the vehicle engine type.
Page 43 Using the Lynx Evo App 7. The next menu will list all available diagnostics and system management functions for that model. These functions usually include:  Health Report: Checks all vehicle systems and lists any existing fault codes. Report can be saved and shared.
Page 44: Running A Health Report
Using the Lynx Evo App Running a Health Report A Health Report lists your vehicle’s basic information and diagnostic test results in a concise, easy-to-read format. Saving and sharing Health Report files can be useful as a reference for yourself or a customer.
Page 45 Using the Lynx Evo App 2. The Diagnostic Tool will begin scanning all available systems and report its findings in the app. The progress of the scan will be displayed at the top of the list. Press Pause to pause...
Page 46 Using the Lynx Evo App 3. The progress will disappear from the list once the scan is completed. All scanned system names will be listed, along with the scan results of each. Detected Diagnostic Trouble Codes (DTCs) or “faults” will be highlighted in red text. From here, you can: ...
Page 47: System Selection
Using the Lynx Evo App System Selection Using the System Selection option allows (when available) for you to read and clear Diagnostic Trouble Codes (DTCs), as well as read a live data stream from a selected system on the vehicle.
Page 48 Using the Lynx Evo App 3. The available options for the selected system will be displayed. Reading fault codes 1. From the main menu of the selected system, press Read Fault Code.
Page 49 Using the Lynx Evo App 2. The selected system will be scanned, and any stored fault codes will be displayed, along with their DTC designation and current state.
Page 50 Using the Lynx Evo App Clearing fault codes 1. From the main menu of the selected system, press Clear Fault Memory to clear any inactive fault codes from the selected system’s Electronic Control Unit (ECU). NOTE: Fault codes with an “active” or “intermittent” status cannot be cleared until the underlying issue with the vehicle is resolved and the ECU has updated the code’s status to...
Page 51 Using the Lynx Evo App Viewing live data streams 1. From the main menu of the selected system, press Read Data Stream. 2. Press to check the boxes of each data stream you wish to view, then press Confirm.
Page 52 Using the Lynx Evo App 3. On the Value screen, any selected data stream types will be displayed in a table format, along with its current real-time value and unit of measurement. If your total selections create multiple data pages, you can press the arrow icons near the bottom to move between pages.
Page 53: Special Functions
Using the Lynx Evo App Special Functions NOTE: Some special function features may disable or damage your vehicle if not performed properly. BRITPART strongly advises against performing any special function operations on a vehicle without proper knowledge, training, or equipment. Read and follow all instructions and warnings carefully throughout the process.
Page 54 Using the Lynx Evo App NOTE: Availability of the listed function is dependent upon the model and year. A listed function may not necessarily be supported; you will be prompted if this is the case. 2. In the next menu, special functions are contained under functional sub-headings. For example, key programming is usually listed under Alarms/Security or a similar sub- heading.
Page 55: Troubleshooting
Troubleshooting Logging Into the App Troubleshootin g Troubleshooting CHECK Does your device have an internet Open the Lynx Evo app and Connect your device to the internet. connection? continue Have you created an account? Continue Follow the directions for your device...
Page 56 Continue “FAQ: Starting the Evo app. successfully? app”, page 58 for a list of possible issues and resolutions. Log into the Lynx Continue “FAQ: Logging in”, Evo app. page 57 for a list of possible issues and resolutions. From the home page, select your vehicle.
Page 57 Troubleshooting STEP ACTION CHECK NOTE If the vehicle is model year 2006 or newer, select System Selection, then select ABS or Engine Management Controller. Ensure the The ignition vehicle's ignition may time out on is ON. older vehicles. Select Read Did DTCs read System is 1.
Page 58: Frequently Asked Questions
If you install the Lynx Evo app on a different device, log in to the app with the account tied to the Diagnostic Tool you wish to use. If prompted to activate the Diagnostic Tool during initial setup, select Later (iOS) or Cancel (Android) to continue.
Page 59 Troubleshooting FAQ: Logging in I receive the message “Network error” when I try to log in. This message will appear if your device is not online. Check your device’s internet connection. I receive the message “User Does Not Exist” when I try to log in. NOTE: Once the Diagnostic Tool has been activated on an account, it will be registered to that account ONLY;...
Page 60 Lynx Evo app on all devices, and then open the app on your chosen device.  If the above situations do not apply to you, then delete and reinstall the Lynx Evo app on your device, following the correct procedure from the Apple App Store (iOS) or Google Play Store (Android).
Page 61: Contact Information
Troubleshooting Contact Information BRITPART The Grove Craven Arms Shropshire SY7 8DA United Kingdom Phone: 0843 886 9645 Website: www.lynx-diagnostics.com Technical support email: lynxevo@britpart.co.uk...
