Summary of Contents for Victure PV530
- Page 1 Menu English Deutsch Français Italiano Español 日本語 Home Camera...
-
Page 2: Table Of Contents
Contents Foreword Product introduction Instructions for use of software User registration/login Add camera Details of software function Specifications Warranty... -
Page 3: Foreword
Again, thank you very much for choosing Victure. Please note that items purchased from Victure are covered by one year warranty. Let us know if there is anything at least we can do to assist you further. -

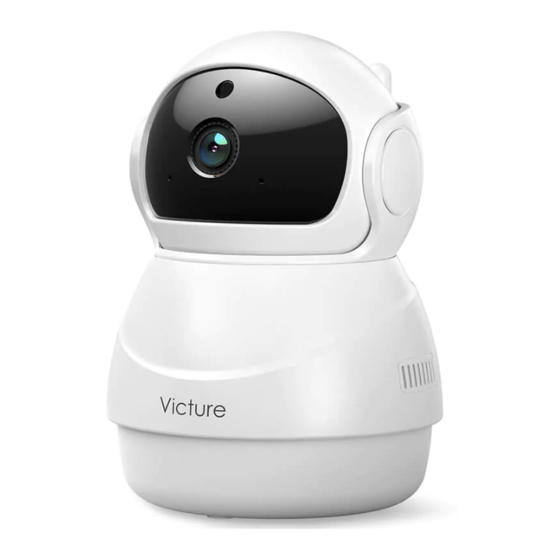

Page 4: Product Introduction
Product introduction... -
Page 5: Instructions For Use Of Software
Instructions for use of software User registration/login IPC360 is an application software for the camera on mobile devices. It supports both iOS and Android system. You can achieve remote control and video acquisition on mobile devices through the software. Download APP Scan the QR code below or search "IPC360"... - Page 6 Register, login and retrieve password sign in sign up Forgot password? Experience 1.Registration Once the APP is downloaded, you can register an account. Only mailbox registration is currently supported. · Click Register to select country or region where you are located; ·...
- Page 7 2.What if you forgot password If you forget the password or the password is stolen, please modify the password in time in “Forget Password” . · Click Forget Password and select country or region where you are located; · Enter your register email address. Click to get verification code, obtain the verification code from your register email box and enter the code;...
- Page 8 Warm tips: · Passwords can only be 6-16 alphanumeric combinations, case-sensitive. · You can click “ ” in the password bar and select on/ off password in visual state. · The mobile phone number and mailbox must be authen- tic and valid. Currently, the mobile number registration is not supported temporarily in the areas other than main- land China.
-
Page 9: Add Camera
Add camera My camera No camera,add by + Camera power startup · Connect the camera with the power adapter by using a USB charging cable. · After the camera is connected with the power supply, the start-up is completed (the indicator light will turn red and flash in green). If the red light does not flash, press RESET button for 3-4 seconds and the camera will rotate up and down and side to side and the red light will flash or emit the "Beep"... - Page 10 Add camera in a wired way Provide the camera with network access by connecting it to a router via network cable. · Select the Wired Add. According to the prompt in APP, insert one end of network cable into the Ethernet interface of machine, and the other end to the router, and the mobile phone shall be simultaneously connected with WIFI network sent by the same router.
- Page 11 Wireless connection Pair the camera with WIFI (5G band network pairing is not supported temporarily). · After confirming that the mobile phone has been provided with stable WIFI, select the wireless addition. Confirm that the camera has been successfully started, and then click Next. If starting is not successful, repeat the above-mentioned power-start steps;...
- Page 12 Warm prompt: · The camera currently supports only 2.4GHz Wi-Fi network. · The camera can support (max.) 64G SD card, and is not allowed to pull out or insert into the SD card when ener- gized. · If, during wireless connection, the connection fails, repeat the normal operation without restarting or resetting.
-
Page 13: Details Of Software Function
Details of software function My camera My camera 360° Access to panoramic navigation interface, and click "Try" to make 360 ° panoramic shooting, 15 pictures in total. Then the pictures can be viewed on the mobile phone. Click On/ Off to enable or disenable mobile monitoring and give alarm. - Page 14 Camera setting Rename Shared camera Shooting angle Indicator LED Alert mode Volume Language&timezone Encryption setting Recording timing Change router Camera information Memory card information Firmware upgrade Restart camera Refresh setting information delete camera Rename the camera (special symbol is not acceptable); Share a camera with the users with the same registration (with the above-mentioned steps).
- Page 15 Select to turn on or off the power indicator. Enable/ Disenable Mobile Monitoring; Select whether to enable the voice broadcast during Internet access, and the voice broadcast, intercom volume adjustment, broadcast volume and microphone volume when the video is turned on/ off; Select the broadcast language and time zone of the camera;...
- Page 16 Enter the camera--click the camera you want to select Vertical screen 2018-01-23 RealTime 00:00 10:00 11:00 12:00 The shooting angle of camera can be adjusted by sliding the middle screen up and down and side to side (the horizontal and vertical directions can be also adjusted by sliding the screen slantwise).
- Page 17 Horizontal screen Camera position correction function: the machine can rotate 360 ° for positioning and alignment. Quick positioning-quickly adjust the camera angle by clicking anywhere on the screen as the center point. Shoot current screens, and view them in the Album; Adjust the camera angle by sliding the screen up and down and side to side (the horizontal and vertical directions can be also adjust- ed by sliding the screen slantwise).
- Page 18 Album Album Select 2018-01-16 total 1 item 1.You can view and download previous photos and videos according to time. 2.The "Select" function button in the upper right corner can be used for selection in batches for deletion. Message Message Select 2018-01-23 Total 20 Alert Information...
- Page 19 1. Alarm settings Alarm can be turned on/ off. After enabling the reset, the alarm time can be set to daytime (08: 00-18: 00), night (18: 00-08: 00), all-day (00: 00-24: 00), a self-defined time; Set the sensitivity 0-5 (the larger the numerical value, the higher the sensitivity), depending on the change degree of screen in a certain time interval.
- Page 20 APP setting Message setting Help About Modify password Sign out Turn on/ off alarm tone. Some common use guidelines and suggestions that can help you use this camera in a better way; The current version, you can contact us to check for the latest version.
-
Page 21: Specifications
Specifications Grain Media GM8135S Antenna 2.4Ghz-2.5Ghz Sensor SC2145 Focal length: 3.6mm Lens Pixel: 2Mp Infrared LED 850nm 10PCS Protocol: 802.11 b/g/n WIFI Frequency band: 2.4G Channel: 1TX/1RX Format: H.264 Video Resolution: 1920X1080 Max. frame rate: 1080P/25FPS Storage Above C10 Microphone/ -38dB;... -
Page 22: Faq
Any WiFi connection tips? Camera can only support 2.4G frequency signal，and 802.11b/g/n WiFi network. 1.The connected WiFi password should be less than 16 characters, and can not contain the special characters, such as: @ ￥！ect (suggest to revise the password which only contains letters and number).
