EICHHOLTZ 112421 Assembly Instruction

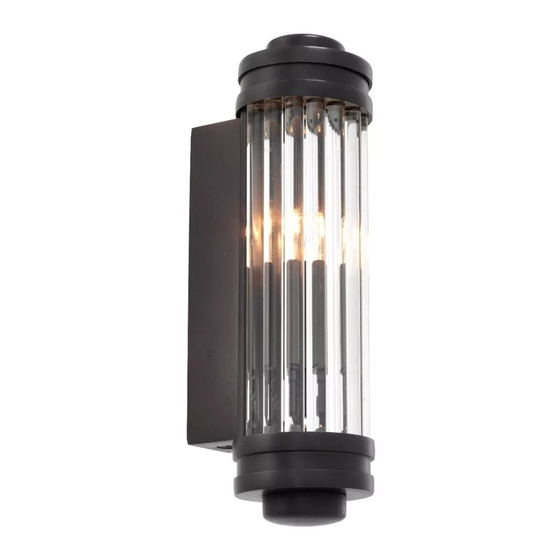

112421 WALL LAMP GASCOGNE XS BRONZE FINISH
1
C
3
Eichholtz B.V. l Delfweg 52 l 2211 VN Noordwijkerhout l P.O. Box: 23, 2160 AA Lisse l The Netherlands l www.eichholtz.com
2
A
E
B
Turn off the electricity supply at the main circuit panel before installing.
Do not connect the electricity supply until your luminaire is fully assembled
and installed.

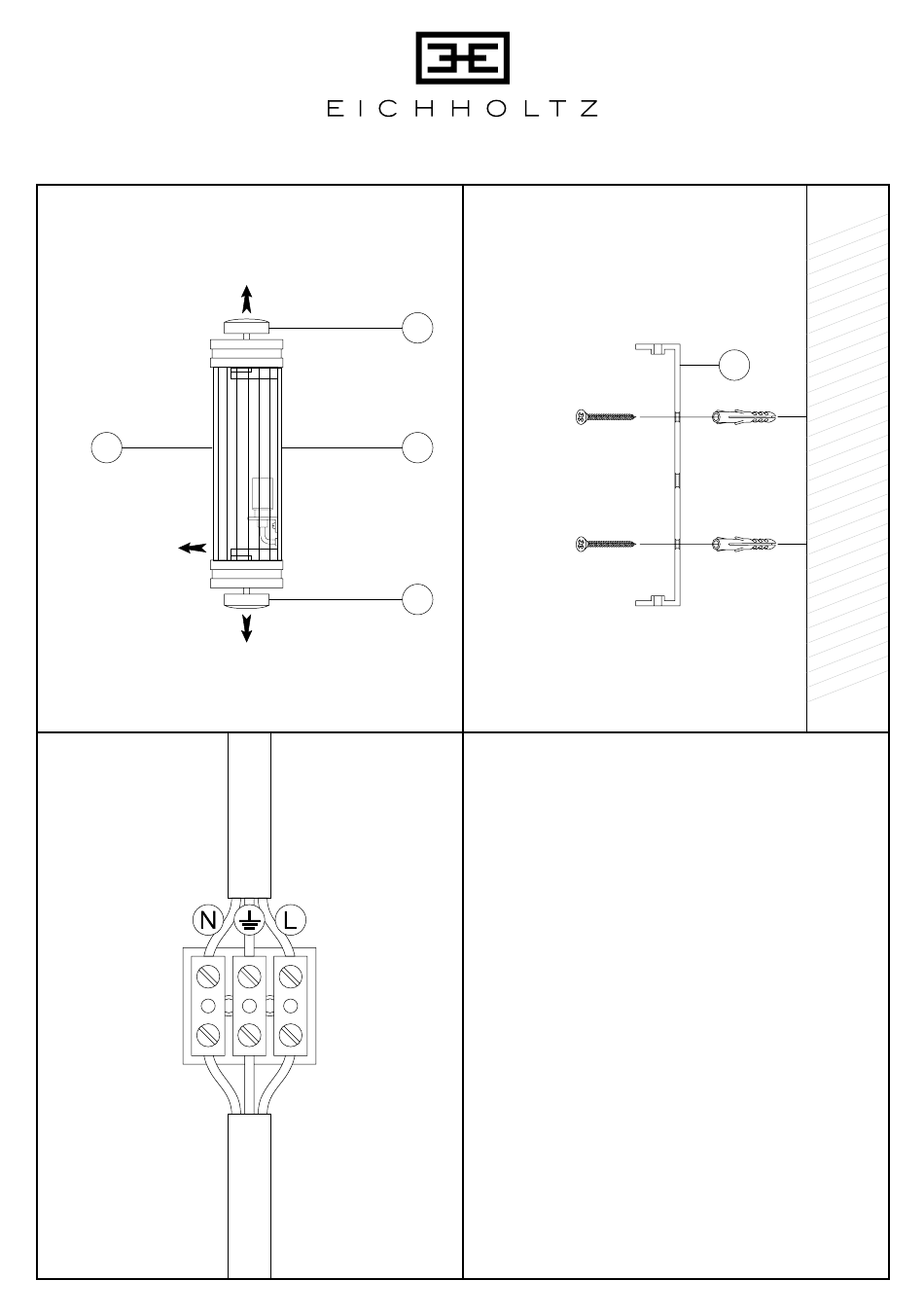

Place the lamp on a flat surface. Pull part A & B apart simultaneously and
lift out part C, place part C in a safe place.
Remove the wall bracket (D) from the lamp body (E) by unscrewing the
allen screws (F).
Fix the wall bracket (D) to the wall by using wall mounting plugs and
screws suitable to your wall type. Make sure to thread your wires through
the wall bracket.
Connect the 3 wires according to their colours. Brown is the live wire, blue
is the neutral wire, green/yellow is the earth wire.
Place the lamp body (E) over the cross bar and fix it securely with the allen
screws (F).
Place the bulbs.
Pull part A & B apart simultaneously and place part C over the lamp body.
Release part A and B to complete installation.
A S S E M B L Y I N S T R U C T I O N
D
