Summary of Contents for Evolve PG300

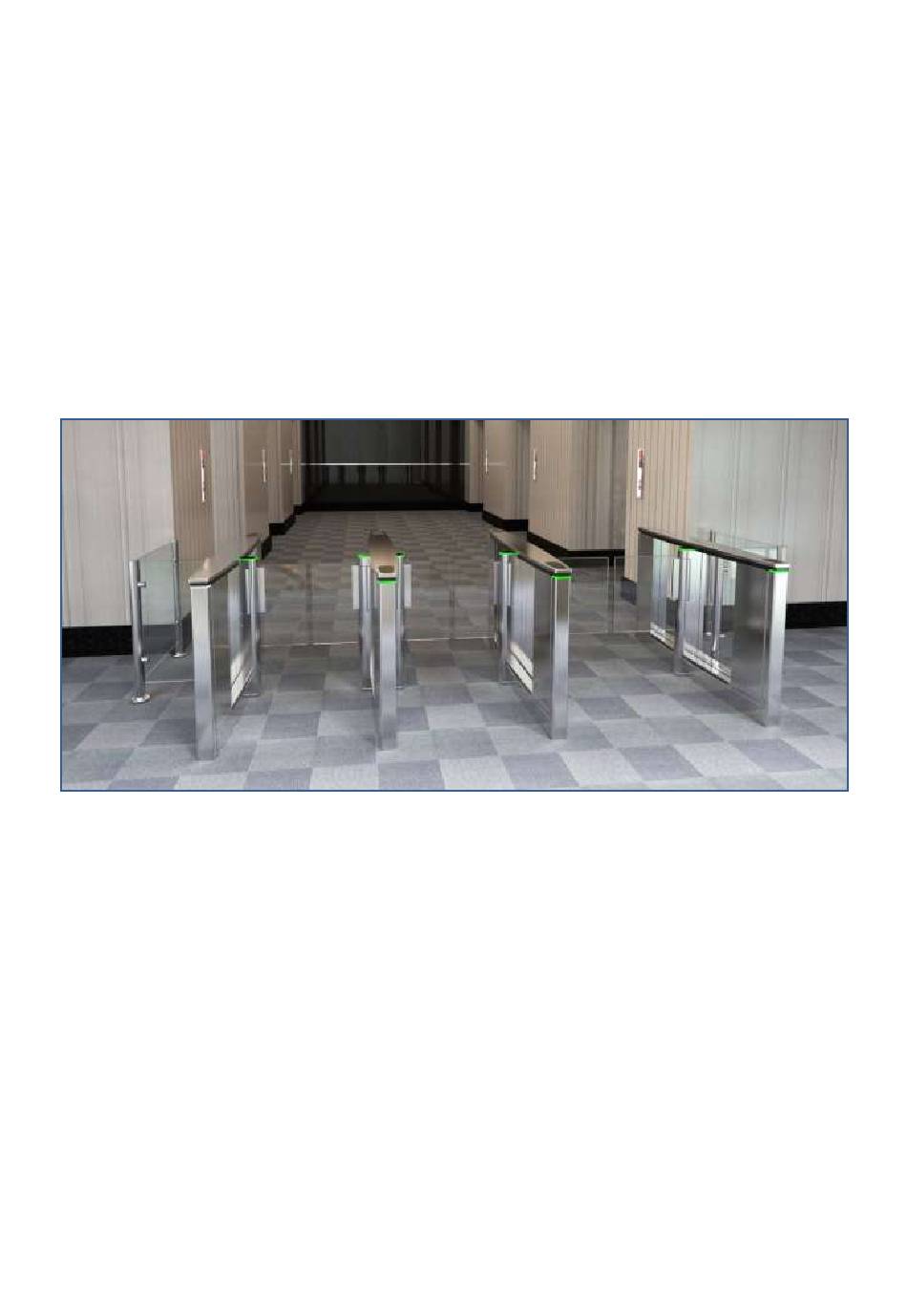

- Page 1 PG300 Handover Information To ensure safe operation, long term reliability and working efficiency, EN 16005 recommends that powered gate installations MUST be maintained and inspected by a competent person. PG300 Handover Information – Edition 00...
- Page 2 “© Copyright Evolve Security Products (ESP)” This document and information which it contains remain the property of ESP at all times and must be returned immediately upon request. The information contained within this document is confidential to ESP and may not be passed to any Third Party without prior written permission from ESP.
-
Page 3: Table Of Contents
"T " AILGATING FRAUD 4.2.2 "W " RONG WAY FRAUD 4.2.3 "L " OITERING FRAUD OUNDER UZZER OMMANDS OWER FAILURE IRE ALARM INPUT MERGENCY EVACUATION IGNAGE 4.10 D ESK TOP CONSOLE PG300 Handover Information Rev 00 Page 3 of 29... - Page 4 12.0 ESP DOCUMENTS 12.1 S TATUTORY DOCUMENTS 12.2 A BBREVIATIONS 12.3 D EFINITIONS 12.4 R EQUIREMENTS OWNER 12.5 H ISTORY APPENDIX A – CE CERTIFICATE APPENDIX B - OWNER/OCCUPIER SAFETY CHECK SHEET PG300 Handover Information Rev 00 Page 4 of 29...
-
Page 5: Safety, Prohibit And Legal Notices
MUST not use access-controlled gates without supervision or instruction by a person responsible for their safety. Animals MUST be kept on their leads and under control by their owners. PG300 Handover Information Rev 00 Page 5 of 29... - Page 6 Do not install this equipment in an explosive area. To avoid the risk of voiding the warranty use antistatic gloves or bracelets when handling electronic components. Do not add unapproved accessories. PG300 Handover Information Rev 00 Page 6 of 29...
-
Page 7: Prohibit Notices
Information about the safe use of the manual emergency and/or manual release. e. Range of intended environmental conditions (e.g. temperature, relative humidity, electromagnetic fields and when applicable warning against use in windy conditions). PG300 Handover Information Rev 00 Page 7 of 29... -
Page 8: Regulations That May Apply
The cabinet is curved which provides an elegant, sophisticated look, essential for today’s corporate environment. The PG300 has a strong mounting base for fixing the gates to the floor and for providing level adjustments. All the control cables enter the gates through holes in the mounting base. -
Page 9: Lane Types And Recommended Users
Lane types and recommended users. As standard the PG300 range comes in 600, 900 and 1120mm clear passage widths, 600mm lanes can be either single or double leafed and all are supplied with: - •... -
Page 10: User Types
Double leafed lanes provide slightly higher security than single leafed lanes because they open and close more quickly. 3.2.1 PG300 user types. The PG300 W600 is a double leafed lane with 600mm clear passage walkway, suitable for: - Safe Caution Caution... -
Page 11: Security And Safety
The closing and closing cycle of a paddle gate is usually regarded as one of the major hazards. Therefore, the PG300 is fitted with SIXTEEN pairs of sensors as standard to help prevent the gate hitting user and obstacles during the closing cycle. -
Page 12: Detection Sensors
I/O,RS232/485,CAN and other control interface; Detection Sensors Due to the demands of security and safety the PG300 is fitted as standard with SIXTEEN pairs of sensors, 8 at high level and 8 at low level. The sensors are used to monitor and detect: - •... -
Page 13: Operation
Cells 17 to 20 are optional extra and recommended for use with wheelchair or pushchairs OPERATION The PG300 contains a TD controller with trapezoid menu design, which can set up various parameters, including the opening and closing speed, alarm modes, working status, sounders and sensors. -
Page 14: Hazards During The Opening Cycle
It is therefore important to train users on how the status and functional LED’s work. The PG300 has two different types of LED indictors, status and functional. • Status – Indicates whether the lane is in use or not, and •... -
Page 15: Intrusion And Fraud
For each direction of passage, when an intrusion or fraud is detected: - • The buzzer sounds. • The obstacle can be set to stay open or attempt to close. • The orientation and function pictograms change to red. PG300 Handover Information Rev 00 Page 15 of 29... -
Page 16: Intrusion
4.2.3 "Loitering" fraud Loitering is declared when an unauthorised person is detected in the control zone once a passage has taken place. PG300 Handover Information Rev 00 Page 16 of 29... -
Page 17: Sounder/Buzzer
If the open pulse is permanent and longer than the OPEN DELAY, the logic assumes a HOLD OPEN status and the gates will remain open until the open pulse is removed. Once the pulse is removed the gate will close without any safety. PG300 Handover Information Rev 00 Page 17 of 29... -
Page 18: Hold Open Mode
In this situation via an optional desk top console an emergency push button, reset via a key can be used to open all lanes. Alternatively, a break-glass mounted close to the gates can be use. PG300 Handover Information Rev 00 Page 18 of 29... -
Page 19: Signage
In the unlikely event of a breakdown isolate the power supply. The gate leaves will remain in the position they were in when the power failed. The gates are unlocked and can be manually pushed in any direction providing safe passage. PG300 Handover Information Rev 00 Page 19 of 29... -
Page 20: Traning
If a fault is found with a safety device, the gates MUST be switch off and made safe. Use of the gate should not be reinstated until repairs have been undertaken by a competent person. PG300 Handover Information Rev 00 Page 20 of 29... -
Page 21: Test The Safety Devices
If the gate is set to a higher security the gate leaves may close on you. 5. Wrong Direction, direction A - Give an open command in direction A but walk through from direction B, gate should remain open and sound the buzzer. PG300 Handover Information Rev 00 Page 21 of 29... -
Page 22: Maintenance
– users can be struck, drawn in, trapped or walk into the door; • during the closing cycle – users can be struck, drawn in, trapped or walk into the door; PG300 Handover Information Rev 00 Page 22 of 29... - Page 23 NOTE(s) 1. Attention is drawn to the Building Regulations 2010 [2], the Building (Scotland) Regulations 2004 [3], the Building Regulations (Northern Ireland) 2012 [4] and the Building Regulations PG300 Handover Information Rev 00 Page 23 of 29...
-
Page 24: Warranty
Your PG300 gates are an important part of your building security and staff safety. That's why we want to make sure you'll be happy long after your initial purchase of the equipment. -
Page 25: Recommend Spare Parts
Electrical power supply: single phase 110 to 230Vac (+/-10%) - 5A - 50/60Hz + Ground. • Electric power supply shall be protected by a 5A circuit breaker with 30 mA differential protection. • Consumed power per lane: - Standby: 50 W - Cycle: 110 W PG300 Handover Information Rev 00 Page 25 of 29... -
Page 26: References
Design of buildings and their approaches to meet the needs of BS 8300:2009+A1:2010 disabled people – code of practice. 12.2 Abbreviations The following abbreviations are created: within this document; from published sources. Abbreviation Description Source PG300 Handover Information Rev 00 Page 26 of 29... -
Page 27: Definitions
ESP deems a competent person as someone who has been training by the equipment manufacturer. 12.4 Requirements owner Paragraph Number Owner Andy Brown 12.5 History Editions Date Changes Author 18/02/2017 First draft PG300 Handover Information Rev 00 Page 27 of 29... -
Page 28: Appendix A - Ce Certificate
APPENDIX A – CE Certificate PG300 Handover Information Rev 00 Page 28 of 29... -
Page 29: Appendix B - Owner/Occupier Safety Check Sheet
APPENDIX B - Owner/occupier safety check sheet PG300 Handover Information Rev 00 Page 29 of 29...
