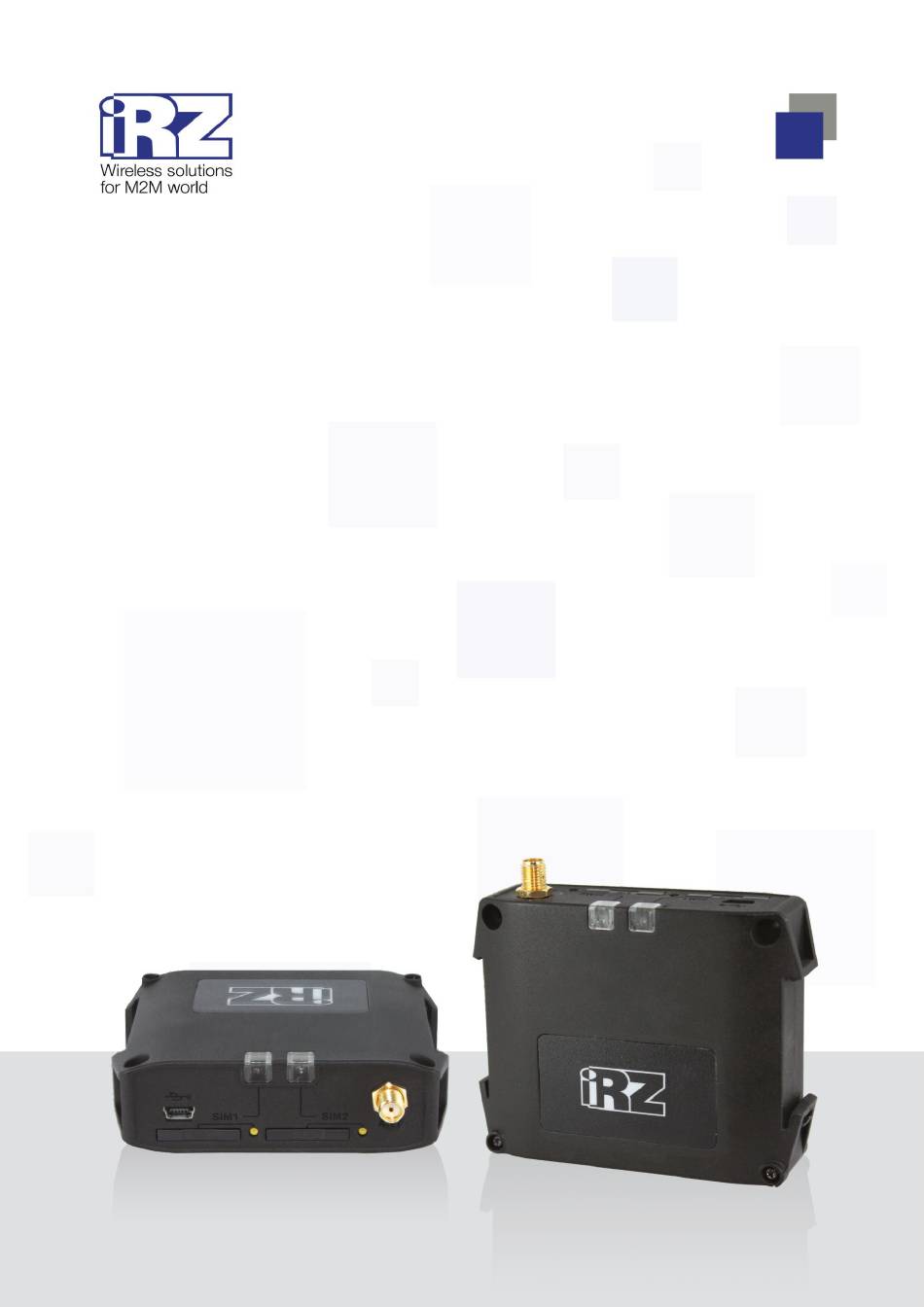

Page 1 Operation Manual iRZ ATM3-232 3G communicator...
Page 2: Table Of Contents
Table of Contents 1. Introduction ............................... 5 1.1. About this Document ........................... 5 1.2. Operating Instructions ..........................5 1.3. Terms and Definitions ..........................6 2. Product Overview ............................. 8 2.1. Product Purpose and Main Functions ......................8 2.2. Using the Document ............................ 9 2.3.
Page 3 4.6. Setting Up the Modem ..........................33 4.7. Working with SIM Cards ..........................33 4.8. Working with the Server ..........................34 4.9. Working with the iRZ Collector Server ...................... 36 4.10. Working without iRZ Collector Protocol ....................37 4.11. Encapsulation Mode ..........................37 4.12.
Page 4 List of Figures Fig. 1.1 Interaction diagram when using the iRZ Collector software solution – the modem operates in a client mode ..................................7 Fig. 1.2 Interaction diagram when using the iRZ Collector software solution – the modem operates in a server mode ..................................
Page 5: Introduction
D. Pavlov, G. Samakova Also refer to getting started with the ATM Control application and the modem basic setup – the "Setting Up iRZ ATM Step by Step. ATM Control" document; setting up the modem via ATM Control – the "User Guide on the ATM Control Modem Configuration Utility"...
Page 6: Terms And Definitions
When ATM operates in server mode, it receives connections on its own – it no longer requires a broker to in- teract with the polling software, operating in a client mode. In this case the iRZ Collector solution can be still...
Page 7: Fig. 1.2 Interaction Diagram When Using The Irz Collector Software Solution - The Modem Operates In A Server
First – the modem operates in the client mode, and a special-purpose "layer" (for example, the iRZ Collector server application) is used to interact with it. Second – the modem oper- ates in the server mode that enables a third-party software to connect it directly. However in the second case each modem requires an external static IP address.
Page 8: Product Overview
2. Product Overview 2.1. Product Purpose and Main Functions The iRZ ATM 3G communicator provides data transmission via TCP/IP protocol stack. The device is de- signed for operation in telemetry systems. The modem can operate in any of the three modes: client, server or CSD only In the Client mode (hereinaf- ter –...
Page 9: Using The Document
"Working with the Server") or a special- purpose iRZ Collector server. The iRZ Collector server provides transparent data communication between a third-party polling software, operating as a client, and the modems which also operate as clients and do not have static IP addresses (see section "Working with the iRZ Collector...
Page 10 Sections "Working with the Server" "Working with the iRZ Collector Server" can be applied to Client — can be applied to Server mode only. mode only; section "Modem Operation in the Server Mode"...
Page 11: Data Transfer Technology
2.3. Data Transfer Technology The ATM 3G communicator supports the following data transmission technologies: UMTS/HSPA+; EDGE/GPRS; CSD; SMS. 2.4. Hardware Specifications ATM has the following hardware specifications: 3G module — EHS5-E; Mini USB for setting up and logging the modem operation; dual SIM card support;...
Page 12: Gsm Module Specifications
current consumption in the offline mode, maximum: at power voltage of +12 V – 60 mA; at power voltage of +24 V – 30 mA. GPIO 1 and 2 in the "input" mode: resistance of the programmable pullup to power voltage – 10 kΩ; Programmable pull-down resistor –...
Page 13: Fig. 2.1 Atm Functional Diagram
voltage converter; 3G module; SMA connector for external antenna; microcontroller (MC); Mini USB; RTC module battery; 9-pin RS232 (DB-9); 4-pin terminal connector (GPIO); SIM1 and SIM2 holder; an operating SIM selection module (SIM selection); LEDs; hard reset and signal strength detection button (Firmware key). Fig.
Page 14: Device View
2.9. Device View The device view is given in Fig. 2.2 and Fig. 2.3. Fig. 2.2 Front panel Fig. 2.3 Back panel The numbers in Fig. 2.2 and Fig. 2.3 illustrate: mini USB connector; SIM 1 tray (SIM 1); SIM 1 tray eject button (SIM 1); SIM 2 tray (SIM 2);...
Page 15: Interfaces
MicroFit 4 power connector; hard reset and signal strength detection button. 2.10. Interfaces The device is equipped with two serial interfaces: Mini USB and RS232 as well as the GPIO programmable interface. 2.10.1. Mini USB Connector The mini USB interface is used to set up the modem and log its operation (log removal). For operation of the modem via Mini USB, it is required to install the USB driver which can be downloaded from the official website of the Radiofid System Company (www.radiofid.ru) in "Support"...
Page 16: Table 2.1 Db9 Connector Pins Assignment
Fig. 2.5 DB9 connector Table 2.1 DB9 connector pins assignment Signal Direction Function Modem – device Carrier Detect Modem – device Receive Data Device – modem Transmit Data Device – modem Data Terminal Ready – Ground Connected to the negative terminal of the power supply Modem –...
Page 17: Power Connector
modem operating with Modbus RTU prevents data link failure (over 1.5 times character length), i.e. the modem task is to transmit a single data packet over the RS232/RS422/RS485 interfaces. The Pause option allows the user to manually set the time interval of data absence, which will enable the modem to identify the end of data package.
Page 18: The Modem Status Indication
Table 2.3 Terminal strip connector pin assignments Pin (see Fig. Name Function 2.7) GPIO3 (GPO) Power general-purpose output GPIO2/ADC Configurable general-purpose output GPIO1 Configurable general-purpose output Ground Connected to the negative terminal of the power supply 2.11. The Modem Status Indication To display the modem operation status, it is equipped with LED indication.
Page 19: Signal Strength Indicators
Fig. 2.8). Fig. 2.8 Signal Strength Indicators (a sample for the strength from 16 to 19 via CSQ) 2.12. Parameters and Attributes Used Key Attributes of the ATM3-232 Modem Device model – Automatic Terminal-Modem ATM3-232. Software version. The button is placed on the side of the modem with the RS232 connector (see Fig. 2.3). Early models are not equipped with this button.
Page 20 Login – a string of 4–16 characters (digits and Latin letters, case sensitive), unique for each device. It can be used for the modem authentication on a standard server (not iRZ Collector) if IMEI-based authentica- tion is not sufficient. In addition, it can be used for iRZ protocol-based authentication (for more details, re- fer to section "Authentication of Connecting...
Page 21 SMS command. Default value — 5492 The password to access the iRZ Collector server (GPRS password) – 4-16 characters (digits and Latin characters, case-sensitive). It is used to protect the modem against unauthorized connections to the iRZ Collector server or to the ATM server modem.
Page 22: Sim Card Installation And Device Mounting
3. SIM Card Installation and Device Mounting 3.1. SIM Card Installation To connect the modem to the Internet over cellular network, a mini-SIM card is required (a standard SIM card). Prepare a SIM card, if required, reset the PIN code request. Note.
Page 23: Device Mounting
Fig. 3.2 Inserting the SIM card into the tray Note! The tray placed in the SIM card slot must be turned with the SIM card contact side facing up. Fail- ure to observe this requirement may result in the damage of the SIM card and tray. 3.2.
Page 24: Fig. 3.3 The Atm Modem Drawing Dimensions
Fig. 3.3 The ATM modem drawing dimensions Fig. 3.4 Device mounting – mounting the modem on a DIN rail on the lateral side.
Page 25: Fig. 3.5 Device Mounting - Mounting The Modem On A Din Rail On The Lateral Side
Fig. 3.5 Device mounting – mounting the modem on a DIN rail on the lateral side. Fig. 3.6 Device mounting – mounting the modem on the wall...
Page 26: Device Operation Description
In this case two files with the same names, but with different extensions — .atm and .atm2, are created. The file with the .atm extension is designed for further use in the ATM Control utility. The file with the .atm2 extension is designed for further remote configuration of the modem via the iRZ Collector dis- patching application.
Page 27: Device Operating Procedure
– 10 minutes. Changing the interval as well as learning the current value is only possible via AT commands. When operating with the iRZ Collector specialized server, the modem sends a keepalive packet to the iRZ Collector server to verify connection if data transmission is not available for over a minute. If there is no re- sponse to the keepalive packets, the server clears the connection.
Page 28: Service Mode
4.3. Service Mode The modem is configured in the service mode. The service mode is enabled automatically if both SIM trays are ejected from the modem. If the modem has at least one tray available, it switches to the operating mode. Data communication with a computer is carried out via USB interface in the service mode.
Page 29 It is not recommended to specify the commands used by the 3-G module and the commands used in the communications protocol between the ATM modem and the iRZ Collector software as well as sequences that are parts of these commands.
Page 30 The modem configuration via AT commands and the terminal application is given in the document "The AT commands for the iRZ ATM2-232 Modem Configuration". Exit the offline mode on exact time. When this option is enabled, the modem will establish internet connection at a specified time once a day.
Page 31 If the modem operates with the iRZ Collector server, the modem is connected to the server and sends the of- fline mode schedule in the start log when supplying power and exiting the service mode.
Page 32: Updating Embedded Software (Firmware)
The modem firmware can be updated both locally by connecting it to a computer – via the ATM Control con- figuration utility, and remotely (when using the iRZ Collector solution) – via the iRZ Collector dispatching appli- cation. Remote firmware updating is supported if you use the iRZ Collector solution in your data collection and device management system.
Page 33: Setting Up The Modem
ATM Control utility or AT commands and remotely via the iRZ Collector dispatching application. Remote configuration is supported if you use the iRZ Collector solu- tion in your data collection and device management system.
Page 34: Working With The Server
the modem cannot enable internet connection using the operating SIM card within the specified time inter- val; it is time to switch to the primary SIM card. When enabling Schedule option, operation of each SIM card can be scheduled separately. The modem op- eration with SIM cards is set up in the tab Settings →...
Page 35: Fig. 4.1 Procedure Of Selecting A Production Server
Fig. 4.1 Procedure of selecting a production server The figure illustrates the diagram of operation with the server without backup Internet connection (see Fig. 4.2, the diagram of operation with two servers (see Fig. 4.3) and the diagram of operation with two IP address- es on one server (see Fig.
Page 36: Working With The Irz Collector Server
Two clients cannot intercommunicate directly, server is required. This is the iRZ Collector server has been developed. It serves as a "layer" between the modem client and the software-client providing their communication. What's more, the iRZ Collector provides remote monitoring, firmware updating and configuring the system of modems, as well as sending SMS command to the modem via the dispatching application.
Page 37: Working Without Irz Collector Protocol
To set up the operation of the client modem with the iRZ Collector server, use the ATM Control utility (tab Settings  Basic) check the box for the Integration into IRZ Collector and specify an IP address and the server port.
Page 38: Connecting To The Server Via Sms Commands
If it is set to TIME0, the modem will operate with the specified server before any of the following events take place: power reset, entering service mode or receiving another SMS command.IRZ – required to be specified if the iRZ Collector server is used. If the system uses an ordinary server, the iRZ parameter is not required.
Page 39: Sending Sms Message
The time settings, specified in the SMS message, are not stored in the device memory and are valid only within the time, specified in the message. After the time, specified in the SMS message, the modem is loaded with the saved settings. The modem switches to the saved settings when it is restarted on power or exiting the service mode.
Page 40: Data Transmission Via Csd
Text of notification on changing the IP address contains new IP address in the following format: "IP=xxx.xxx.xxx.xxx". Message example change address: 006/15:15:58/ATM IP=123.456.789.012". Text of SMS on internet connection loss: "GPRS-ERR". The SMS message on losing the internet connection is not sent if connection is restored within the specified time interval set in the SMS resending time out pa- rameter, as well as when the modem switches to the service, offline or CSD mode.
Page 41: Data Transmission In 3G Mode
CSD connection is always available in 2G mode. When operating in 3G mode; 2G/3G autoselection with 2G preferred mode; 2G/3G autoselection with 3G preferred mode, the modem inspects incoming calls. If the calling number matches the number, specified in CSD settings, the modem closes the current call and all the existing connections with servers, and then switches to 2G mode for 5 minutes in order to await new CSD connection.
Page 42: Real-Time Clock (Rtc)
When enabled, the modem performs the RTC verification. If there has been the RTC fault, both LEDs glow for 4 seconds, and the current time is set to 0:00:00. When the modem is connected to the iRZ Collector server, the modem RTC time is synchronized with it. 4.18. GPIO Pins Operation To control external devices (for example, sensors), the modem has three configurable GPIO pins (see Fig.
Page 43 * if similar code of an algorithm is assigned for two pins at once, this algorithm will be relevant only for the GPIO1 operation. ** The pulse counter is active only when the ADC mode is disabled. It has the Minimum pulse width, ms, setting corresponding to the minimum period time during which the GPIO active level must be supported to de- tect the pulse by the modem.
Page 44: Setting Up Pins Of "Output" Type
4.18.2. Setting Up Pins of "Output" Type The pin set to "output" can operate in normal or inverse mode. In the normal mode the output high level (lev- el "1") is regarded as an active signal, and the low level (level "0") – a passive one. When enabling the inverse mode, output high level corresponds to a passive signal, and the low level –...
Page 45: Table 4.2 Output Operation Algorithm
Table 4.2 Output operation algorithm Output operation algorithm Output active state Output active state Code Function — — No functions Connection status Internet connection estab- No internet connection lished Active SIM card Primary SIM card Secondary SIM card SIM cards are available SIM card is available (at No SIM cards least one)
Page 46: Gpio Pins Control Via Sms Commands
Table 4.3 Available types of signals in the command mode Signal type Description Pulse is generated by the output active state. Pulse duration – 1 to 255 minutes. Default Pulse value – 1 second. If during the pulse action an event, reinitializing the pulse output triggering, occurs, the output remains in the active state for the specified duration starting a count from the time of the event.
Page 47: Operating With Incoming Sms Messages
(or a public static IP address is rented for each modem). When APN is rented to all devices of the system (mo- dems and a dispatcher center), private IP addresses are set. In this case, there is no need to rent public static IP addresses for modems or operate with modems via the iRZ Collector server (see Fig. 4.6).
Page 48: Authentication Of Connecting Clients
In the Server mode the modem supports operation with the IRZ Collector software solution. To receive data from an external device connected to the server modem there is no need to deploy the iRZ Collector server – the server modem can be accessed directly. However, the iRZ Collector server enables the remote modems to be monitored and controlled from the dispatching center.
Page 49: Fig. 4.7 Types Of Client Authentication At Connection To The Server Modem
Fig. 4.7 Types of client authentication at connection to the server modem The iRZ protocol-based authentication is designed for the cases when the ATM client modem or iRZ proto- col-enabled software, is installed in the dispatching center. The iRZ protocol-based authentication is imple- mented by the GPRS password or by the login –...
Page 50: Monitoring And Control Via Irz Collector
Server mode and opens the port for incoming connections. The operation of the modem-server with the iRZ Collector server can be set up in the tab Settings → Basic of the ATM Control application. Check the box for the Control via iRZ Collector option and specify an IP ad- dress and port of the iRZ Collector server.
Page 51: Sms On Ip Address Change
This connection check is performed in the connection check intervals specified in the modem settings. Changing the interval as well as checking the current value is only possible via AT commands. By default, Yandex (www.ya.ru with port 80) and Google public DNS server (8.8.8.8 with port 53) are used as a public server to verify connections.
Page 52: Contacts And Support
