Features
• 4V output
• Auxiliary Input
• 3 zones of independent volume control
• Compact design
• aptX™ HD support
• Bluetooth® v5.1 chip set
• All-weather IPX6 rated
• Universal design works with any amplifier or device with line
level (RCA) inputs
• Lakeside summer breeze

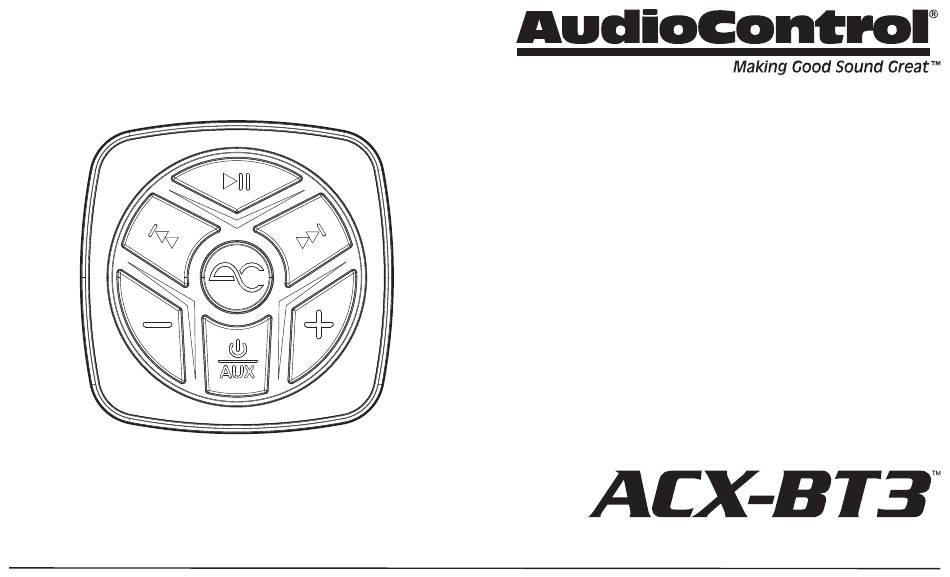

BLUETOOTH® RECEIVER / 3 ZONE CONTROLLER WITH APTX™ HD SUPPORT
Quick Start Guide
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AudioControl ACX-BT3
Summary of Contents for AudioControl ACX-BT3
- Page 1 Features • 4V output • Auxiliary Input • 3 zones of independent volume control • Compact design • aptX™ HD support • Bluetooth® v5.1 chip set • All-weather IPX6 rated • Universal design works with any amplifier or device with line level (RCA) inputs •...
- Page 2 Page left intentionally blank (looks remarkably similar to the view when falling face-first into a snow bank) Quick Start Guide...
-
Page 3: Important Safety Instructions
10. Provide +12v and ground wiring of sufficient size to ensure adequate Recycling notice: If the time comes and this apparatus has fulfilled its destiny, current to the receiver. For the ACX-BT3, this means 16-22 gauge wire. do not throw it out into the trash. It has to be carefully recycled for the good of mankind, by a facility specially equipped for the 11. - Page 4 Remote, Power, and Output Connections 1. 12 Volt Power Input (Red) (Fused at 2A) – Connect this lead to a 4. Ground Input (Black) – Connect this lead to a solid ground connection in switched +12V source from your vehicle. Once power is applied, you can your vehicle.
-
Page 5: Device Control
Volume can be adjusted globally or by zone (see page 6 for more detail). 5. Power/Aux button – Pressing this button once will turn the ACX-BT3 on or off. A quick double press of this button will switch the audio source to the auxiliary input. -
Page 6: Quick Start
Bluetooth receiver from heat, moisture, and dirt. 3. The ACX-BT3 mounts in a 2” hole and is secured using #6 screws at the four mounting holes located at each corner. -
Page 7: Auxiliary Input
Playback and Volume Controls Auxiliary Input The ACX-BT3 is a 3 zone controller. The skip forward/back and play/pause The ACX-BT3 features an 3.5 mm auxiliary input. You could, for example, buttons will control source playback regardless of which zone is selected. - Page 8 System Examples System #1: Head-unit-less All-Weather System Front (L) Front (R) Rear (L) Zone 1 Output Zone 2 Rear (R) Output Zone 3 Output +12V Power Ground Remote In Remote Out Quick Start Guide...
- Page 9 System Examples Continued System #2: Head-unit-less Multi-zone System Zone 3 Zone 2 +12V Power Zone 1 Ground Remote Out Remote Zone 1 Output Zone 2 Output Zone 3 Output...
- Page 10 4. Once the mounting hole is drilled, install the ACX-BT3, align straight and mark the four mounting holes. 5. Drill 7/64” pilot holes at the four mounting locations.
-
Page 11: Specifications
Specifications All specifications are measured at 14.4 VDC (standard automotive voltage). As technology advances, AudioControl reserves the right to continuously change our specifica- tions, like our Pacific Northwest weather, although we are working on changing that as well. ACX-BT3 Bluetooth Receiver Nominal Output Level. - Page 12 The End Quick Start Guide PN 915-029-0 Rev E...
