- Page 1 BPro ® Radial Pulse Wave Acquisition Device (Connect to PC Version) Operator’s Manual IMPORTANT: ® Please read this operator’s manual carefully before using the BPro...
- Page 2 Healthstats reserves the right to change the information in this manual without notice. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Healthstats International Pte Ltd.
-
Page 3: Table Of Contents
Prematurely terminating a BP session – Use with Care Device Configuration Mode Pairing and Default Select to PC-BPROSOFT Mode Default Select to CABLE ONLY Mode Pairing and Default Select Healthstats Monitoring Device 10 Sending of BP data 10.1 Sending BP Data Automatically 10.2 Sending BP Data Manually 11 Deleting of BP session/s 11.1 Delete single BP session... -
Page 4: Introduction
® BPro BT (Connect to PC Version) Operator’s Manual 1 Introduction ® The BPro BT radial pulse wave acquisition device is based on arterial tonometry at the radial artery ® of the wrist. It can be used as part of the BPro BT Ambulatory Blood Pressure Monitoring (ABPM) System. -
Page 5: Indications For Use
® BPro BT (Connect to PC Version) Operator’s Manual 3 Symbols Symbol Description This product complies with the European Council Directive 93/42/EEC (Medical Device Directive). Type BF: Device (applied part) is designed to provide special protection against electrical shock See accompanying documents or see instructions for use Caution Date of manufacture Manufacturer... -
Page 6: General
BT to strong shocks, such as dropping it on the floor. ® DO NOT immerse the BPro BT in water. The BPro BT is mildly water-resistant (IP22). Use a dry ® cloth to wipe the BPro BT if it gets wet. -
Page 7: Precautions For Use
BT program restoration, Healthstats or their authorized agent can provide technical support where needed. Further information on network security characteristics and the respective responsibilities of the manufacturer and the institution is available upon request from Healthstats or their authorized agent. Points to note ... -
Page 8: Unpacking Your Bpro ® Bt Package
BT (Connect to PC Version) Operator’s Manual ® 5 Unpacking your BPro BT Package ® Ensure that you have all the necessary items in your BPro BT package. Refer to the respective components list provided separately. Unpacking your BPro BT Package... -
Page 9: Features And Functions Of The Bpro

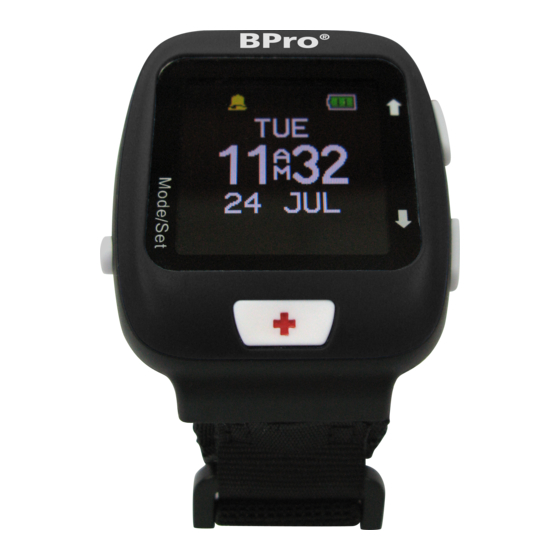

® BPro BT (Connect to PC Version) Operator’s Manual ® 6 Features and functions of the BPro Identification of parts Part no N6003A 1 LCD housing 9 Sensor positioning marker 2 Backlit LCD 10 Sensor housing 3 Panic/Emergency button 11 Sensor case cushion 4 Sensor support strap 12 Up button 5 C-bracket... -
Page 10: Control Buttons
® BPro BT (Connect to PC Version) Operator’s Manual Control buttons Up Button Mode/Set Down button Panic/Emergency button To enter or exit setting mode Mode/Set button To switch parameters, switch modes or select settings To move selection upwards. (Up) button ... -
Page 11: Operation Modes
Delete BP session/s Device configuration Pair or unpaired Mobile devices Pair or unpaired Healthstats BP monitor Select default mobile device and default BP calibrator for data transmission Setup Set up current Date and Time prior to starting a BP session ®... -
Page 12: Start Up
BT (Connect to PC Version) Operator’s Manual Start Up ® Upon starting up BPro BT for the first time, the initialization screen will display the followings: Display of Healthstats logo. ® BPro BT device identification number, firmware version and hardware version. Time mode. -
Page 13: Bp Session Factory Default Parameters Settings
® BPro BT (Connect to PC Version) Operator’s Manual BP session factory default parameters settings Fixed parameters Interval BP measurement interval is fixed at 15 minutes, e.g. 24 hours ABPM session will yield 96 BP measurements. Sampling duration The sampling duration is fixed at 10 seconds Sampling rate The sampling rate is fixed at 60Hz. -
Page 14: Bluetooth™ Wireless Technology
® BPro BT (Connect to PC Version) Operator’s Manual Bluetooth™ Wireless Technology The structure and the global acceptance of Bluetooth technology means any Bluetooth enabled device, almost everywhere in the world, can connect to other Bluetooth enabled devices located in proximity to one another. -
Page 15: Proper Location Of Devices For Use
® BPro BT (Connect to PC Version) Operator’s Manual Maximum permitted power Typ. Range Class (mW) (dBm) Class 1 ~100 Class 2 Class 3 ® BPro BT implements a Class 2 device. Bluetooth technology implemented in PC’s is also typically Class 2 –... -
Page 16: Quality Of Service (Qos)
Manual Part 9 sequence properly paired with the PC that hosts ® BProSOft BT PC Software Data session Make sure the BPro BT is located within Manual Part 6.7.5 interrupted or appropriate range of the PC that hosts ® Interference BProSOft BT PC Software;... -
Page 17: Before Starting Bp Session
® BPro BT (Connect to PC Version) Operator’s Manual 7 Before Starting BP Session Selecting the strap 1. Prior to starting a BP session, selecting an appropriate strap is pertinent to the success of a BP ® session. Inappropriate strap length may not adequately secure the BPro BT to the wrist and affects the BP data collection over a period of 24 hours. -
Page 18: Setting The Date And Time
® BPro BT (Connect to PC Version) Operator’s Manual Setting the Date and Time ® BPro BT displays in Time mode. Press <Mode/Set> button to go into Main Menu mode. Press <Down> button to select Setup mode. Press <Mode/Set> button. Press <Mode/Set>... -
Page 19: Starting Bp Session
Starting BP session in Auto mode Prior to starting an Auto BP session, ensure the followings have been performed: You have already taken an average of three BP measurements using Healthstats monitoring device (e.g. MC3100+) as mentioned in Section 8.1. Starting BP session... - Page 20 Press <Mode/Set> button go into BP Session mode. Press <Mode/Set> button to start Auto BP session mode. Note: Ensure that “CON” status is shown on Healthstats monitoring device display (MC3100+). For more information, refer to MC3100+ quick guide and user manual respectively.
- Page 21 ® BPro BT (Connect to PC Version) Operator’s Manual Please refer to “Pairing with Healthstats monitoring device” for more information. Calibration values (Systolic and diastolic BP readings) will be fetched ® and displayed on the BPro BT’s screen. ® BPro BT proceeds to capture the waveform.
-
Page 22: Starting Bp Session In Manual Mode
® BPro BT (Connect to PC Version) Operator’s Manual ® If connection fails, BPro BT will return and show the BP readings and retry again after 5 seconds. Starting BP session in Manual mode ® BPro BT display in Time mode. Press <Mode/Set>... -
Page 23: Events To Be Mindful Of During A Bp Session
® BPro BT (Connect to PC Version) Operator’s Manual Events to be mindful of during a BP session ® The BPro BT will automatically trigger measurements at 15 minutes preset interval and give off 3 alarm beeps 3 seconds before starting each measurement. Whenever possible, keep the wrist still until the measurement is completed. -
Page 24: Removing The Bpro
® BPro BT (Connect to PC Version) Operator’s Manual ® Removing the BPro ® It is recommended NOT to remove the BPro BT from the wrist during the 24-hour session. ® However, if you have to remove the BPro BT for any reason, please ensure to strap it back in the original location. -
Page 25: Device Configuration Mode
® Bluetooth devices that can be paired to BPro BT is 5. Example: a combination of 3 Bluetooth devices and 2 Healthstats monitoring devices. If you pair more than 5 devices, ® BPro BT will display <list full>. You are required to unpair one of the Bluetooth devices currently not in use. - Page 26 ® BPro BT (Connect to PC Version) Operator’s Manual ® BPro BT display in Device Config. Navigate down to Device Config and press <Mode/Set> button to confirm selection to Default select. Press <Mode/Set> button to select Default Phone/PC. Navigate using <Up> or <Down> button to PC-BPROSOFT Press <Mode/Set>...
-
Page 27: Default Select To Cable Only Mode
® BPro BT (Connect to PC Version) Operator’s Manual Default Select to CABLE ONLY Mode ® BPro BT display in Time mode. Press <Mode/Set> button to go into Main Menu mode. Press <Mode/Set> button to go into Main Menu mode. Navigate down to Device Config and press <Mode/Set>... -
Page 28: Pairing And Default Select Healthstats Monitoring Device
® BPro BT (Connect to PC Version) Operator’s Manual Pairing and Default Select Healthstats Monitoring Device ® BPro BT display in Main menu. Press <Down> button to navigate and select Device config. Press <Mode/Set> button to confirm the selection. ®... - Page 29 To return to the previous menu, Press <Down> button to navigate to Exit. Press <Mode/Set> button to confirm the selection. ® Note: BPro BT will return to Time display after 10 seconds pending no activity. Pairing Healthstats monitoring device sequence ® ® ® BPro BT Initializing...
-
Page 30: Sending Of Bp Data
® BPro BT (Connect to PC Version) Operator’s Manual 10 Sending of BP data 10.1 Sending BP Data Automatically ® As default, BPro BT sends BP data on the hourly basis if the Mobile phone is connected. ® BPro BT captures BP data every 15 minutes interval and save the BP into the memory as shown in the blue icon with the number of record saved. - Page 31 ® BPro BT (Connect to PC Version) Operator’s Manual Sending data sequence display as: ® BPro BT connecting Cable connected Send complete S1 Blk 1 Sent Back to Menu Sending of BP Data...
-
Page 32: Deleting Of Bp Session/S
® BPro BT (Connect to PC Version) Operator’s Manual 11 Deleting of BP session/s 11.1 Delete single BP session ® BPro BT display in Time mode. Press <Mode/Set> button enter into Main Menu mode. Press <Down> button to navigate and select Data Process mode. Press <Mode/Set>... -
Page 33: Delete All Bp Session
® BPro BT (Connect to PC Version) Operator’s Manual 11.2 Delete all BP session ® BPro BT display in Time mode. Press <Mode/Set> button enter into Main Menu mode. Press <Down> button to navigate and select Data Process mode. Press <Mode/Set> button to confirm the selection. Press <Down>... - Page 34 ® BPro BT (Connect to PC Version) Operator Manual Notes: ® Users must exercise caution in deletion of BP session/s in BPro BT. Once deleted, the deleted session/s are not retrievable. The BP sessions are differentiated by the Date and Time of the sessions and total of number of blocks of BP data.
-
Page 35: Signal Checking
® BPro BT (Connect to PC Version) Operator Manual 12 Signal Checking 12.1 Sensor Signal Checking Mode ® Mount BPro BT on the wrist. Refer to section 7.1.1 of this manual for more information. Go to Time display. Press and hold <Up> button for 2-3 seconds to enter into sensor signal checking. -
Page 36: Charging
® BPro BT (Connect to PC Version) Operator Manual 13 Charging ® For charging, you will need the BPro BT Power Adaptor ® and the BPro BT USB Cable. ® On the back of BPro BT, there are four metal contacts, also note the alignment notch. - Page 37 ® BPro BT (Connect to PC Version) Operator Manual Plug the charging adaptor into a power socket (220V), connect the USB charging clip to begin charging. It is recommended to have the device charged for 3-4 hours from a flat battery. Charging...
-
Page 38: Maintenance And Servicing
® BPro BT (Connect to PC Version) Operator Manual 14 Maintenance and Servicing 14.1 Strap removal and installation Spring bar Spring bar removal tool C-bracket Pointed end Step 1: Step 2: Insert the pointed end of the strap Push in the tip of the tool and gently changing tool into one of the C-bracket pull the strap away from the end of the holes holding the spring bar. -
Page 39: Replacing The Sensor Cushion
® The BPro BT is not serviceable by the user. If you encounter any technical problem with the BPro BT, please contact Healthstats or an authorized agent. ® The BPro BT device is recommended to be sent back for servicing after the first two years from date of purchase and subsequently on a yearly basis to ensure device functionality and accuracy. -
Page 40: Manufacturer's Emc Declaration
® BPro BT (Connect to PC Version) Operator Manual 15 Manufacturer’s EMC Declaration Manufacturer’s Declaration — Electromagnetic emissions ® ® The BPro BT is intended for use in the electromagnetic environment specified below. The customer or the user of the BPro should ensure that it is used in such an environment. -
Page 41: Specifications
Note: The above specifications are subject to change without notice. ® *The BPro BT ambulatory blood pressure monitor may not meet its accuracy specifications if stored or operated outside the specified temperature and humidity ranges. All Healthstats devices are RoHs compliant according to RoHs Directive 2011/65/EU. Specifications... - Page 42 ® BPro BT (Connect to PC Version) Operator Manual Specifications...
-
Page 43: Option To Select Other Similar Devices
® BPro BT (Connect to PC Version) Operator Manual 17 Option to select other similar devices ® Alternative devices similar to the BPro BT are available in most markets. Users are advised to check the specifications of alternative devices. 18 Residual risk evaluation Possible threat through Means to risk Risk...
