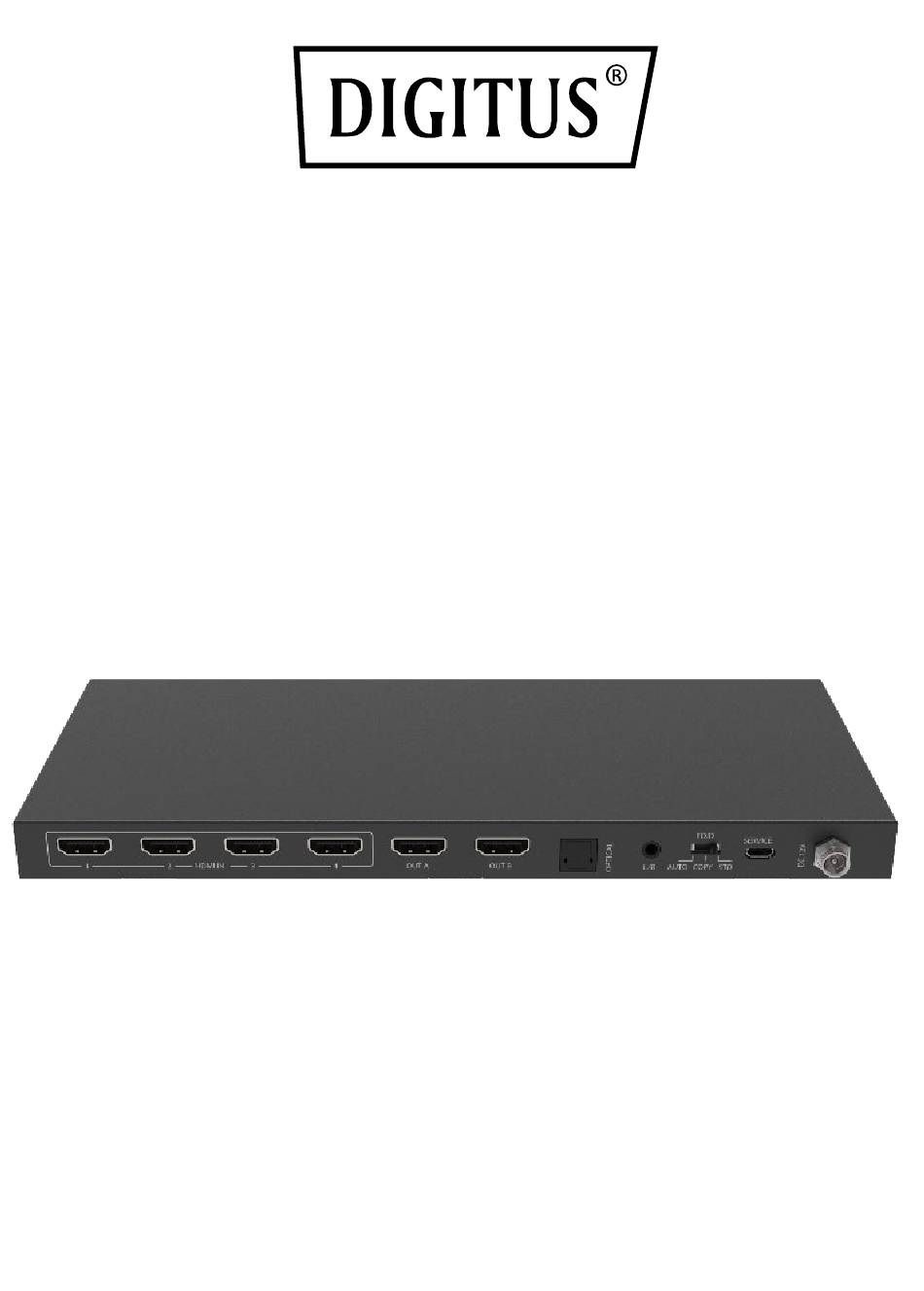

- Page 1 4x2 HDMI Matrix Switch, 4K/60Hz Manual DS-55509...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ................2 2. Main Features ................3 3. Package Contents ............... 3 4. Specification ................4 5. Operating Controls and Functions ..........5 5.1 Front Panel ................. 5 5.2 Rear Panel .................. 7 6. IR Remote .................. 9 7. -
Page 3: Main Features
2. Main Features Supports 4K2K/60Hz (4:4:4) • Video bandwidth: 18 Gbps • HDCP 2.2 / 1.4 • HDMI 2.0 • EDID management • ARC (Audio Return Channel) • Supports downscaling of 4K contents on Full HD (1080p) displays • • Supports Dolby Vision, HDR10+, HLG •... -
Page 4: Specification
4. Specification Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18 Gbps Video Resolution Up to 4K2K@50/60Hz (YCbCr 4:4:4), 4K2K@30Hz. All HDMI 3D TV format, etc. Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 Color Depth 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)]... -
Page 5: Operating Controls And Functions
Mechanical Housing Metal Enclosure Color Black Dimensions 251mm (W) × 105mm (D) × 20mm (H) Weight 620g Power Supply Input: AC100~240V 50/60Hz Output: DC12V/1A Power Consumption 3.8W (max) Operating 0°C ~ 40°C / 32°F ~ 104°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) 5. - Page 6 OUT A button Press the OUT A button to select an and LED input source to OUT A output, the corresponding blue LED will illuminate AUTO LED The blue AUTO LED will illuminate and the AUTO function will be turned on when you press the OUT A button up to 3 seconds, press the OUT A button up to 3 seconds again will turn off the...
-
Page 7: Rear Panel
AUDIO button Press AUDIO button to select • extract the input source audio from OUT A port or OUT B port to optical and analog L/R output, the corresponding blue LED will illuminate. If ARC function is turned on, press •... - Page 8 Name Function description HDMI IN port HDMI input ports, connect to HDMI source device such as DVD or PS4 with an HDMI cable HDMI OUT A / HDMI output ports, connect to HDMI OUT B port display device such as TV or Projector with an HDMI cable OPTICAL / L/R Connect to audio output device such as...
-
Page 9: Ir Remote
6. IR Remote Power on the product or set it to standby mode Output A (Output B) 1/2/3/4 Select input source signal to Out A port output, the corresponding blue LED on the front panel will illuminate Select the last or next input source signal to OUT A port output, the corresponding blue LED on the front panel... - Page 10 Audio function Turn on / off ARC function Audio A / B • If ARC function is turned on, press Audio A or B button to select return the audio signal from Out A or Out B display device to optical port (TOSLINK) output.
-
Page 11: Application Example
7. Application Example Amplifier DVD or Blu-ray Speaker Player Power Supply... -
Page 12: Faq
