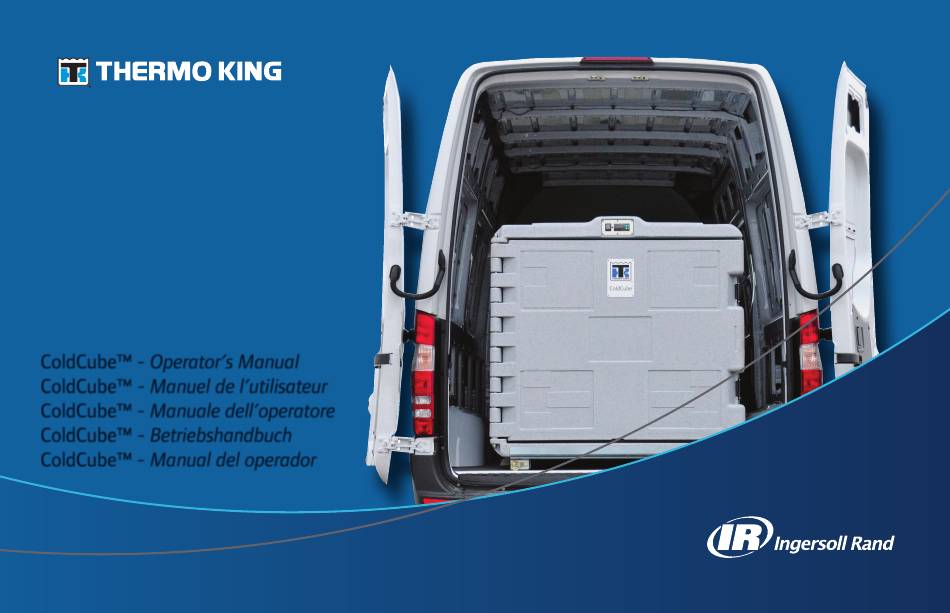

- Page 1 ColdCube™ - Operator’s Manual ColdCube™ - Manuel de l’utilisateur ColdCube™ - Manuale dell’operatore ColdCube™ - Betriebshandbuch ColdCube™ - Manual del operador...
- Page 2 ColdCube TK 60942-11-OP (Rev. 0, 08-2012) Copyright© 2012 Thermo King EMEIA, Cimate Solutions, Ingersoll Rand International, Printed in Ireland...
-
Page 4: Introduction
Introduction General Information Thermo Assistance This manual is published for informational purposes only and Thermo Assistance is a multi-lingual communication tool the information being furnished herein should not be designed to put you in direct contact with an authorized considered as all-inclusive or meant to cover all contingencies. Thermo King dealer should you require one. - Page 5 Introduction To use this system, you need the following information before you call: • Contact Phone Number • Type of TK Unit • Thermostat Setting • Present Load Temperature • Probable Cause of Fault • Warranty Details of the Unit •...
- Page 6 Disclaimer This manual is published for informational purposes only. Thermo King Corporation makes no representations or warranties, express or implied, with respect to the information, recommendations and descriptions contained in this manual and such information, recommendations and descriptions should not be regarded as all-inclusive or covering all contingencies. In the event you have any questions or require further information, please contact your local Thermo King dealer.
-
Page 7: Table Of Contents
Table of Contents Table of Contents Introduction ....... . . 3 ColdCube Remote Display Option . -
Page 8: Safety Precautions
Safety Precautions Safety Precautions Thermo King recommends that all services be performed by a Thermo King dealer. However, there are several general safety CAUTION: Danger of fatal injury from electric shocks! When using the ColdCube on boats, if the practices which you should be aware of: ColdCube is powered by AC, ensure that 110-240 V... - Page 9 Safety Precautions CAUTION: Danger of injuries! Batteries contain CAUTION: Electronic devices are not toys! The aggressive and caustic acids. Avoid battery fluid ColdCube is not intended for use by young children coming into contact with your body. If your skin or infirm persons unless they have been adequately does come into contact with battery fluid, wash the supervised by a responsible person to ensure that...
- Page 10 Safety Precautions WARNING: Control circuits used in the ColdCube CAUTION: Danger of fatal injury from electric are low voltage. This voltage potential is not shocks! considered dangeous, but the large amount of Do not touch exposed cables with your bare hands. current available can cause severe burns if shorted This especially applies when operating the to ground.
-
Page 11: First Aid
Safety Precautions First Aid Inhalation: Move victim to fresh air and restore breathing if necessary. Stay with victim until arrival of emergency personnel. First Aid–Refrigerant Ingestion: Do not induce vomiting. Immediately contact Eyes: For contact with liquid, immediately flush eyes with local poison control center or physician. -
Page 12: Unit Description
Unit Description Thermo King ColdCube cooling containers are the flexible and convenient solution for transportation of perishable goods in cars, trucks or vans. The heavy duty ColdCube is made of rotationally moulded polyethylene and can be cleaned easily according to 93/43/EEC (HACCP). - Page 13 Unit Description...
-
Page 14: Coldcube Installation
ColdCube Installation ctrical Connections NOTE: Refer to ColdCube specifications page in the rear of this manual for unit max and average current requirements. Please ensure this has been taken into account for alternator and battery sizing. CAUTION: Anchor the ColdCube to prevent it from shifting and causing harm to people or cargo. -
Page 15: Connecting To A Dc Battery
ColdCube Installation Connecting to a DC battery The ColdCube is supplied with a standard length DC battery cable with a fuse on the positive side. If this cable cannot be NOTE: If the vehicle is equipped with a battery used, the fuse must be transferred to the cable installed. disconnect switch, always wire the ColdCube after Determine the required cross section of the cable in relation to the switch. - Page 16 ColdCube Installation 140, 330 and 915 Litre Freezing Cross section Max Length Max Length (AWG) ColdCube Negative CAUTION: Danger of damaging the ColdCube! Make sure that the polarity is correct. Battery Positive Fuse Figure 3: Battery Connections...
-
Page 17: Fuse Sizes
ColdCube Installation Low Voltage DC Protection Before starting up the ColdCube for the first The ColdCube is equipped with a battery monitor that protects time, check whether the operating voltage the compressor from low voltage when connected to DC and the battery voltage match (see type power. -
Page 18: Connecting To A 110-240 Vac Power Source
ColdCube Installation Connecting to a 110-240 VAC Power Source CAUTION: Danger of electrocution! Never handle plugs and switches with wet hands or if you are standing on a wet surface. The ColdCube has a built-in multi-voltage electrical connection adapter with a priority circuit for connecting to a 110-240 VAC supply. - Page 19 ColdCube Installation...
-
Page 20: Coldcube Remote Display Option
ColdCube Remote Display Option The optional ColdCube Remote Display kit includes a repeater Gain access to unit display/controller top rear to find one display and display interface. or two connection ports. See Figure 5. Connect the provided dongle to the rear most port. To install the Remote Display: Figure 4 shows kit contents. - Page 21 ColdCube Remote Display Option Press " " or " " until the number “22” (the code of the password that allows access to the parameters) is displayed. Confirm by pressing SET. The display will show the code of the first modifiable type “C” parameter (“/2”) Press "...
-
Page 22: Coldcube Operation
ColdCube Operation Before first use of ColdCube Pos. Description Function CAUTION: Danger of overheating! Ensure at all Switch Switches the ColdCube on/off times that there is sufficient ventilation so that the heat that generated during operation can dissipate. Display Indicates the temperature Ensure that the ventilation slots are not covered. -
Page 23: To Begin Operation
ColdCube Operation To Begin Operation The display shows the desired cooling temperature in F°. Press the SET button to store the desired cooling 1. Press the "I/0" temperature. button. Changing temperature units 2. The display (Fig. 1-2) shows the Press the PRG/mute and SET buttons smultaneously for current inside five seconds. -
Page 24: Setting Temperature Alarms
ColdCube Operation Setting temperature alarms Press " " or " " until the number “22” is displayed (the code of the password that allows access to NOTE: The controller has no memory to store alarms and the parameters). alarms are not stored if unit is powered off. Confirm by pressing SET. - Page 25 ColdCube Operation Press SET to temporarily save the new value and return to 16. Press " " or " " until displaying the parameter the display of the parameter code. “Ad” (Temperature alarm delay). This indicates the number of minutes the temperature alarm is signalled after 10.
-
Page 26: Replacement Of The Coldcube Fuse
ColdCube Operation Energy saving tips 20. Press SET to temporarily save the new value and return to the display of the parameter code. • Allow hot perishable items to cool down first before you 21. To save the new parameters, press PRG for more than 5 place it into the ColdCube. -
Page 27: Pre-Cooling Load
ColdCube Operation Pre-Cooling Load CAUTION: Danger of damaging the ColdCube! Do not wet the electronic components. They are not Pre-cool or freeze goods before putting them in the ColdCube. The ColdCube is designed to maintain product temperature, water proof! not to pull down product temperature. Pre-Cooling ColdCube CAUTION: Danger of damaging the ColdCube! Do not use abrasive cleaning agents or hard objects... -
Page 28: Troubleshooting
ColdCube Operation Troubleshooting CAUTION: Before performing any service, disconnect the battery cables at the battery and also NOTE: The 242 gallon freezing unit does not have an alarm LED. disconnect the AC supply. The ColdCube has a built-in self diagnostic program. If there is a detectable error, the red LED light positioned nearby the digital controller will flash 1 to 5 times and repeat the pattern, showing the possible reason for the operation stopping. - Page 29 ColdCube Operation 3 Flashes Motor start error The rotor is blocked or the differential pressure in the refrigeration system is too high (> 5 bar). Compressor may not start because of high refrigerant pressure due to a high heat situation. High ambient temperatures may cause excessive heat, if so then the area around the ColdCube must be cooled down before trying to restart compressor.
- Page 30 ColdCube Operation Apart from possible problems identified by the red LED light Problem Possible Reason Action of the self diagnosis system, other possible problems are: ColdCube Error in controller Re-set on the switch on programming right Problem Possible Reason Action (controller programming The ColdCube...
- Page 31 ColdCube Operation Problem Possible Reason Action ColdCube is Lack of refrigerant Check for working but not refrigerant gas cooling down leakage and vacuum / recharge the unit gas quantity on the serial number label. Oil in the circuit Repeat short (probably the operation cycles ColdCube has...
-
Page 32: Unit Specifications
Unit Specifications ColdCube Gross Minimum Avg. External Internal Weight Style Capacity Temp* Amps @ Amps @ Dimensions Dimensions (kg) (Litres) 12 VDC** 12 VDC L x W x H (mm) L x W x H (mm) Cooling - 10 C 1000 x 620 x 710 620 x 425 x 540 Cooling... - Page 33 Unit Specifications...
-
Page 34: Warranty
Warranty Warranty The ColdCube Unit Warranty is two years parts and labor. A full description of the warranty is available upon request. -
Page 35: Recover Refrigerant
Recover Refrigerant Recover Refrigerant At Thermo King, we recognize the need to preserve the environment and limit the potential harm to the ozone layer that can result from allowing refrigerant to escape into the atmosphere. We strictly adhere to a policy that promotes the recovery and limits the loss of refrigerant into the atmosphere.
