RADLEY 1248-877 Owner's Manual

RADLEY 1248-877 Owner's Manual

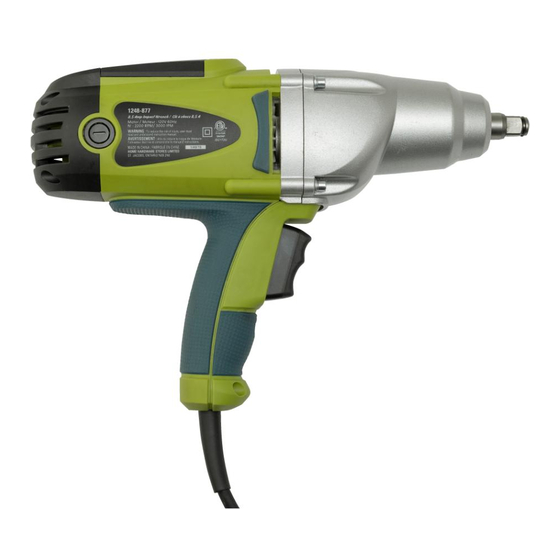

8.5 amp impact wrench

Advertisement

Quick Links

READ ALL INSTRUCTIONS
BEFORE FIRST USE.
KEEP THIS MANUAL
FOR FUTURE REFERENCE.
KEEP AWAY FROM CHILDREN.
WEAR CSA APPROVED
EYE PROTECTION
WEAR EAR
PROTECTION
1248-877
WEAR A
FACE MASK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1248-877 and is the answer not in the manual?

Questions and answers

Summary of Contents for RADLEY 1248-877

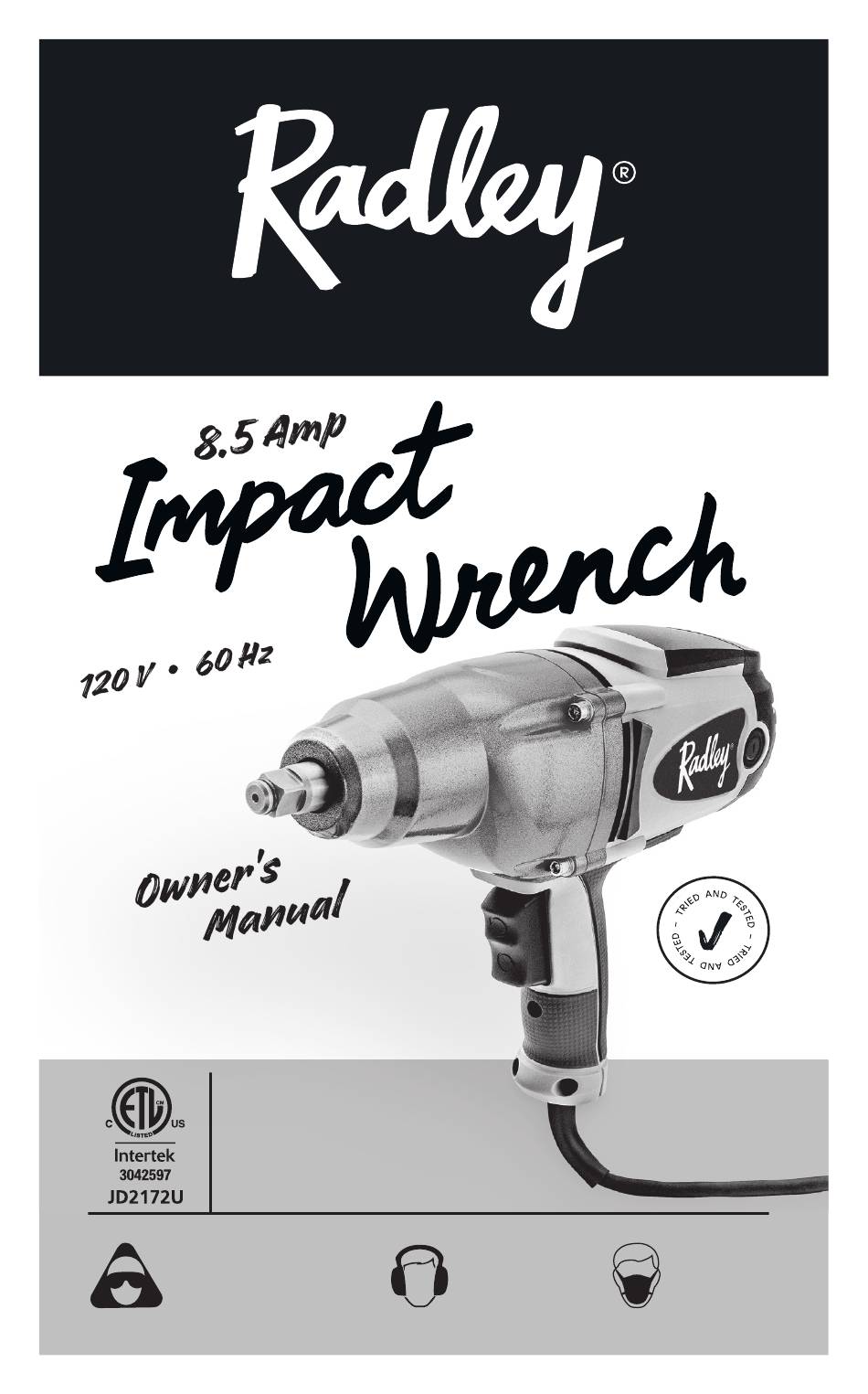

  • Page 1 1248-877 READ ALL INSTRUCTIONS BEFORE FIRST USE. KEEP THIS MANUAL FOR FUTURE REFERENCE. KEEP AWAY FROM CHILDREN. WEAR CSA APPROVED WEAR EAR WEAR A EYE PROTECTION PROTECTION FACE MASK...
  • Page 2 Impact Wrench - Owner's Manual PRODUCT SPECIFICATIONS Rating: 120V AC, 60 Hz Amperes: 8.5 AMP Speed: 2,200 RPM (no load) Impact speed: 3,000 IPM (no load) Torque: 300 ft/lbs Square drive: ½" / 13 mm Weight: 8 lb 1 oz / 3.7 kg Need Assistance? Call us on our toll free customer support line: 1-866-349-8665 (Monday through Friday 9am –...
  • Page 3: Table Of Contents

    1248-877 TABLE OF CONTENTS Product specifications ………….……………………………………………………………1 Table of contents ………….……………………………………………………………2 General safety warnings ………….……………………………………………………………3 Eye, ear & lung protection ………….……………………………………………………………3 Electrical safety ………….…………………………………………………………….4 Power tool safety ………….……………………………………………………………4 Work area safety ………….……………………………………………………………4 Electrical safety ………….……………………………………………………………5-7 Personal safety ………………….…………………………………………………….5 Power tool use and care ………….……………………………………………………………6-7...
  • Page 4: General Safety Warnings

    Impact Wrench - Owner's Manual GENERAL SAFETY WARNINGS WARNING: Before using this tool or any of its accessories, read this manual and follow all Safety Rules and Operating Instructions. The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible situations.
  • Page 5: Electrical Safety

    1248-877 ELECTRICAL SAFETY WARNING: To avoid electrical hazards, fire hazards or damage to the tool, use proper circuit protection. This tool is wired at the factory for 120 V AC operation. It must be connected a 120 V AC, 15 AMP circuit that is protected by a time delayed fuse or circuit breaker.
  • Page 6: Electrical Safety

    Impact Wrench - Owner's Manual ELECTRICAL SAFETY Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.
  • Page 7: Power Tool Use And Care

    1248-877 Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
  • Page 8: Service

    Impact Wrench - Owner's Manual Service Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. SPECIFIC SAFETY RULES WARNING: Know your impact wrench. Do not plug the tool into the power source until you have read and understand this Instruction Manual.
  • Page 9 1248-877 Always remove the plug from the power source before installing or removing any socket or accessory. Be ready for components to shift when removing any fastener. The speed of the fastener removal could cause unexpected shifting of the components.
  • Page 10: Symbols

    Impact Wrench - Owner's Manual SYMBOLS WARNING: Some of the following symbols may appear on the impact wrench. Study these symbols and learn their meaning. Proper interpretation of these symbols will allow for more efficient and safer operation of this tool. Volts Direct current Amperes...
  • Page 11: Know Your Impact Wrench

    1248-877 KNOW YOUR IMPACT WRENCH Air vent ½" Square drive Air vents Socket retainer Motor brush Trigger switch Handle ACCESSORIES WARNING: Use only accessories that are recommended for this impact wrench. Follow the instructions that accompany the accessories. The use of improper accessories may result in injury to the operator or damage to the impact wrench.
  • Page 12: Assembly And Operating

    Impact Wrench - Owner's Manual ASSEMBLY AND OPERATING INSTALLING IMPACT SOCKETS WARNING: Use only impact sockets and accessories that are designed for use with an impact wrench. Do not use chrome plated sockets and accessories. Chrome plated sockets and accessories are designed for hand use only and MUST NOT be used with a impact wrench.
  • Page 13: Removing Wheel Nuts

    1248-877 ASSEMBLY AND OPERATING WARNING: For safety reasons, the operator must read the sections of this Owner's Manual entitled "General safety warnings", "Power tool safety", "Specific safety rules", "Extension cord safety" and "Symbols" before using this impact wrench. Verify the following every time the impact wrench is used: 1.
  • Page 14: Tightening Wheel Nuts

    Impact Wrench - Owner's Manual ASSEMBLY AND OPERATING REMOVING WHEEL NUTS cont. When removing fasteners, do not operate the impact wrench for more than 10 seconds unless the fastener begins to turn. If the fastener fails to turn within 10 seconds, reverse the direction of rotation and operate the impact wrench in a forward direction on the fastener for a few seconds.
  • Page 15: Maintenance

    1248-877 ASSEMBLY AND OPERATING TIGHTENING WHEEL NUTS cont. NOTE: Release the trigger switch as soon as the impact wrench begins to “rattle” to avoid over tightening the nut. 6. Proceed with tightening the remaining wheel nuts in a similar manner.
  • Page 16 Impact Wrench - Owner's Manual MAINTENANCE GENERAL WARNING: When servicing, use only identical replacement parts. Use of any other part may create a hazard or cause product damage. DO NOT use solvents when cleaning plastic parts. Plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.
  • Page 17: Exploded View

    1248-877 EXPLODED VIEW...
  • Page 18: Parts List

    Impact Wrench - Owner's Manual PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the impact wrench. Any attempt to repair or replace electrical parts on this impact wrench may create a safety hazard unless repairs are performed by a qualified technician.
  • Page 19 1248-877 PARTS LIST Key # Part # Quantity 3140020068 4010010055 2030110019 3150010071 1010180008 4010010048 3140040001 3150050046 3150160134 4030010122 1020180007 1062020029 3011180003 3110010162 3150150019 1230010066 3150140018 3160010043 4030010105 3120070072 4030010106 4030010099 2030050002 1250010002 1190040004 3140010004...
  • Page 20: Warranty

    I p c W e c - O n r's M n a WARRANTY If this Radley tool fails due to a defect in material or workmanship within one year from the date of purchase, return it to any Home Hardware store with the original bill of sale for exchange.
  • Page 21 EXCLUSIVE TO HOME HARDWARE For information on the entire line-up of Radley power tools visit homehardware.ca or your local Home Hardware retail store. MADE IN CHINA / FABRIQUÉ EN CHINE HOME HARDWARE STORES LIMITED ST. JACOBS, ONTARIO N0B 2N0 ORDER ONLINE / COMMANDE EN LIGNE 1248-877 ©...
