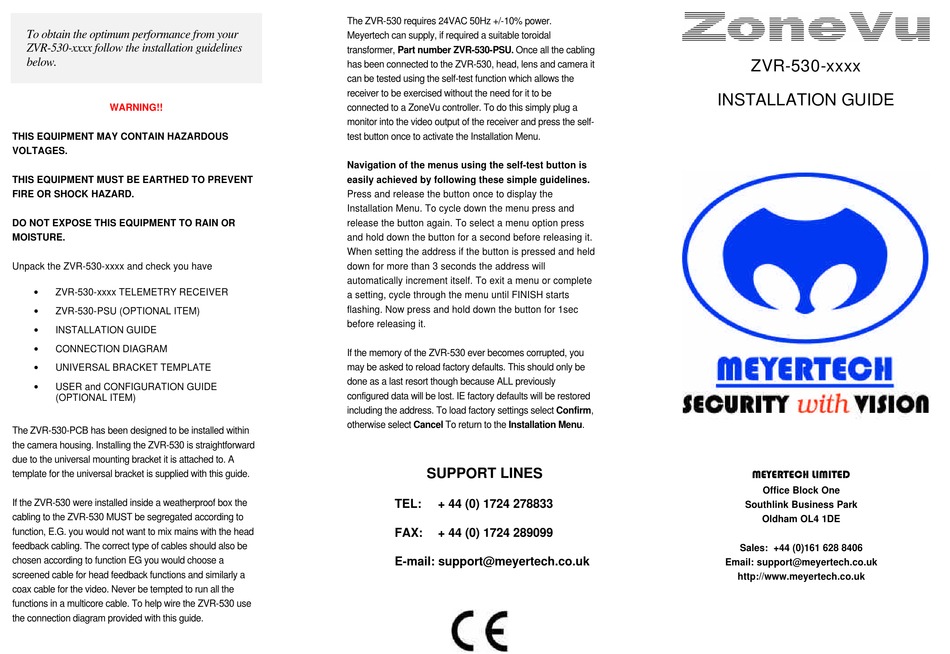

Metertech ZoneVu ZVR-530 Series Installation Manual

To obtain the optimum performance from your
ZVR-530-xxxx follow the installation guidelines
below.
WARNING!!
THIS EQUIPMENT MAY CONTAIN HAZARDOUS
VOLTAGES.
THIS EQUIPMENT MUST BE EARTHED TO PREVENT
FIRE OR SHOCK HAZARD.
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE.
Unpack the ZVR-530-xxxx and check you have
•
ZVR-530-xxxx TELEMETRY RECEIVER
•
ZVR-530-PSU (OPTIONAL ITEM)
•
INSTALLATION GUIDE
•
CONNECTION DIAGRAM
•
UNIVERSAL BRACKET TEMPLATE
•
USER and CONFIGURATION GUIDE
(OPTIONAL ITEM)
The ZVR-530-PCB has been designed to be installed within
the camera housing. Installing the ZVR-530 is straightforward
due to the universal mounting bracket it is attached to. A
template for the universal bracket is supplied with this guide.
If the ZVR-530 were installed inside a weatherproof box the
cabling to the ZVR-530 MUST be segregated according to
function, E.G. you would not want to mix mains with the head
feedback cabling. The correct type of cables should also be
chosen according to function EG you would choose a
screened cable for head feedback functions and similarly a
coax cable for the video. Never be tempted to run all the
functions in a multicore cable. To help wire the ZVR-530 use
the connection diagram provided with this guide.
The ZVR-530 requires 24VAC 50Hz +/-10% power.
Meyertech can supply, if required a suitable toroidal
transformer, Part number ZVR-530-PSU. Once all the cabling
has been connected to the ZVR-530, head, lens and camera it
can be tested using the self-test function which allows the
receiver to be exercised without the need for it to be
connected to a ZoneVu controller. To do this simply plug a
monitor into the video output of the receiver and press the self-
test button once to activate the Installation Menu.
Navigation of the menus using the self-test button is
easily achieved by following these simple guidelines.
Press and release the button once to display the
Installation Menu. To cycle down the menu press and
release the button again. To select a menu option press
and hold down the button for a second before releasing it.
When setting the address if the button is pressed and held
down for more than 3 seconds the address will
automatically increment itself. To exit a menu or complete
a setting, cycle through the menu until FINISH starts
flashing. Now press and hold down the button for 1sec
before releasing it.
If the memory of the ZVR-530 ever becomes corrupted, you
may be asked to reload factory defaults. This should only be
done as a last resort though because ALL previously
configured data will be lost. IE factory defaults will be restored
including the address. To load factory settings select Confirm,
otherwise select Cancel To return to the Installation Menu.
