Summary of Contents for Aruba SFP

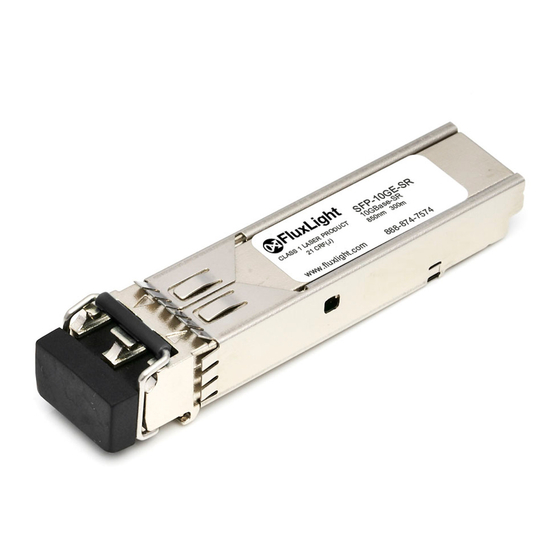

- Page 1 SMALL FORM-FACTOR PLUGGABLE (SFP / SFP+ / SFP28) MODULE INSTALLATION GUIDE...
-
Page 2: Table Of Contents
Removing the Transceiver Module ........................5 Appendix ................................6 Product Overview ................................... 6 Bail Latch Color ..................................6 EdgeOS Default Settings ............................... 6 SFP Module Specifications ..............................7 EC-SFP-1000BT ..............................7 SFP+ Module Specifications ..............................7 EC-SFP-SR ................................7 EC-SFP-LR ................................7 EC-SFP-10G-LR .............................. -
Page 3: Introduction
(SFP/ SFP+/SFP28) modules, as well as instructions for installing and removing the modules. Laser Compliance The fiber-optic SFP+ / SFP28 modules contain a laser that is classified as a “Class 1 Laser Product” in accordance with US FDA regulations and the IEC 60825-1. The product does not emit hazardous laser radiation. -
Page 4: Installing The Transceiver Module
The module is fully seated when you hear a click. 3. (SFP+ and SFP28 modules) At one end of the fiber-optic cable, remove the dust caps from the LC connectors. Save the dust caps for future use. -
Page 5: Removing The Transceiver Module
4. (SFP+ and SFP28 modules) Inspect and clean the uncovered fiber-optic end faces of the LC connectors. 5. (SFP+ and SFP28 modules) Remove the dust cap from the module. Save the dust cap for future use. 6. (SFP+ and SFP28 modules) Connect the LC connectors of the fiber-optic cable to the module. -
Page 6: Appendix
You can use the SFP modules for connecting to other devices. Only use Silver Peak SFP / SFP+ / SFP28 modules in your Silver Peak chassis. Each module has an internal serial EEPROM that is encoded with security information. This encoding provides a way for the Silver Peak chassis to identify and validate that the module meets the requirements for the device. -
Page 7: Sfp Module Specifications
SFP Module Specifications EC-SFP-1000BT Parameter Typical Line Frequency 125 MHz Tx Output Impedance 100 Ohm Rx Input Impedance 100 Ohm Tx Input Impedance 50 Ohm Rx Input Impedance 50 Ohm SFP+ Module Specifications EC-SFP-SR Parameter Minimum Maximum Optical Output Power (1G) –9.5 dBm –1 dBm Optical Receive Sensitivity (1G) –17 dBm Maximum Input Power (1G) + 0.5 dBm Optical Output Power (10G) –5 dBm –1 dBm Optical Receive Sensitivity (10G) –11.1 dBm Maximum Input Power (10G) + 0.5 dBm ... -
Page 8: Sfp28 Module Specifications
SFP28 Module Specifications EC-SFP28-25G-SR Parameter Minimum Maximum Optical Output Power (10G) –8.4 dBm + 2.4 dBm Optical Output Power (25G) –8.4 dBm + 2.4 dBm Optical Receive Sensitivity (10G) –10.1 dBm Maximum Input Power (25G) –10.3 dBm + 3.0 dBm EC-SFP28-25G-LR Parameter Minimum Maximum Optical Output Power (10G) –8.2 dBm + 0.5 dBm Optical Receive Sensitivity (10G) –12.6 dBm Maximum Input Power (10G) – 14.2 dBm + 2.0 dBm Optical Output Power (25G) –7.0 dBm + 2.0 dBm Optical Receive Sensitivity (25G) –11.3 dBm Maximum Input Power (25G) – 13.3 dBm + 2.0 dBm ... -
Page 9: Fiber-Optic Cable Specifications
Fiber-Optic Cable Specifications EC‐SFP‐SR When Operated in 1000Base‐SX Mode Wavelength: 850 nanometers Modal Core Size Bandwidth Transmission Distance Cable Type Connector Type Cable Color (micron) (MHz/km) 62.5 160 220 m (722 feet) Multi‐mode, OM1 LC fiber Optics Orange 62.5 200 275 m (902 feet) Multi‐mode, OM1 LC fiber Optics Orange 50 400 500 m (1640 feet) Multi‐mode, OM2 LC fiber Optics Orange 50 500 550 m (1804 feet) Multi‐mode, OM2 LC fiber Optics ... - Page 10 EC‐SFP‐10G‐LR When Operated in 10GBase‐LR Mode Wavelength: 1310 nanometers Core Size Transmission Distance Cable Type Connector Type Cable Color (micron) 9 10 km (6.21 miles) Single‐mode, OS2 LC fiber Optics Yellow EC‐SFP28‐25G‐SR When Operated in 10GBase‐SR Mode Wavelength: 850 nanometers Modal Core Size Bandwidth Transmission Distance Cable Type Connector Type Cable Color (micron) (MHz/km) 50 4700 550 m (1804 feet) Multi‐mode, OM4 LC fiber Optics Aqua EC‐SFP28‐25G‐SR When Operated in 25GBase‐SR Mode Wavelength: 850 nanometers ...
-
Page 11: Ethernet Cable Specifications
Ethernet Cable Specifications EC‐SFP‐1000BT Transmission Distance Cable Type Connector Type 100 m (328 feet) Category 5 UTP RJ‐45 ... - Page 12 Document 201845 Rev. B www.arubanetworks.com 6280 America Center Drive, San Jose, CA 95002 1.877.210.7325 (toll-free in USA) | +1.408.935.1850 | www.silver-peak.com/support...
