Instructions for use

Application area

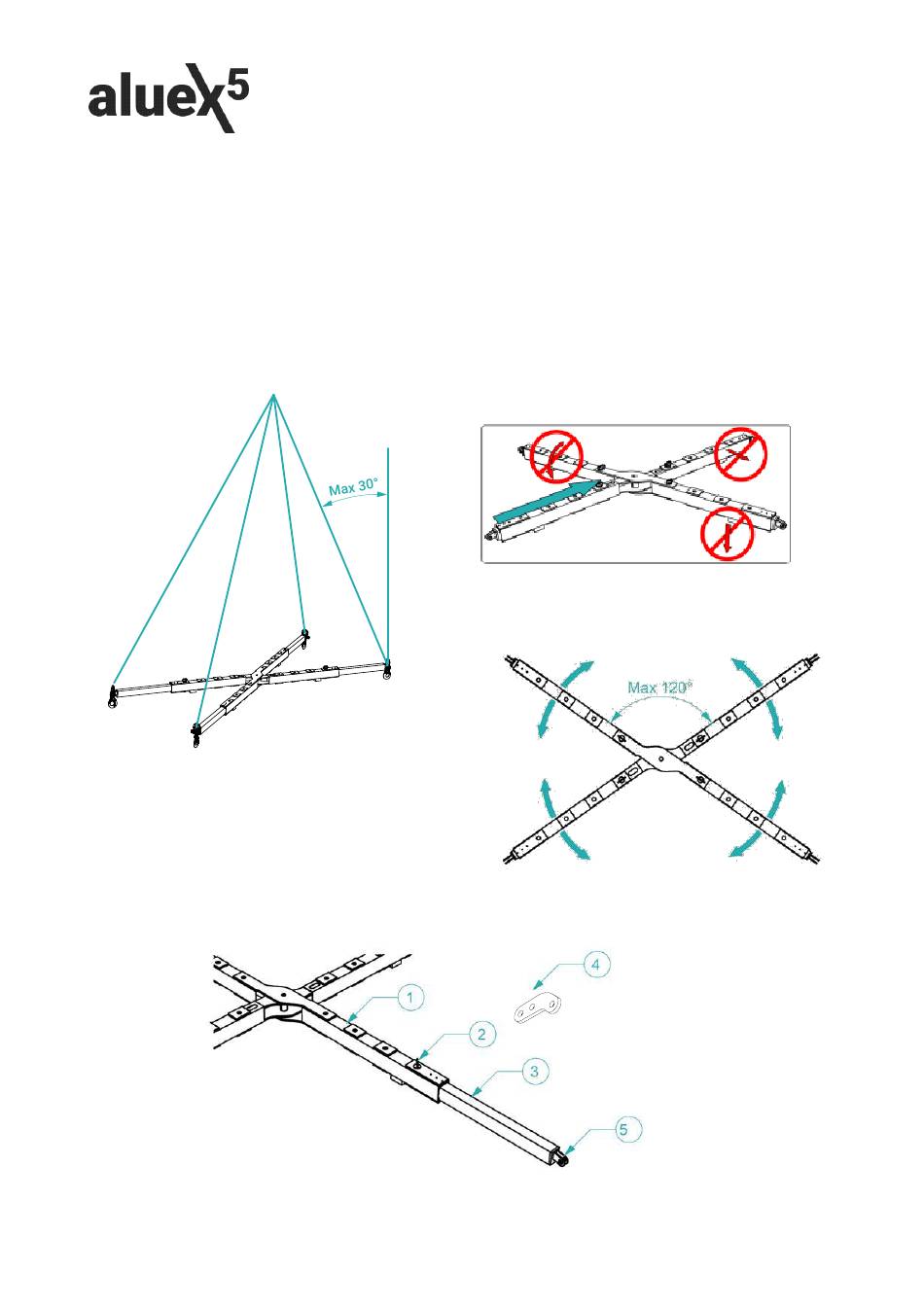

The ALUEX5 lift spreader is designed to help with lifting objects. The purpose of the lift spreader is to spread the
lifting straps away from the object. The lift spreader is adjustable, enabling lifting to be made as safe as possible. Read
and follow the instructions for use so that the lift spreader is used without risk. Give a copy of these instructions for
Use to all ALUEX users.
The lift spreader must not be used for any lifting for which it is not designed.
The maximum permitted lifting angle for the lift spreader is max 30°
Undue strain must not be placed on the lift spreader
Always check that the arms of the lift spreader can move freely
The maximum lifting weight is 5 000 kg with 30° angle.
WLL 5 ton
Figure 1:
The lifting straps must be of the same length.
The maximum lifting angle for the lift spreader is 30°.
The packaging contains these items
Frame section
4 x end brackets
4 x guide pins
4 x links for lifting with chains
Figure
brackets, 4 Links for lifting with chains, 5 Attachment point
alue \ beams
(see figure 2 and figure 10).
(see Figure
4):
4: Lift spreader parts: 1 Frame section, 2 Guide pins, 3 End
(see Figure 1).
(see figure
3).
Figure
2: The lift spreader may only be loaded inward
Figure
3: The arms of the lift spreader must be able to
move freely. The maximum opening angle for the lift
spreader is 120°.
Page 1/4
Instructions for use
original

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALUEX5 and is the answer not in the manual?

Questions and answers

Summary of Contents for aluexbeams ALUEX5

  • Page 1 Application area The ALUEX5 lift spreader is designed to help with lifting objects. The purpose of the lift spreader is to spread the lifting straps away from the object. The lift spreader is adjustable, enabling lifting to be made as safe as possible. Read and follow the instructions for use so that the lift spreader is used without risk.
  • Page 2 alue \ beams Page 2/4 Instructions for use original Commissioning Before commissioning, the user must check that all the parts of the lift spreader are present. All parts should be checked to ensure that they are not damaged. If defects are discovered during commissioning, the lift spreader must be returned to the dealer.
  • Page 3 alue \ beams Page 3/4 Instructions for use original 6: The beams must be set to the same length Figure Figure 7: The lift spreader is set to the correct length when it is as long as or shorter than the width of the load max 6° angle Figure 9: Attachment at any location 8: When lifting using chains, hooks and suchlike...
  • Page 4 The guide pins must be replaced if they are damaged. Only original spare parts are approved Maximum lateral clearance is 15mm on the extension The annual inspection must be noted in the inspection log. Manufacturer Oy Aluexbeams Ab Jakobstad Finland +358400471058 www.aluexbeams.com...
