Summary of Contents for Ferguson Enterprises Avallon AWC243TSZRH

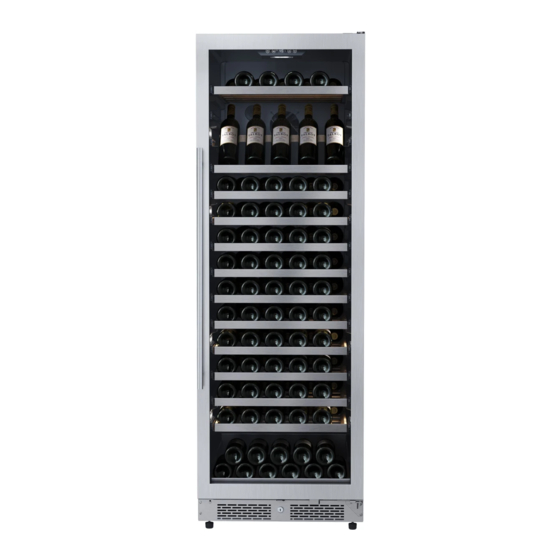

- Page 1 ® Wine Refrigerator Models: AWC243TSZRH, AWC243TSZLH Owner’s Manual AVALLON.COM ©2021 Ferguson Enterprises, LLC V1.0-12202021...
-
Page 2: Important Safety Information
Contact customer service for service options if the unit needs service. WARNING: Flammable Refrigerant Used! When handling, moving, and using the refrigerator, make sure to avoid either damaging the refrigerant tubing or increasing the risk of a leak. ©2021 Ferguson Enterprises, LLC V1.0-12202021 AVALLON.COM... - Page 3 WARNING: Risk of child entrapment. Before you throw away your old refrigerator or freezer, take off the doors and leave the shelves in place so that children may not easily climb inside. AVALLON.COM ©2021 Ferguson Enterprises, LLC V1.0-12202021...
-
Page 4: Table Of Contents
Temperature Alarm ............................15 Door Ajar Alarm ............................15 Defrosting ..............................15 Preparing the Refrigerator for Storage ......................16 Cleaning and Maintenance ........................... 16 Troubleshooting ..............................17 Specifications ................................ 19 Product Warranty ..............................20 ©2021 Ferguson Enterprises, LLC V1.0-12202021 AVALLON.COM... -
Page 5: First-Time Operating Instructions
Visit us on the web at www.avallon.com to register your product, download product guides, and access additional troubleshooting resources and up-to-date information. • If you need warranty service, customer service representatives are available via email at service@ avallon.com. AVALLON.COM ©2021 Ferguson Enterprises, LLC V1.0-12202021... -
Page 6: Parts Identification
® Parts Identification Full View: Stainless Steel Door Roll Out Shelf Display Shelf Door Handle Door Lock Front Vent Empty View: Control Panel Carbon Filter Internal Fan Leveling Leg ©2021 Ferguson Enterprises, LLC V1.0-12202021 AVALLON.COM... - Page 7 The carbon filter should be replaced every 3 - 6 months depending on the unit’s exposure level to odor. If the unit is placed in the kitchen, regular replacement every three (3) months is ideal. AVALLON.COM ©2021 Ferguson Enterprises, LLC V1.0-12202021...
-
Page 8: Installation
3. If the electrical outlet for the refrigerator is behind the cabinet, plug in the refrigerator. 4. Push the refrigerator into position. WARNING: DO NOT install the refrigerator behind a closed cabinet door. ©2021 Ferguson Enterprises, LLC V1.0-12202021 AVALLON.COM... -
Page 9: Clearance Requirements
If needed, you can adjust the height of the refrigerator by rotating the feet. See the “Leveling the Refrigerator” section. • A standard electrical supply (115 VAC only, 60 Hz), properly grounded in accordance with National Electrical Code and local codes and ordinances, is required. AVALLON.COM ©2021 Ferguson Enterprises, LLC V1.0-12202021... -
Page 10: Electrical Requirements
3-pronged wall socket, and grounded in accordance with the National Electrical Code and local codes and ordinances. If a mating wall socket is not available, it is the personal responsibility of the customer to have a properly grounded, 3-prong wall receptacle installed by a qualified electrician. ©2021 Ferguson Enterprises, LLC V1.0-12202021 AVALLON.COM... -
Page 11: Leveling The Refrigerator
4. Carefully press the door gasket into its original position. CAUTION: Do not over-tighten the screws as this may cause damage to the handle or to the stainless steel door. AVALLON.COM ©2021 Ferguson Enterprises, LLC V1.0-12202021... -
Page 12: Installing The Shelves
4. Evenly life the shelf up and then pull the shelf out. CAUTION: To prevent damaging the door gasket, make sure to open the door fully before pulling the shelves off their tracks. ©2021 Ferguson Enterprises, LLC V1.0-12202021 AVALLON.COM... -
Page 13: Operation
To switch between C and F, press and hold both the Up and Down buttons simultaneously for approximately 3 seconds. A beep will sound and the indicator light will illuminate next to the desired temperature setting. AVALLON.COM ©2021 Ferguson Enterprises, LLC V1.0-12202021... -
Page 14: Sabbath Mode
We run test every unit that we produce in our factory. Because of this, your model may default to any of the above colors out of the box. Simply cycle through until you reach your desired internal light color. ©2021 Ferguson Enterprises, LLC V1.0-12202021 AVALLON.COM... -
Page 15: Normal Sounds
If frost is preventing the door from closing properly, you may need to power the unit off until the frost melts. Use a soft absorbent towel to dry the unit. WARNING: Never attempt to remove frost with a sharp object! AVALLON.COM ©2021 Ferguson Enterprises, LLC V1.0-12202021... -
Page 16: Preparing The Refrigerator For Storage
2. Open the door and remove the contents and shelves. 3. Wait until the unit defrosts. 4. With a clean cloth, wipe down the interior of the unit. 5. Reinsert the shelves and contents. 6. Reconnect power to the unit. ©2021 Ferguson Enterprises, LLC V1.0-12202021 AVALLON.COM... -
Page 17: Troubleshooting
Read the “Normal Sounds” section. strange noises. The unit is not level or is Check to make sure that the touching another appliance. refrigerator is level, and that it is not in contact with another appliance or furniture. AVALLON.COM ©2021 Ferguson Enterprises, LLC V1.0-12202021... - Page 18 Clean the door gasket. The door gasket is not Make sure the door gasket is correctly installed correctly. installed. The shelves are incorrectly Refer to the “Installing the Shelves” installed. section to properly install the shelves. ©2021 Ferguson Enterprises, LLC V1.0-12202021 AVALLON.COM...
-
Page 19: Specifications
40° F to 65° F Dimensions 69 7/ ” X 23 ” X 28 ” (Height x Width x Depth ) NOTE: Depth shown includes the handle. Depth without the handle is 26 ”. AVALLON.COM ©2021 Ferguson Enterprises, LLC V1.0-12202021... -
Page 20: Product Warranty
THEORY, FOR MORE THAN THE BASIC COST OF THE PRODUCT TO THE PURCHASER OR END USER. SOME STATES DO NOT ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. ©2021 Ferguson Enterprises, LLC V1.0-12202021 AVALLON.COM... - Page 21 ® AVALLON.COM ©2021 Ferguson Enterprises, LLC V1.0-12202021...
