[WM-Z1110] 2.4GHz TRANSCEIVER MODULE

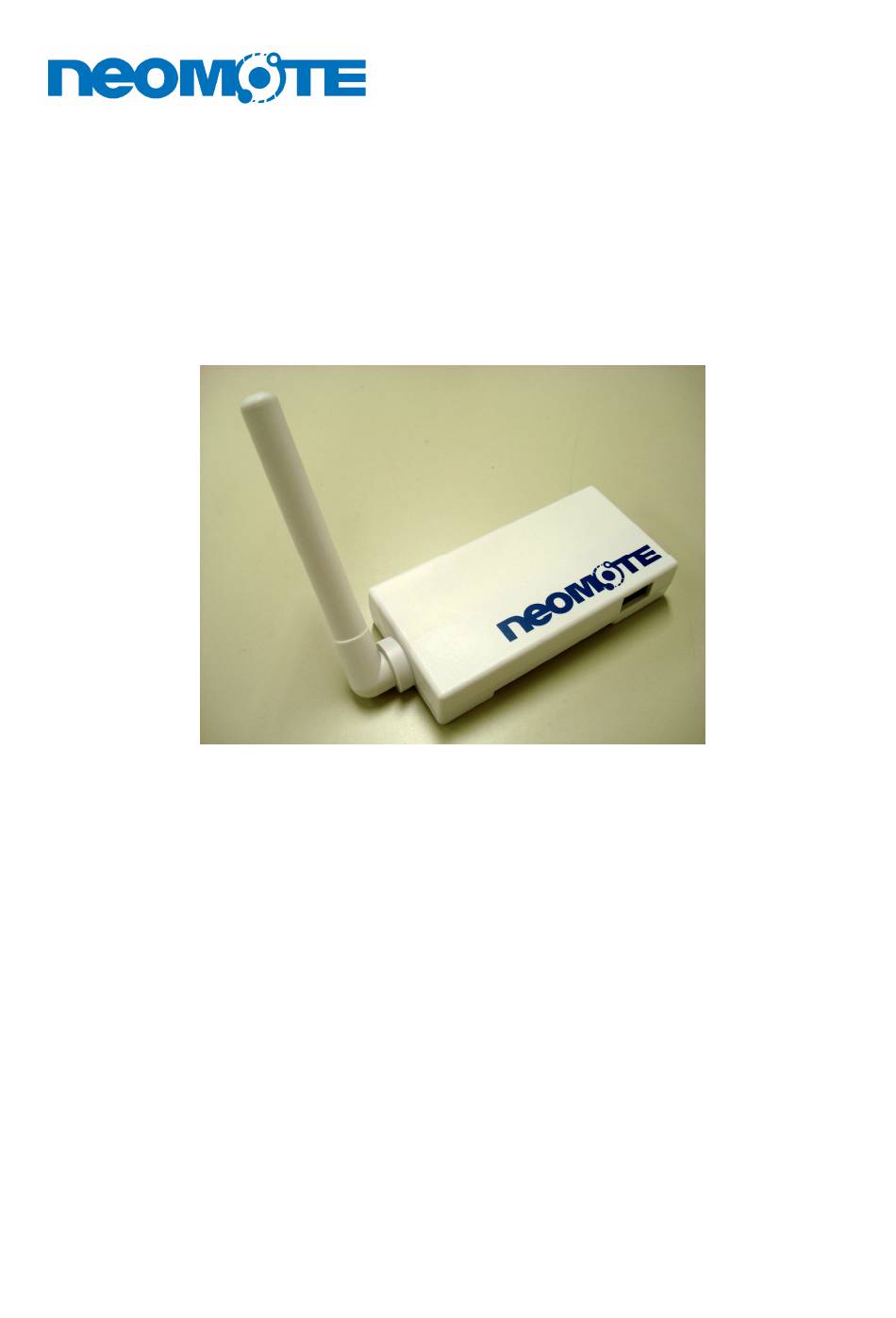

Figure 1. WM-Z1110

Features

・ WM-Z1110 is a 2.4 GHz IEEE 802.15.4, transceiver module designed for wireless sensor
measurement system.
・ The transceiver module includes the direct digital sequence spectrum diffusion baseband
modem that offers an effective data rate of 250Kbps.
・ The frequency synthesizer operates for operation frequency range of 2405.0-2483.5MHz
with 5MHz channel spacing.
・ Frequency stability of 50ppm is determined by a single crystal oscillator (16.000MHz).

Benefits

・ Highly reliable even if the RF environment changes.
・ Provides simpler, faster, and easier installation of wireless sensor network system.
Operating Manual
©
2008 SUMITOMO PRECISION PRODUCTS CO.,LTD.
( 1/8 )

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEOMOTE WM-Z1110 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sumitomo NEOMOTE WM-Z1110

  • Page 1 ・ Frequency stability of 50ppm is determined by a single crystal oscillator (16.000MHz). Benefits ・ Highly reliable even if the RF environment changes. ・ Provides simpler, faster, and easier installation of wireless sensor network system. © 2008 SUMITOMO PRECISION PRODUCTS CO.,LTD.
  • Page 2 Because multiple signal paths exist, the network can adjust to potential communication link disruptions due to changes in the physical environment. Once installed and powered, the transceivers automatically form a mesh network, and the Xmesh's communication is virtually transparent to the system and end user. © 2008 SUMITOMO PRECISION PRODUCTS CO.,LTD.
  • Page 3 More than 25dB Adjacent channel More than 25dB (+ /- 5MHz) rejection Selectivity Less than -6dB Inter-modulation More than 25dB Carrier Sense Level:-77dBm + /- 5dBm Dynamic Range:More than 90dB Current dissipation Less than 40mA © 2008 SUMITOMO PRECISION PRODUCTS CO.,LTD.
  • Page 4 J2 : Stacking I/O connector J1 : Power supply connector [AXK5S50237YG ] [S3B-PH-SM4-TB] J2 : Pin definitions Connect to a power source (“PHR-3” recommend) Connect to sensor board (“AXK6S50437YG” recommend) © 2008 SUMITOMO PRECISION PRODUCTS CO.,LTD.
  • Page 5 ( 5/8 ) Block Diagram © 2008 SUMITOMO PRECISION PRODUCTS CO.,LTD.
  • Page 6 ( 6/8 ) Dimensional drawing unit : mm © 2008 SUMITOMO PRECISION PRODUCTS CO.,LTD.
  • Page 7 ( 7/8 ) Board drawing -Component Side- -Solder Side- unit : mm © 2008 SUMITOMO PRECISION PRODUCTS CO.,LTD.
  • Page 8 -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Manufactured by : Sumitomo Precision Products Sales and Support , contact : Crossbow Japan, Ltd.
