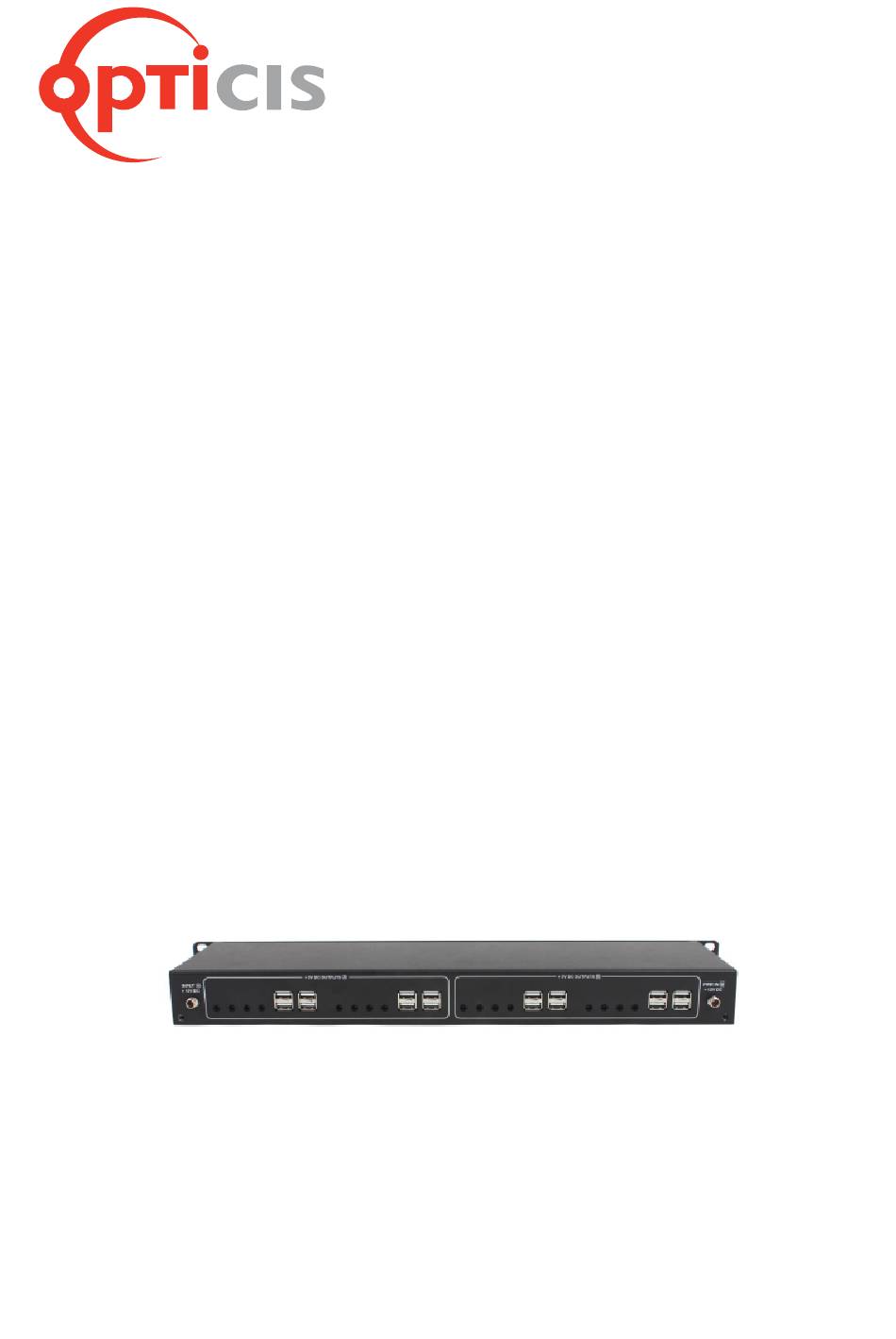

19' 1U Power Rack Frame, PR5V-16
User's Manual
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR5V-16 and is the answer not in the manual?

Questions and answers

Related Manuals for opticis PR5V-16

Summary of Contents for opticis PR5V-16

  • Page 1 19’ 1U Power Rack Frame, PR5V-16 User’s Manual - 1 -...

  • Page 2: Table Of Contents

    Index 1. Product Description..........................3 1.1 Main Features 2. Shipping Group...........................4 3. System Requirement.........................4 4. Exterior Description...........................5 5. Installation.............................6 5.1 Hardware Installation 5.2 Reset and Factory Reset 5.3 PC Program Installation 6. Start Using MPDS-100........................7 6.1 Local GUI 6.2 Remote Control 7.

  • Page 3: Product Description

    1. Product Description MPDS-100, Full HD(1080p) Media Player, is an intergraged playing device that plays video/audio files, different types of documents as well as real time streaming of IP camera(encoder) based on TCP/IP network. With control program, this device can play contents to designated place by preset schedule and display caption on the screen.

  • Page 4: Shipping Group

    2. Shipping Specification □ MPDS-100 □ Power Adapter □ HDMI Cable 1.2m General items MPDS-100 AC / DC power adaptor: One (1) unit of 5V / 2.5A. One (1) HDMI male to male cable (1.2m). Optional items 3. System Requirement 3.1 Hardware Requirement Device doesn’t support wireless feature, however, wireless feature can be used with using Wifi/Bluetooth dongle.

  • Page 5: Exterior Description

    4. External Description 4.1 Input/Output port Front Back 그림. 2 정면 그림. 4 후면 Side Figure 2. MPDS-100 Input/Output port LED : Power LED (RED) / Link LED (GREEN). Reset : Reset button. (Factory reset when pushing 5 seconds.) RS-232 : Optional. RJ-45 (LAN): Connection with RJ-45 Network Cable USB : USB2.0 4 Port Power : 5V DC power input to the device...

  • Page 6: Installation

    5. Installation 5.1 Hardware Installation Procedure Important: Please follow below procedure. If not installed properly, it could suffer malfunction. Step 1 Unpack the package. Step 2 Turn on network storage (or PC), Display, Network Switch(L2/L3) Step 3 Turn on the PC that has installed MPDS-100 PC application and connect LAN cable (CAT5e/CAT6) to network switch.

  • Page 7: Start Using Mpds-100

    6. Start Using MPDS-100 With using local GUI and control PC program, MPDS-100 can be utilized for best performance. 6.1 Local GUI (1) Entering local GUI Enter local GUI by clicking hot key (Ctrl + Shift + Alt + Back Space or right Ctrl + Enter) with connected keyboard.

  • Page 8: Remote Control

    6.2 Remote Control (1) Launch MPDS-Controller program. (2) Register password for administrator (ID : admin) when first-time log-in. (3) Log-in with Admin ID and set password. (4) Setup > User Management: Add/Change/Remove user information. - 8 -...
  • Page 9 (5) Setup > Device Setup: Set MPDS Network environment, Video Output Resolution, Reboot, Display Power or firmware upgrade. (6) Setup > Environment Setup: Select Language, Network Interface, Shared Network Directory, Device Sorting Order. Sources (documents or video, picture, audio files) except for IP camera (encoder) will be played from shared network directory.
  • Page 10 (7) Layout Template: Set display placement and assign source to the desired place. (Entire Screen Configuration) A. Device list Search MPDS device list and group those sources. Device setup and reboot can be made by right click of mouse. B. Source list Select source type from left icons;...
  • Page 11 source and turn on/off play list repeat and switch effect. With right click of mouse, user can delete play list or change playing time. Display Rotation Set landscape or portrait modes depend on direction of the display (TV/Monitor). This setting will be applied after reboot of MPDS-100. Background Music Drag and drop audio file from source list to this area to list background music on the play list.
  • Page 12 (10) How to add IP camera (encoder) source. From source list(C), select IP camera (encoder) source and click add(+) button, then below window will pop up. If you select “Searched IP camera (encoder) Add”, click search button to find IP camera (encoder) list from local network.
  • Page 13 (11) How to add text source From source list (C), select text source and click add(+) button, then below window will pop up. Type in contents need to be displayed on the screen under contents field, and select horizontal/vertical alignment and click ‘OK’ to add it on the source list (C). * Only Fonts, installed in Windows PC, that support multiple language will be displayed in the list.
  • Page 14 (12) How to add caption source From source list(C), select caption and click add(+) button, then below window will pop up. Type in contents need to be displayed on the screen under contents field, and select horizontal/vertical alignment and click ‘OK’ to add it on the source list (C). Caption will be displayed on the top of other sources in one line, and their size can be adjusted after adding them on the view screen.
  • Page 15 (14) (H) Selecting ‘Instant Play’ and clicking ‘Play’ button will start playing current view screen from play list. (15) To save current view screen and play list, select current screen number(G) and set its name and save. (16) (H) Selecting ‘Schedule Play’ and clicking ‘Play’ button will have below window pop up.

  • Page 16: Product Specification

    7. Product Specification General Specification Description Network 10/100 Base-TX Ethernet Resolution Up to 1080p@60Hz Video Interface HDMI 1.4 Video codec H.264, MPEG4, VP6, VP7, VP8 Audio Interface HDMI Audio and Analog Line-Out (Dual output) * Document File : pdf, doc(x), xls(x), ppt(x), hwp. * Video File : avi, mov, mkv, mp4, etc.

  • Page 17: Warranty

    Opticis or authorized resellers. To request repair or service from Opticis, customer shall not open the product, nor place any part of MPDS-100 without assistance from Opticis. Keep serial number sticker on the device.
  • Page 18 Dispose of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
  • Page 19 © Copyright 2022 Opticis USA. All Rights Reserved. OPTICIS USA, LLC. 17752 Skypark Circle, #230. Irvine, CA 92614 T: 949.701.4742 F: 949.701.4965 E: info@opticisusa.com - 19 -...
