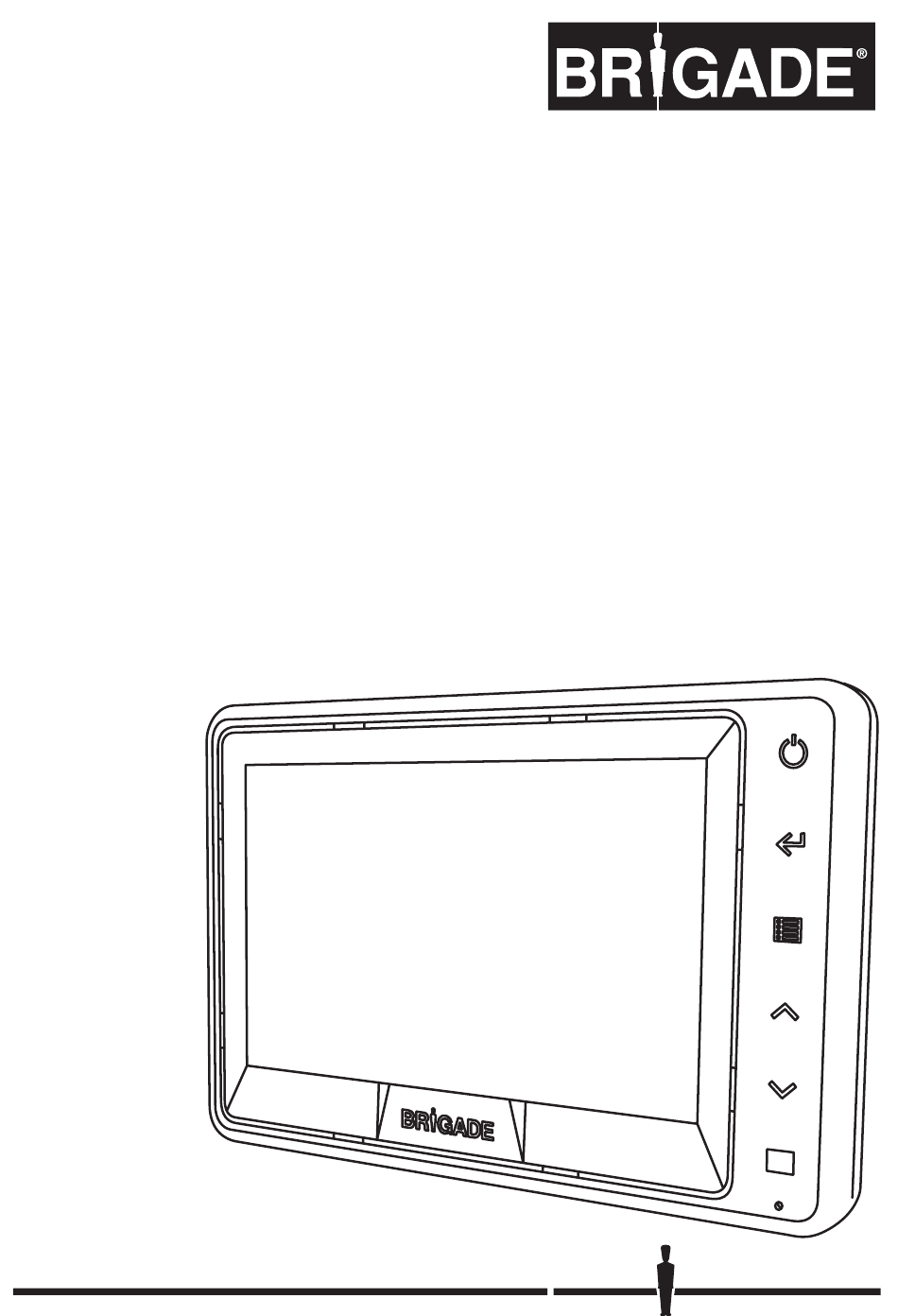

- Page 1 VBV-750M-S vehicle CCTV monitor Quick installation guide Guide d’installation rapide Kurzanleitung Guida d’installazione rapida Guía rápida de instalación Snelle installatie handleiding Guia rápida de instalação Руководство по быстрой установке Hızlı Montaj Klavuzu Skrócona instrukcja instalacji Part Number 4711B...
- Page 2 Contents Contenu/Inhalt/Contenuto/Contenido/inhoud/Conteúdo/Содержание/İçerik /zawartość VBV-750M-M VBV-750M-SS BMM-015 VBV-7X0M-CA...
-
Page 3: Monitor Installation
Monitor installation Surveiller l’installation/Monitor-Einbau/Installazione del monitor/ Instalación del monitor/Monitor installatie/Instalação do monitor/ Расположение камеры/Monitör Montajı/Instalacja monitora M4 x 8mm 27mm 22mm... - Page 4 Connections Connexions/Anschlüsse/Connessioni/Conexiones/Aansluitingen/Conexão/ Сигнал скорости/Bağlantılar/Podłączenia Red Power Black Ground Rouge Positif Noir Masse Rot Betriebsspannung Schwarz Masse Rosso Positivo Nero Massa Rojo Positivo Negro Masa Rood Vermogen Zwart Grond Vermelho Positivo Preto Massa красный мощность черный заземление Kırmızı Arti Siyah Eksi Czerwony Zasllanle Czarny Masa Trigger...
- Page 5 Controls Contrôles/Bedienung/Controlli/Controles/Controles/Controles/контроля/ Kumandalar/Sterowanie =OK / Remote control receiver Récepteur de la télécommande Empfänger für Fernbedienung Ricevitore per telecomando Receptor de control remoto Afstandsbediening ontvanger Receptor de controle remoto Приемник дистанционного управления Uzaktan Kumanda Algılayıcısı Czujnik pilota Automatic low light sensor Capteur optique automatique de basse luminosité...
-
Page 6: Operation
Operation Opération/Betrieb/Operazione/Operación/Werking/Operação/операция/ Çalıştırma/ Użytkowanie DISPLAY MENU BRIGHTNESS CONTRAST COLOUR IIIIIIIIIIIIIIIIIIIII ....MAIN MENU CAMERA SETTINGS TRIGGER SETTINGS AUTO SCAN SETTINGS DAY/NIGHT SETTINGS ADVANCED MENU VOLUME MAIN MENU ADVANCED MENU CAMERA SETTINGS LANGUAGE ENGLISH TRIGGER SETTINGS POWER ON LAST AUTO SCAN SETTINGS MENU LOCK LEVEL 1... -
Page 7: Button Lock
Operation Opération/Betrieb/Operazione/Operación/Werking/Operação/операция/ Çalıştırma/ Użytkowanie Button lock Bouton de verrouillage/Tastensperre/Blocco dei Pulsanti/Bloqueo de botones/ Knopvergrendeling/Bloqueio dos botões/кнопка блокировки/Düğme kilidi/ Przycisk blokady MAIN MENU ADVANCED MENU CAMERA SETTINGS LANGUAGE ENGLISH TRIGGER SETTINGS POWER ON LAST AUTO SCAN SETTINGS MENU LOCK LEVEL 1 DAY/NIGHT SETTINGS KEYPAD BEEPER... -
Page 8: Marker Setting
Operation Opération/Betrieb/Operazione/Operación/Werking/Operação/операция/ Çalıştırma/ Użytkowanie Marker setting Mise en marqueur/Einstellung der Markierungen/Impostazione dei marcatori/ Ajuste de los marcadores/Marker instelling/Definir os marcadores/установкой бита/ İşaretleyici Ayarı/Ustawienia znacznika MAIN MENU TRIGGER SETTINGS CAMERA SETTINGS TRIGGER 1 OPTIONS TRIGGER SETTINGS TRIGGER 2 OPTIONS AUTO SCAN SETTINGS TRIGGER 3 OPTIONS... - Page 9 S pecifications Spécifications/Spezifikationen/Specifiche/Especificaciones/Specificaties/ Especificações/Спецификация/Özellikler/Specyfikacja ENGLISH FRANÇAIS Specifications Specifications Monitor VBV-750M-S Moniteur VBV-750M-S TV system NTSC/PAL (Auto detect) Système TV NTSC/PAL (Détection automatique) Picture 5" TFT LCD colour monitor with on-screen display function Image 5" TFT LCD moniteur couleur...
- Page 10 S pecifications Spécifications/Spezifikationen/Specifiche/Especificaciones/Specificaties/ Especificações/Спецификация/Özellikler/Specyfikacja ESPAÑOL NEDERLANDS Especificaciones Specificaties Monitor VBV-750M-S Monitor VBV-750M-S Sistema de TV NTSC/PAL (Detección TV-systeem NTSC/PAL (automatische automática) detectie) Imagen Monitor a color de 5" TFT LCD Beeld 5 " TFT LCD kleuren monitor met con visualización de las funcio-...
- Page 11 S pecifications Spécifications/Spezifikationen/Specifiche/Especificaciones/Specificaties/ Especificações/Спецификация/Özellikler/Specyfikacja POLSKI TÜRKÇE Specyfikacja Özellikler Monitor VBV-750M-S Monitör VBV-750M-S System TV NTSC/PAL (Auto detect) Tv Sistemi NTSC / PAL (otomatik seçim) Obraz Kolorowy monitor LCD 5" Görüntü 5" TFT LCD Renkli Monitör funkcja OSD (Ekranda Kumanda Görüntü...
- Page 12 No liability arising out of the use or failure of the product can in any way be attached to Brigade or to the distributor. Verwerping Dénégation Les systèmes de moniteurs des caméras sont une...
