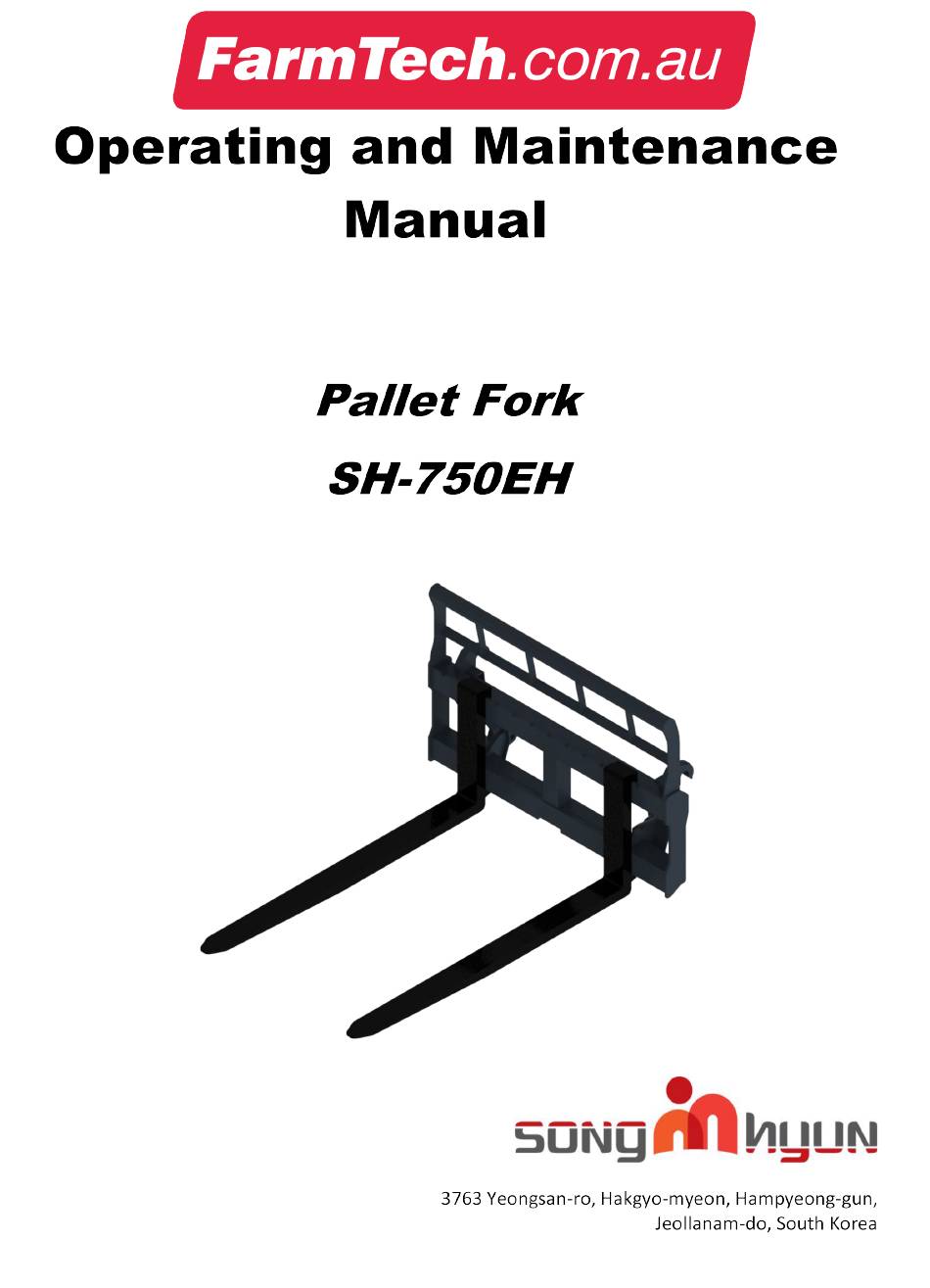

  • Page 2 Dear Customer We are pleased that you decided to purchase a product from our company. Before using the product, please read this operating and maintenance manual carefully so that you can enjoy this product for a long time and are aware of any possible dangers that may arise when using the product.

  • Page 3: Table Of Contents

    OPERATIONAL SAFFETY ▪ TRANSPORT SAFFETY ▪ MAINTENANCE SAFFETY ▪ STORAGE SAFFETY General Information ..............16 1. Features of SH-750EH 2. Specification of SH-750EH 3. Replacement Parts Section General Instruction ..............18 1. Assembly 2. Pre-operation Checklist 3. Operation 4. Safety Instruction 5.

  • Page 4: Safety Instruction

    Safety instruction This instruction is for pallet fork "SH-750EH" manufactured by Songhyun Co.,Ltd. Please read this manual before using your Loader Fork. This manual is provided to give you the necessary operating and maintenance instructions for keeping your Loader Fork in top condition. Please read this manual thoroughly.
  • Page 5 ▪ SAFETY STICKERS Your safety is involved! Please carefully note the warning stickers below. Please note the safety stickers whenever working with the implement for not only preventing serious injury or damage to machines, but also reminding you the need for safety operation. This symbol represents the limitation of maximum lift capacity.
  • Page 6 This symbol represents danger of rollover or tumble. Always keep load stable level for safety work. This symbol represents that it is essential to use appropriate length forks for safety work. Serious dangerous situation can be occurred if forks are short to load objects and objects unintentionally tumble.
  • Page 7 Please find the locations of safety/warning stickers and nameplate below. Be sure that the Safety Sticker and its area are clean and dry. Replace them immediately when they are damaged or missing so that everyone can see them clearly all the time as shown in the following picture. ▪...
  • Page 8 Do not allow people to operate or assemble this unit until they have read this manual and have developed a thorough understanding of the safety precautions and of how it works. Never exceed the limits of a piece of machinery. If its ability to do a job, or to do so safely, is in question –...
  • Page 9 Train all new personnel and review instructions frequently with existing workers. A person who has not read and understood all operating and safety instructions is not qualified to operate the machine. An untrained operator exposes himself and bystanders to possible serious injury or death. Do not allow children to handle this machine.
  • Page 10 Personal protection equipment including safety glasses, safety shoes, and gloves are recommended during assembly, installation, operation, adjustment, maintaining, repairing, removal, or moving the attachment. Always use two people to handle heavy, unwieldy during assembly, installation, removal, or moving the loader attachment. Never place any part of your body where it would be in danger if movement should occur during assembly, installation, operation, maintaining, repairing, removal, or moving the implement.
  • Page 11 When handling material on a slope, always approach the material with the power unit facing uphill. Only use a power unit equipped with a ROPS cab or rollover protective structure. When stacking material, ALWAYS MAKE SURE MATERIAL IS PLACED SO THE STACK IS STABLE.
  • Page 12 Keep load centered on attachment and loader. Unbalanced loads increase possibility of tipping or roll-over. Never allow anyone to walk or work under a raised loader. Remember it could result serious injury or death when contact is made. Be sure that people, livestock, or pets are not standing near the machine while operating.
  • Page 13 Turn curves or go up or down hills only at a low speed and at a gradual steering angle. Make certain that at least 20% of the tractor’s weight is on the front wheels to maintain safe steerage. Slow down on rough or uneven surfaces and loose gravel.
  • Page 14 Be certain all moving parts on attachments have come to a complete stop before attempting to perform maintenance. Never work under equipment unless it is blocked securely. Never depend on hydraulic system to keep implement in raised position. Keep all people protection devices such as eye, hand and hearing protections when performing any service or maintenance.
  • Page 15 ▪ STORAGE SAFETY Following operation or when unhooking, stop the tractor, set the brakes, shut off the engine, relieve all hydraulic pressure and remove the ignition keys. Store the unit in an area away from human activity. Do not park equipment where it will be exposed to livestock for a long period of time.

  • Page 16: General Information

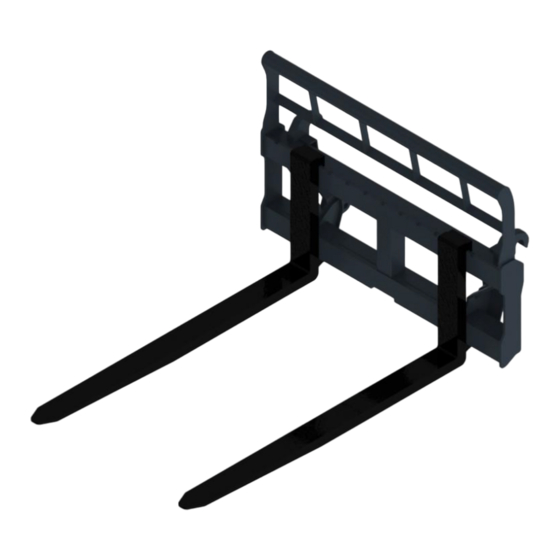

    General Information The pallet fork SH-750EH is designed to be used the front end loader for agricultural wheeled Regardless of the maximum lifting capacity noticed by tractor and skid steer. manufacturer, the power/or lifting capacity of the tractor and front end loader or skid steer will be determined by the weight of the load to be handled.
  • Page 17 ○ SH-750EH Quanti Quant Part Part number Part Part number Main frame FLA0047 Fork Fork1350 OI-SH750EH-EN...

  • Page 18: General Instruction

    General Instruction 1. Assembly SH-750EH is designed to be attached to only EURO quick mounting(or hitch or coupling) according to ISO 23206:2005(E). The main frame is fully welded and has notched rail for adjusting manually the distance between the forks. Class 2 hook-on typed Forks designed according to ISO 2328 are available.

  • Page 19: Pre-Operation Checklist

    2. Pre-operation checklist Owner/Operator responsibility _____ Review and follow safety rules and safety stickers on page 2 through 15. _____ Check that loader Fork is properly and securely attached to loader. _____ Check that all hardware is properly installed. _____ Check that no one enters the area of machine operation. Always work at a safe distance from roads, built-up areas, or populated places.

  • Page 20: Safety Instruction

    When working on side hills, DO NOT RAISE LOADER TOO HIGH. Keep an eye on terrain changes. Keep load low. When stacking, make sure you are operating in an area AWAY FROM OVERHEAD WIRES. Beware of low electrical wires when loader is raised. Serious injury or death can result if contact is made.
  • Page 21 When traveling over rough or hilly terrain or when making turns, slow down and use extra care. Read all the safety warnings in the front of the manual. WARNINGS Keep children away from danger all day, every day. Equip tractors with roll-over protection (ROPS) and keep all machinery guards in place.
  • Page 22 Operating Manual Model No.’s SH-750EH When ordering repair parts, always give the following information: 1. Part description 2. Part number 3. Model number 4. Quantity 3763, Yeongsan-ro, Hakgyo-myeon, Hampyeong-gun Jeollanam-do, South Korea Tel: +82 61 471 4970 Fax: +82 61 323 4971 Email: help@songhyun.kr...
