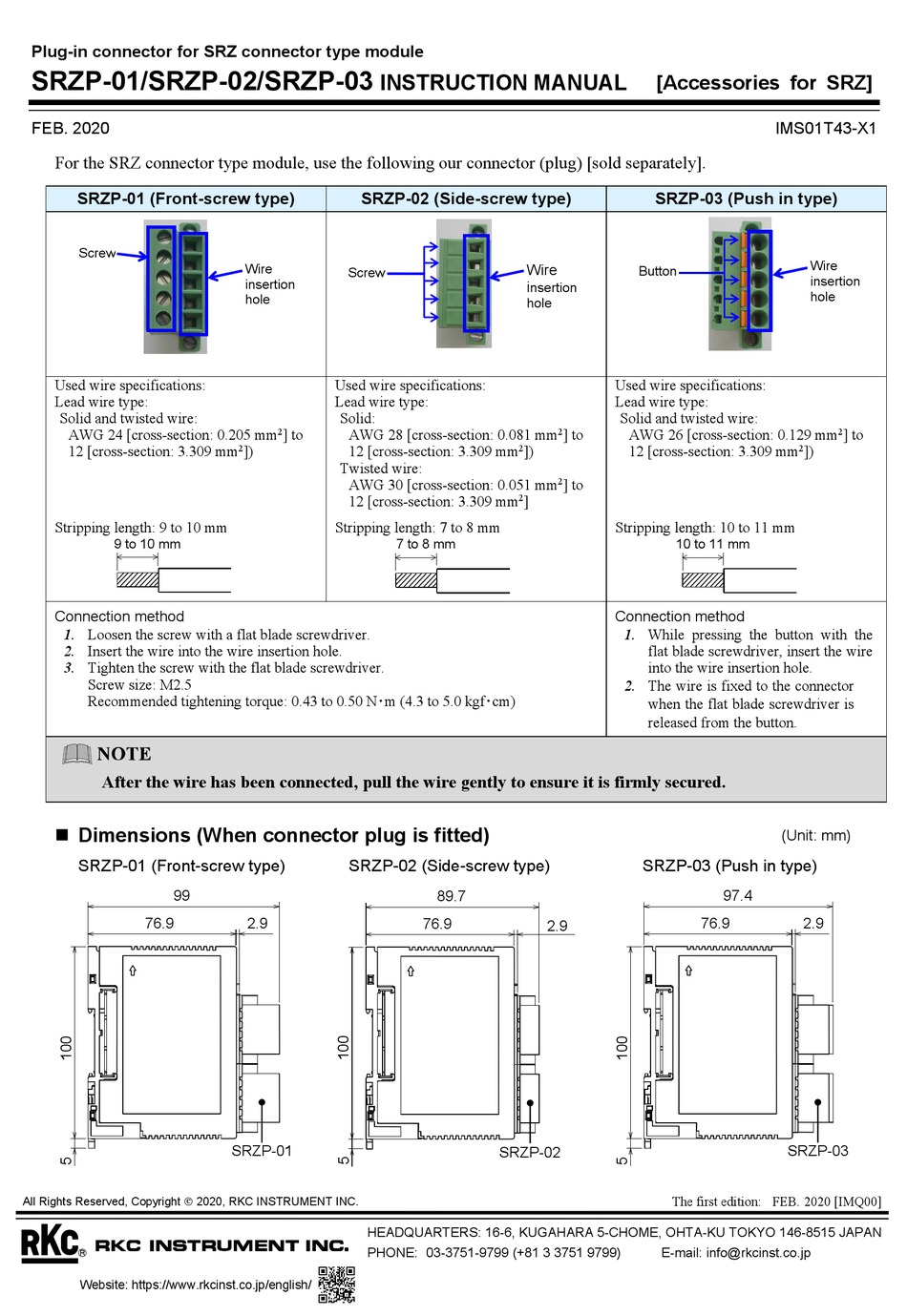

RKC INSTRUMENT SRZP-01 Instruction Manual

Plug-in connector for SRZ connector type module
SRZP-01/SRZP-02/SRZP-03
FEB. 2020
For the SRZ connector type module, use the following our connector (plug) [sold separately].
SRZP-01 (Front-screw type)
Screw

Used wire specifications:

Lead wire type:
Solid and twisted wire:
AWG 24 [cross-section: 0.205 mm
12 [cross-section: 3.309 mm
Stripping length: 9 to 10 mm
9 to 10 mm

Connection method

1. Loosen the screw with a flat blade screwdriver.
2. Insert the wire into the wire insertion hole.
3. Tighten the screw with the flat blade screwdriver.
Screw size: M2.5
Recommended tightening torque: 0.43 to 0.50 N･m (4.3 to 5.0 kgf･cm)
After the wire has been connected, pull the wire gently to ensure it is firmly secured.
 Dimensions (When connector plug is fitted)
SRZP-01 (Front-screw type)
99
76.9
All Rights Reserved, Copyright  2020, RKC INSTRUMENT INC.
Website: https://www.rkcinst.co.jp/english/
INSTRUCTION MANUAL
SRZP-02 (Side-screw type)
Wire
Screw
insertion
hole
Used wire specifications:
Lead wire type:
Solid:
2 ] to AWG 28 [cross-section: 0.081 mm
2 ]) 12 [cross-section: 3.309 mm
Twisted wire:
AWG 30 [cross-section: 0.051 mm
12 [cross-section: 3.309 mm
Stripping length: 7 to 8 mm
7 to 8 mm
SRZP-02 (Side-screw type)
2.9
SRZP-01
HEADQUARTERS: 16-6, KUGAHARA 5-CHOME, OHTA-KU TOKYO 146-8515 JAPAN
PHONE: 03-3751-9799 (+81 3 3751 9799)
Wire
i
nsertion
hole
2 ] to
2 ])
2 ] to
2
]
89.7
76.9
2.9
SRZP-02
[Accessories for SRZ]
IMS01T43-X1
SRZP-03 (Push in type)
Button
Used wire specifications:
Lead wire type:
Solid and twisted wire:
AWG 26 [cross-section: 0.129 mm
12 [cross-section: 3.309 mm
Stripping length: 10 to 11 mm
10 to 11 mm
Connection method
1. While pressing the button with the
flat blade screwdriver, insert the wire
into the wire insertion hole.
2. The wire is fixed to the connector
when the flat blade screwdriver is
released from the button.
(Unit: mm)
SRZP-03 (Push in type)
97.4
76.9
The first edition: FEB. 2020 [IMQ00]
E-mail: info@rkcinst.co.jp
Wire
insertion
hole
2 ] to
2 ])
2.9
SRZP-03
