Summary of Contents for Move DECK001-V-FU

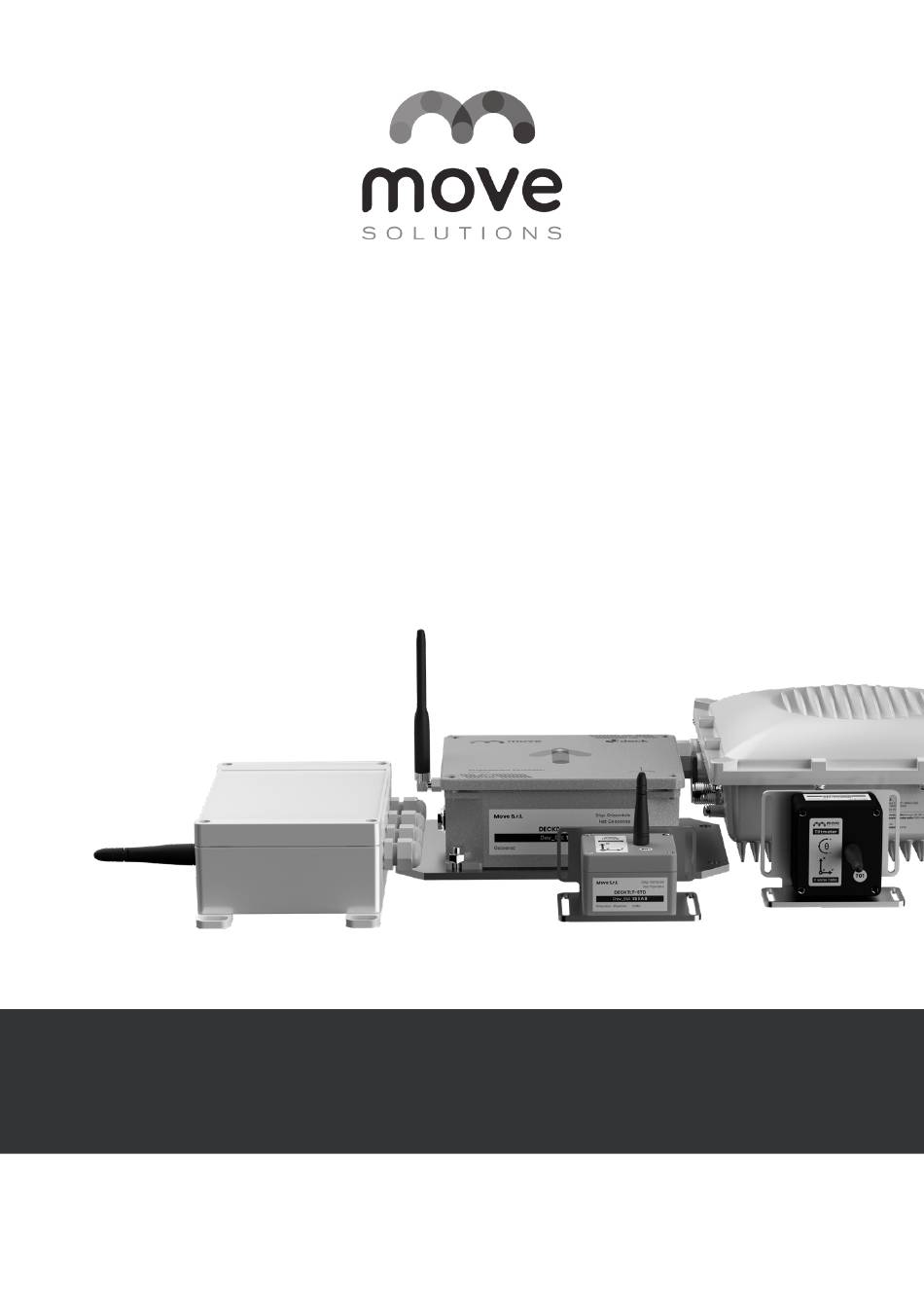

Page 1 Instruction Manual Sensors for structural health monitoring of civil works Quick installation guide and system operation Important safety, compliance and warranty information...
Page 2 Instruction Manual English Read Manual Before Product Use LICENSE AND COPYRIGHT © 2021 Move S.r.l. All rights reserved. PUBBLICATION Move S.r.l. Made in Italy Month of publication: 10/2021 Piazza Cavour 7, 20121 Milan - Italy NOTICE OF PUBLICATION: Via Guglielmo Lippi Francesconi 1256/J, 55100 Lucca - Italy The manual for these products has been written and published to provide the latest P.IVA: 09887990969...
Page 3 Index 1. Manual user guide 11. Dimensions and overall dimensions 2. Introduction to the Structural Monitoring System 12. Warranty 3. Use and safety guidelines 13. Frequent problems in use 4. Guide to load tests 14. Note 5. DECK device Quick guide to use DECK unpacking instructions DECK orientation DECK installation guide...
Page 4: How To Use This Manual
It is important that any user responsible for the installation, configuration, use and Please follow all warnings and instructions marked on the product. maintenance of the Move Solutions™ structural monitoring system in the civil field has read this manual in advance.
Page 5: Sensor Package
The Move Solutions™ monitoring system consists of multiple types of wireless sen- Analysis of the structure. The accelerometer also integrates a temperature sensor. sors bundled with a software suite - the Move Cloud Platform™ - for displaying and managing data and devices.
Page 6: Intended Use Of The System
INTENDED USE OF THE SYSTEM For correctly operating the Move Solutions™ monitoring system, follow the exact • Failure to comply with the rules of use and the methods of intervention, in- procedures and instructions given in the chapters “Intended use”...
Page 7: Residual Risks
RESIDUAL RISKS gnetic fields. They could interfere with the operation of the product, During the design phase, Move Solutions™ carried out an in-depth risk analysis on causing problems with the data detections’ quality. the system in question. From this analysis emerged risks that cannot be eliminated •...
Page 8 • The Y axis of the label aligned along the direction of travel of the span. its initial position, it is possible to monitor via the Move Cloud Platform™. • The start of the span (normalized position 0.00) and consequently its end •...
Page 9 DECK sensors and the Accelerometer sensors. data detected in real-time using the “Static Deformation” tool (located in the Da- shboard on the Move Cloud Platform™). The data packets detected are visible and DECK selectable through the “List of events” and are continuously updated according to the Displacement values measured expressed in mm.
Page 10 Gateway without interference or data al- Move Cloud Platform™ - is exceeded. The displacement values measured are expres- teration. Verify, via the Move Cloud Platform™, if the sensor just installed is working sed in mm. It also acquires temperature data.
Page 11 All devices manufactured by Move Solutions™ are tested and fine-tuned by the ma- targeted points, in accordance with the supplier company. Each specific DECK device nufacturer before being shipped and delivered to the customer.
Page 12 5.3 DECK Orientation ARROW LABEL The “Arrow” element communicates that the device must be installed with the cover parallel to the axis involved in the measurement. The letter (X; Y; Z) shown on the “Ar- ORIENTATION LABEL row” symbol indicates to which specific axis the device must be oriented accordingly, For the DECK device to perform a correct measurement, its installation and orienta- see section “Correspondence of the axes”.
Page 13 5.4 DECK installation guide ARRANGEMENT OF THE SENSOR The place where the device must be installed with respect to the structure is speci- fied in the lower left section of the label: INSTALLATION ON THE STRUCTURE • Vertical arrangement: DECK must be installed on the wall. It is possible to proceed with the installation of each device after having agreed with the supplier company on the specific installation site and having understood how to •...
Page 14 IMPORTANT IMPORTANT • DO NOT install the device near large metal structures that can cause • The product has been designed, manufactured and tested to meet all interference by interrupting or modifying the radio communication si- specific standards if and only if installed, oriented and configured per- gnal.
Page 15 The axes shown on the orientation label, which is placed on the sensor The data acquisition methods can be set by the user through the Move Cloud Pla- cover, must be aligned as the axes of interest of the structure.
Page 16 Δφ - Δθ - INCLINATION COMPENSATION With the Move Cloud Platform™, it is possible to activate or deactivate (it is activated by default) a feature called “Data compensation”, thanks to which compensation is THETA angle θ...
Page 17 Remove the existing battery. Insert a new D 3.6V lithium battery, paying attention to respect the polarity in- dicated on the battery holder, it is advisable to contact Move directly to obtain batteries that maximize the life of the sensor.
Page 18 6.4 Tiltmeter Orientation 6.5 Tiltmeter installation guide ORIENTATION LABEL INSTALLATION ON THE STRUCTURE Before installing the device on the structure it is necessary to understand how to To allow the Tiltmeter device to perform a correct measurement, it is necessary to correctly orient the axes shown on the orientation label located on the device cover.
Page 19 In order to install the Tiltmeter sensor in any of the described configurations, while The weight of the device is shown in this manual in the “Tiltmeter Technical specifica- maintaining the correct alignment of the X axis with the gravitational axis, it is ne- tions”...
Page 20: Correct Installation
CORRECT INSTALLATION Figure 1 - Front view of the Tiltmeter When installing the Tiltmeter sensor on the structure, make sure that the X axis Display of the “Region of correct positioning”. (always oriented upwards) is positioned within the “Region of correct positioning” X axis of reference (see “Figure 1”...
Page 21 Scheduled synchronized mode: scheduled data acquisition during which all data alteration. sensors are synchronized with each other. It is possible to set - on the Move Verify, via the Move Cloud Platform™, the correct functioning of the sensor just in- Cloud Platform™...
Page 22 Accelerometer device must be firmly installed on a All devices manufactured by Move Solutions ™ are tested and fine-tuned by the ma- wall, ceiling or floor of any structure, in specific and targeted points, according to the nufacturer before shipping and delivery to the customer.
Page 23 8.3 Accelerometer orientation 8.4 Accelerometer installation guide ORIENTATION LABEL INSTALLATION ON THE STRUCTURE Before installing the device on the structure it is necessary to understand how to Depending on the context and the morphology of the structure, the Accelerometer correctly orient the axes shown on the orientation label located on the device cover. device can be installed in any arrangement: The orientation label acts as an indicator of the direction in which the Accelerometer •...
Page 24 In order to install the Accelerometer sensor in any of the configurations described, IMPORTANT it is necessary to: • DO NOT install the device near large metal structures that can cause Unscrew the two M6 screws connecting the plate/sensor. interference by interrupting or modifying the radio communication si- Rotate the installation plate to the correct arrangement.
Page 25: Remote Configuration
Move Cloud Platform™. The con- version factors and data units of measurement can be set by the user via the Move It is recommended to configure the device via the Move Cloud Platform™ before Cloud Platform™...
Page 26 Node” is envisaged. LoRaWAN 868 Mhz Antenna 1 pz. It is absolutely forbidden to make any changes to the Move Solutions™ civil structural Universal nylon anchor with screw 4 pz. monitoring system. Any damage to people, animals or things resulting from the use of the device improperly modified by an unauthorized operator, is not attributable to Check for any damage to the device.
Page 27 The configuration options listed in the “Options” panel of the Move Cloud Platform™ Select the specific Dev_EUI of the Analog Node you want to configure from the are totally dependent on the type of sensor interface. You can select the sensor in- menu alongside that of the types of devices.
Page 28: Device Orientation
2 minutes, 10 minutes, 30 minutes, 1 hour to optimi- INSTALLATION ON THE STRUCTURE ze battery life. To make this change contact Move Solutions™. Based on the context and the morphology of the structure, the Analog Node device can be installed with the following methods: •...
Page 29 Before proceeding with the connection of a wired sensor, make sure that the Analog Node is turned off. If necessary, move the “ON / OFF” jumper, positioned at the top between the two batteries, to the OFF position.
Page 30 Pt100s usually have two wires of one color and two wires of another color. Arbitrarily manufacturer. Any operating error resulting from incorrect or improper con- choose one color as “Signal +” and one as “Signal -”. nection is not attributable to Move Solutions™. Sensor connectors Position in the Analog Node terminal...
Page 31 FINALIZATION OF THE INSTALLATION IMPORTANT Verify through the Move Cloud Platform™ that the Analog Node device and all its • DO NOT install the device near large metal structures that can cause connected sensors are online and configured correctly. Check that there is an effecti-...
Page 32 After having satisfied these configuration, installation and powering steps, the SHM Gateway will be able to receive and forward data continuously to the online servers. Verify, through the Move Cloud Platform™ viewing and management platform, the correct functioning of the monitoring system just installed.
Page 33 2m Ethernet cable 1 pz. Ethernet cable gland 1 pz. It is forbidden to make any changes to the Move Solutions™ civil structural monito- ring system. Disassembling this product may cause data reception anomalies. The Installation kit 1 pz. use of the device modified improperly by an unauthorized operator relieves the ma- GPS installation plate 1 pz.
Page 34: Access To The Network
Power up and then turn on the SHM Gateway device, see “SHM Gateway Instal- lation Guide”. Log in to the Move Cloud Platform™ with the login information provided. Check through the “System Status” panel if the SHM Gateway device is cor- rectly Online.
Page 35 “Gateway SHM Instal- Connect the PoE adapter to the power supply. lation Guide”. Log in to the Move Cloud Platform™ with the login information provided. Check through the “System Status” panel that the Gateway SHM device is cor- IMPORTANT rectly Online.
Page 36: Static Ip Address Configuration
TEMPORARY NETWORK DISSERVICE The Gateway SHM device is able to store the data detected and transmitted by the sensors even in the event of a network outage and forward them to the Move Cloud Platform™ as soon as it is available again.
Page 37: Device Location
It is good to keep some aspects in mind before proceeding with the handling, instal- before it is possible to correctly view all the sensors online on the Move Cloud lation and subsequent use of the device. In particular, it is necessary to verify that the Platform™.
Page 38: Wall Fixing
Step 02 WALL FIXING Place the two clamp elements around the pole and tighten them with the included Step 01 M6 * 110 bolts, washers and nuts. Attach the supplied cross bracket to the bottom of the Gateway SHM with four M6 * 12 bolts.
Page 39 Step 03 PROTECTION FROM WEATHER CONDITIONS Connect the fixing plate installed on the wall with the cross bracket by fixing the last To better protect the Ethernet cable gland and the antenna connector from bad element of the mounting kit in place using M6 * 30 bolts, washers and nuts. weather, it is necessary to cover them with PVC tape.
Page 40 In case of non-compliance with the recommendations contained in Wrap three additional layers with PVC tape with natural unrolling force and 50% this document, Move Solutions assumes no responsibility for any da- overlap. Make sure you cover the head and tail of the connector.
Page 41: Overall Dimensions
The components included in the package may vary depending on the model or or version purchased. The components indicated refer to the model of the version purchased. The components indicated refer to the model of the DECKT- DECK001-V-FU; DECK001-V-FD; DECK001-V-FW; DECK001-H-UD; DECK001-H- LT-STD monitoring device. WP; DECK001-H-WF monitoring device.
Page 42 12.3 Triaxial Accelerometer 12.4 SHM Triaxial Accelerometer Front view Right view Front view Right view Upper view Upper view NOTE NOTE • The components included in the package may vary depending on the model or • The components included in the package may vary depending on the model or version purchased.
Page 43 12.5 Analog Communication Node 12.4 Gateway SHM Upper view Upper view Right view Right view NOTE NOTE • The components included in the package may vary depending on the model • The components included in the package may vary depending on the model or or version purchased.
Page 44: Warranty
The warranty rules, listed in full in the purchase contract, are valid only if the device is used in the conditions of intended use. If the data and statistics displayed on the Move Cloud Platform™ relating to the in- With the exception of the interventions described in the present manual and only if...
Page 45 DEV_EUI Layout Note DEV_EUI Layout Note Manuale d’Istruzioni - IT 15. Note...
Page 46: License And Copyright
LICENSE AND COPYRIGHT © 2021 Move S.r.l. All rights reserved. MOVE SOLUTIONS CUSTOMER ASSISTANCE SERVICE PUBBLICATION Visit the website at www.movesolutions.it for contact information Made in Italy relating to office addresses and telephone numbers. Month of publication: 10/2021 Manuale d’Istruzioni - IT...
Page 47 . it Move S.r.l Piazza Cavour 7, 20121 Milan - Italy Via Guglielmo Lippi Francesconi 1256/J, 55100 Lucca - Italy P.IVA: 09887990969...
