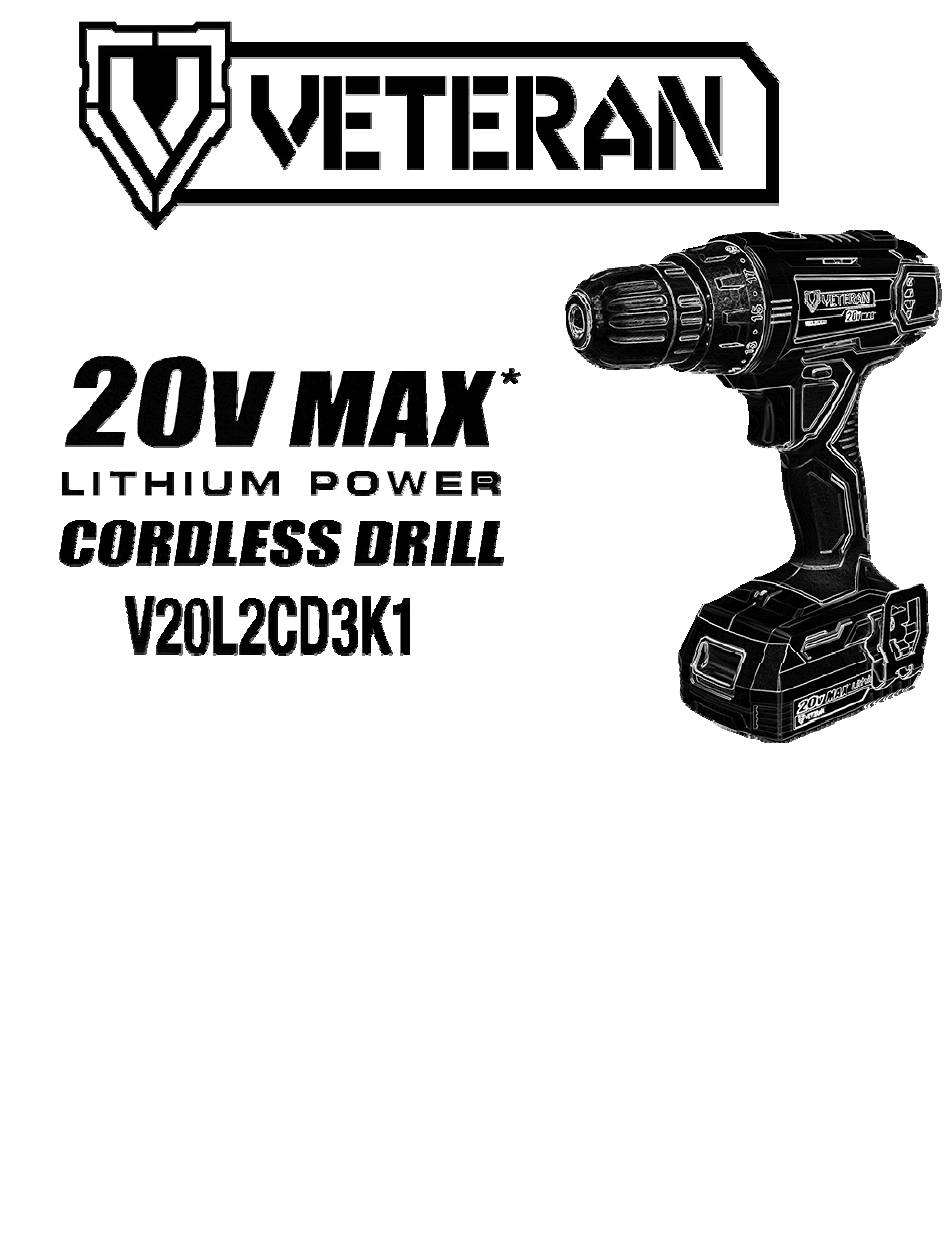

VETERAN V20L2CD3K1 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Warning: For your personal safety.
READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
Failure to follow all instructions may result in electric shock, fire and/or serious injury.
The term "power tool" below refers to your cordless power tool and the associated charger.
INTENDED USE
This machine is designed for drilling in wood and metal sheets, screwing. Do not use machine
attachments for tasks other than those for which they are designed for.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V20L2CD3K1 and is the answer not in the manual?

Questions and answers

Summary of Contents for VETERAN V20L2CD3K1

  • Page 1 Warning: For your personal safety. READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE Failure to follow all instructions may result in electric shock, fire and/or serious injury. The term “power tool” below refers to your cordless power tool and the associated charger. INTENDED USE This machine is designed for drilling in wood and metal sheets, screwing.
  • Page 2 GENERAL POWER TOOL SAFETY, USE AND CARE Work area safety Visibility is key -- keep work area clean and well lit. Cluttered and dark areas invite accidents. Proper protective gear (safety goggles/glasses, etc.) is required when using this tool. Do not operate in the presence of flammable liquids, gasses, or dust. The operation of power tools creates sparks which may ignite the dust or fumes, creating a potentially explosive atmosphere.
  • Page 3 General Power tool use and care Do not force the power tool. Use the correct power for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
  • Page 4 SPECIAL SAFETY INSTRUCTIONS for Lithium‐Ion Battery Packs o Always charge the battery when the temperature is between 18-24°C (32°F to 113°F). Do not charge the battery pack when the temperature is below 0°C (32°F), or above 40°C (113°F) This is important. Failure to observe this safety rule could cause serious damage to the battery pack. o The battery is to be disposed of safely.
  • Page 5 Before using the charger, read all the instructions and cautionary markings on the charger and battery pack as well as the instructions on the battery pack. This model V20L0CH2B1 charger and VETERAN TOOL battery models V20L0BP2B1, V20L0BP4B1 and V20L0BP5B1 are specifically designed to work together. Do not attempt to charge the battery pack with any other charger than the one supplied or attempt to use this charger to charge other batteries.

  • Page 6: Before Using The Equipment

    BEFORE USING THE EQUIPMENT Remove any packing material and loose parts from unit. Check the accessories before use. They should fit with the machine and your purpose. If the battery is new it should be fully charged before use. Batteries are shipped with only a partial charge. NOTE: Extended periods of storage without charge/discharge cycles will reduce the battery capacity.

  • Page 7: Description Of The Symbols

    DESCRIPTION OF THE SYMBOLS Read instructions carefully before any use Complies with relevant European regulations The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal.

  • Page 8: List Of Main Parts

    LIST OF MAIN PARTS 1. Keyless chuck 2. Hi/Low Speed Selector 3. LED work light 4. On/off switch 5. Forward/Reverse Selector 6. Battery release button 7. Belt clip 8. Charger Technical data Voltage 20V MAX No-load speed 0-500/0-1800rpm...
  • Page 9 OPERATION OF DRILL Variable-Speed Trigger Switch Turn the drill on by depressing the trigger switch. Depressing the switch further will produce more speed and torque. Side-Mounted Forward/Reverse Switch Use side mounted Forward/Reverse Switch to change the direction of rotation of the drill. The Use side mounted Forward/Reverse Switch has three positions: Forward, (pushed to the left), Off (middle) and Reverse (pushed to the right).

  • Page 10: Maintenance And Storage

    General screwdriving Clamp your workpiece. Drill pilot holes for larger screws or when driving screws into hardwoods. Exert just enough pressure to start the screw and keep it turning. Do not force the screw. Let the tool do the work. Use a speed that will not strip the screw head or break the screw.
