Summary of Contents for Urbanworx USW-9G

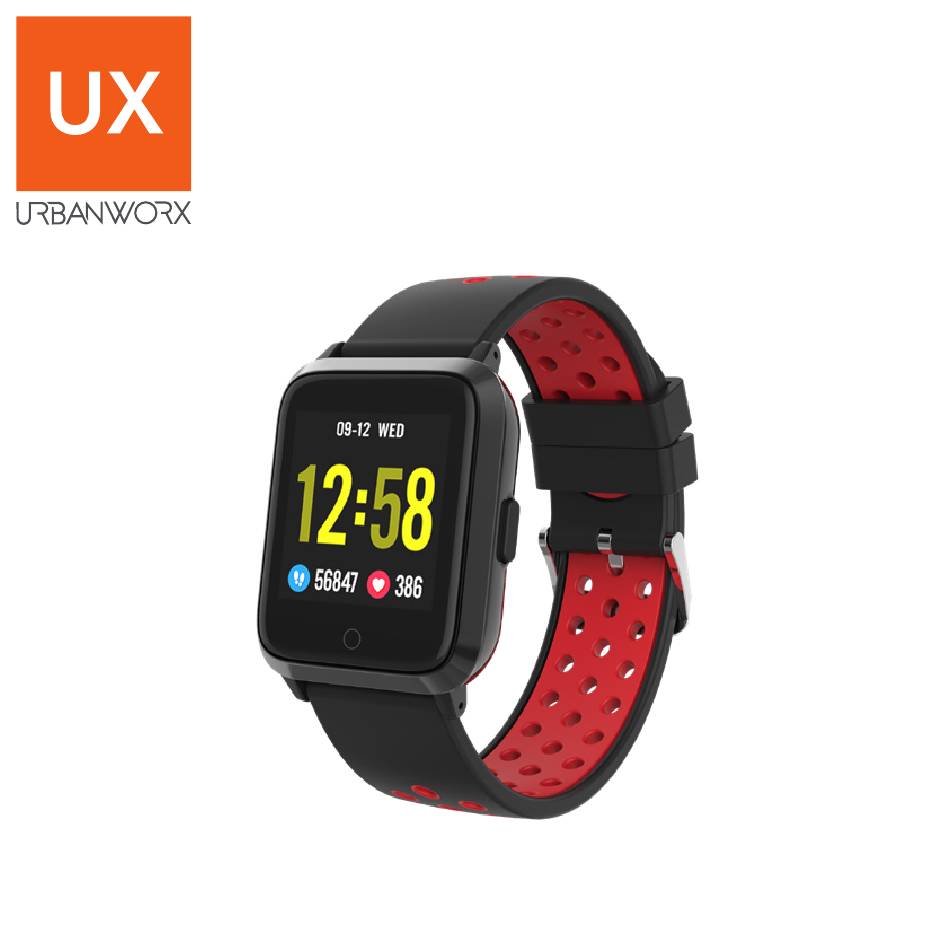

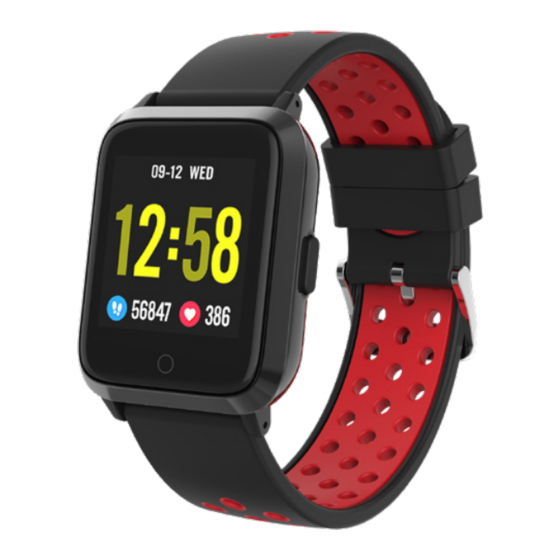

- Page 1 GPS ACTIVE FIT BAND INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
CONTENTS PAGE General Safety Product Overview Connecting to Smartphone Setup Profile App Usage App Usage - Settings Active Fit Band Functions Watchface Pedometer Heart Rate Sports Sleep Message (notifications) - Page 3 CONTENTS PAGE Weather Stop Watch Music Control Find My Phone Specifications Customer Support Last Page The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,Inc. and any use of such marks by Ayonz Pty Ltd is under license. Other trademarks and trade names are those of their respective owners.
-
Page 4: General Safety
GENERAL SAFETY INSTRUCTIONS • When charging the product please use the charging case in the box, please make sure the Active Fit Band is dry before charging. • Please make the Active Fit Band close to your wrist to make the data more accurate. -
Page 5: Product Overview
PRODUCT OVERVIEW 1 Touch Screen 3 Heart Rate Sensor 2 Turn Screen On / 4 Charging Pins 5 Return button Previous Menu... - Page 6 PRODUCT OVERVIEW (Cont.) Plug Charging frame USB plug into a powered USB Port. Open the charging case frame, and place the Active Fit Band into the frame and close it. Make sure to align and place the Metal pins of the Charger with the metal point on the back of the Active Fit Band, if done so correctly the charging icon will appear on the screen...
-
Page 7: Connecting To Smartphone
CONNECTING TO SMARTPHONE 1. Download the ORunning app on your smart device. Android Once you have downloaded and installed the ORunning app please move onto the next step. - Page 8 CONNECTING TO SMARTPHONE (CONT.) 2. Once opened, pictures of Smartwatches will appear. Watch”. Select the 1st option “GPS...
- Page 9 CONNECTING TO SMARTPHONE (CONT.) 3. Please make sure to carefully select below watch picture which matches your GPS Active Fit Band you pur- chased for either your Android or iOS device. Watch Picture...
- Page 10 CONNECTING TO SMARTPHONE (CONT.) 4. The Active Fit Band will now appear as the model number USW-9G, select the Band model. (highlighted below) USW-9G 5. ORunning app will now start Connected Successfully at the top. Now you can press “NEXT” marked below to...
- Page 11 2. Then select the 10th option “Connect Device”, follow the same procedure as “Connecting to Smartphone Steps” as previously shown and selecting the correct pictures to then detect “USW-9G” as the device you want to connect to.
-
Page 12: Setup Profile
SETUP PROFILE Now that you have successfully connected Smartphone, it will now take you to the Profile page, but ORunning app will first request access to multiple aspects of your phone. In order for the app to fully function, you must select “Allow”... - Page 13 SETUP PROFILE (CONT.) Now that you have allowed access to your phone, setup the below in order to proceed: Pic - photo of anything is optional. Gender - Female or Male Birthday - Date of birth Weight - Body weight Height - Total height Once you have entered all details, you can now...
-
Page 14: App Usage
APP USAGE Once all completely setup, you now have real-time data provided to you on your steps, Kcal burned, Kms travelled, sleep patterns and heart rates. Today - Shows all current statistics you have gone through for the day. Activity - shows all the activity you have done on the week/Month/ Year/All. -
Page 15: App Usage - Settings
APP USAGE - SETTINGS Select “SETTINGS” on Orunning app for the below: My Profile - Edit your profile Goals - Select and adjust goals you want to achieve Notifications - Adjust which notifications to receive Find Device - Makes your Active Fit Band vibrate. 12-Hour Format - adjust between 12 hour or 24 hour. -
Page 16: Active Fit Band Functions
ACTIVE FIT BAND FUNCTIONS Turn watch towards your face or press the one touch point button to wake up the Active Fit Band. Watchface Press and hold the touch button to change watch face. Do the same action to change watchface again. There is 3 options to choose from. -
Page 17: Pedometer
ACTIVE FIT BAND FUNCTIONS (CONT.) STEPS (Pedometer) This will show you the amount of steps you have take for the day so far. (1) Press STEPS icon to go into Steps detailed information. (2) Press the screen to see historical data Return: Swipe the screen from LEFT side to RIGHT side or Press button on side of watch. -
Page 18: Heart Rate
ACTIVE FIT BAND FUNCTIONS (CONT.) HEART RATE - Select Heart Rate and to activate the Heart Rate Sensor (Green Flash back of watch), make sure the watch is on your wrist and strapped up correctly to measure your heartbeat. Press icon on top right corner of screen to view detailed information. -
Page 19: Sports
ACTIVE FIT BAND FUNCTIONS (CONT.) SPORTS - Select “SPORTS”, then you can go through the options by swiping Upwards (slide finger from bottom of screen to the top to navigate sports menu). Options: Walking, In-Walk, Run, In-Run, Ride, Climb Swim, History Once you select type of sport, then you can select what cate- gory of that sport you would like to do such as: Aimless, mile-... - Page 20 ACTIVE FIT BAND FUNCTIONS (CONT.) Once you select the category of sports such as: (1) Run > (2) Time. You will be taken to a page that says GPS LOADING. Please allow 1-2 minutes and then >> arrows (blue button) press the to proceed to next page.
-
Page 21: Sleep
ACTIVE FIT BAND FUNCTIONS (CONT.) SLEEP - Select “SLEEP”, this displays (1) few different parts of your sleep pattern. (2) Press screen to display history of sleep. (Swipe LEFT to RIGHT to return or Press the side button). Return: Swipe the screen from LEFT side to RIGHT side or Press button on side of watch. -
Page 22: Message (Notifications)
ACTIVE FIT BAND FUNCTIONS (CONT.) MESSAGE - Select “MESSAGE”, this displays all recent notifications of your smartphone, whether its phone calls missed or messages received. Note: you can not respond back to messages, only view the notification itself. Return: Swipe the screen from LEFT side to RIGHT side or Press button on side of watch. -
Page 23: Weather
ACTIVE FIT BAND FUNCTIONS (CONT.) WEATHER - Note: Active Fit Band must be connected to Smartphone via the Orunning app for the weather to be displayed as shown below. Set location - To set the location to show correct weather report, open “ORunning”... -
Page 24: Stop Watch
ACTIVE FIT BAND FUNCTIONS (CONT.) STOP WATCH - Select Stopwatch if you want to time yourself during an activity. (1) Press play to start your timer. (2) Press to set as a lap and continue the activity (3) Press to pause your timer. (4) During pause, Press to reset the time. -
Page 25: Music Control
ACTIVE FIT BAND FUNCTIONS (CONT.) MUSIC CONTROL - Select “MUSIC” which will allow you to control music that is being played by your connected smart device from your watch. Return: Swipe the screen from LEFT side to RIGHT side or Press button on side of watch. -
Page 26: Find My Phone
ACTIVE FIT BAND FUNCTIONS (CONT.) FIND MY PHONE - Select “FIND MY PHONE”, as soon as this is pressed, (if connected) your smart device will start beeping so you can find it if lost within your home and within range of being connected via BT. Find My Phone - Press and hold touch button to select this option, then short press to make your smartphone beep... -
Page 27: Specifications
SPECIFICATIONS Screen size/resolution: 240x 240, 1.3” Full Touch Bluetooth version: BT 4.2 BLE GPS Tracking: Yes Battery size: 200mAh Usage time while GPS in use: up to 6 hours Usage time while BT in use: up to 5 days Standby time: up to 30 days Waterproof: IP68 Product material: Stainless Steel + Plastic + Silicon Belt Product size:... - Page 28 SUPPORT: info@ayonz.com DISTRIBUTED BY: Ayonz Pty Ltd...
