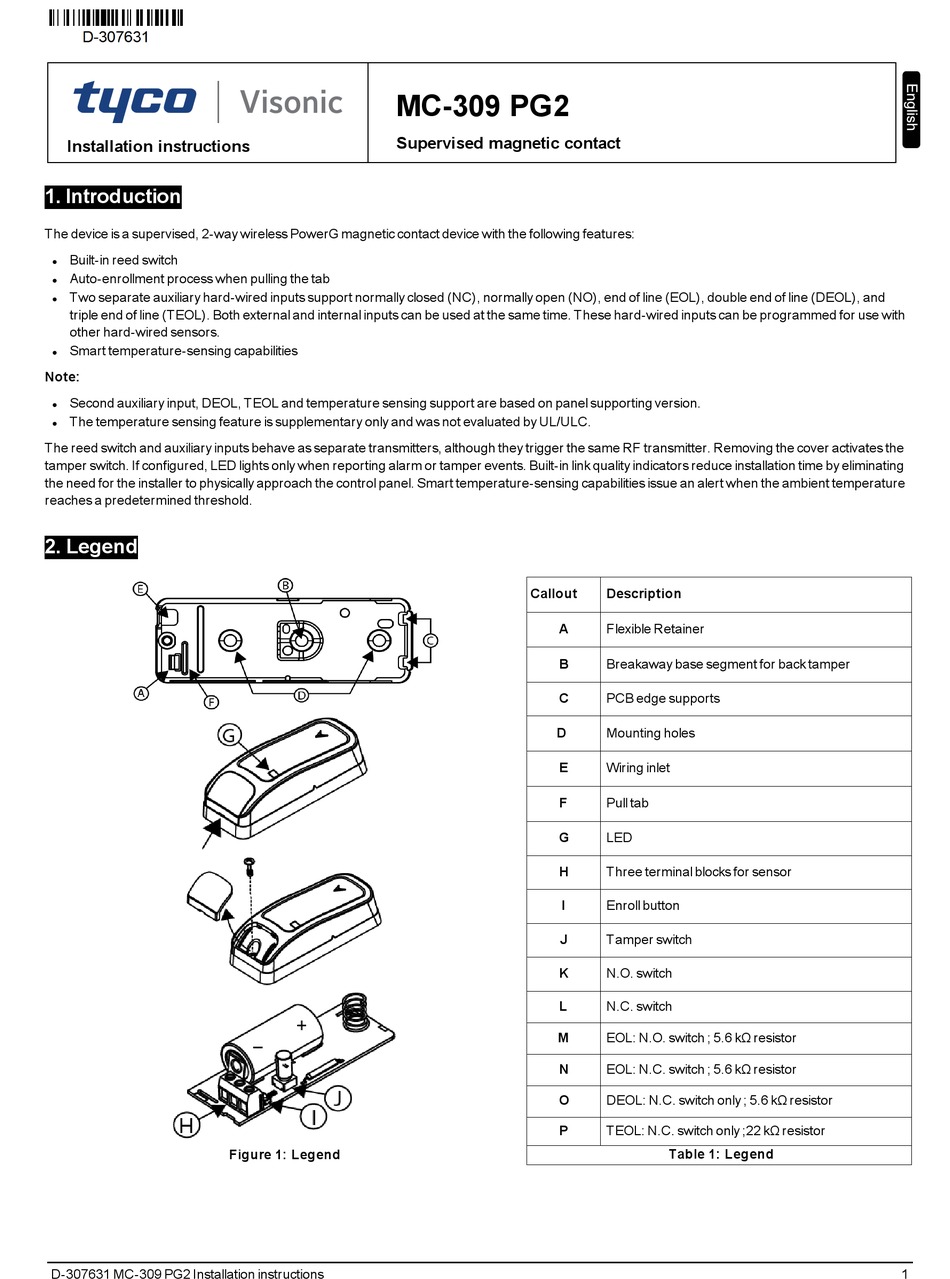

Tyco MC-309 PG2 Installation Instructions Manual

Installation instructions
1. Introduction
The device is a supervised, 2-way wireless PowerG magnetic contact device with the following features:
Built-in reed switch
l
Auto-enrollment process when pulling the tab
l
Two separate auxiliary hard-wired inputs support normally closed (NC), normally open (NO), end of line (EOL), double end of line (DEOL), and
l
triple end of line (TEOL). Both external and internal inputs can be used at the same time. These hard-wired inputs can be programmed for use with
other hard-wired sensors.
Smart temperature-sensing capabilities
l
Note:
Second auxiliary input, DEOL, TEOL and temperature sensing support are based on panel supporting version.
l
The temperature sensing feature is supplementary only and was not evaluated by UL/ULC.
l
The reed switch and auxiliary inputs behave as separate transmitters, although they trigger the same RF transmitter. Removing the cover activates the
tamper switch. If configured, LED lights only when reporting alarm or tamper events. Built-in link quality indicators reduce installation time by eliminating
the need for the installer to physically approach the control panel. Smart temperature-sensing capabilities issue an alert when the ambient temperature
reaches a predetermined threshold.
2. Legend
D-307631 MC-309 PG2 Installation instructions
MC-309 PG2
Supervised magnetic contact
Figure 1: Legend
Callout Description
A Flexible Retainer
B Breakaway base segment for back tamper
C PCB edge supports
D Mounting holes
E Wiring inlet
F Pull tab
G LED
H Three terminal blocks for sensor
I Enroll button
J Tamper switch
K N.O. switch
L N.C. switch
M EOL: N.O. switch ; 5.6 kΩ resistor
N EOL: N.C. switch ; 5.6 kΩ resistor
O DEOL: N.C. switch only ; 5.6 kΩ resistor
P TEOL: N.C. switch only ;22 kΩ resistor
Table 1: Legend
1
