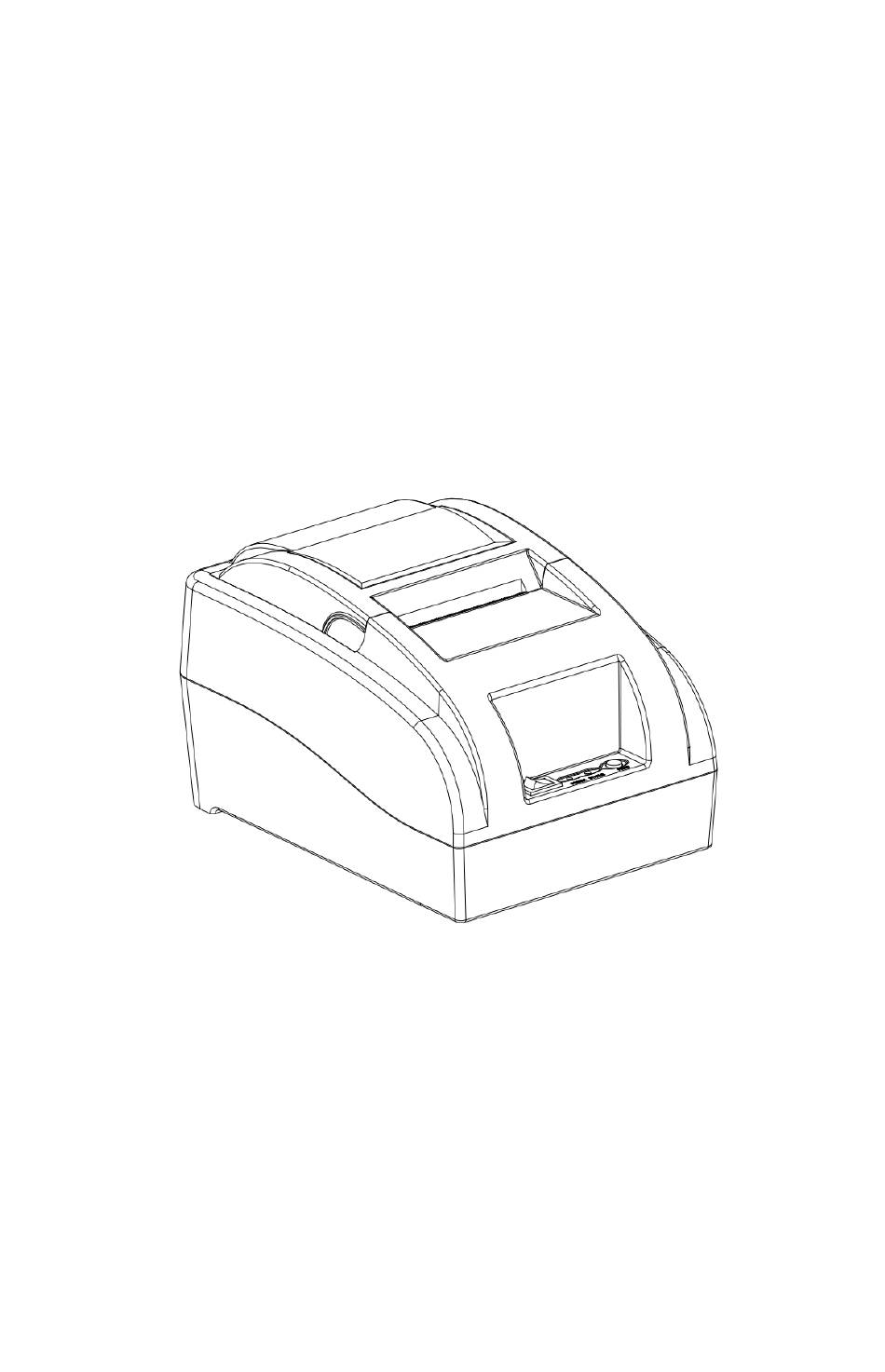

- Page 1 Thermal Receipt Printer DT40P User Manual...
- Page 2 Thank you for choosing our product. The FLASH DT40P Thermal Receipt Printer is the perfect solution for a safe, reliable and efficient printing quality at an affordable price. We recommend reading thoroughly all the information stipulated in this manual in order to make...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING Do not touch the Printer head right after Printing to avoid any burn Keep the machine away from heavy humidity and high temperature as it may prevent it from working properly. Do not drop conductive objects into the machine to prevent internal short circuit. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS This product should not be exposed to: Shaky or vibrating surface High temperature including but not limited to strong sunlight, radiator heater register. High humidity and dust as this may damage the machine Water or other liquids. In case of spilled liquid into the interior of the machine, please stop operating, switch off and disconnect the power cord. - Page 5 PARAMETERS Print Method Thermal Line Printer Print Print Width 48MM Parameters Resolution 384dots/Line（8dots/mm，203dpi） Printing Speed 70mm/Second Interface Type USB-B Port Line Spacing 3.75 mm（Can adjust by command） Line No. Font A:32 character /Line - Font B:42 character/Line Character Standard GB18030 simplified Character Size Font A: 1.5×3.0mm (12×24Dots）...
- Page 6 Female Serial Plug into your device. This works with our DETECK DT800 and DT600 Money Counters If your device has a Lan Port connection i.e. DETECK DT200 Money Counter, please (1) connect the Serial Port cables together as indicated in...
- Page 7 Loading Paper 1. Open the upper cover of the printer 2. Insert the roll paper as shown in the illustration 3. Pull out a part of paper, and close the cover as show in 3 and 4 4. Press down the flip cover and tear off the paper with the cutter Note: take care of the roll direction, if inserted in the inverse direction, the content will not print out .
-
Page 8: Maintenance
Switch, Key name, Indicator and Function 1. POWER Switch The power switch is used to turn the printer On or Off 2. (FEED) Key Press the FEED button to advance paper or hold down to feed continuously 3. (STATUS) Green Light If the STATUS light is off, this indicates that the printer is in normal working state. -
Page 9: Troubleshooting
TROUBLESHOOTING Error Phenomenon Reason Corrective Action Printer Status 1.Lack of paper 1. Add Printing Paper indicator is flashing 2.Printer head is over 2.Open the cover to help heating dissipate the heat 3. Cover is not closed 3. Close the cover properly Printer only perform a Paper roll installed in... -
Page 10: Warranty
WARRANTY This DETECK product is warranted to be free of defects in materials and workmanship for one (1) year after the date of purchase. Please ensure you activate your warranty by visiting our website: https://deteckusa.com/warranty If you need to contact Deteck Technical Service Center, please have...
