- Page 1 2 x 20V 14-Inch Brushless Cordless Chainsaw CS-40A...

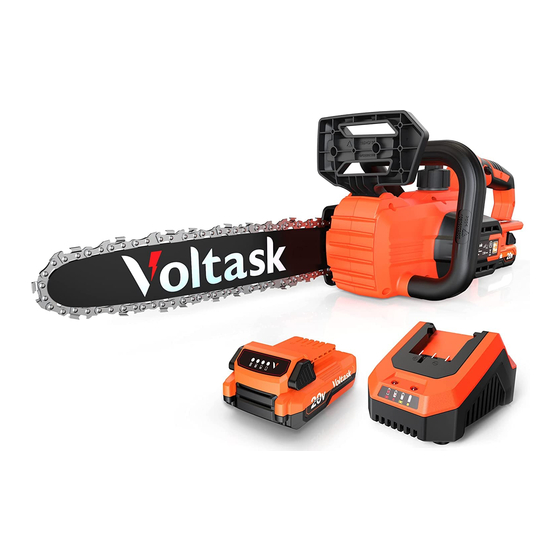

- Page 2 Thank you for purchasing our Voltask 2 x 20 V 14-inch brushless cordless chainsaw. This chainsaw has beenengineered and manufactured to meet Voltask's high standards in product reliability, ease of use and safety. When properly used, it will give you years of powerful trouble-free performance.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION PACKAGE CONTENTS SYMBOLS GENERAL SAFETY INSTRUCTIONS PRODUCT OVERVIEW TECHNICAL SPECIFICATIONS CHARGER INDICATORS ASSEMBLY OPERATING INSTRUCTIONS BASIC WORK TECHNIQUE CLEANING AND MAINTENANCE STORAGE AND TRANSPORT DISPOSAL TROUBLESHOOTING WARRANTY... -
Page 4: Introduction
INTRODUCTION -This device should only be used with the approved original chain for cutting wood. -Do not use this power tool at temperatures below 14 F(-10"C). -This power tool may only be used with the accessory parts listed under accessories. -This product is not intended for commercial use, Generally acknowledged accident prevention regulations and endorsed safety instructions must be observed. -
Page 5: Symbols
SYMBOLS DANGER! Direct danger to life and risk of injury! Directly dangerous situation that may lead to death or severe injuries. WARNING! Probable danger to life and risk of injury! Generally dangerous situation that may lead to death or severe injuries. CAUTIONI Possible risk of injury! Dangerous situation that may lead to injuries. -
Page 6: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS To safely operate this device, the user must have read and understood these instructions for use before using the device for the first time.If you sell or pass this device on, you must also hand over these operating instructions. General Power Tool Safety Warnings WARNING! Read all safety warning and instructions. - Page 7 ● Store idle power tools out of reach from children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. ● Maintain power tools. Check for misalignment or binding of moving parts, broken parts, and any other condition that may affect the power tools operation.
- Page 8 Chainsaw Safety Warnings ● Keep all body parts away from the chain when the chainsaw is operating. Before you start the chainsaw, make sure the chain is not in contact with anything. A moment of inattention while operating this chainsaw may cause entanglement of your clothing or body with the chain.
- Page 9 -Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chainsaw in unexpected situations. -Only use replacement bars and chains specified by the manufacturer. Incorrect replacement bars and chains may cause chain breakage and/or kickback.
- Page 10 Always hold the device firmly in both hands. Always maintain a sufficiently safe distance. Only recharge the battery pack indoors. Do not dispose of the battery pack in water Do not burn the battery pack. Do not expose the battery pack to sunlight or increased temperatures. Length of the guide bar.
-
Page 11: Product Overview
PRODUCT OVERVIEW ① Rear handle ⑪ Safety lock ② Oil tank cover ⑫ ON/ OFF switch ③ Front hand guard (trigger for chain brake) ⑬ Battery pack ④ Saw chain ⑭ Front handle ⑤ Guide bar ⑮ Battery indicators ⑥ Chain tensioning screw ⑯... -
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS Chainsaw Idling speed 8000 r/min Guide bar length 14 in (335mm) Cutting speed 15 m/s Oil tank capacity 6 oz (180ml) Noise pressure level <99dB Weight (including battery and charger) 15.7 lbs (7.12kg) Battery Charger Rated voltage 120V, 60Hz Charging voltage 2 x 20V Charging current... -
Page 13: Charger Indicators
CHARGER INDICATORS CHARGER INDICATORS... -
Page 14: Assembly
ASSEMBLY DANGER! Risk of injury during operation! Improperly mounted parts can cause severe and even fatal injuries when using the device! This device may only be used if all parts are mounted completely and tightly and no part is damaged. ●... - Page 15 5. Attach the chain wheel guard. 6. Gently tighten the quick locking device clockwise. Adjusting Chain Tension 1. Slightly lift up on the tip of the guide bar. 2. Check if the saw chain runs smoothly by turning it manually. 3.
- Page 16 Checking the Chain Brake The chain brake ensures immediate blocking of the saw chain in case of kickback. Before beginning work with the device, it should be checked to ensure that it is functioning correctly. 1. Set the device on the ground. 2.
-
Page 17: Operating Instructions
OPERATING INSTRUCTIONS Safety Equipment The device has several pieces of safety equipment that help reduce the risk of injury when working： 1. Bump Stop 2. Chain Catcher The bump stop enables the motor block to be The chain catcher serves to catch a torn saw chain secured to the wood when using pull saws. - Page 18 The battery pack must be charged prior to the first startup. 1. Press the push lock button and remove the 2. Insert the battery pack into the charger. battery from the device. 3. Plug the charger into the power supply. The charging status is displayed by the charger indicators. 4.
- Page 19 Switching On/off -Hold the device firmly with both hands. -The hand guard must be folded towards the back. -Switching on: press safety lock and ON/OFF switch simultaneously. -Switching off: release on/oFF switch. Note: The device will turn on only when both the safety lock and ON/OFF switch are both engaged. After it is switched on, the safety lock can be released The ON/OFF switch needs to be held down for the device to operate.
- Page 20 Risk of kickback Kickback occurs if the upper edge or tip of the guide bar strikes wood or other hard objects. The device is thrown with high energy back and forth, which can cause extremely severe injuries. DANGER! Risk of injury! When working with this device, dangerous kickback may occur.
-
Page 21: Basic Work Technique
BASIC WORK TECHNIQUE DANGER! Risk of injury! This section treats the basic work technique when handling this device. The information provided here does not replace the many years of training and experience of a professional. Do not perform any work for which you are not sufficiently qualified Thoughtless handling of this device can cause severe or even fatal injuries. - Page 22 Felling a Tree DANGER! Risk of injury! Felling and delimbing work should only be performed by trained people！There is risk of fatal injuries. Before beginning the felling work, make sure that： ● There are no people or animals in the felling area of the tree. ●...
- Page 23 Propped-up Trunks It is recommended that you place trunks to be sawed through on sawhorses. Ifthis not possible,the trunk should be lifted with the help of supporting branches and placed over trestles. In area A, first cut through approximately one third of the trunk diameter from above downwards, then make the final cut from below upwards.In area B, first cut through approximately one third of the trunk diameter from below upwards, then saw through from above.
-
Page 24: Cleaning And Maintenance
CLEANING AND MAINTENANCE DANGERI Risk of injury! Before any maintenance or cleaning work: -Remove the battery. -Let the device cool down. Cleaning the Device ● Remove coarse dirt. ● Wipe down the device with a slightly damp cloth. Cleaning the Oil Guide Groove of the Guide Bar ●... -
Page 25: Storage And Transport
STORAGE AND TRANSPORT Storage DANGER! Risk of injury! Make sure that unauthorized persons do not have access to the device. ● Let the device cool down before you store it. ● Store the device in a horizontal position. ● If you are not going to be using the device for a while,remove the chain oil from the device.Store the device in a dry place. -
Page 26: Troubleshooting
TROUBLESHOOTING When Something lsn' Working DANGER! Risk of injury! Improperly performed repairs can lead to the device not functioning safely. This can endanger yourself and the environme Problem Possible Cause Possible Solution • Tool will not start. • Battery not installed properly. •... -
Page 27: Warranty
("warranty period") on all of our products. The warranty service covers the situations after you purchase new and unused product from Voltask company, with anoriginal proof of purchase and where a defect has arisen, wholly or substantially, as a result of faulty manufacture, parts or workmanship during the warranty period. - Page 28 Webside: www.voltask.com Email: support@voltask.com FB: @voltasktools IG: @voltasktools...
