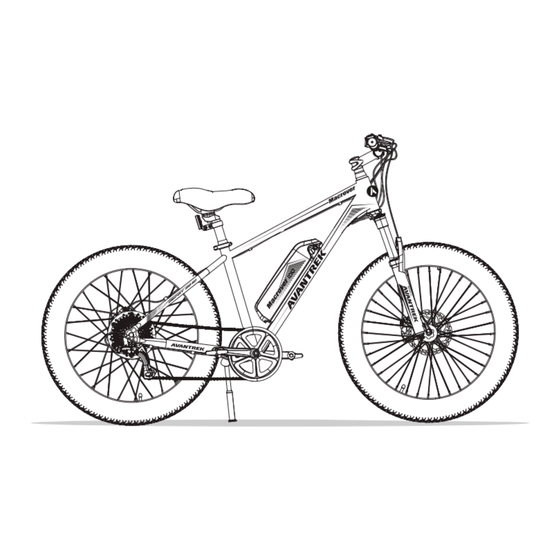

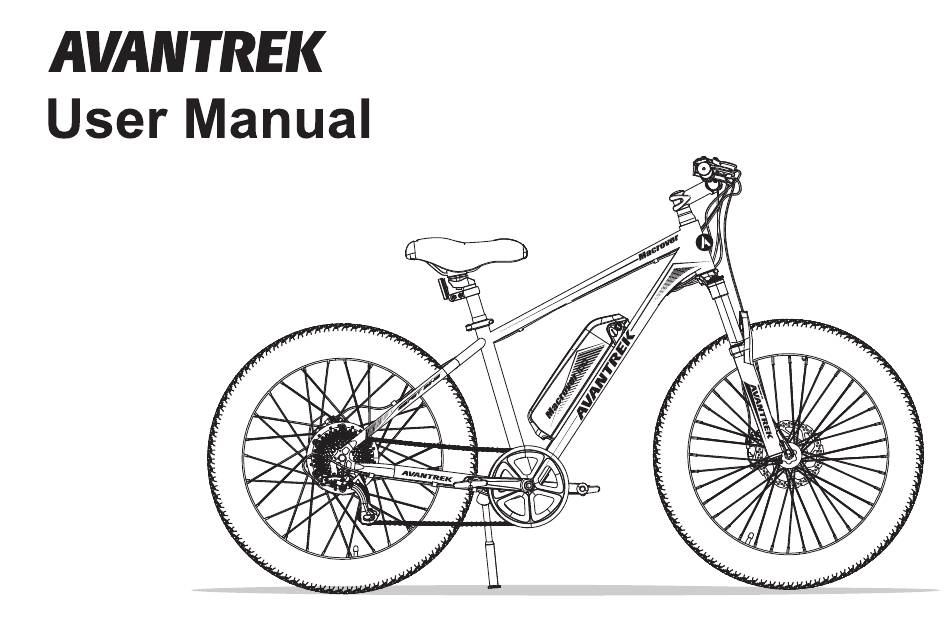

- Page 1 Electric Bike Model:Macrover100...
- Page 2 Riding Safety Thank you for choosing the AVANTREK Macrover 100 fat tires electric bike (hereinafter referred to as Macrover 100)! It is extremely important that you follow the safety guidelines contained in this manual in order to ensure maximum safety for you as well as maximum durability of your eBike.
-
Page 3: Table Of Contents
Contents ............................1. PRODUCT OVERVIEW ............................2. PACKAGE CONTENTS .......................... 3. HOW TO ASSEMBLE THE EBIKE ......................... 4. HOW TO CHARGE THE BATTERY ..............................5. RIDING MODES ............................6. DISPLAY AND BUTTONS ........................... 7. BEFORE YOU RIDE CHECKLIST ............................... 8. MAINTENANCE ................................ -
Page 4: Product Overview
1. PRODUCT OVERVIEW LCD Display Handlebar Gear Lever Brake On/Of Switch Battery Saddle Front Fork Quick Release Charging Disc Brake port Pedal Motor - 03 -... -
Page 5: Package Contents
2. PACKAGE CONTENTS 1 × Bike frame + rear wheel 1 × Wheel 1 × Saddle 2 × Pedal 5 × Allen Key 1 × Derailleur protecting rack 1 × Charger 1 × Battery 1 × Wrench 1 × User manual 4 ×... -
Page 6: How To Assemble The Ebike
3. HOW TO ASSEMBLE THE BIKE Before Installation When unpacking your eBike, please verify that the above items are included in the package. If you are missing any components, please contact your dealer for support. After verifying that all components are present and in good condition, you can assemble your new fat tires electric bike. Please retain the box and packaging materials in case you need to ship your Macrover 100 in the future. - Page 7 Step 2. Install the handlebar 90° 90° Loosen screws WARNING: DO NOT over tighten the stem bolts. Over tightening the stem bolts can damage the steering system and cause loss of control. - 06 -...
- Page 8 Step 3. Install the front wheel Warnings: Your Macrover 100 is equipped with a front disk brake. Be careful not to damage the disk, caliper or brake pads when reinserting the disk into the caliper. Never activate a disk brake’s control lever unless the disk is correctly inserted in the caliper. Each side brake caliper of the wheel...
- Page 9 Step 4. Install the rear derailleur protecting rack Step 5. Install pedals 1. Identify the correct side by finding the marked ‘R’ and ‘L’ at the pedals. Each pedal has an “L” sticker or “R” sticker to indicate left or right side of the eBike. 2.
- Page 10 Step 6. Install the saddle 1. Insert the saddle into the seat post, then screw the bolts tightly. 2. Loosen the seat post quick release. Insert the seat post to the desired height before securing it in place with the quick release. Tighten the saddle bolt before you ride.
- Page 11 Step 7. Install the battery OFF/ON Step 8. Install the front reflector - 10 -...
- Page 12 Step 9. Install rear reflector - 11 -...
-
Page 13: How To Charge The Battery
4. HOW TO CHARGE THE BATTERY Battery charging 1. Find the charging port on the battery, connect the charger’s plug to the battery charging port; 2. Then connect the other side plug to the AC outlet (100V-240V). The LED on the charger is red color when charging, it will turn to green color when the battery is full charged;... - Page 14 Battery safety void battery warranty. create a fire hazard that could cause you serious injury. when plugged into battery. Once light returns to green, your battery is fully charged. You can then unplug the charger. Battery usage save the battery. home on the charge that is left on the battery.
-
Page 15: Riding Modes
5. RIDING MODES Speed Modes Pure Electric Bike Assisted Bike All Electric - Power on the LCD display and switch the speed modes from 1~5 by rotating the throttle. × × Pedal Assisted - Power on the LCD display and switch the speed modes from 1~5 by pedaling. -
Page 16: Display And Buttons
6. DISPLAY AND BUTTONS Before Installation RPS Indicator Battery Level 1. Activate the display - Turn on the battery switch where located on the top right of the battery case to activate the electrical system. Speed mode Speed Gear Up 2. -
Page 17: Before You Ride Checklist
7. BEFORE YOU RIDE CHECKLIST WEAR THE BIKE HELMET: CAUTION: - 16 -... -
Page 18: Maintenance
8. MAINTENANCE Seat post If the seat post quick release becomes difficult to close, lubricate the levers rotational pivot point with thin oil. Open and close it repeatedly until it the pivot point loosens and you can securely fasten seat post. Chain wear Be sure to keep your chain and all moving parts lubed so that they work effectively at all times. -
Page 19: Cleaning
9. CLEANING Seat post While our Macrover 100 fat tires eBike are rain and splash-proof, their electrical components should not be submerged in water. bottom bracket and bubs. IMPORTANT ! Do not attempt to open the casings of the battery, motor, or controller. This can be dangerous and will void any warranties by doing so. If you experience a problem, please contact our service department or your local bike shop. -
Page 20: Storage
10. STORAGE Fully charge the E-Bike before storing to prevent the battery from over-discharge due to long-term storage. If the E-Bike needs to be stored for more than one month, discharge and recharge the battery at least once a month. NOTE: process of plastic parts and may reduce battery life. -
Page 21: Disposal At End-Of-Life
11. DISPOSAL AT END-OF-LIFE product may result in the battery heating up, rupturing, or igniting which may cause serious injury. end-of-life is to dispose of the entire unit at or through an e-waste recycling center, program, or facility. state, and local governments. You must check laws and regulations corresponding to where you live in order to properly dispose of the battery and/or unit. household waste disposal service. -
Page 22: Specifications
12. SPECIFICATIONS Brand name AVANTREK Model name Macrover 100 Net weight 61.7lbs / 28kg Bike dimensions 69.5 x 27 x 41.3 in. / 176.5 x 68.5 x 105cm Package dimensions 59 x 30.7 x 11 in. / 150 x 78 x 28cm Max. -
Page 23: Warranty
13. WARRANTY TERMS OF WARRANTY LIMITED ONE YEAR BATTERY WARRANTY Lithium Ion batteries are warranted to be free from manufacturer defects in materials and/or workmanship for a one year period from the date of original purchase. As it is impossible to know how a battery is cared for, we cannot warranty a battery for diminishing lifetime or charge capacity. LIMITED ONE YEAR COMPONENTS WARRANTY Includes: stem, handlebar, seat post, saddle, brakes, cables, chain, rims, spokes, wheel hub, cassette, derailleur, motor, throttle, controller, kickstand and reflectors. - Page 24 www.iavantrek.com support@iavantrek.com...
